LED Panels vs All-in-One LED Displays: Which Is Better?

Choosing between LED panels and all-in-one LED displays is one of the most important decisions when planning a commercial LED screen project. You need a big, bright display. You start researching. And almost immediately, you hit a fork in the road.

On one side: modular LED panels — the building blocks of large LED video walls. On the other: all-in-one LED displays — sleek, self-contained screens that ship in a box and work out of the box.

Both use LED technology. Both deliver stunning image quality. But that is where the similarity ends — LED panels and all-in-one LED displays are built for completely different jobs. Pick the wrong one and you could end up with a screen that does not fit through the door, costs twice what you budgeted, or needs a full-time technician just to keep it running.

This guide compares LED panels and all-in-one LED displays based on the factors that matter most in real projects, including installation, maintenance, scalability, and long-term value.

Quick Answer

Choose modular LED panels if you need a custom-size, scalable, or outdoor LED display. Choose an all-in-one LED display if you need a fast, simple, and low-maintenance solution for meeting rooms or small commercial spaces.

Table Of Contents

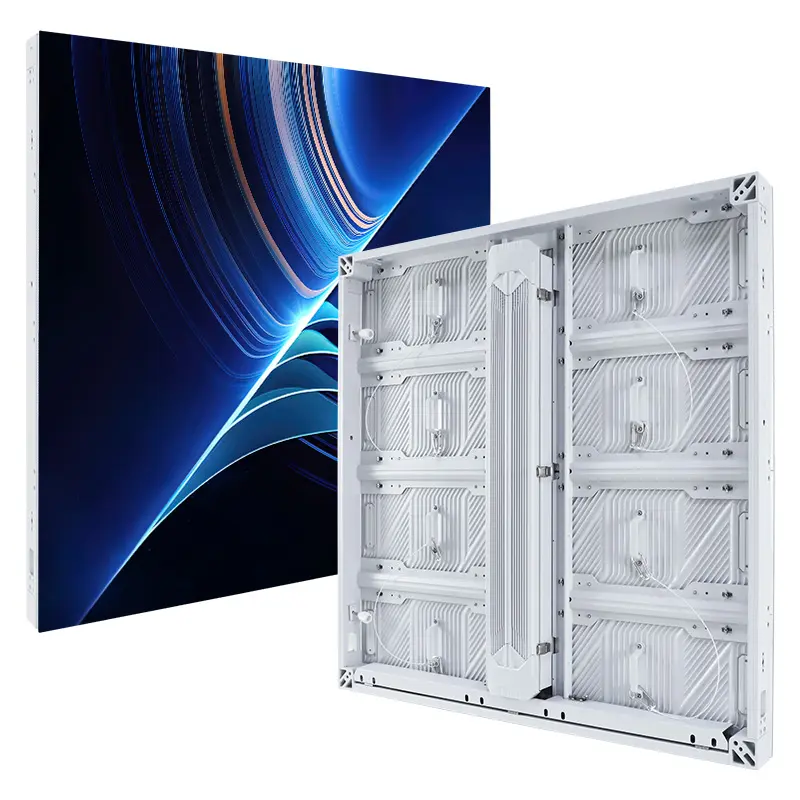

A modular LED panel is a single tile — typically 500 × 500 mm or 500 × 1000 mm — that snaps together with other tiles to form a video wall of almost any size. Think of it as Lego for video walls. You lock panels onto a steel frame, connect cables, calibrate, and the result can range from a small indoor LED display to a massive outdoor screen hundreds of feet wide.

Modular panels power concert stages, sports stadiums, outdoor billboards, and large lobbies. They are flexible, scalable, and repairable — but they are not plug-and-play.

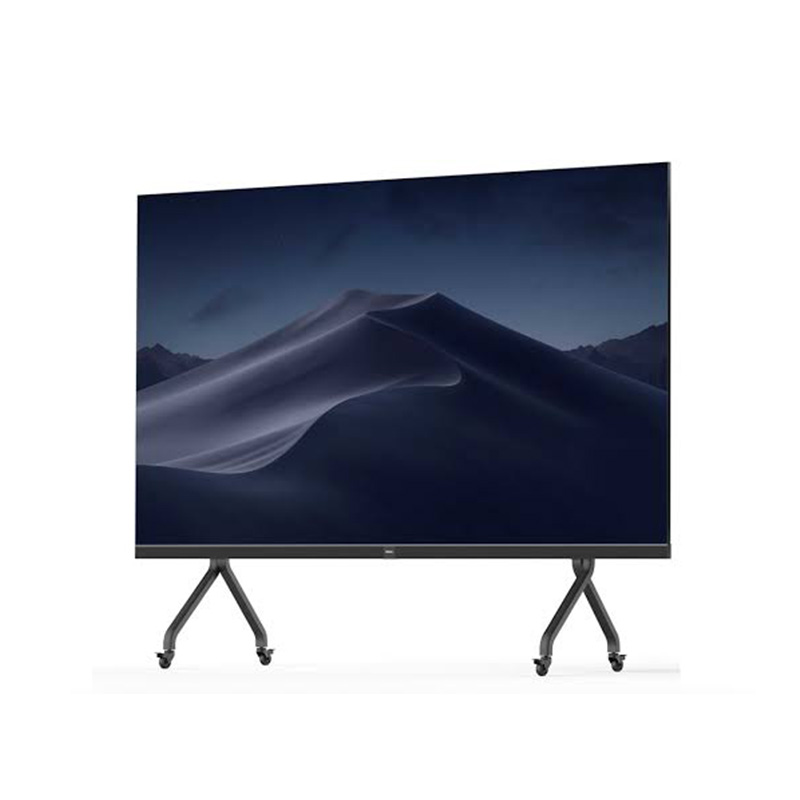

An all-in-one LED display integrates the screen, power supply, video processor, speakers, and operating system into one pre-assembled unit. Unbox, mount, plug in one power cord, and turn it on. Popular sizes range from 108 to 165 inches, with several major display brands now offering all-in-one LED solutions for corporate and commercial environments.

If modular panels are Lego, an integrated LED display like this is a giant tablet that hangs on your wall — clean, simple, and ready to go.

Here is the quick overview. If you read nothing else, read this table:

This table is the answer to the question most people are really asking: “Which one do I actually need?”

Pixel pitch is one of the biggest factors affecting LED display quality. Smaller pitches such as P1.2 or P1.5 are better for close viewing in meeting rooms and control centers, while larger pitches suit longer viewing distances like event stages and billboards.

At the same pixel pitch, both modular panels and all-in-one displays look nearly identical. The difference is calibration. All-in-one displays are factory-calibrated — uniform colors out of the box. Modular panels need on-site calibration after assembly. For a boardroom, factory calibration matters. For a concert stage 50 meters away, nobody notices.

Many all-in-one displays can be installed within a few hours, depending on mounting requirements.

Modular panels need a steel frame, panel-by-panel hanging, cabling, and calibration. A 110-inch wall takes a team of two a full day. A stadium screen can take a week.

Maintenance flips the script. Modular panels let you pop out and replace a failed tile in minutes. On an all-in-one, a dead section of LEDs means calling the manufacturer.

All-in-one displays often have a higher cost per square meter because they include integrated processing, speakers, cabinets, and control systems. But total cost of ownership can go either way.

For a 135-inch meeting room, an all-in-one is often cheaper overall: no steel frame, no installation crew, no calibrator, no external video processor. For a 200-inch lobby wall, modular panels win: per-square-meter savings add up, and you get a custom size.

The hidden cost: relocation. Modular panels can be disassembled and rebuilt when you move offices. An all-in-one can move too, but it is a 150 kg piece of electronics that needs careful handling.

Winner: All-in-One LED Displays

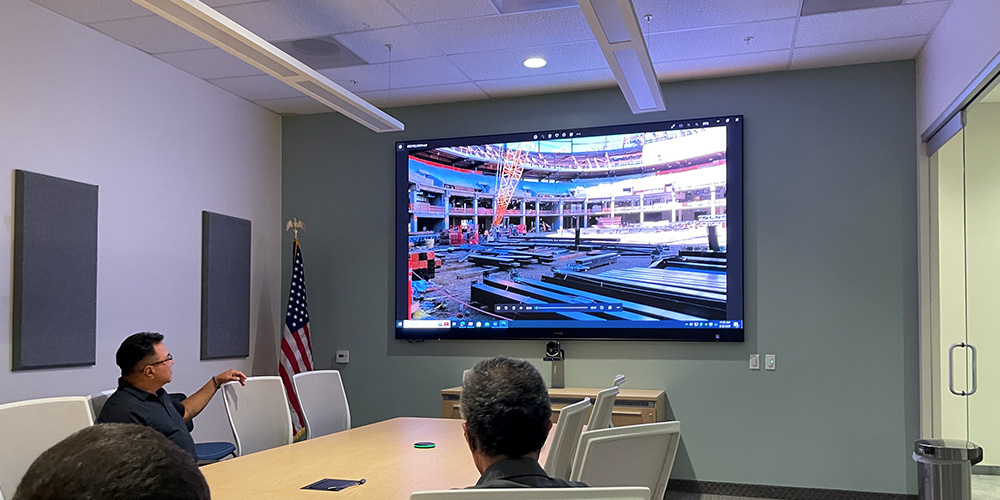

Boardrooms need screens that work instantly, look flawless, and do not require an AV technician on standby. All-in-one displays fit standard wall mounts, work with existing video conferencing systems, and turn on like a TV.

Expert Tip: For projects above 200 inches, modular LED panels usually provide better long-term value because the screen size, aspect ratio, and maintenance strategy can all be customized. All-in-one displays shine in standardized spaces under 165 inches where speed and simplicity matter most.

It Depends on the Space

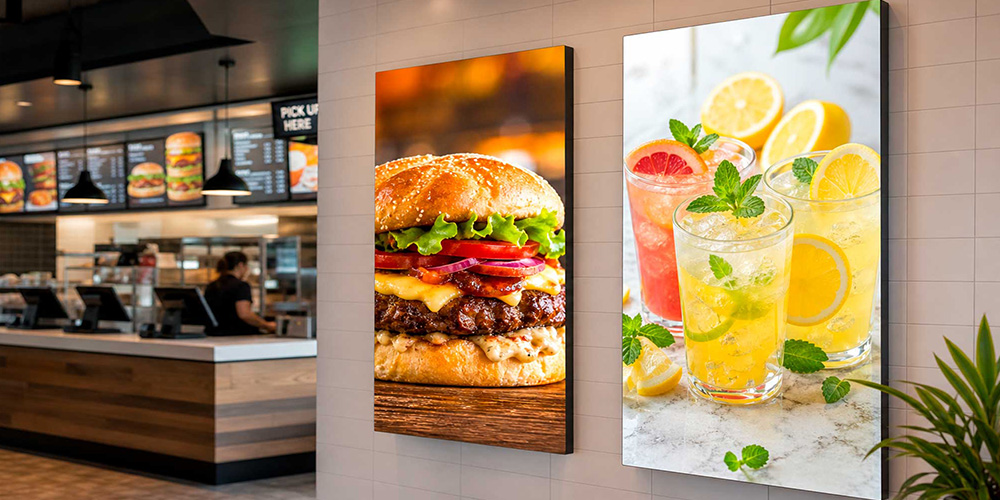

A standard-sized lobby? All-in-one, mounted cleanly as a commercial LED display running branded content. A double-height lobby with a curved 25-foot wall? Modular panels are the only option — there is no 25-foot all-in-one.

Winner: Modular LED Panels

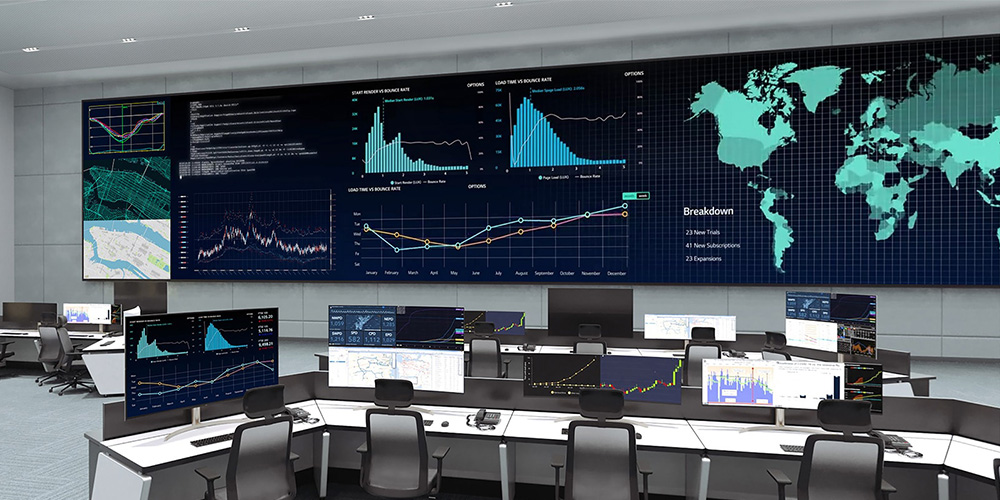

Control rooms need large, uninterrupted LED video wall solutions — often 5 meters wide or more. Operators monitor dozens of data feeds simultaneously, which demands a fine-pitch direct view LED display (P1.2–P1.5) for close viewing clarity. Modular panels deliver this at a lower per-square-meter cost. They also allow front-service maintenance, which is critical in 24/7 environments where you cannot shut down the whole wall to fix one section.

Winner: Modular LED Panels

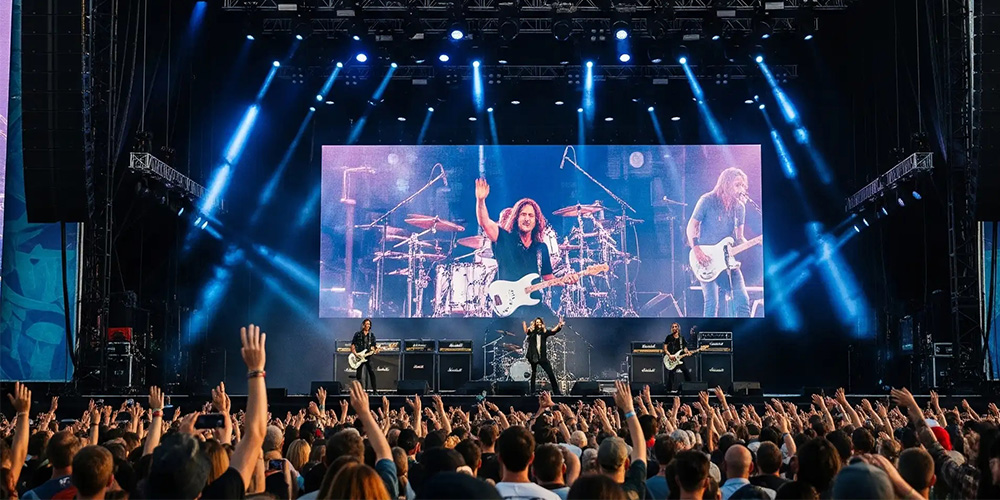

Event screens are temporary. They go up on Wednesday, run Friday through Sunday, and come down Monday morning. Modular rental panels are designed for exactly this: quick-connect locks, flight cases for transport, and cabinets built to survive constant assembly and disassembly. An all-in-one display is generally less suitable for frequent transportation because it is heavier, less modular, and not designed for repeated setup and teardown.

Winner: Modular LED Panels

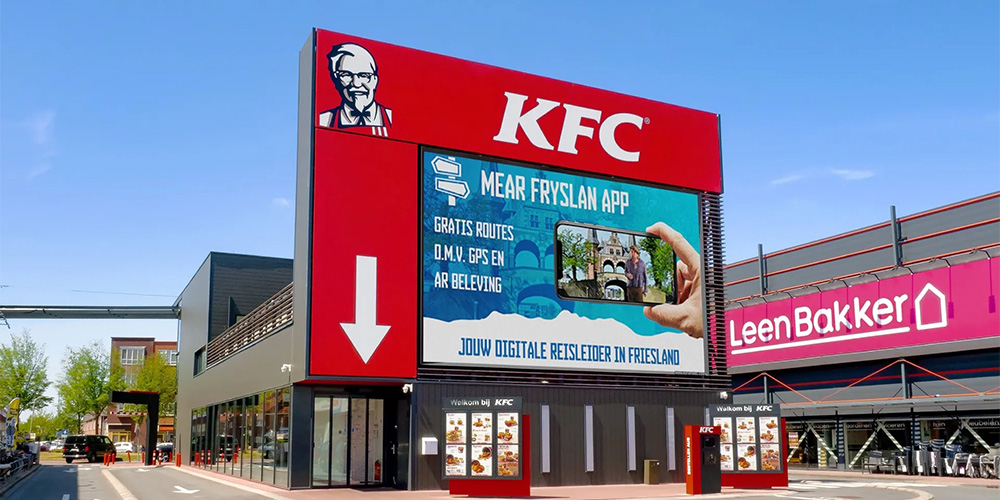

Most all-in-one LED displays are designed for indoor environments. Outdoor projects usually require modular LED systems with IP-rated cabinets and stronger weather protection. While outdoor-rated integrated displays do exist, they are rare and significantly more expensive. For billboards, stadium screens, and building facades, modular LED panels with IP65 or higher remain the standard choice.

Before comparing specific models, answer these five questions. They will tell you which direction to go before you even look at a spec sheet.

1. What screen size do I actually need? (Under 165″ → all-in-one; over 200″ → modular)
2. How far away will viewers sit? (Close viewing → fine-pitch; far field → standard pitch)
3. Is this a permanent installation or temporary? (Permanent → either; rental → modular only)
4. Will the screen need to expand in the future? (Yes → modular; no → either)
5. Who handles maintenance? (No AV team → all-in-one; in-house techs → either)

• You need a screen larger than 165 inches
• You are installing outdoors or in a semi-outdoor space
• You want the ability to expand or reconfigure later
• You have a professional AV installer handling the project
• You need front-service maintenance for 24/7 operation
• You are building a rental or event staging system

• Your target size is between 108 and 165 inches
• You need the screen operational within a day of delivery
• You want a clean, cable-free look in a meeting room or lobby
• You do not have an AV team for ongoing maintenance
• You value factory-calibrated image quality over custom sizing
• You are furnishing a single room, not a building-wide system

For small installations (under 165 inches), all-in-one displays often cost less overall when you factor in installation and setup. For large installations, modular panels are more cost-effective per square meter.

No. All-in-one displays have a fixed physical size. If you think you might need a larger screen in the future, modular panels give you that flexibility.

Modular panels. If one tile fails, you replace that tile. If part of an all-in-one fails, the whole unit may need service. However, modular panels require more routine maintenance — cleaning, recalibration, and connector checks.

Yes. Once you exceed roughly 165 inches diagonal, a modular LED video wall usually becomes the more practical option because it offers greater flexibility in size, aspect ratio, and configuration.

All-in-one LED displays. They are designed specifically for this environment: quick setup, simple operation, integrated speakers and OS, and clean aesthetics that fit a professional space.

Yes, but they are used differently. Most all-in-one LED displays are designed for indoor applications. Outdoor projects usually rely on modular LED panels because they offer better weather protection, customization, and scalability. While outdoor-rated integrated displays exist, they are uncommon and costly.

A modular LED video wall is built from individual panels assembled on-site, offering unlimited size and custom shapes. An all-in-one LED display is a single factory-assembled unit with a fixed size. Video walls suit large venues and outdoor projects; all-in-one displays target meeting rooms and boardrooms.

There is no one‑size‑fits‑all winner between modular LED panels and all‑in‑one LED displays. Your project requirements ultimately determine which option works best.

All‑in‑one LED displays are ideal for offices, retail areas and meeting rooms when fast‑track installation is your priority. Modular LED panels deliver unmatched flexibility and scalability for huge video walls, stadium screens, rental‑event setups and custom‑built installations.

Your final selection should fit your available space, budget, timeline and maintenance plans. If you have doubts about your decision, a seasoned LED‑display manufacturer can assess your project and suggest proper hardware.

At EagerLED, we offer modular LED panels for standard‑commercial and bespoke projects. Get professional guidance from our team or look through our LED‑display lineup to match your application scenarios.
