3D LED Billboard Equipment and Project Planning

A 3D billboard is a direct-view LED display that shows perspective-rendered animation designed for a specific screen shape and observation point. It does not normally require glasses, lenticular lenses, or a special optical layer. Instead, scale, occlusion, shadow, motion, and perspective cues make an object appear to extend beyond or recede behind the physical display surface.

Many well-known installations use an L-shaped building corner because two visible planes provide a strong spatial frame. Flat screens can also produce the effect when the creative establishes a clear virtual box. The illusion becomes weaker as viewers move far away from the planned viewing zone, so every project should define both the ideal 3D position and the acceptable general viewing area.

Both formats use LED modules, cabinets, control equipment, power distribution, and video content. The difference is the way the canvas and content are designed for the audience.

A flat display presents content on one physical plane and is the most flexible format for mixed campaigns. A 3D billboard uses rendered perspective cues to make that plane appear deeper than it is. Corner cabinets can add a physical edge that helps define a virtual room, product box, window, or portal.

The best format depends on the building, audience path, content schedule, and budget. A corner is useful when the facade and viewing direction support it; it is not a substitute for accurate content production.

Choose a conventional flat screen when viewers approach from many directions, information must remain equally readable, or most content is standard video. Choose a 3D-focused solution when the site has a strong primary sight line and the campaign can justify dedicated 3D creative.

Retail facades, entertainment districts, exhibition halls, transport hubs, product launches, and landmark media are common fits. Meeting rooms, control rooms, menus, and routine information displays usually gain more value from a standard flat configuration.

Standard content remains readable across the display’s supported viewing angle. A forced-perspective scene has two viewing concepts: the technical viewing angle of the LED modules and the creative viewing zone where the virtual camera aligns with the physical screen.

Project teams should evaluate both. Wide LED viewing performance helps general visibility, while a clearly marked primary observation point helps photography, video capture, and the strongest 3D illusion.

A 3D billboard usually requires more planning and content work than a standard display of the same area. Cost can increase through custom corner cabinets, structural steel, access systems, additional design review, 3D animation, media-server requirements, and on-site calibration.

The correct comparison is total project scope, not the LED price alone. A well-designed flat billboard with strong creative may be the better investment when the site lacks a useful viewing zone.

A 3D LED billboard can deliver a distinctive visual experience, but its business value comes from matching the format to a suitable site, campaign, and operating plan. The following benefits are strongest when hardware, content, and installation are specified together.

Forced perspective gives familiar products and characters a sense of scale, depth, and motion that a conventional layout cannot reproduce in the same way. This can make a facade feel like a stage, window, room, or product display rather than a rectangular screen.

For the effect to remain convincing, the content team needs the final pixel map, corner angle, visible cabinet dimensions, and intended viewing position before rendering.

A distinctive creative concept can help a campaign stand out in a visually busy district and give viewers a clear subject to photograph or share. The billboard should still communicate the brand and offer in a few seconds, including when the viewer is outside the ideal 3D zone.

Use large focal objects, controlled motion, short copy, and a clear final frame. Avoid placing essential text across a corner seam or making product proportions depend on a single camera position.

The same display can run 3D animation, standard video, static branding, live information, event content, and scheduled campaigns. Content management should include the exact resolution, aspect ratio, safe zones, frame rate, file format, brightness schedule, and playback calendar.

Preparing both a hero 3D asset and efficient standard assets gives operators more flexibility between launches and reduces the need to force every message into a 3D format.

Cabinet systems can be configured for flat walls, right-angle corners, beveled transitions, and project-specific dimensions. This supports outdoor advertising, retail, hospitality, exhibitions, cultural venues, transport environments, and architectural media.

Flexibility still has engineering limits. Wind load, cabinet weight, access clearance, ventilation, cable routes, local codes, and the building surface must be reviewed before the final layout is approved.

Evaluate value through total cost of ownership: display hardware, steel structure, control and power equipment, freight, installation, content production, commissioning, electricity, maintenance access, spare modules, and future creative updates. A lower hardware quote can become more expensive if access, cooling, or service planning is incomplete.

EagerLED can compare suitable cabinet and pixel-pitch options after receiving the screen dimensions, viewing distance, environment, installation method, and content objective.

Screen area directly affects the quantity of cabinets, modules, power supplies, receiving cards, structure, cable, freight, and installation labor. Geometry also matters: a simple rectangle is easier to engineer than a wraparound corner, beveled transition, or custom facade.

Provide the maximum available width and height, structural drawings if available, and any required aspect ratio. The project team can then calculate a cabinet layout with minimal unused space.

Pixel pitch affects resolution, viewing distance, cabinet choice, power density, and cost. A smaller pitch increases pixel count for the same area, but it is not automatically the best option for a distant outdoor audience. Brightness, refresh rate, grayscale, LED package, scan method, and control system must be evaluated as a complete image-performance specification.

Use the LED screen resolution guide to understand how screen size, pitch, and content resolution work together.

Budget content production separately from the LED equipment. Define concept and storyboard approval, product-model preparation, animation, rendering for the native pixel canvas, preview from the agreed virtual camera, revisions and on-screen acceptance.

Agree licensing, editable-file ownership, permitted reuse and future adaptation with the creative supplier. Request a standard flat fallback asset and a file-delivery specification; these items are not automatically included in a screen quotation.

Installation cost depends on the support structure, building access, crane or lift requirements, power distribution, data distance, ventilation, waterproofing, lightning and surge protection, permits, labor, and commissioning. Outdoor protection ratings do not replace correct drainage, sealed cable entry, and site-specific engineering.

Maintenance planning should define front or rear access, safe working space, spare modules and power supplies, cleaning, inspection intervals, and who will recalibrate replaced modules.

A complete 3D billboard price cannot be compared from screen area alone. Cabinet model, pixel pitch, corner geometry, processing, structure, access, shipping, installation and creative work can change the scope.

• Display package: screen dimensions, selected cabinets, receiving hardware, processor, cables and spares.
• Local works: structure, building interfaces, electrical distribution, access equipment and installation responsibilities.
• Creative package: concept, scene and camera setup, native-resolution render, revisions, playback files and usage rights.
• Delivery and operation: destination, packing, commissioning, support and future content updates.

Send site photos or drawings, proposed dimensions and corner angle, viewing positions, environment, service access and required launch date. Ask each quotation to state inclusions and exclusions for the same scope.

The visual effect comes from aligning the physical LED canvas with a virtual camera used in the 3D scene. A practical workflow has five stages:

1. Survey the site: record screen geometry, viewing routes, ambient light, structure, power, network, and access.
2. Define the viewing zone: choose the main observation point and acceptable secondary views.
3. Build the display specification: finalize cabinet map, pixel pitch, resolution, brightness, refresh, protection, control, power, and service method.
4. Render and preview content: use the final pixel map and virtual camera to test depth, cropping, seams, and safe areas.
5. Install and calibrate: align cabinets, map pixels, calibrate color and brightness, test playback, and verify the effect from the real viewing zone.

Most commercial naked-eye 3D billboards use forced perspective rather than sending a different image to each eye. The animation is rendered from one planned virtual camera. Scale, occlusion, shading, cast shadows, motion, and the edges of a virtual box provide depth cues that the brain interprets as three-dimensional space.

This is why footage captured from the primary viewing point often looks strongest. From other positions, the display still plays normally, but the geometry of the illusion may appear stretched.

The content artist models the physical screen as one or more surfaces and places a virtual camera at the intended observation point. On an L-shaped billboard, the render is split across both faces so lines and objects appear continuous across the corner.

The viewing zone should be chosen from real pedestrian flow, road direction, camera locations, distance, and safety. It should not be selected only from an architectural rendering.

The LED system supplies the brightness, resolution, refresh rate, grayscale, color consistency, and continuous canvas needed to reproduce the rendered scene. Cabinets and modules form the pixel grid; sending equipment maps the video signal to the physical layout.

Standard corner 3D LED billboards do not require cylinders or lens arrays. What matters is accurate cabinet alignment, a known pixel map, consistent module calibration, and a control system sized for the total resolution.

Agree the display-to-content handoff before production

Production begins with the approved cabinet map and viewing zone. The content team creates a storyboard, builds the 3D scene, locks the virtual camera, animates the subject, renders to the exact output resolution, and reviews a mapped preview before delivery.

After installation, test the content on the real screen. Small adjustments to brightness, black level, color, seam position, motion speed, and virtual-camera alignment can materially improve the illusion.

Additional integration can include responsive content, remote operations and campaign scheduling. Select these functions from a practical operating need and confirm the controller, software, data source and support responsibilities. They are optional project choices, rather than a requirement for every 3D billboard.

Media servers can combine scheduled animation with time, weather, inventory, event, or sensor data to create context-aware campaigns. Any audience measurement or personalization should follow local privacy rules and use clearly defined data governance.

The operational priority is dependable data input and a safe fallback playlist. A billboard should continue showing approved content if an external feed fails.

Interactive triggers, mobile experiences, spatial audio, lighting, and extended-reality content can connect the billboard to events or product launches. These additions should support a clear campaign objective rather than compete with the main visual.

Interaction design must account for response time, crowd flow, accessibility, moderation, and fail-safe behavior in public spaces.

Higher-quality LED packages, processing, grayscale control, camera-friendly refresh, calibration tools, and physically based rendering can improve realism. Consistent blacks, believable shadows, restrained highlights, and accurate edge alignment often matter more than extreme motion.

Regular calibration and a controlled content pipeline help the display maintain the intended look after module replacement or long-term operation.

A 3D billboard can serve as the hero asset for social video, live events, retail screens, web campaigns, and product launches. Planning these formats together allows the same model, scene, and key animation to be adapted efficiently.

The outdoor version should remain understandable without audio, while social edits can use close-ups, alternate camera angles, captions, and behind-the-scenes content.

A 3D billboard can make a product launch or brand story easier to notice because forced perspective gives the subject scale, depth, and a clear visual event. It is especially suitable for sites with strong foot traffic, a defined viewing direction, and space for people to stop or capture the display.

Marketing performance is not guaranteed by the screen alone. The message, location, media schedule, creative quality, viewing zone, and measurement plan determine whether the installation supports awareness, visits, leads, or sales.

A 3D animation team can build content from licensed product models and an approved storyboard. For the perspective effect, the scene and virtual camera must match the physical screen geometry and viewing zone. Standard videos and static artwork can also play on the screen, but do not automatically become perspective-correct 3D content.

Provide brand files, reference models, the final pixel map, playback requirements, language versions, revision limits and delivery dates. Agree ownership and permitted reuse with the content supplier.

Which software is needed for a 3D billboard?

Content-creation software and LED playback control have different roles. The creative team renders a scene for the agreed geometry and virtual camera; the media player or processor maps and plays the delivered pixels. Confirm file format, codec, frame rate, resolution and any synchronization requirements with both teams before final delivery.

Yes. The site must support the screen’s weight, wind load, power, data route, drainage, ventilation, service access, and local approval requirements. For the visual effect, it also needs a practical primary viewing zone with a clear sight line and enough distance for the complete canvas to be seen.

Outdoor cabinet ratings help resist dust and water, but the final installation still needs correctly sealed connections, water management, grounding, surge protection, and engineering for the local climate.

Resolution should be calculated from physical screen size and pixel pitch, then checked against the closest viewing distance and content detail. Refresh rate should match the playback and camera-capture requirements. There is no single pitch or refresh value that is correct for every 3D billboard.

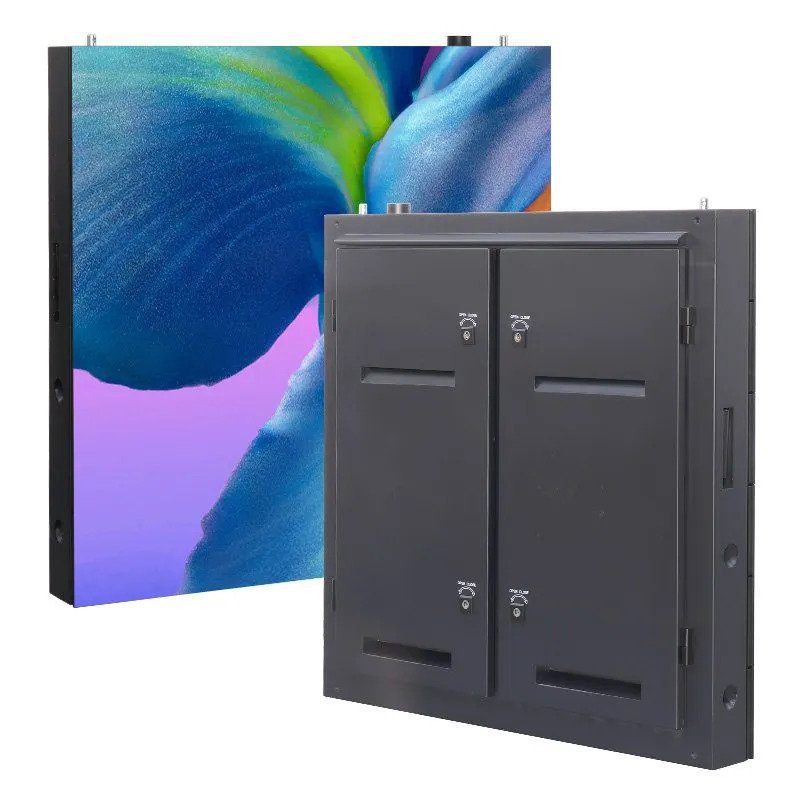

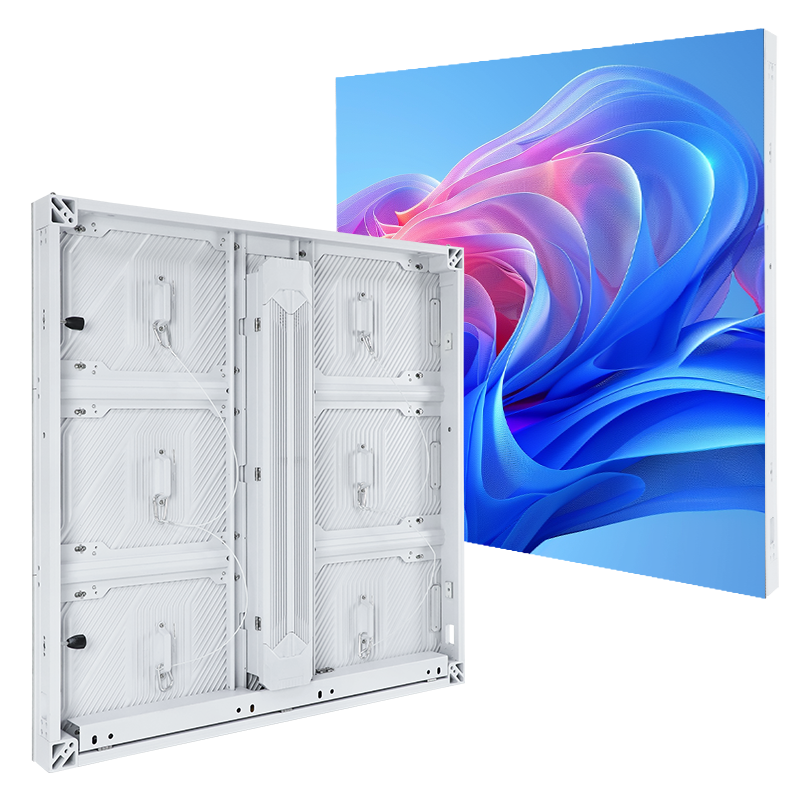

As current product examples, EA960F4 is listed at 3,840 Hz with brightness up to 6,500 cd/m², while EA-OFixed configurations are listed at ≥3,840 Hz, P3-P16, and 5,500-10,000 cd/m². Final values depend on the selected configuration and should be confirmed in the project specification.

Send the installation location, site photos or facade drawings, proposed dimensions, corner geometry and primary viewing zone. Include the environment, maintenance access, content objective and target launch date. Request an itemized display proposal and identify the local structure, installation and creative responsibilities separately.
