LED Display Modules for Indoor, Outdoor and Creative Screens

EagerLED modules are selected around the installation environment, viewing distance, cabinet design and control requirements. Final specifications vary by model, so confirm the datasheet before ordering.

Application-matched brightness and protection

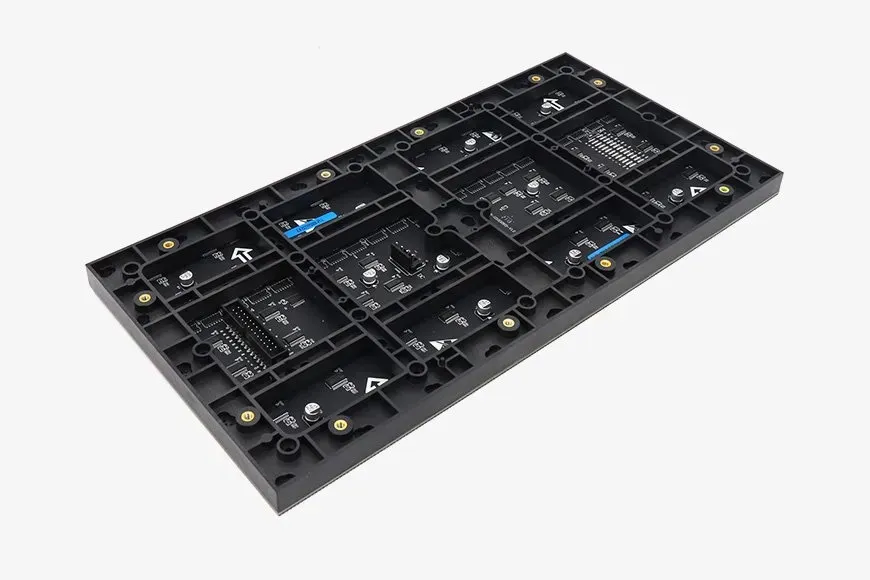

Indoor modules are listed at 600-1,000 nits with IP54 protection, while outdoor options are listed at 5,000-10,000 nits with IP65 or IP68 protection. The International Electrotechnical Commission explains that IEC 60529 grades enclosure resistance to dust and liquids; use the exact product datasheet to verify which side of a module or cabinet carries the stated rating.

Flat, consistent display surface

Specified EagerLED models control module flatness to within +/-0.1 mm. A consistent surface helps reduce visible seams, uneven viewing angles and image distortion after modules are assembled into a cabinet.

Stable operation and thermal design

LEDs, driver ICs, the PCB, power components and heat-dissipation materials are matched as a system. Quality checks and performance testing are used to confirm stable operation before shipment; see EagerLED’s quality-control process for more detail.

Serviceable and configurable

Choose from standard indoor and outdoor modules, bendable flexible modules, protective GOB modules and fine-pitch COB modules. Product cards on this page identify in-stock ranges with a 2-year warranty; availability and compatibility should be confirmed for the exact module model.

An LED display module combines a grid of LEDs with a printed circuit board (PCB), driver integrated circuits (ICs), connectors and supporting electronic components. Multiple modules connect inside an LED cabinet to create the finished screen image.

The LEDs create the visible pixels. Driver ICs control how those pixels switch and refresh, while the PCB distributes signals and power through the module. Connectors link the module to the receiving card and power supply; resistors and capacitors help regulate the circuit. When replacing a module, match the physical size, pixel pitch, scan mode, connector layout, voltage and control configuration – a similar-looking module is not automatically compatible.

COB (chip-on-board) modules mount LED chips directly on the PCB and use front-surface encapsulation. Choose COB for indoor fine-pitch applications that need a uniform black surface, high contrast and additional impact protection. View COB LED module details.

What is an LED display module?

An LED display module is a replaceable assembly of LEDs, a PCB, driver ICs and connectors. Multiple modules are mounted inside cabinets and controlled together to form a complete LED screen.

What is the difference between indoor and outdoor LED modules?

On this page, indoor modules are listed at 600-1,000 nits with IP54 protection, while outdoor modules are listed at 5,000-10,000 nits with IP65 or IP68 protection. Confirm the exact brightness and whether the rating applies to the module face, rear or complete cabinet before ordering.

How do GOB and COB LED modules differ?

GOB adds a protective glue layer over a conventional LED module. COB mounts LED chips directly on the PCB and encapsulates the front surface. Both improve surface protection, but their construction, pixel-pitch options and repair process differ.

How do I choose a compatible replacement LED module?

Match the module size, pixel pitch, resolution, scan mode, voltage, power and data connectors, receiving-card configuration and calibration data. Send the current module label and clear front-and-rear photos when requesting a replacement.

Can EagerLED customize an LED module?

Yes. Available options include indoor, outdoor, flexible, GOB and COB modules in different sizes, shapes and pixel pitches. Share the viewing distance, installation environment, screen dimensions and target brightness so the team can recommend a compatible specification.

LED Display Module Compatibility Before You Order

The same pixel pitch does not guarantee that two modules are interchangeable. A replacement must also fit the cabinet and work with its power, data and receiving-card configuration. Use the following checks to avoid ordering a panel that looks similar but cannot operate correctly in the existing screen.

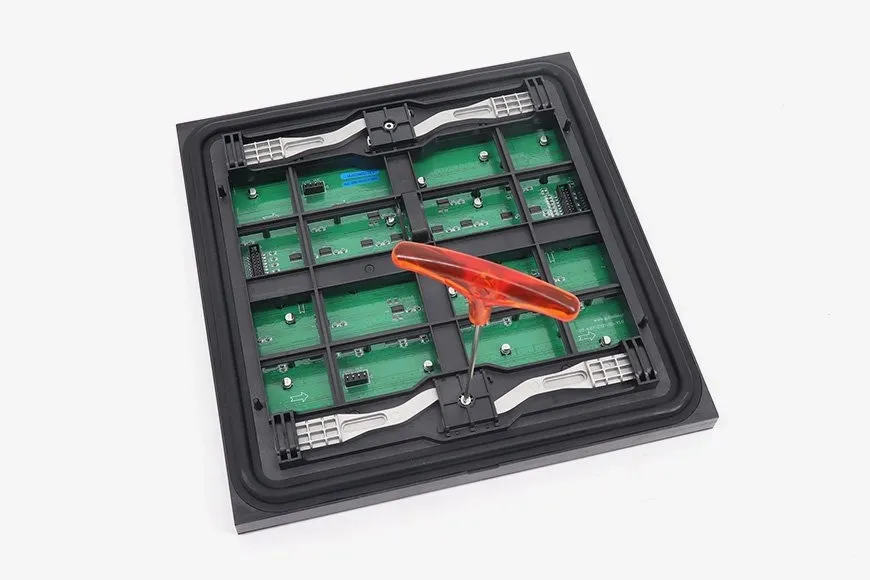

• Mechanical fit: module width and height, mounting-hole positions, mask design and front or rear service method.
• Electrical fit: rated voltage, power and data connector types, pin assignments, scan mode and receiving-card configuration.
• Image consistency: LED package, driver IC, brightness, color calibration and production batch. Ask for a sample when matching an older display.
• Order scope: confirm whether the quote covers loose modules, spare parts or a complete cabinet and control system.

Which LED module type should a buyer shortlist?

Start with indoor or outdoor use, then compare flexible modules for curved structures and GOB or COB options where surface protection is important. Protective construction does not make every model suitable for outdoor use. Confirm the exact model datasheet and completed cabinet protection.

What should I send for a replacement-module quotation?

Send the current module label, clear front-and-rear photos, dimensions, pixel pitch, quantity, receiving-card model and any available configuration file. Tell us whether you need a sample for compatibility checks before a larger order. Request a matched LED module quotation or compare the outdoor module range.
