EA1000C6 500x1000 Rental LED Display for Events
EA1000C6 is a 500 × 1000 mm rental LED display cabinet for event production fleets. Its half-square-metre format reduces panel count for a given flat wall area; compare indoor and outdoor versions, then confirm handling, support, control and spares for the planned layouts.
Customized New LED Display Solutions for You
EA1000C6 500x1000 Rental LED Display: Key Features
EA1000C6 is a 500 × 1000 mm rental LED display cabinet for event production fleets. Its half-square-metre format reduces panel count for a given flat wall area; compare indoor and outdoor versions, then confirm handling, support, control and spares for the planned layouts.
- A 500 × 1000 mm cabinet covers a nominal 0.5 m².
- Published cabinet weight is 11 kg indoors or 12.6 kg outdoors.
- Indoor pitches span P1.56 GOB to P3.91; outdoor P3.91 has separate scan versions.
- Curved builds and mixed cabinet layouts require exact hardware and control compatibility confirmation.
On this page
Plan wall dimensions and handling weight
| Nominal flat wall | Columns × rows / panels | Indoor / outdoor cabinet weight |
|---|---|---|
| 3 × 2 m | 6 × 2 / 12 | 132 / 151.2 kg |
| 4 × 3 m | 8 × 3 / 24 | 264 / 302.4 kg |
| 6 × 3 m | 12 × 3 / 36 | 396 / 453.6 kg |
These grid and weight calculations use the published 500 × 1000 mm dimensions with the cabinet upright. They exclude hanging bars, stacking structures, cables and transport cases. Confirm crew handling and rigging against the complete assembled system.
Outdoor P3.91 1⁄16 scan is listed at 4,800 cd/m² with 580 W/m² maximum power; 1⁄8 scan is 6,000 cd/m² with 650 W/m² maximum. Select the complete configuration rather than requesting P3.91 alone.
If mixing with 500 × 500 mm panels, obtain confirmation of cabinet locks, pitch, scan mode, receiving-card configuration and pixel mapping. The smaller format may help layout planning, but a common pitch or family name does not establish interchangeability.
Purchase questions
How does the 500 × 1000 mm format affect panel quantity?
Each cabinet covers 0.5 m², so a 12 m² flat wall uses 24 upright cabinets when its dimensions match the grid. Transport, handling, spares and rigging must still be planned for the larger panel format.
What must be checked for rear service and outdoor use?
Confirm rear access to the openable cover, cable replacement and ventilation. Outdoor versions are listed as IP65 front and IP54 rear; protect the rear and power distribution for the actual event conditions.
What should an EA1000C6 equipment quote include?
Provide wall dimensions, required geometry, indoor/outdoor use, viewing and camera positions, and destination. Define panels, control equipment, support, cables, cases, spare modules and service parts as confirmed order items.
Request an EA1000C6 equipment quote
Compare the rental LED screen equipment range for other formats.

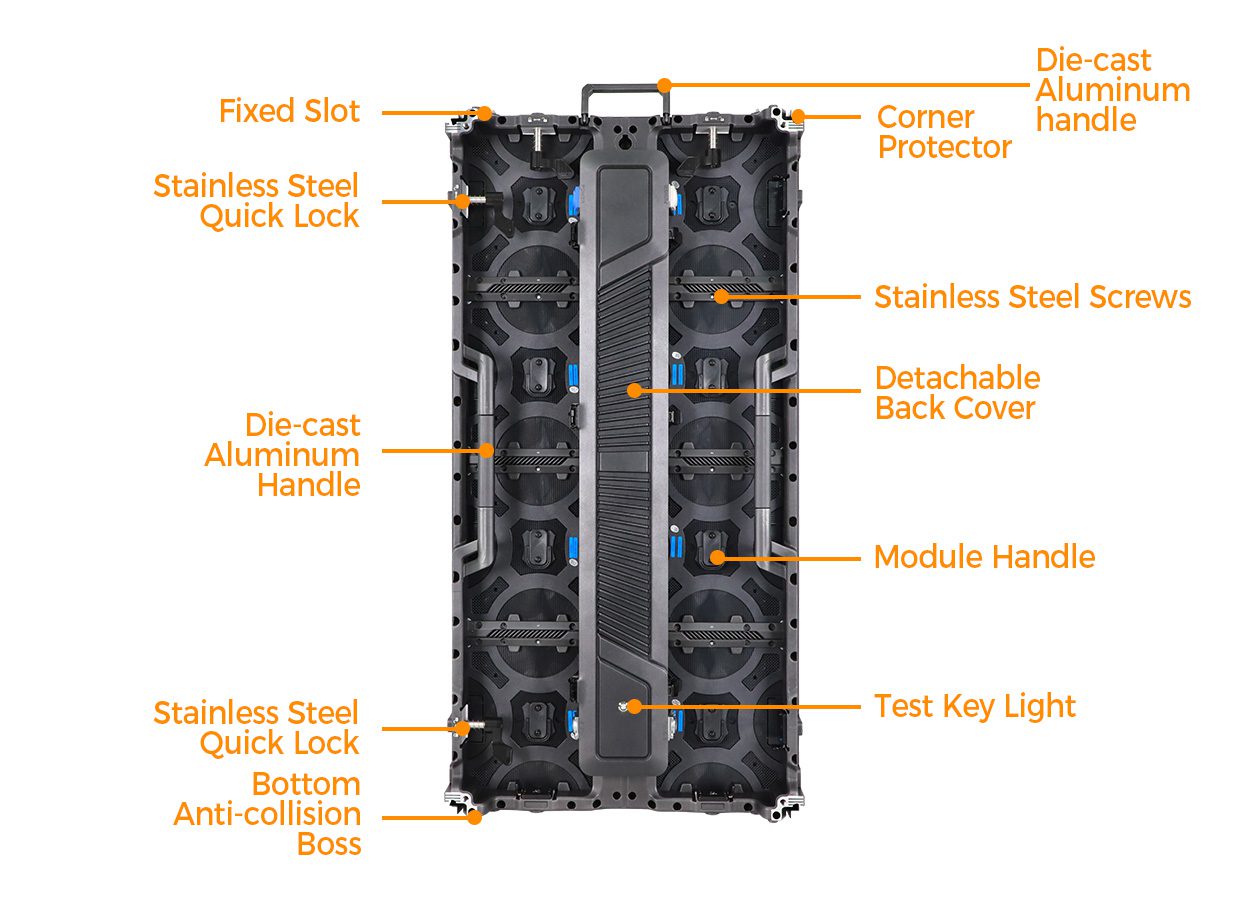

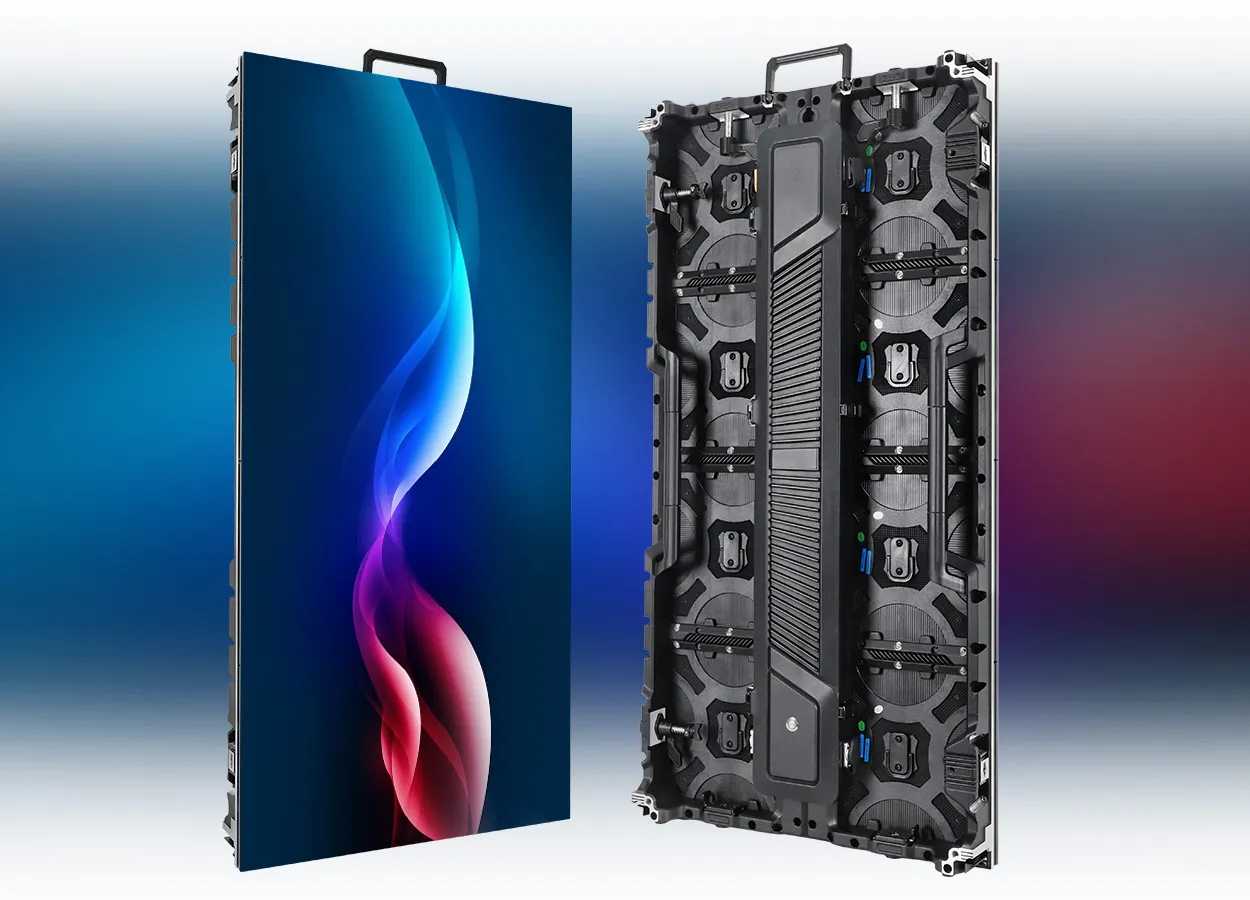

Rental-Ready 500x1000 Cabinet Design
Stainless-steel quick locks and positioning beads help align cabinets during setup. Aluminum-alloy handles, durable connection hardware and the 500 x 1000 mm format support efficient handling and assembly.

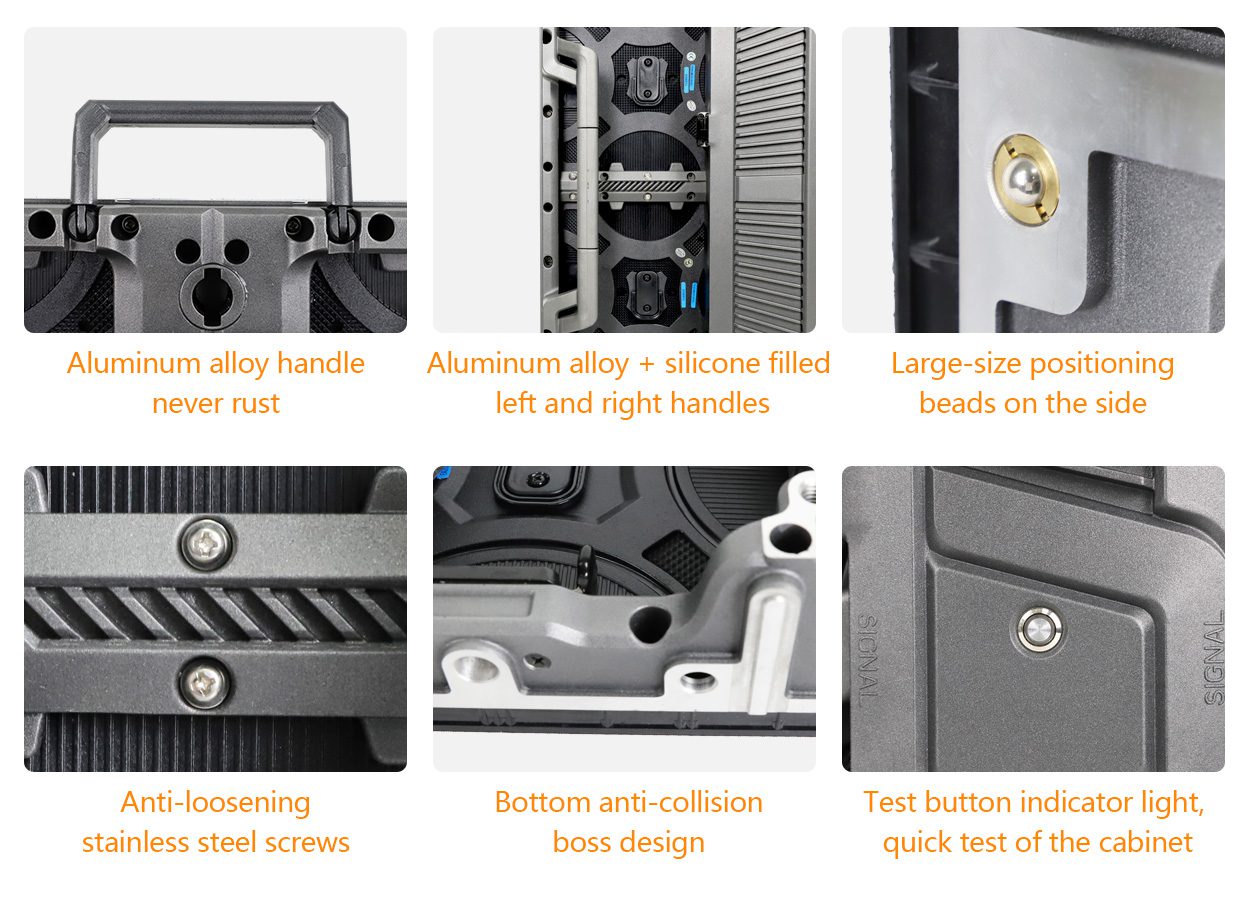

Details Designed for Repeated Handling
Aluminum-alloy handles, silicone-filled side grips and a bottom anti-collision design make the cabinet easier to handle while helping protect key contact areas during repeated transport, setup and dismantling.

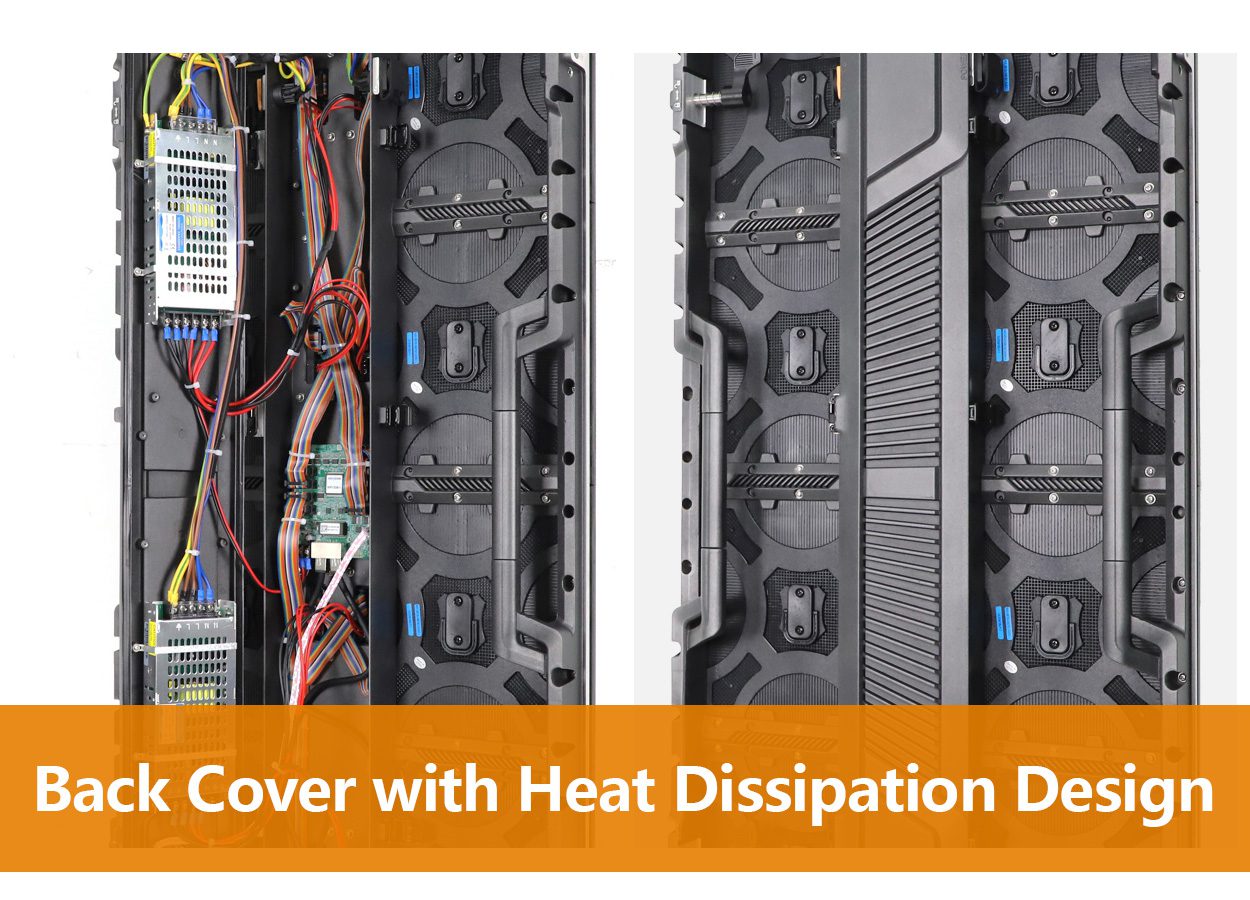

Service-Friendly Rear Cover and Heat Dissipation
The openable rear cover provides direct access to power and internal components for connection, inspection and maintenance. Its ventilated design helps dissipate heat during operation.

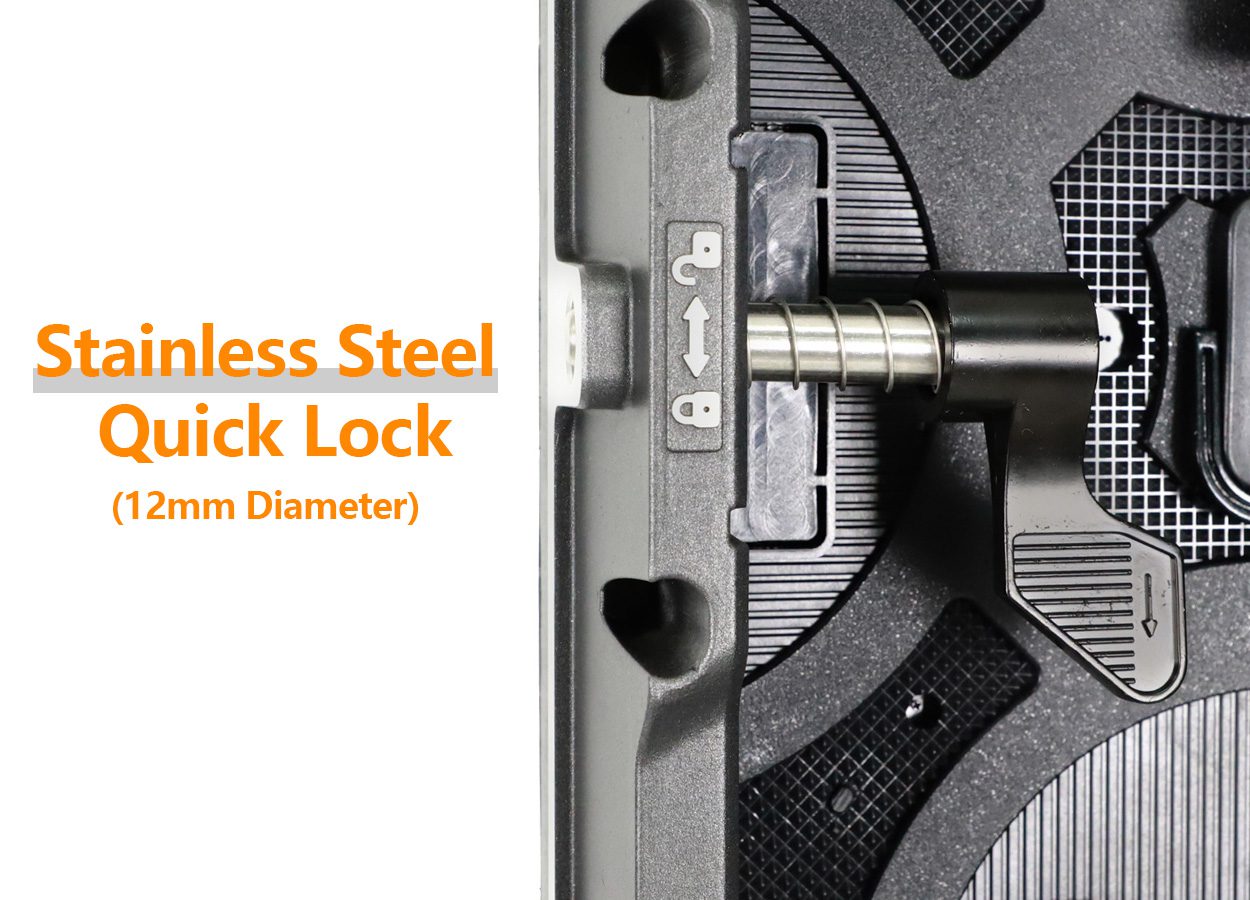

Stainless-Steel Quick Locks for Faster Assembly
Two stainless-steel quick locks speed up assembly and disassembly while helping keep adjacent cabinets aligned. Technicians should verify every lock and supporting structure before raising or stacking the screen.

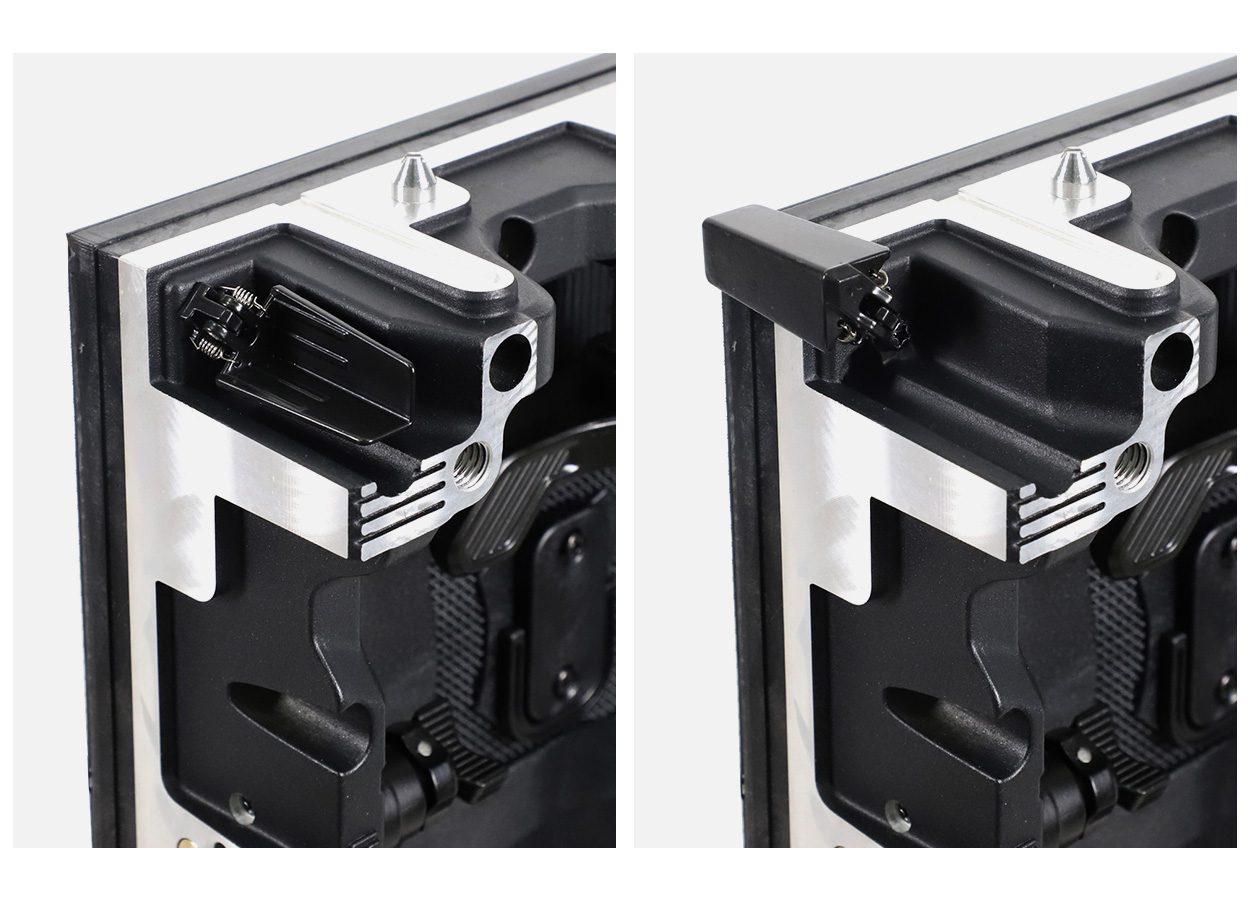

Foldable Corner Protectors
Four foldable corner protectors help shield cabinet edges and LED module corners during transport, setup and dismantling. They can be folded away or removed when not required.

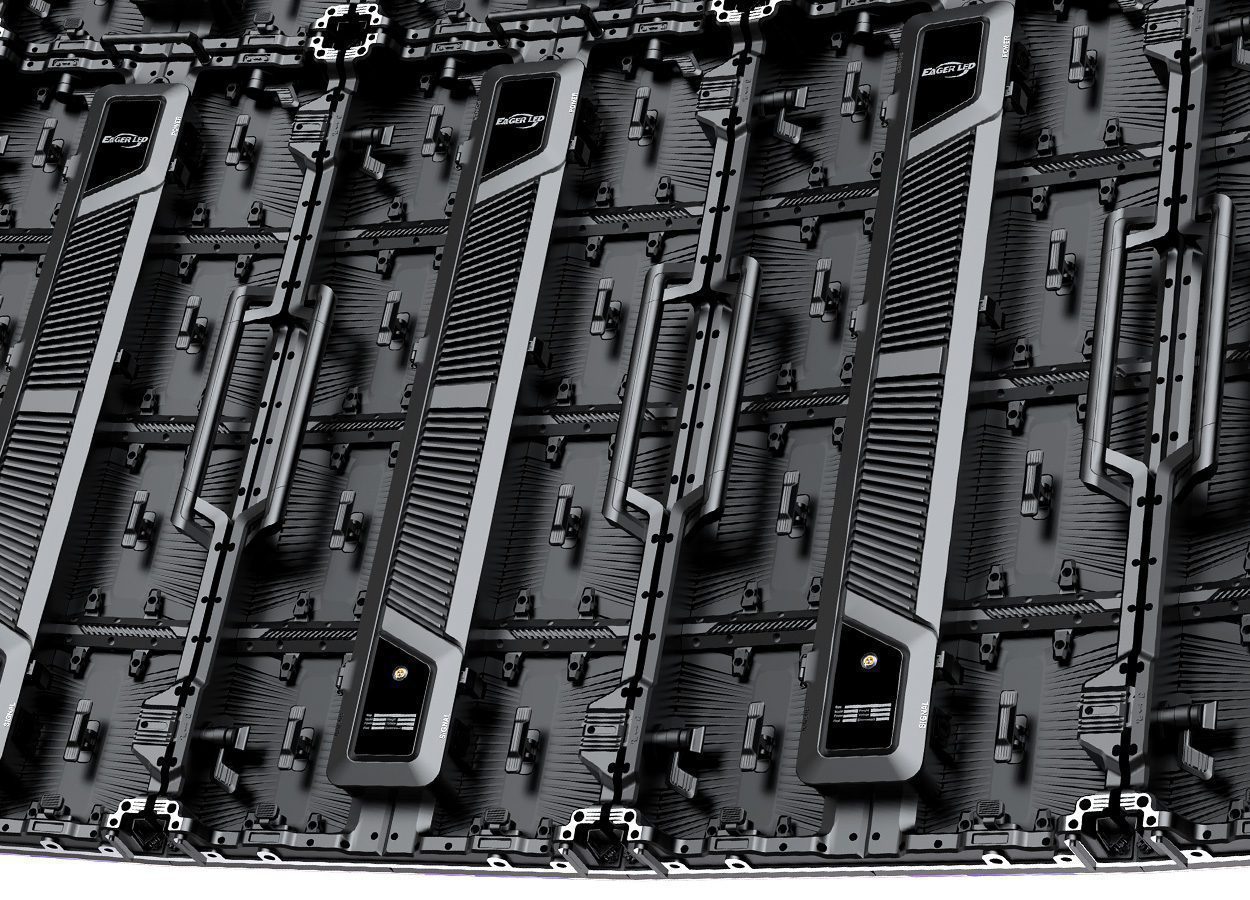

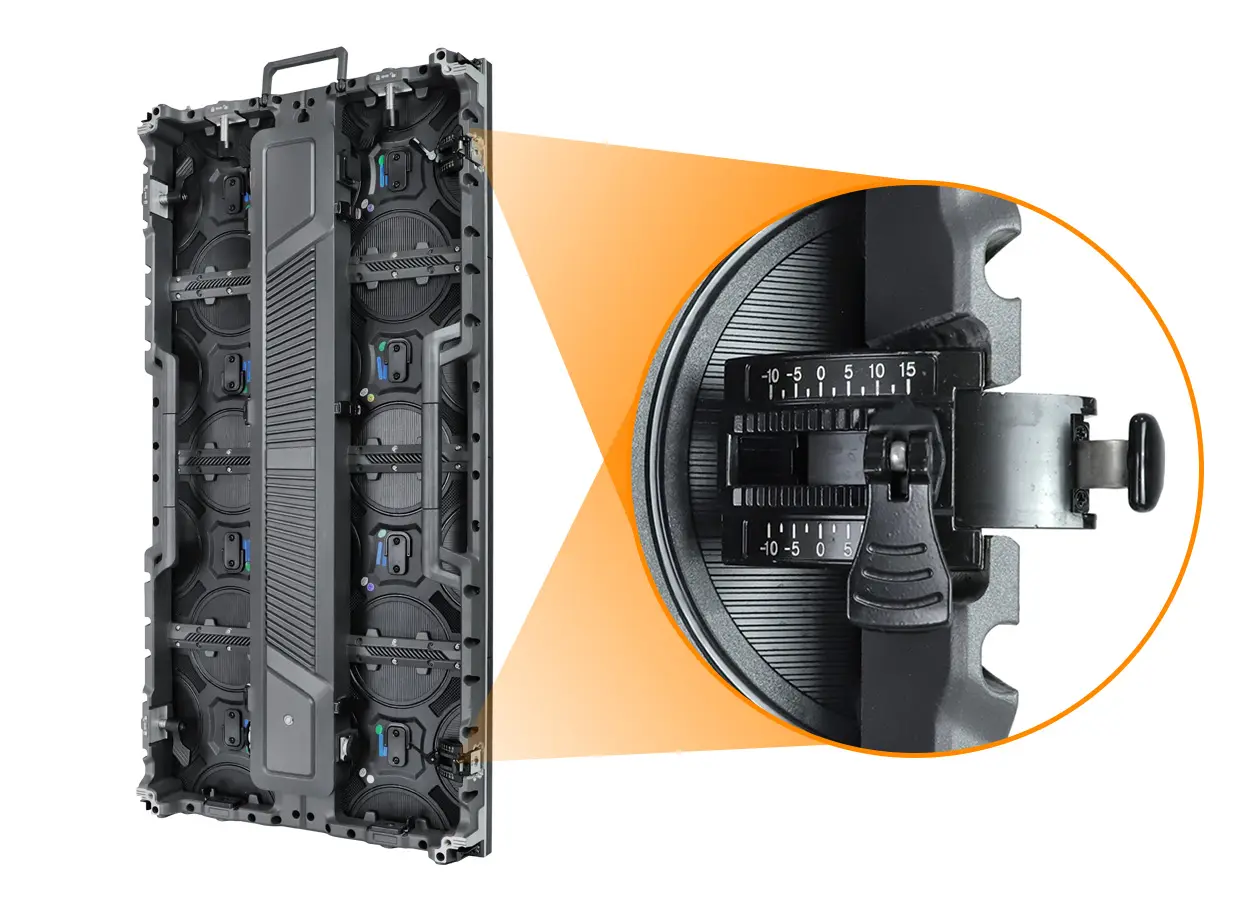

Build Creative Curved LED Walls
The arc-locking system supports curved video walls for stages, exhibitions and event environments. Share the required screen shape before ordering so the cabinet layout and support structure can be confirmed.
Concave, Convex and Ring Configurations
The cabinet supports inward, outward and ring-style curved configurations for stages, exhibitions and brand activations. Plan curved projects around viewing distance, cabinet quantity, rigging and service access.

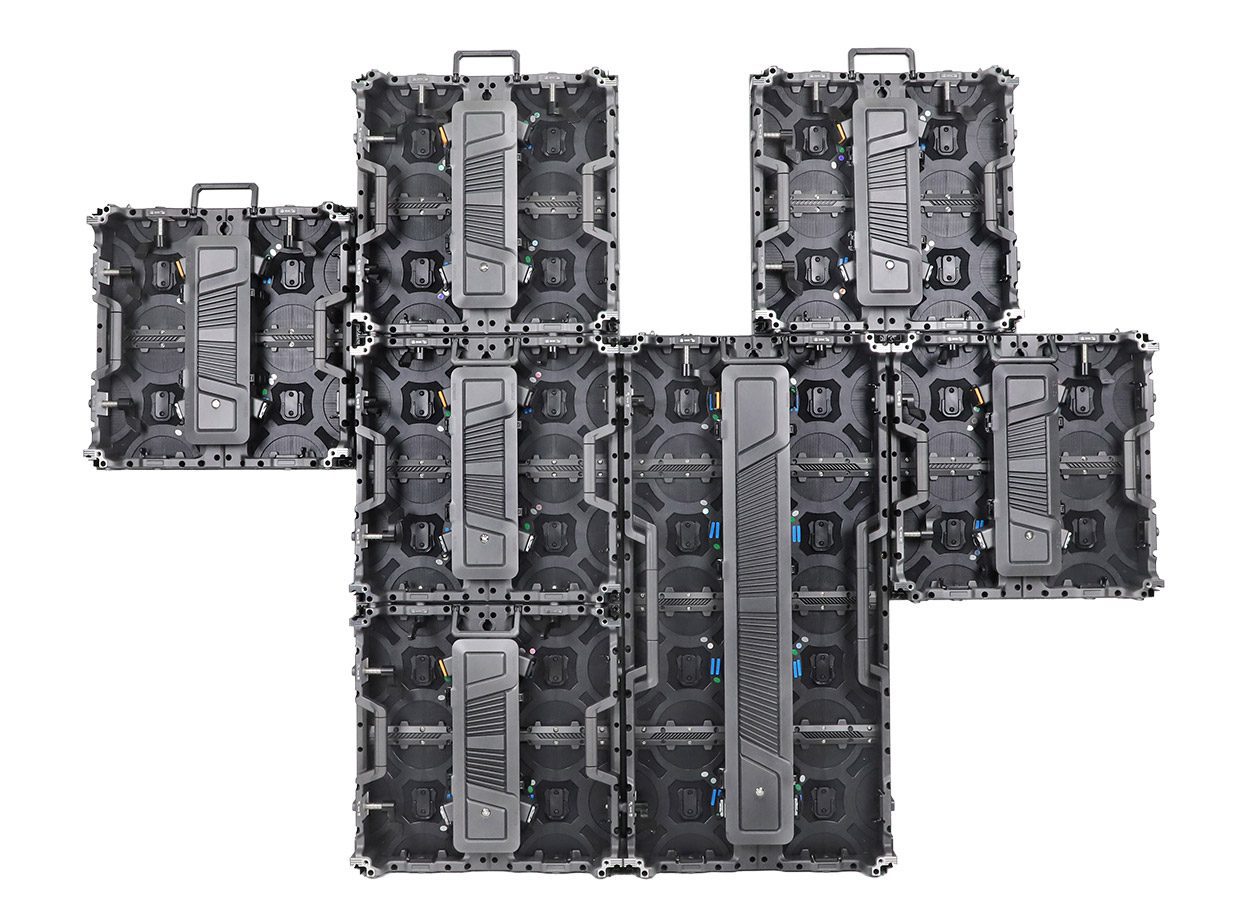

Stack Cabinets for Large LED Video Walls
EA1000C6 cabinets join vertically and horizontally to build larger LED walls for conferences, exhibitions, performances and sports events. Use EagerLED's LED screen aspect ratio guide and LED display size guide to plan resolution and cabinet quantity.

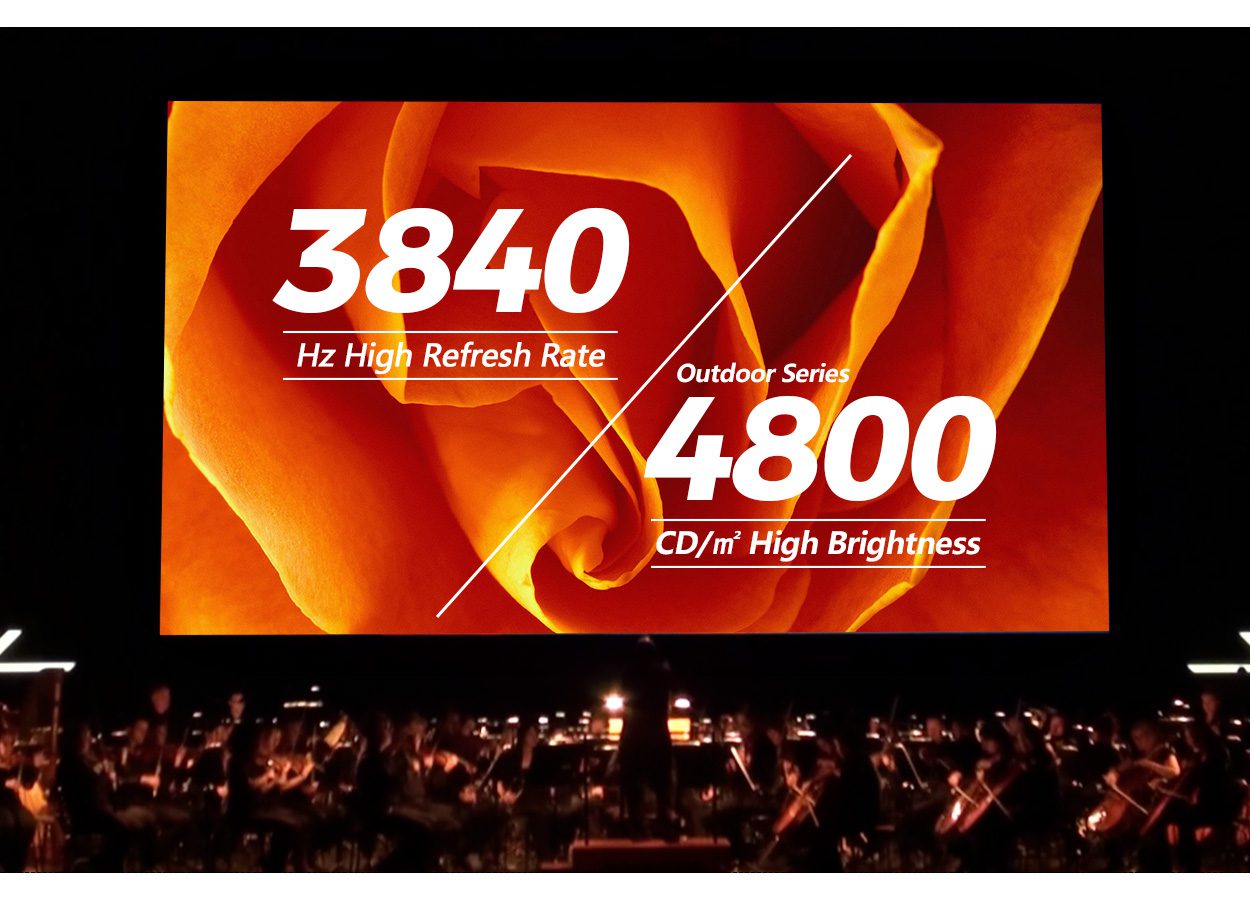

At Least 3,840 Hz Refresh for Live Events and Camera Use
Every EA1000C6 variant delivers at least 3,840 Hz refresh, 14-bit grayscale and a 140-degree viewing angle. Brightness ranges from 700-800 cd/m2 indoors and 4,500-6,000 cd/m2 outdoors; test the full system before camera use.

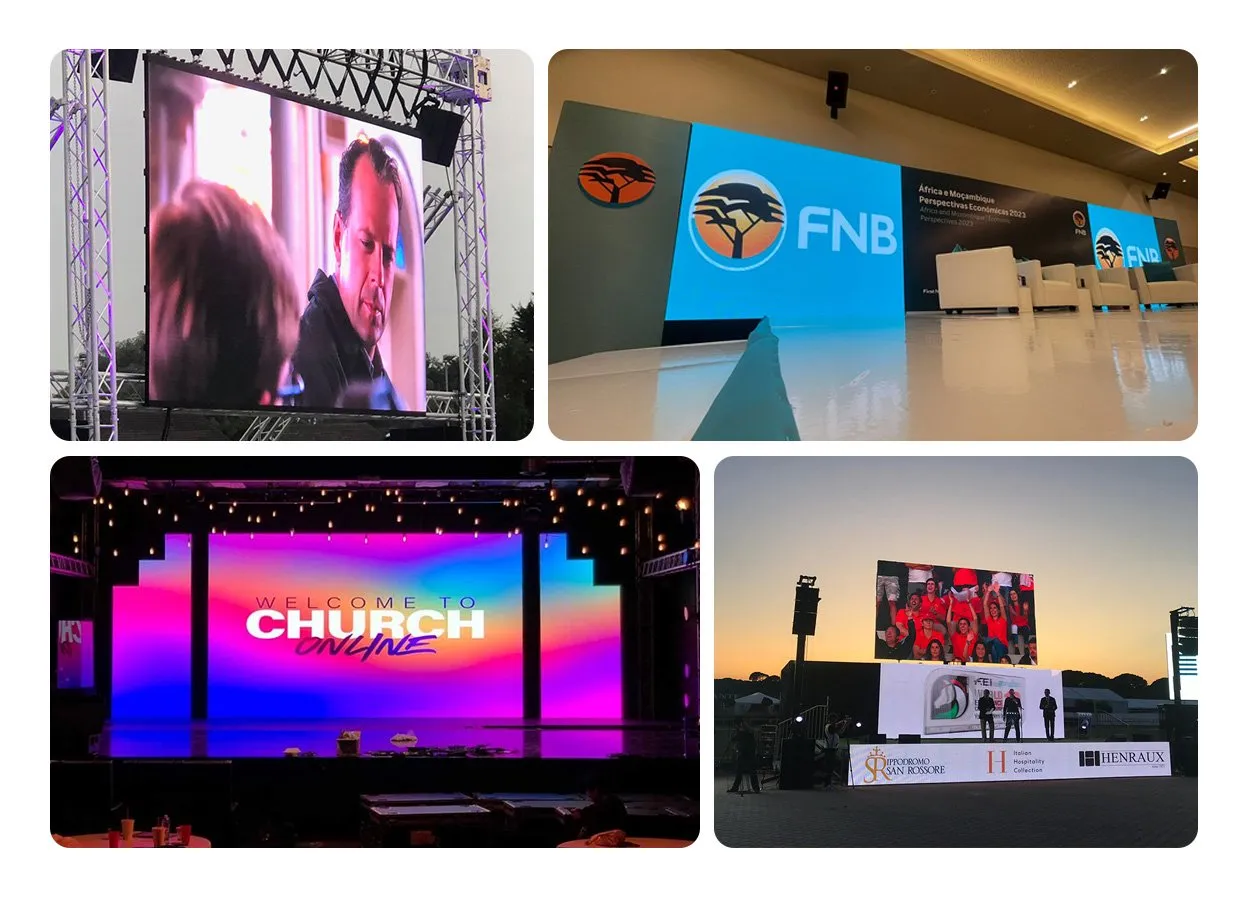

Indoor and Outdoor Models for Event Applications
Indoor models suit conference halls, exhibitions, churches, studios and stages. Outdoor models add higher brightness plus IP65 front and IP54 rear protection; see the rental LED display buyer's guide and waterproof LED display guide for selection help.
Indoor EA1000C6 500x1000 Rental LED Display Parameters
| Pixel Pitch (mm) | P1.56 GOB | P1.95 GOB | P2.6 GOB | P2.97 | P3.91 |
|---|---|---|---|---|---|
| Model | EA1000C6-iP1.56 | EA1000C6-iP1.95 | EA1000C6-iP2.6 | EA1000C6-iP2.97 | EA1000C6-iP3.91 |
| Pixel Configuration | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Density (Pixels/㎡) | 409,600 | 262,144 | 147,928 | 112,896 | 65,536 |
| Module Resolution (Pixel) | 160x160 | 128x128 | 96x96 | 84x84 | 64x64 |
| Module Size (mm) | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 |
| Driving Mode (Duty) | 1/40 | 1/32 | 1/32 | 1/28 | 1/16 |
| Display Size (mm) | 500x1000 | 500x1000 | 500x1000 | 500x1000 | 500x1000 |
| Display Weight (KG) | 11 | 11 | 11 | 11 | 11 |
| Brightness (CD/㎡) | 700 | 750 | 750 | 750 | 800 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 300 | 350 | 350 | 350 | 350 |
| Avg. Power Consumption (W/㎡) | 100 | 120 | 120 | 120 | 120 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 |
Outdoor EA1000C6 500x1000 Rental LED Display Parameters
EA1000C6 Rental LED Video Wall FAQs
What is the cabinet size and weight of the EA1000C6?
Every EA1000C6 cabinet measures 500 x 1000 mm. Indoor cabinets weigh 11 kg, while outdoor cabinets weigh 12.6 kg according to the published series parameter tables.
Can the EA1000C6 be used both indoors and outdoors?
Yes. The series includes separate indoor and outdoor variants. Indoor models are rated IP31, while outdoor models are rated IP65 on the front and IP54 on the rear. Select the version that matches the installation environment.
Which pixel pitches are available?
Indoor options include P1.56 GOB, P1.95 GOB, P2.6 GOB, P2.97 and P3.91. Outdoor options include P2.6, P2.97 and P3.91. The best choice depends on viewing distance, screen size, content resolution and budget.
Can the EA1000C6 form a curved LED wall?
Yes. Its arc-locking design supports concave, convex and ring-style configurations. Ask EagerLED to verify the layout, cabinet quantity and support structure for the required shape.
Is a 3,840 Hz refresh rate suitable for filming?
The refresh specification is designed for live-event and camera-facing use. Scan mode, processor settings, camera frame rate and shutter speed also affect the recorded image, so test the complete system before an event.
What information is needed for an EA1000C6 quotation?
Provide the target screen width and height, indoor or outdoor use, expected viewing distance, preferred shape, event date and delivery country. Include camera or broadcast requirements when applicable.
