EA500H9 Indoor & Outdoor Rental LED Board
EA500H9 is a 500 × 500 mm rental LED board for production fleets needing flat walls and optional curved layouts. Compare indoor, standard outdoor and black-LED outdoor versions, then specify the exact pitch, scan mode, lock accessories, control equipment and service parts.
Get a Custom EA500H9 Rental LED Display Solution

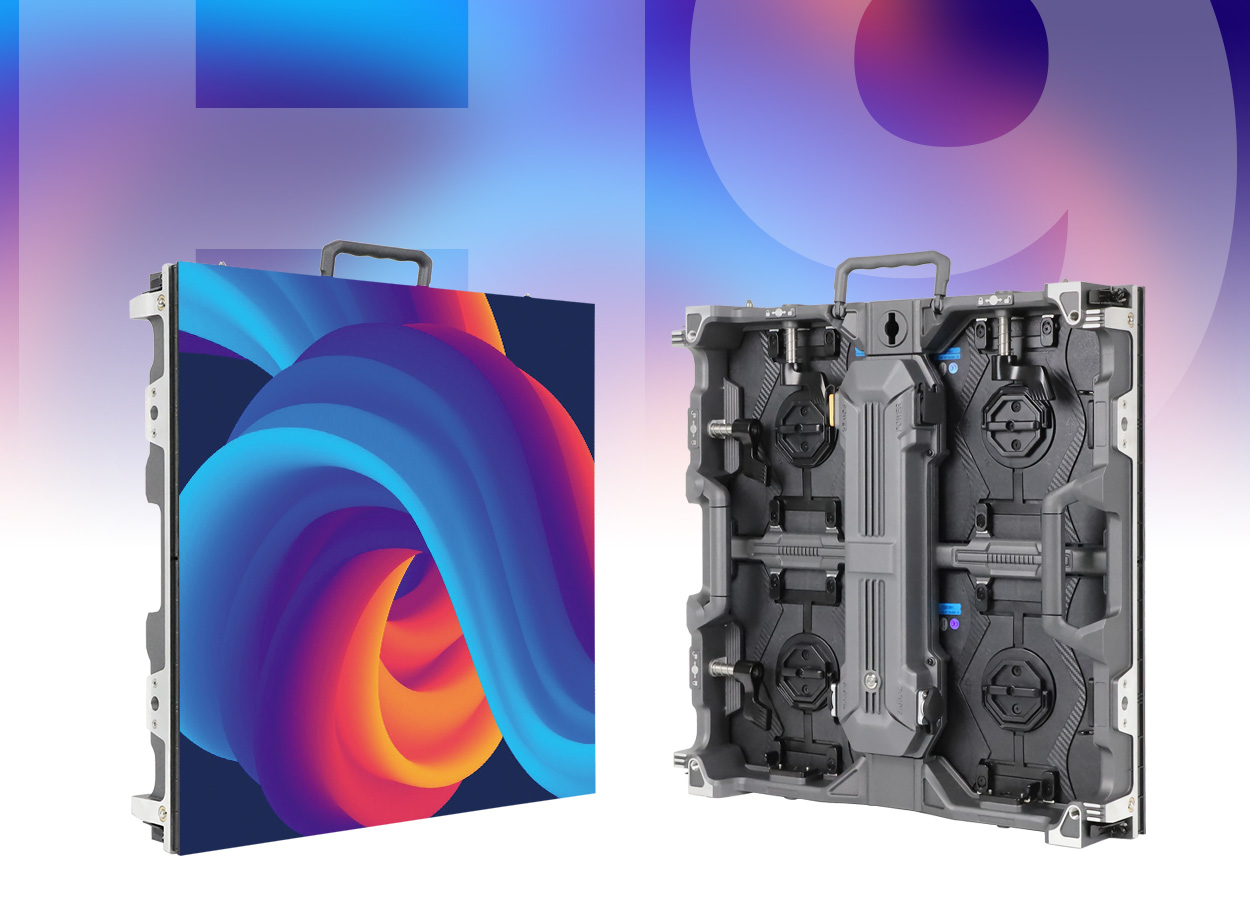

EA500H9 Indoor & Outdoor Rental LED Board Overview
EA500H9 is a 500 × 500 mm rental LED board for production fleets needing flat walls and optional curved layouts. Compare indoor, standard outdoor and black-LED outdoor versions, then specify the exact pitch, scan mode, lock accessories, control equipment and service parts.
- Indoor cabinets are listed at 7 kg and outdoor cabinets at 7.5 kg.
- Outdoor standard and black-LED versions have different brightness specifications.
- Curved locks and circular layouts are optional and must be defined in the order.
- Front/rear service and the removable power box need a confirmed access and spare-parts plan.
On this page
Compare outdoor P3.91 versions
| P3.91 version | Brightness (cd/m²) | Scan / maximum power (W/m²) |
|---|---|---|
| Standard LED / 16S | 4,800 | 1⁄16 / 580 |
| Standard LED / 8S | 6,000 | 1⁄8 / 650 |
| Black LED / B | 3,000 | 1⁄16 / 580 |
| Black LED / B-8S | 4,000 | 1⁄8 / 650 |
The table lists different brightness for standard and black-LED packages even at the same pitch and scan mode. Select according to the intended ambient light and camera test; do not treat the B suffix as a brightness-equivalent spare version.
A flat 4 × 2 m wall uses 32 cabinets. At the published weights, cabinet-only handling mass is 224 kg indoors or 240 kg outdoors, before mounting, cables and cases. Confirm support and handling requirements for the assembled system.
For curved or staggered builds, provide the layout and require the optional lock hardware, approved angle settings and content mapping to be confirmed. Equal panel dimensions alone do not prove compatibility with another cabinet series.
Purchase questions
Which indoor configurations are listed?
The current indoor table lists P1.56 GOB, P1.95 GOB, P2.6 GOB and P2.97 with IP31 protection. Obtain confirmation before ordering an indoor pitch outside this table.
What are the published power ranges?
Indoor maximum power is 300–350 W/m² and average power 100–120 W/m². Outdoor versions list 500–650 W/m² maximum and 170–220 W/m² average. Use the exact version for electrical planning.
What should be included in a fleet quotation?
Confirm the cabinet and LED package, scan version, optional curve locks, controller and receiving cards, cables, rigging/stacking scope, transport cases, replacement modules and power boxes. Ask for a compatible parts list.
Request an EA500H9 fleet quotation
Compare the rental LED screen fleet configurations for other formats.

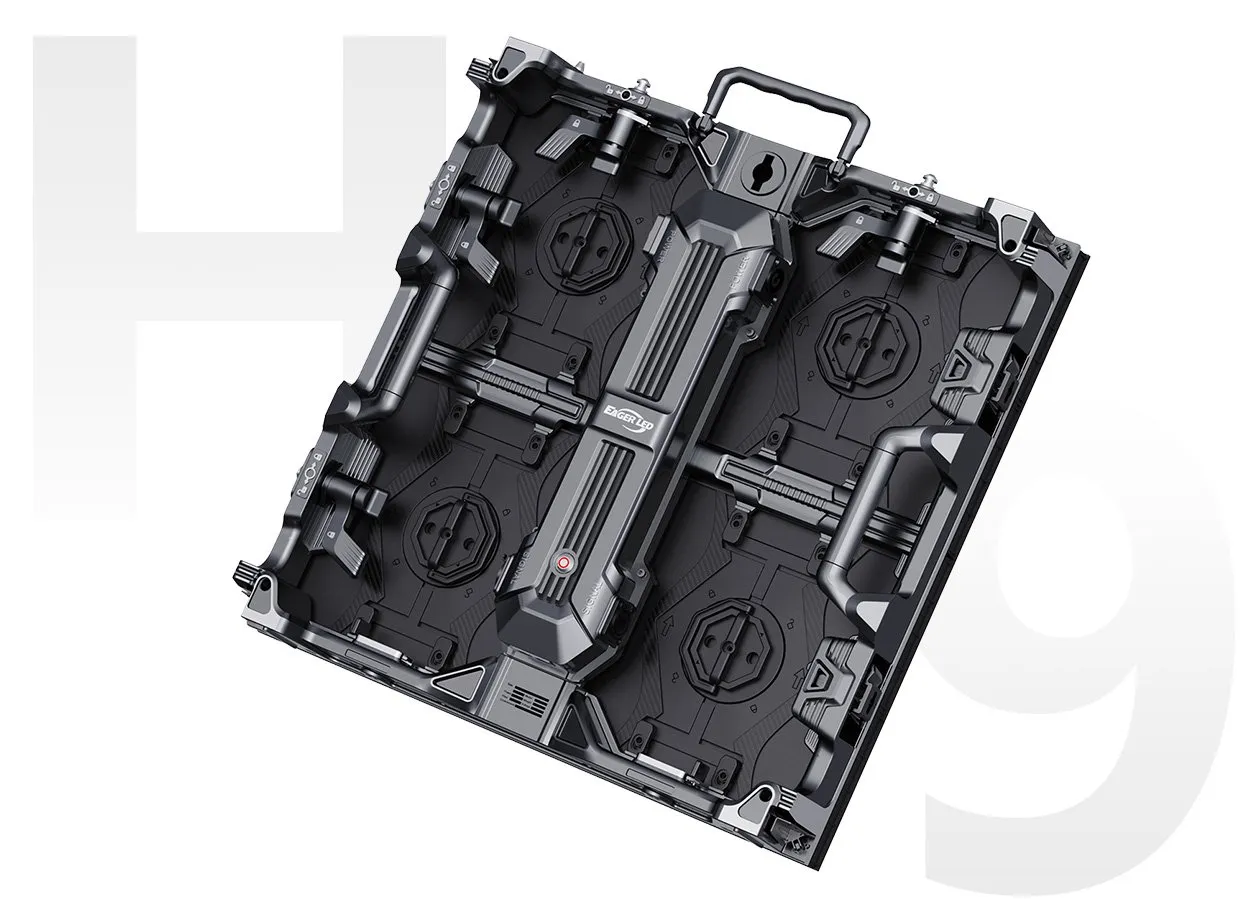

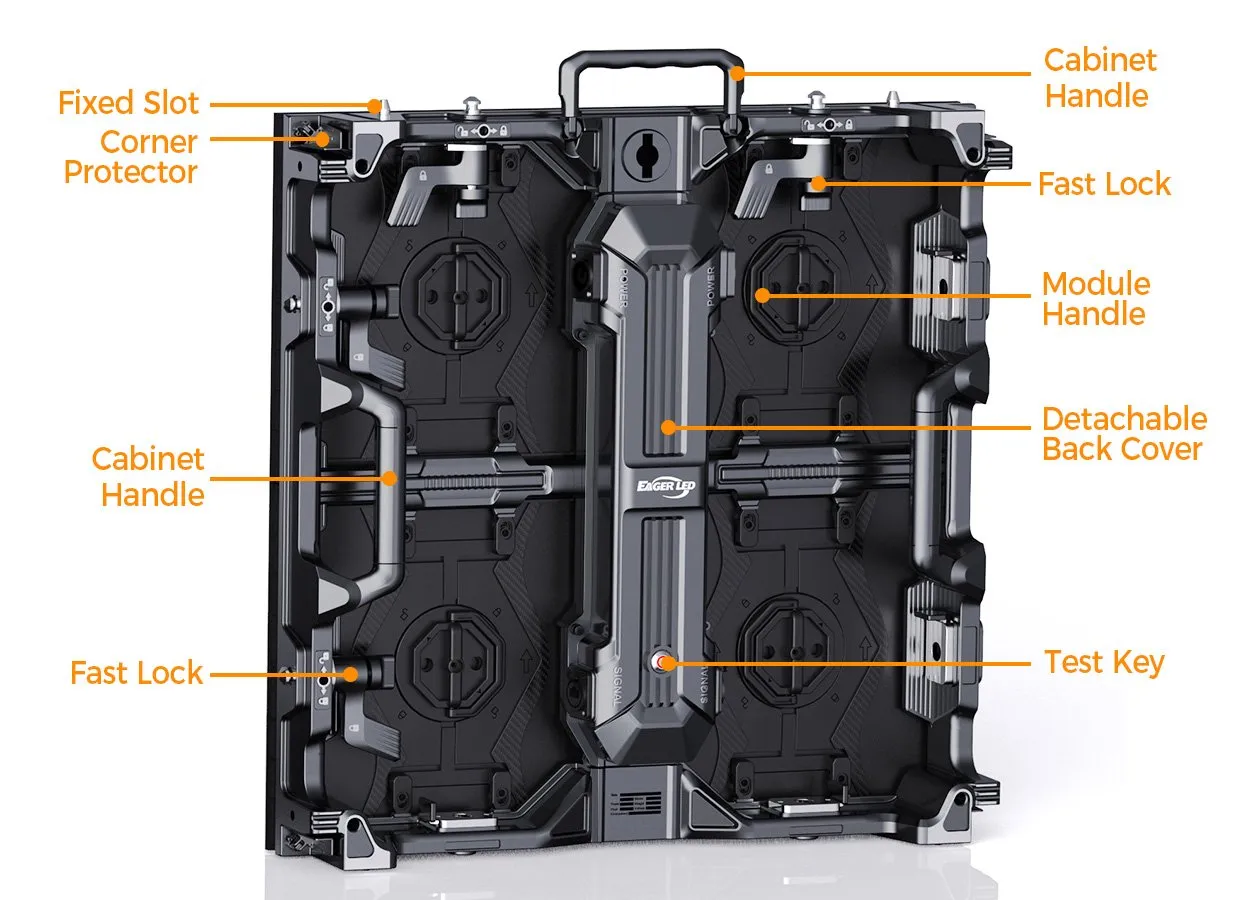

Refined 500×500 mm Cabinet Design
The 500×500 mm EA500H9 cabinet integrates handling grips, locating features, quick locks, corner protection and a detachable power box. Indoor cabinets weigh 7 kg and outdoor cabinets weigh 7.5 kg, helping crews move, align and service panels during repeated event setup.

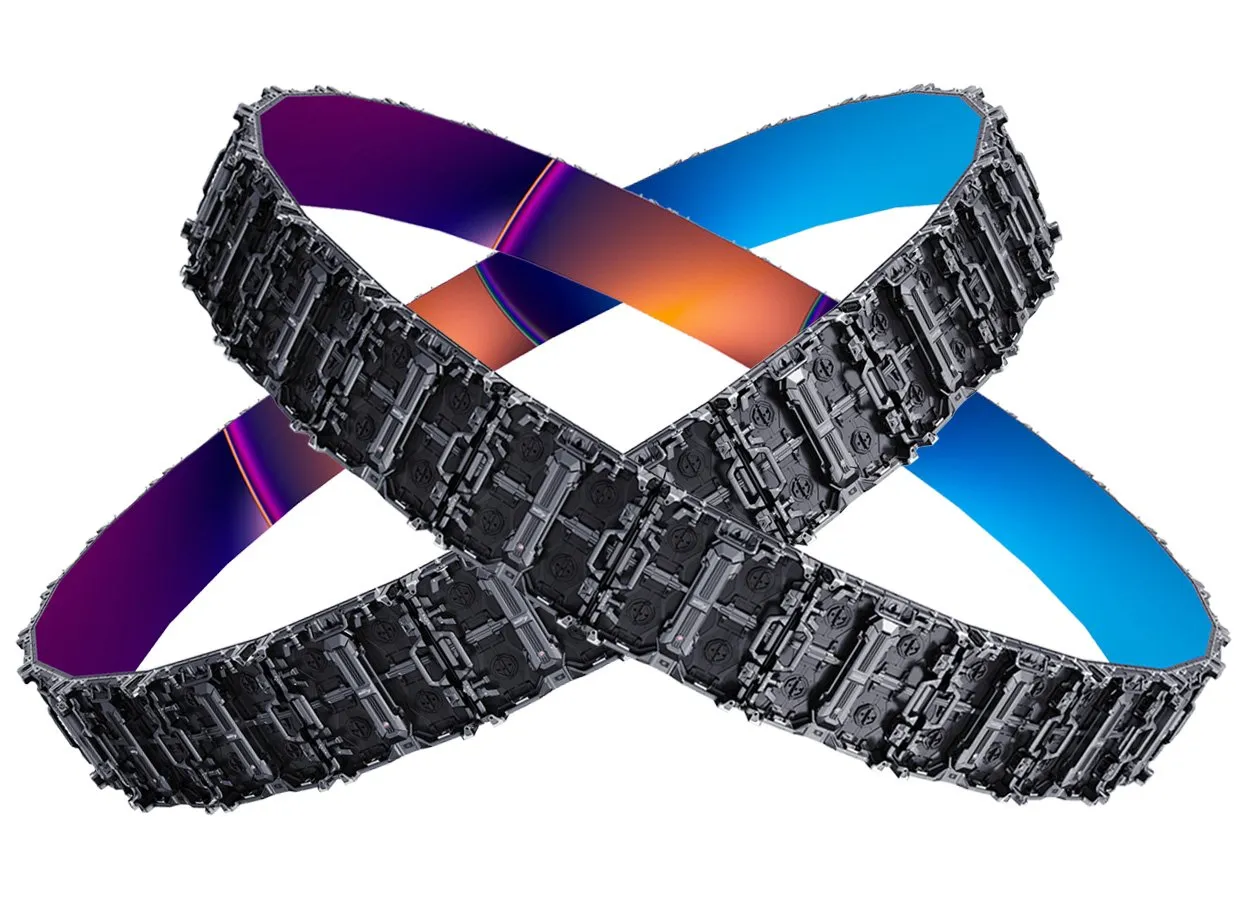

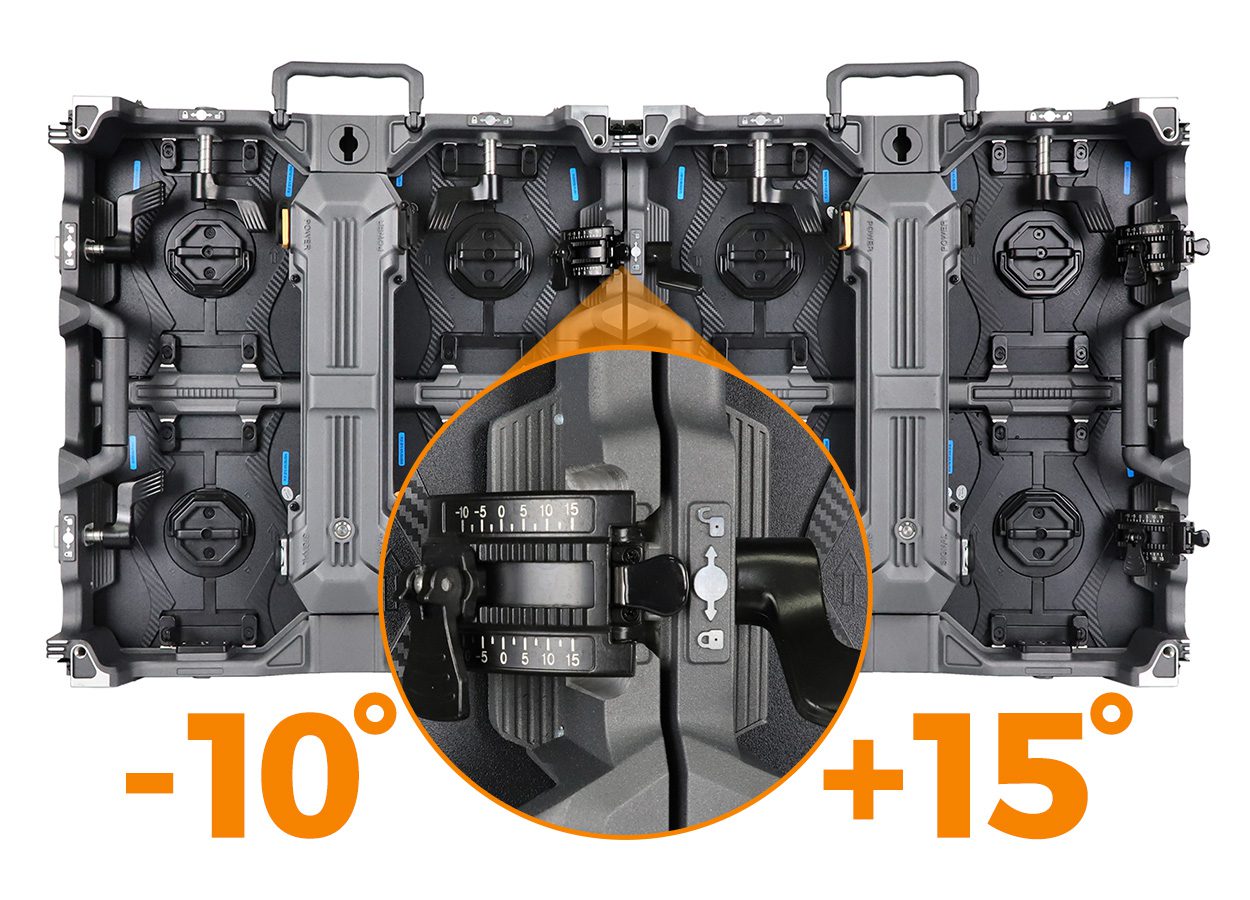

Optional Curved Lock for Creative Layouts
The optional curved-lock system connects adjacent cabinets and lets technicians adjust the installation angle for creative layouts. It supports flat rental video walls, curved stage backdrops and optional circular ring structures while retaining the same 500×500 mm cabinet format.

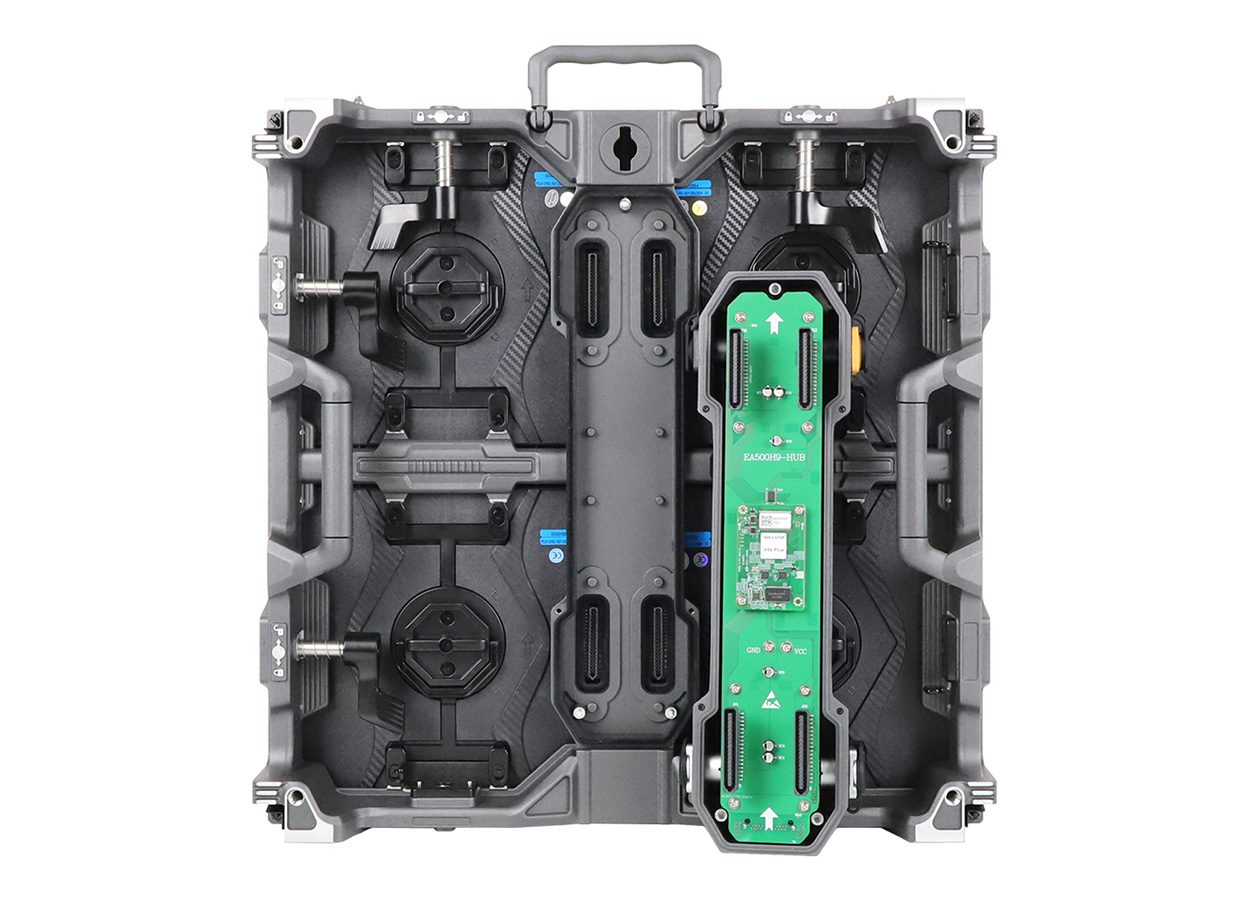

Removable Power Box for Faster Service
The removable power box lets technicians replace the power and control assembly without dismantling the full video wall. Combined with front/rear access, this reduces the number of panels that must be removed during routine service.

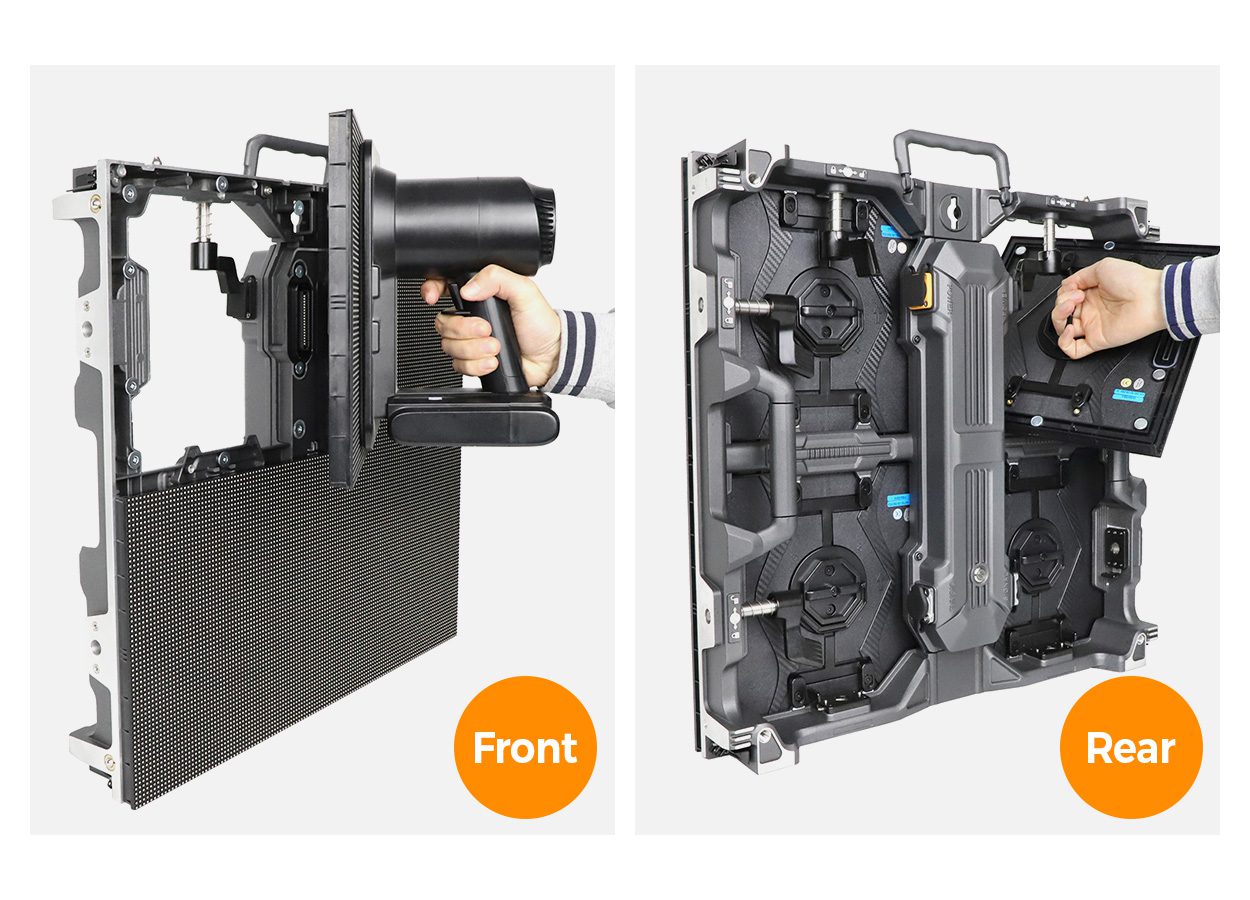

Front and Rear Maintenance Access
EA500H9 supports service access from both the front and rear. Installers can choose the access path that fits the venue, which is useful for wall-mounted or space-constrained event builds.

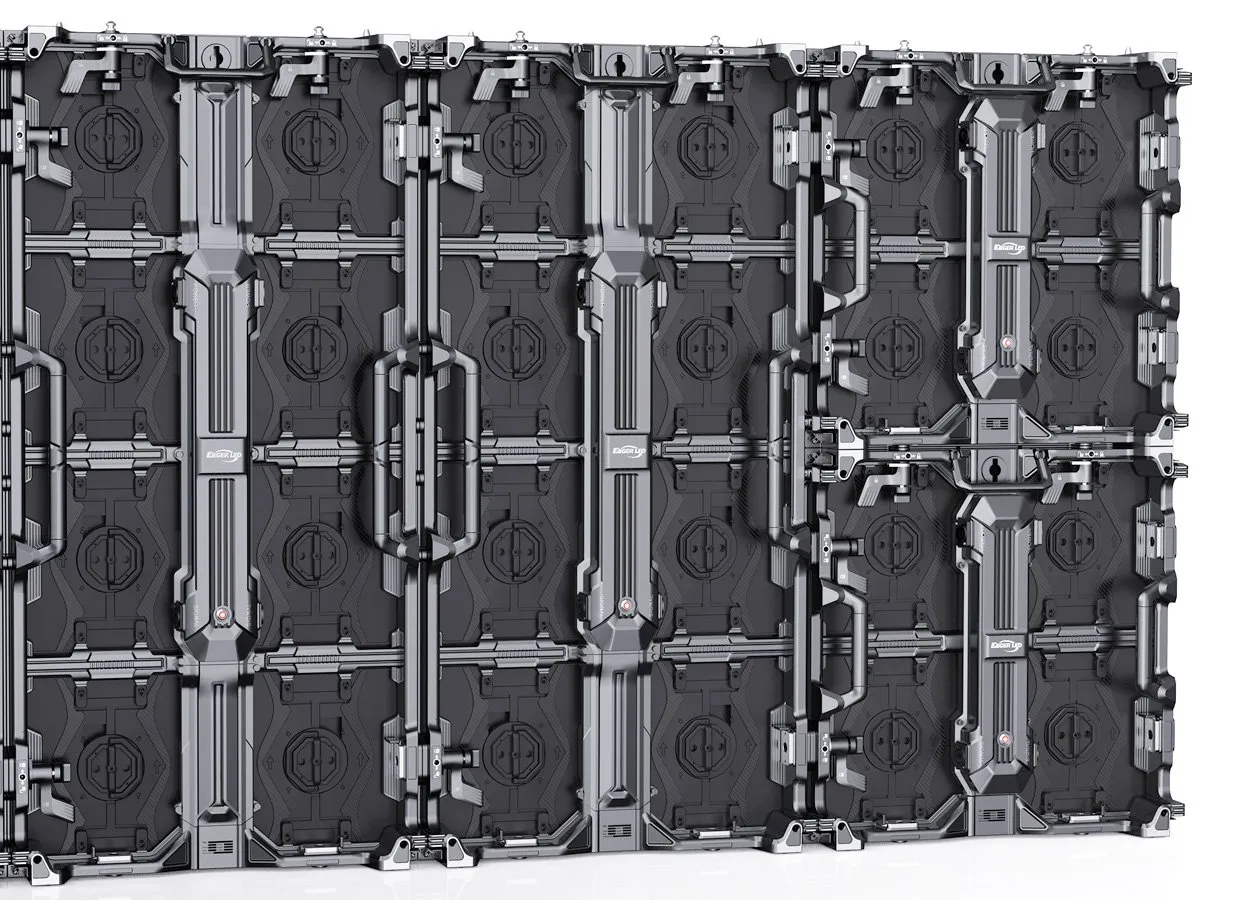

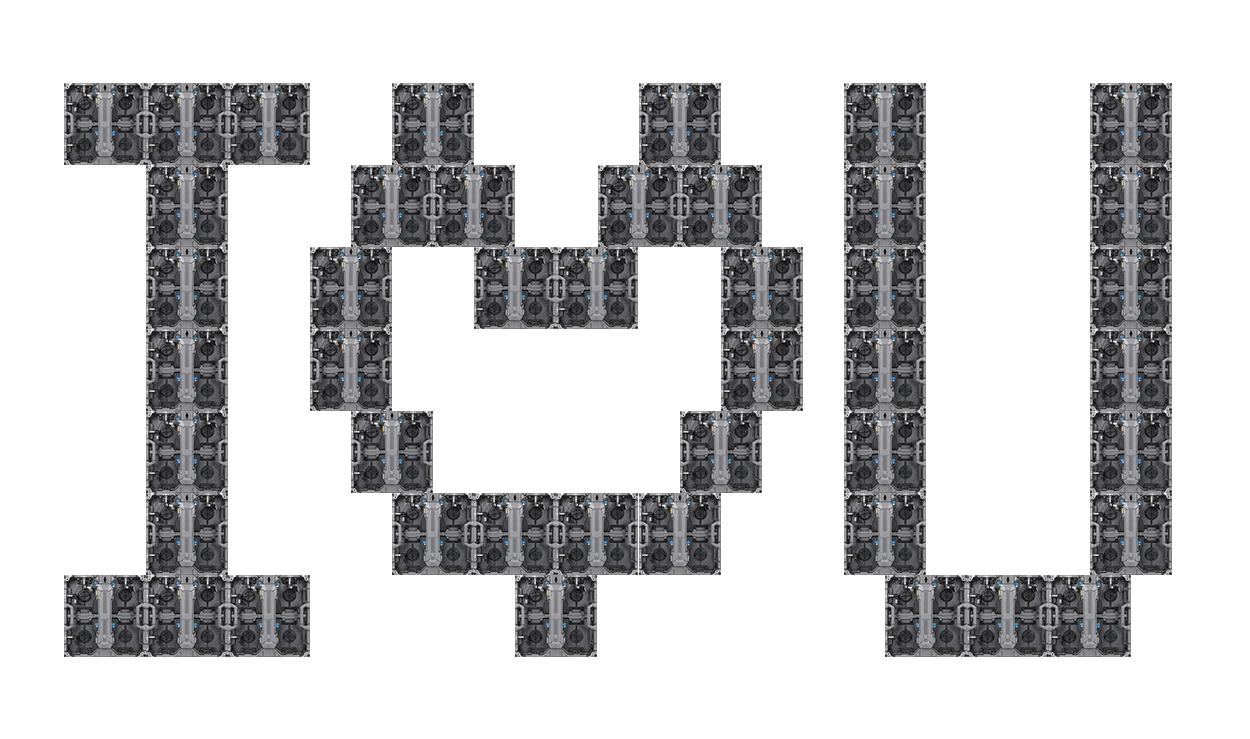

Creative Staggered Installation
The H9 series supports staggered cabinet splicing, allowing event teams to combine modules into distinctive LED wall shapes while retaining the same installation system.
Precise Large-Screen Splicing

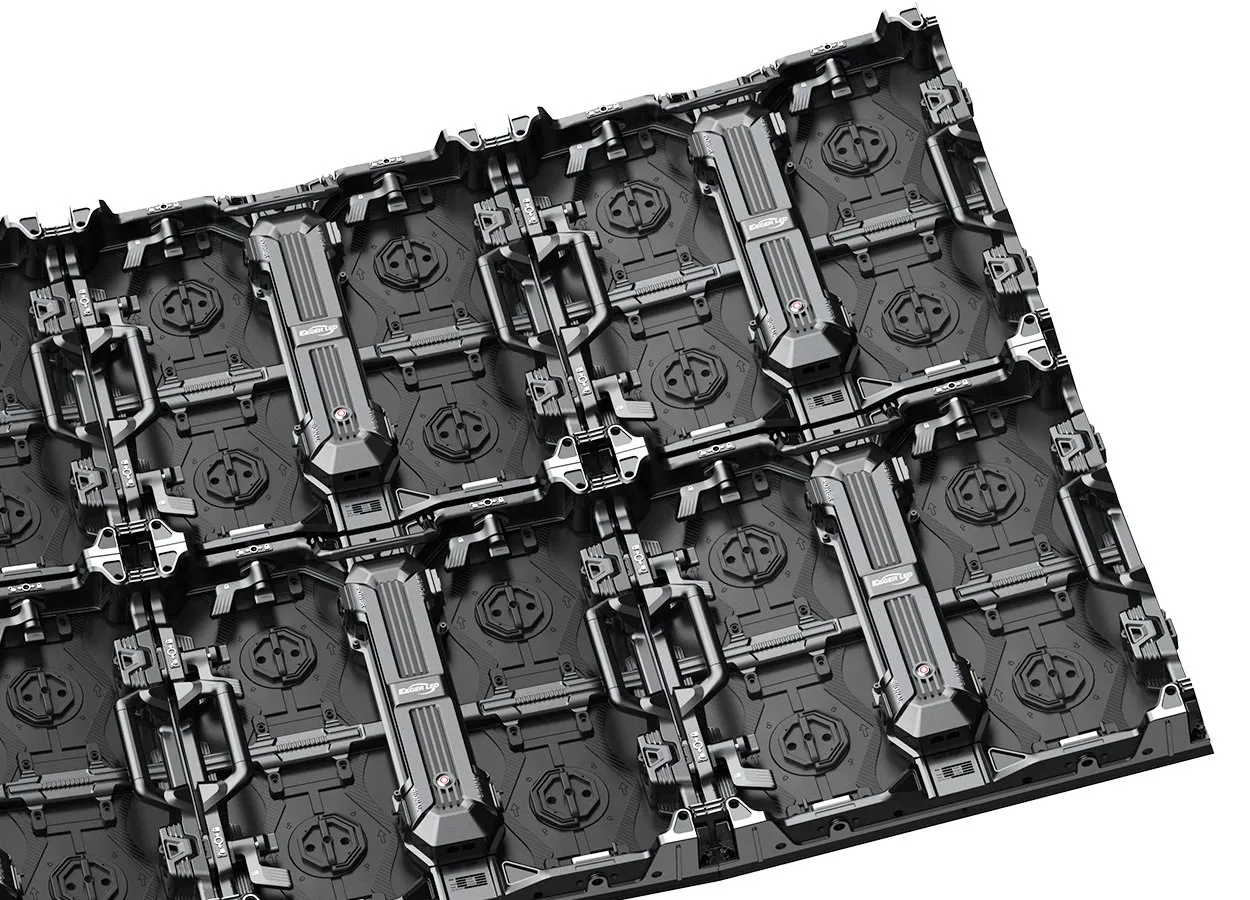

Quick locks and locating features align adjacent 500×500 mm cabinets into a continuous flat or curved video wall. The final display size scales by adding cabinet rows and columns to suit the venue.
≥3,840 Hz High-Refresh LED Display
Every listed indoor and outdoor model specifies a refresh frequency of ≥3,840 Hz and 14-bit grayscale. This combination supports smooth motion and finer tonal transitions for live events, presentations and camera-facing installations.

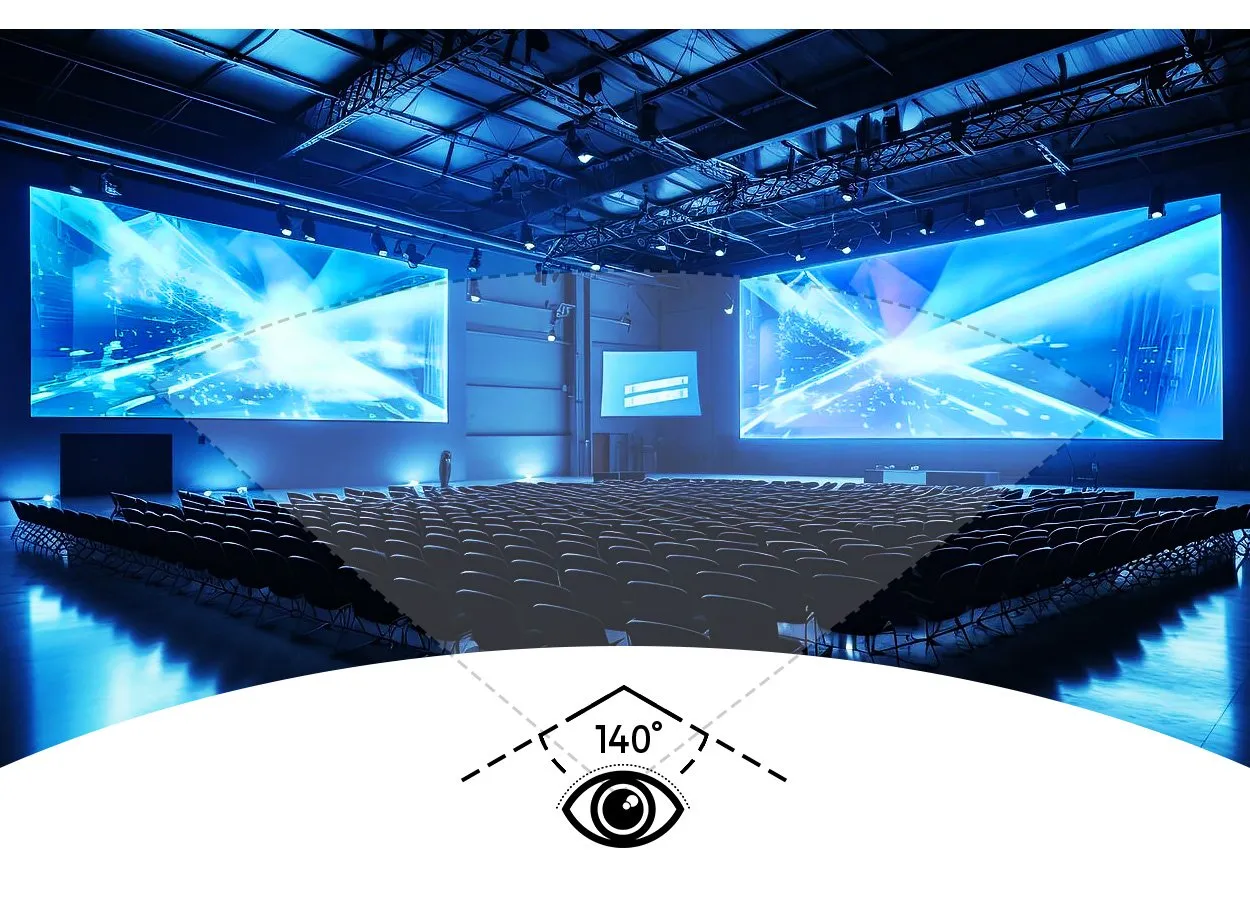

140° Wide Viewing Angle
The 140° horizontal and vertical viewing angle helps audiences see consistent content from off-center positions. This is useful for wide venues, exhibitions and stages where sightlines vary.

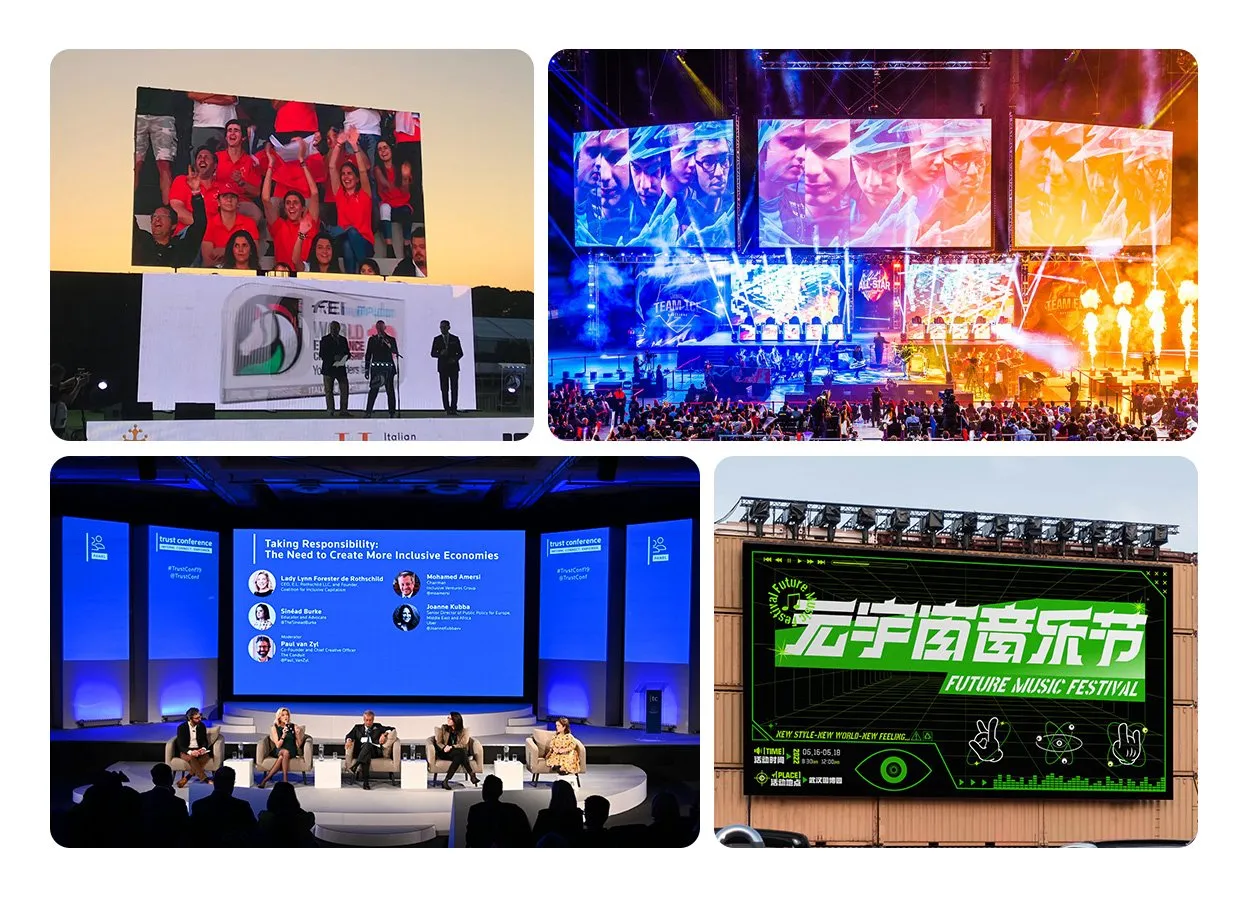

Outdoor Rental LED Board Applications
Outdoor configurations deliver 3,000-6,000 cd/m² brightness, IP65 front/IP54 rear protection and an operating range of -20°C to +60°C. They are intended for sporting events, concerts and open-air cinema; select the exact model for local weather and brightness requirements.
EA500H9 Indoor 500×500mm Specifications
EA500H9 Outdoor 500×500mm Specifications
EA500H9 Rental LED Board FAQ
What is the EA500H9 rental LED board?
The EagerLED EA500H9 is a modular 500×500 mm rental LED display for indoor and outdoor event video walls. Listed configurations provide ≥3,840 Hz refresh, 140° viewing and 14-bit grayscale; indoor cabinets weigh 7 kg and outdoor cabinets weigh 7.5 kg.
Which pixel pitches are available?
Indoor options are P1.56 (GOB), P1.95 (GOB), P2.6 (GOB) and P2.97. Outdoor options are P2.6, P2.97 and multiple P3.91 configurations. The best choice depends on viewing distance, brightness and protection requirements.
Is the EA500H9 suitable for outdoor events?
Yes. Outdoor configurations specify 3,000-6,000 cd/m² brightness, IP65 protection at the front, IP54 at the rear and an operating range of -20°C to +60°C. Confirm the exact model for the venue and expected weather conditions.
Can the EA500H9 create curved or circular screens?
Yes. An optional curved-lock system supports curved layouts and circular ring installations. Confirm the required curvature or ring diameter with EagerLED when planning the cabinet quantity and lock configuration.
How is the EA500H9 maintained?
The cabinet supports front and rear maintenance and uses a removable power box. Technicians can choose the access direction that fits the installation and replace the power/control assembly without dismantling the complete video wall.
What power supply does the EA500H9 use?
All listed models accept AC100-240 V at 50-60 Hz. Indoor configurations specify 300-350 W/m² maximum and 100-120 W/m² average power consumption; outdoor configurations specify 500-650 W/m² maximum and 170-220 W/m² average.
