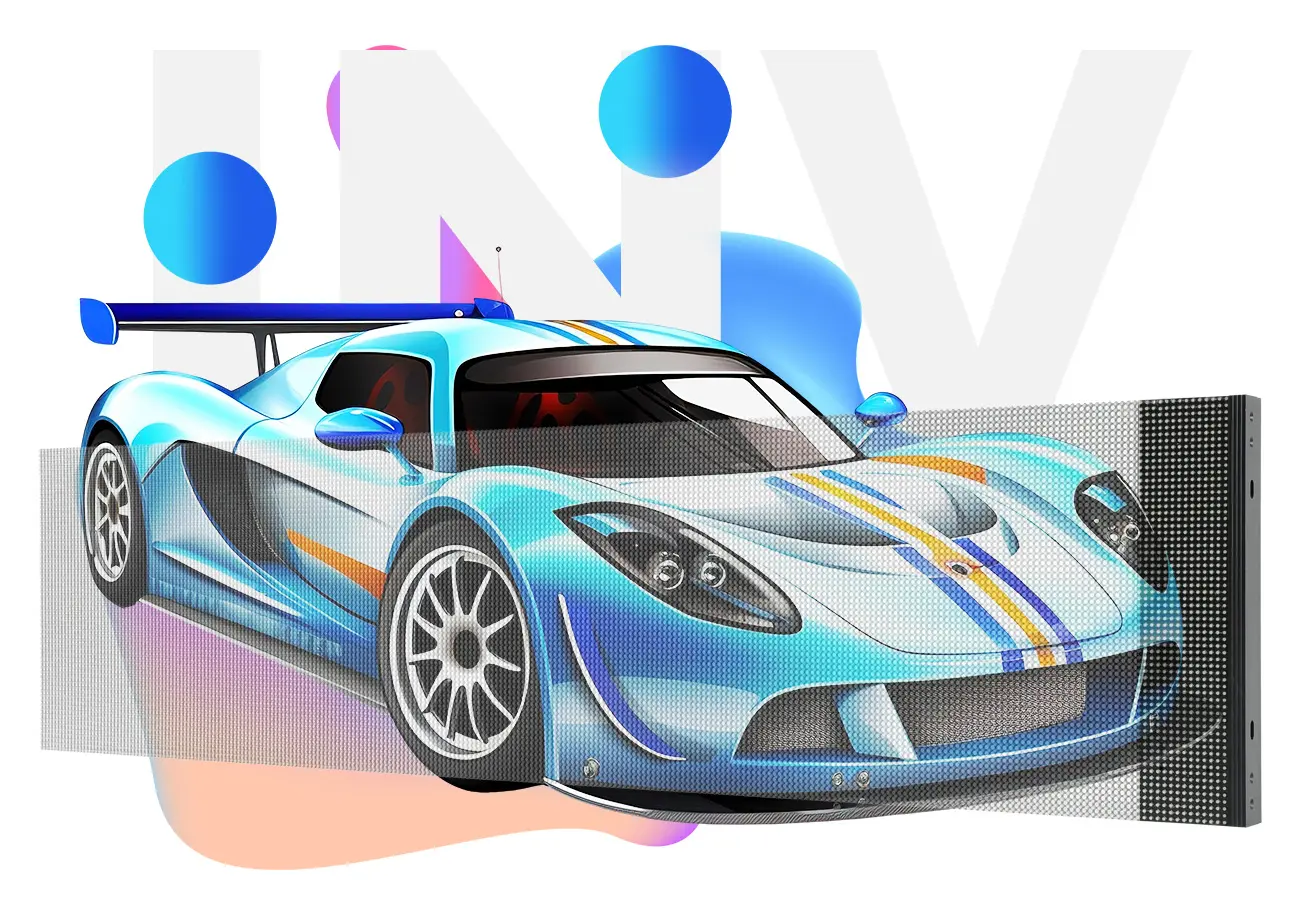

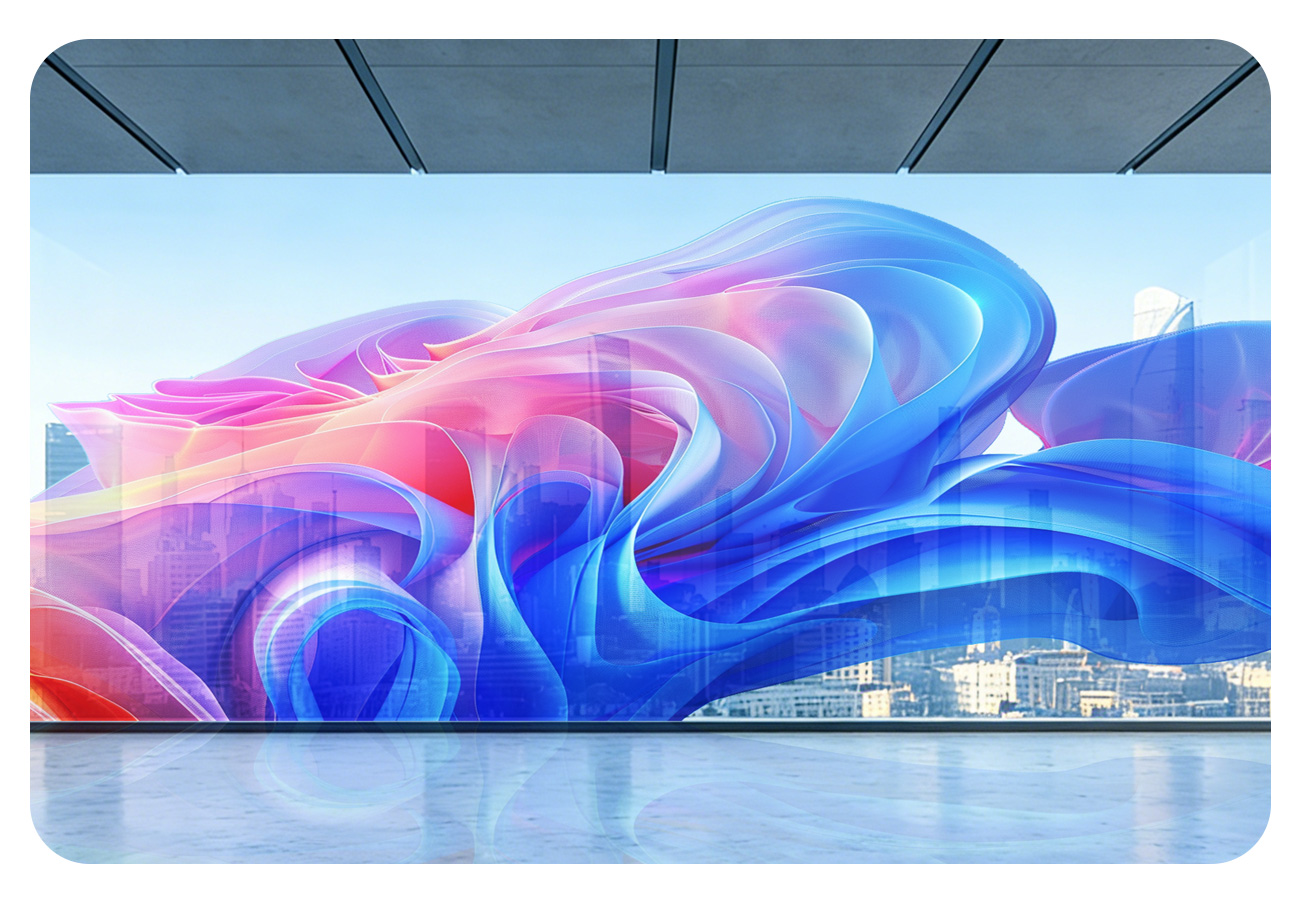

EA250INV Indoor Glass LED Screen
EA250INV is an indoor glass LED screen with 70%–90% transparency, depending on pixel pitch. Its 2 mm profile, 1.3–1.5 kg panels, self-adhesive mounting and ≥3,840 Hz refresh rate suit retail windows and interior glass displays.
70%–90% Transparency by Pixel Pitch
Transparency is 70% at P3.91, 80% at P6.25 and 90% at P10.42. This open design preserves more daylight and background visibility than a conventional opaque LED cabinet.

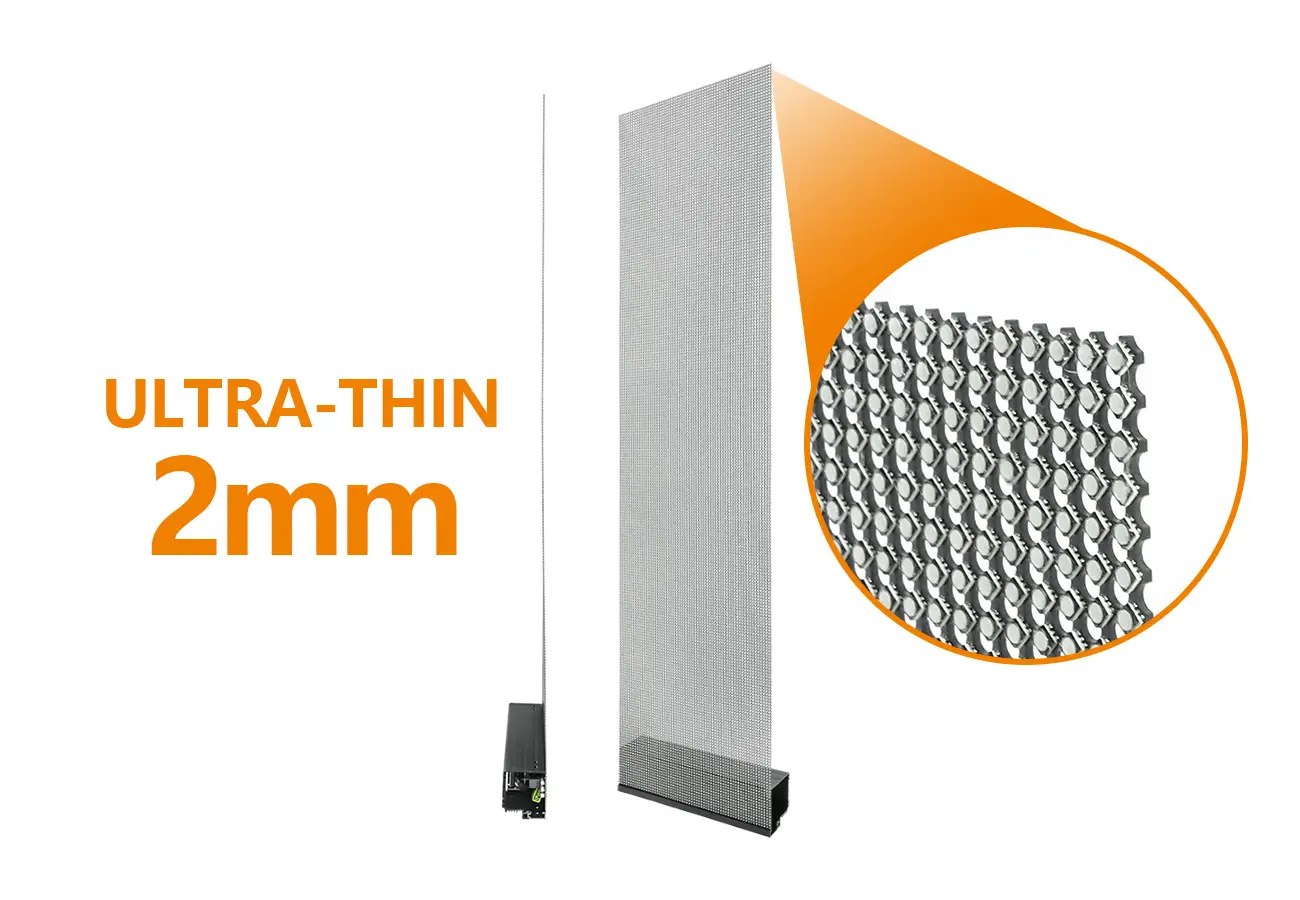

2 mm Profile and 1.3–1.5 kg Panels
The 2 mm panels weigh 1.3–1.5 kg, depending on size. Their slim, lightweight construction reduces the mounting load on suitable indoor glass and simplifies installation handling.

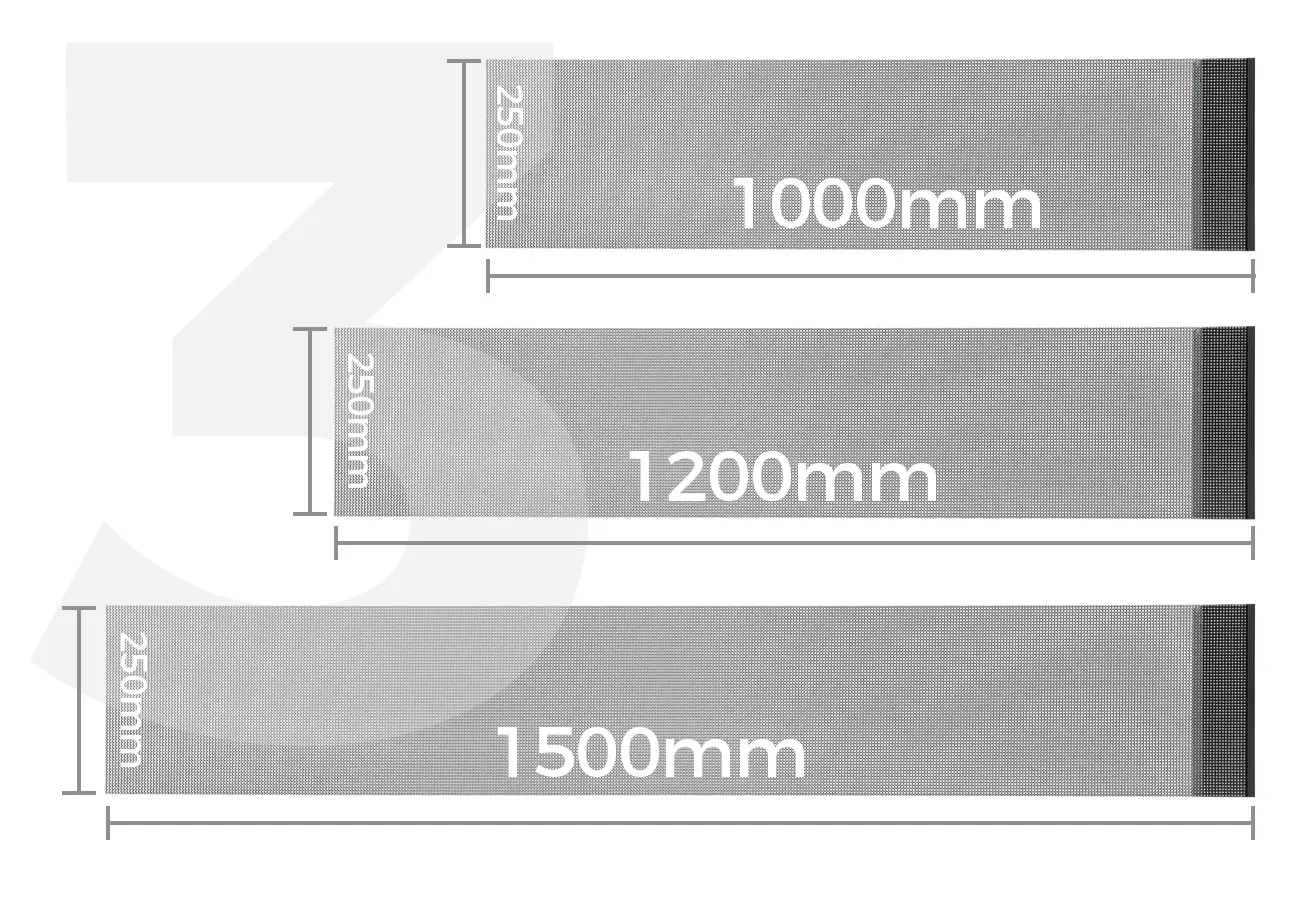

Three Panel Sizes and Pixel Pitch Options
Panel sizes are 1,000×250, 1,200×250 and 1,500×250 mm. P3.91 and P6.25 support all three sizes; P10.42 is available in 1,000×250 and 1,500×250 mm, so resolution can be matched to viewing distance and window dimensions.

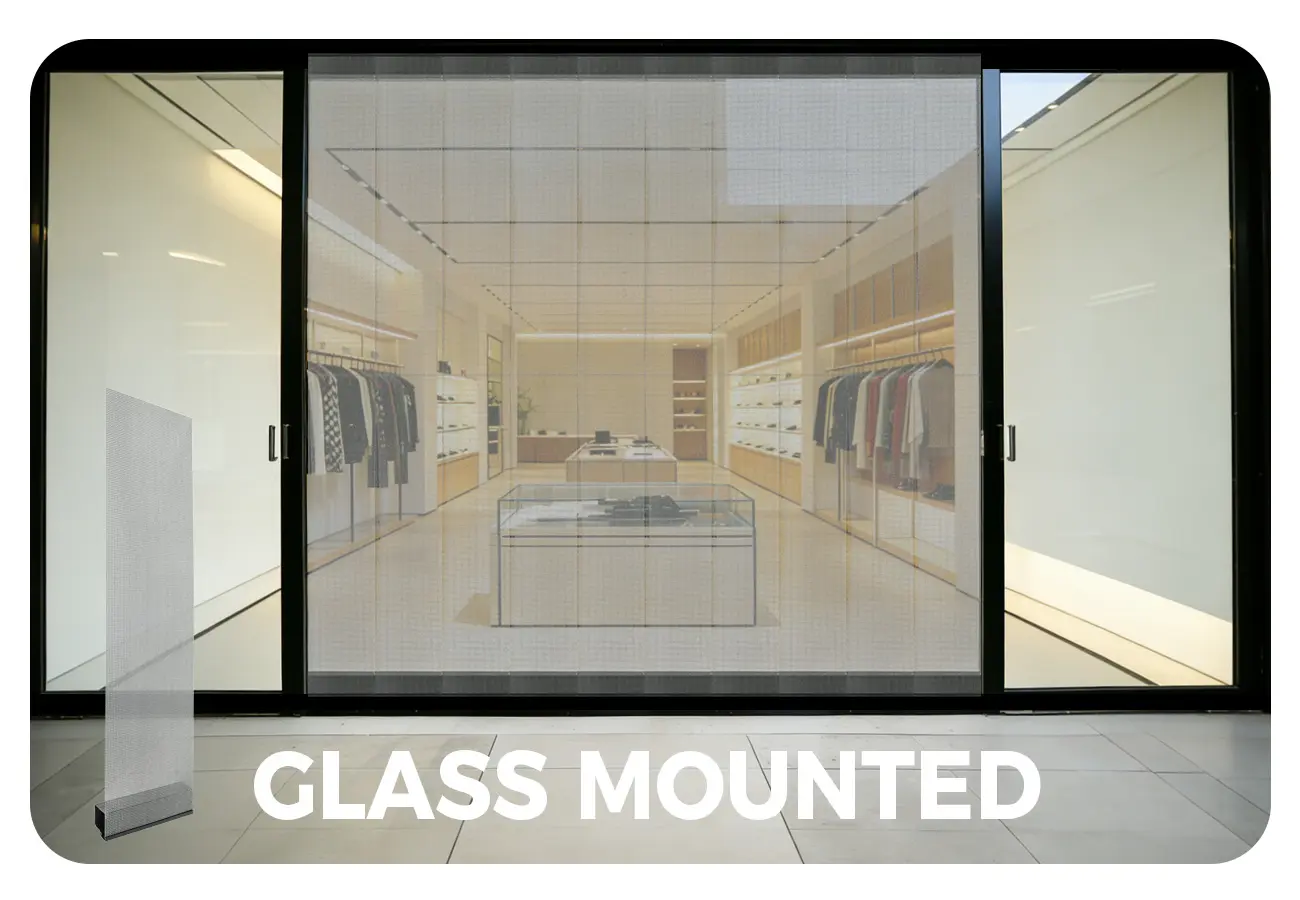

Self-Adhesive Indoor Glass Installation
The self-adhesive panel bonds directly to compatible indoor glass, reducing the need for a separate steel frame. Check the glass condition, cable route, power distribution and maintenance access before installation.
Up to 4,500 cd/m² and ≥3,840 Hz Refresh
Brightness ranges from 1,500 to 4,500 cd/m² by pitch and panel size, while the ≥3,840 Hz refresh rate supports smooth, camera-friendly video. A 9,000:1 contrast ratio helps content remain legible against bright backgrounds.

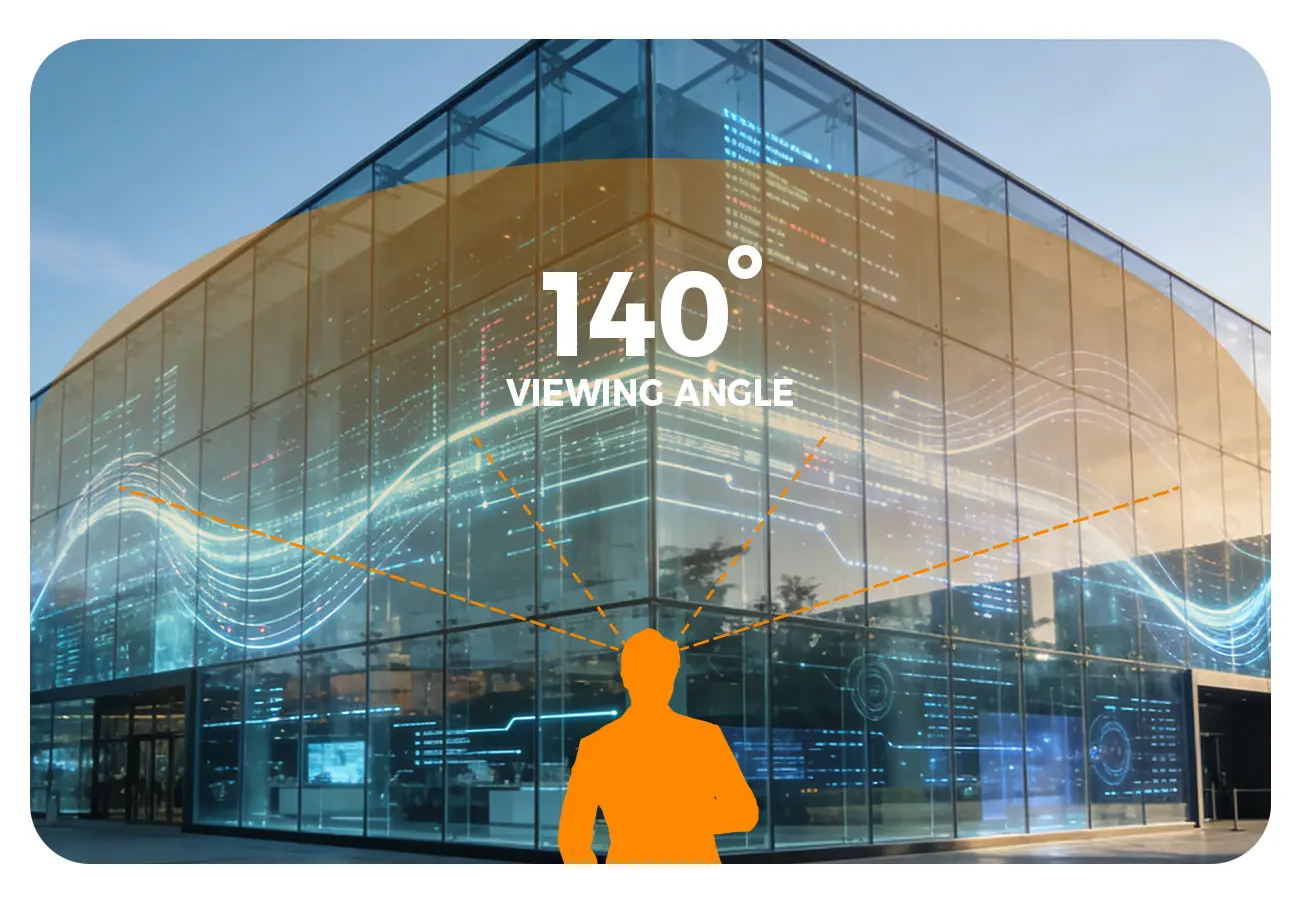

140° Viewing Angle for Wide Glass Frontages
A 140° viewing angle keeps content visible across wide storefront and exhibition approaches. Select pixel pitch according to the closest viewing distance and required image detail.

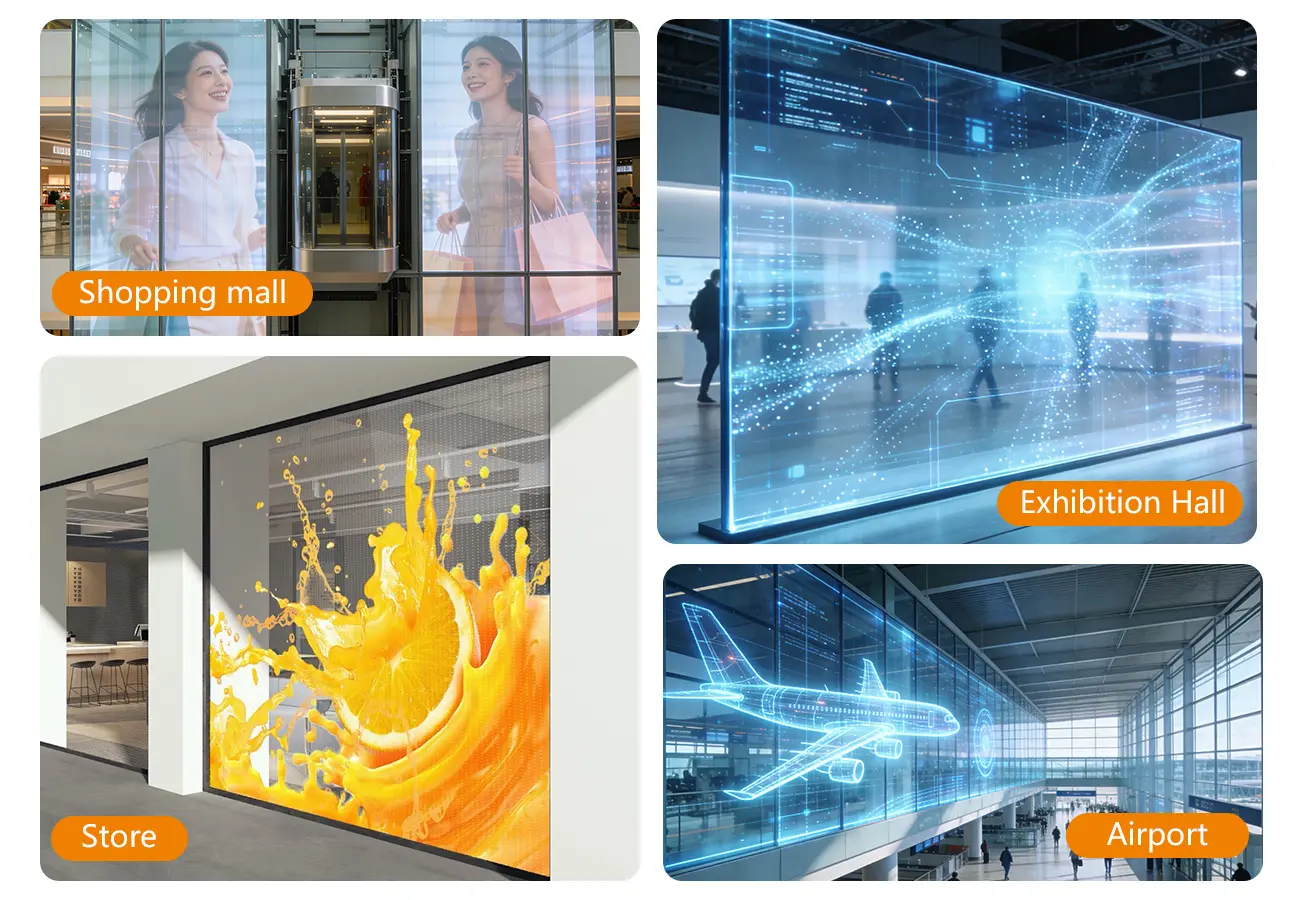

Indoor Glass LED Screen Applications
EA250INV is designed for indoor retail windows, glass curtain walls, museums, exhibition halls and transportation interiors. It preserves more daylight and sightlines than a conventional opaque LED cabinet.
EA250INV Indoor Glass LED Screen Specifications
EA250INV Indoor Glass LED Screen FAQs
What is the EA250INV indoor glass LED screen?
EA250INV is a 2 mm self-adhesive transparent LED panel for suitable indoor glass. It displays digital content while preserving more daylight and background visibility than an opaque LED cabinet.
How does transparency vary by pixel pitch?
Transparency is 70% for P3.91, 80% for P6.25 and 90% for P10.42. Higher transparency provides more background visibility, while finer pitch provides more image detail at closer viewing distances.
Which panel sizes are available?
EA250INV is available in 1,000×250, 1,200×250 and 1,500×250 mm panels. P10.42 is offered in the 1,000×250 and 1,500×250 mm formats.
How bright is the EA250INV display?
Brightness ranges from 1,500 to 4,500 cd/m² according to pixel pitch and panel size. Select the configuration after evaluating indoor ambient light and the direction of the glass.
How much does each panel weigh?
Panel weight ranges from 1.3 to 1.5 kg, depending on panel length. This should be included in the glass and installation load assessment.
Does EA250INV require a steel frame?
Its self-adhesive design can mount directly to compatible indoor glass without a conventional cabinet frame. The substrate, cable route, power system and maintenance access must still be planned.
Can EA250INV be installed outdoors?
No. The listed IP30 protection grade follows the enclosure classification defined by IEC 60529, so EA250INV is intended for dry indoor environments.
