EA-FD indoor front desk LED screen
EA-FD is a movable indoor reception desk with an integrated GOB LED screen for lobby branding and event registration. Choose the display format and pixel pitch together, then confirm the physical desk footprint, power requirements and transport route before ordering.
Customized New LED Display Solutions for You
EA-FD indoor front desk LED screen
EA-FD is a movable indoor reception desk with an integrated GOB LED screen for lobby branding and event registration. Choose the display format and pixel pitch together, then confirm the physical desk footprint, power requirements and transport route before ordering.
- Indoor reception and event registration; a complete LED desk rather than a conventional flat video wall.
- P1.53, P1.86 and P2.5 GOB versions with front module service.
- Three published display formats; physical desk dimensions are separate.
- Confirm regional sockets, control equipment and optional flight-case scope in the quote.
On this page
Compare display formats and desk footprints
| LED display format | Desk L × H × D | Published weight | Maximum power per set |
|---|---|---|---|
| 1920 × 960 mm | 1035 × 1100 × 585 mm | 97 kg | 550 W |
| 2240 × 960 mm | 1360 × 1100 × 585 mm | 115 kg | 650 W |
| 2560 × 960 mm | 1675 × 1100 × 585 mm | 130 kg | 750 W |
These are the paired formats listed in the published specifications. LED surface dimensions and the physical counter footprint describe different measurements: use a dimensioned drawing for floor planning, door clearance and artwork mapping.
For close viewing, compare pixel pitch using actual logo and text samples. The specification table repeats cabinet-resolution values across pitches; request the exact pixel map for the chosen pitch and size before producing final artwork.
Plan power for the complete set and any other equipment connected to the desk. Published maximum consumption is 550, 650 or 750 W by format; socket type alone does not establish electrical compliance in the destination market.
Purchase questions
What affects the price of a front desk LED display?
The selected desk size, pixel pitch, finish, control equipment, socket configuration and transport case affect the quotation. Send the reception layout and intended branding content so the proposed scope can be compared.
Is the flight case included?
The product description identifies the flight case as optional. Ask the quotation to state its inclusion, case dimensions and handling plan; do not assume a transport case is supplied with every desk.
Can it be used outdoors?
EA-FD is presented as an indoor desk. The published IP43 rating does not make the assembled desk suitable for an outdoor installation; specify the actual exposure conditions before purchase.
Request an EA-FD configuration quote
Compare the indoor LED screen range for other formats.

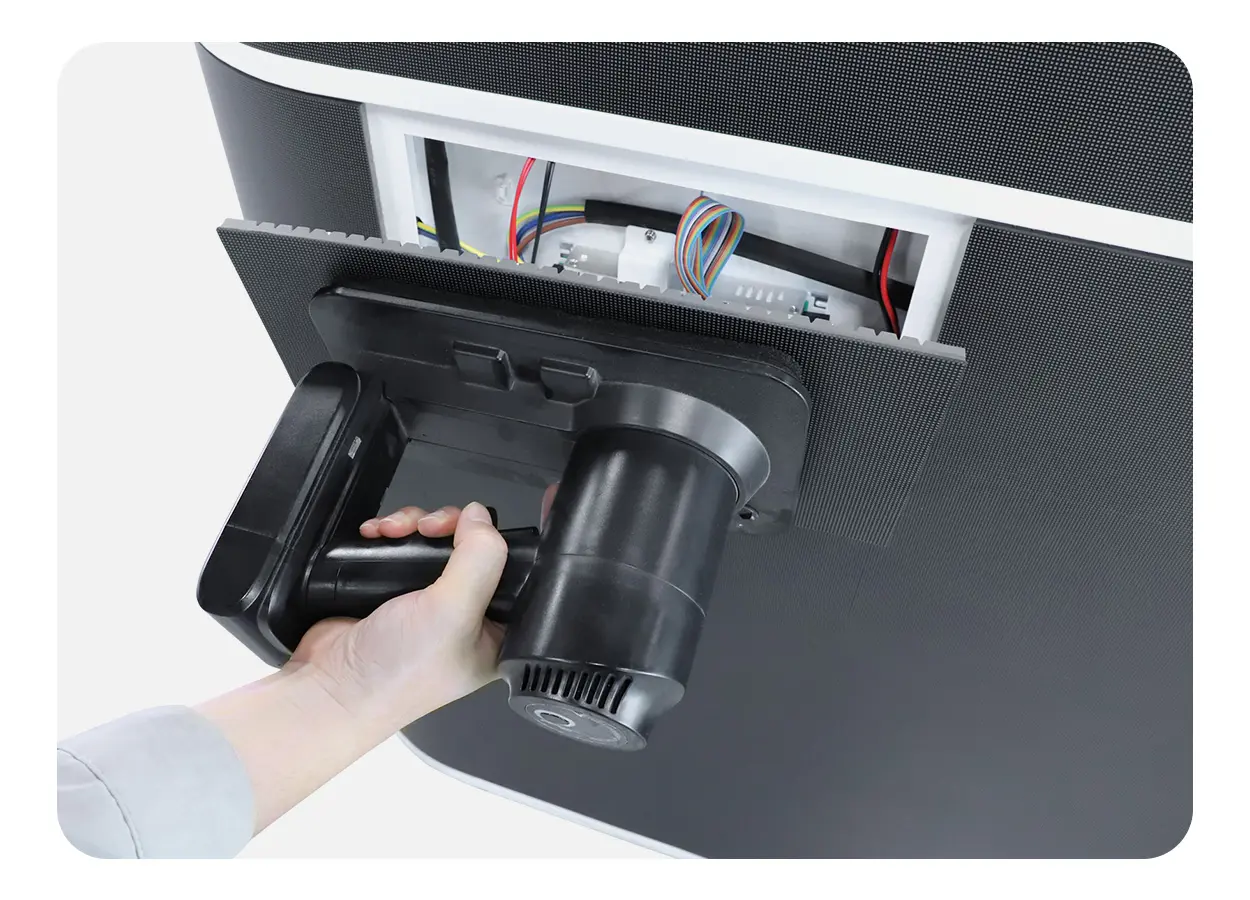

Front-Access Service Design
The front-service architecture allows LED modules to be removed and replaced from the viewing side without dismantling or moving the desk. This shortens routine service time and eliminates the need for rear maintenance access.

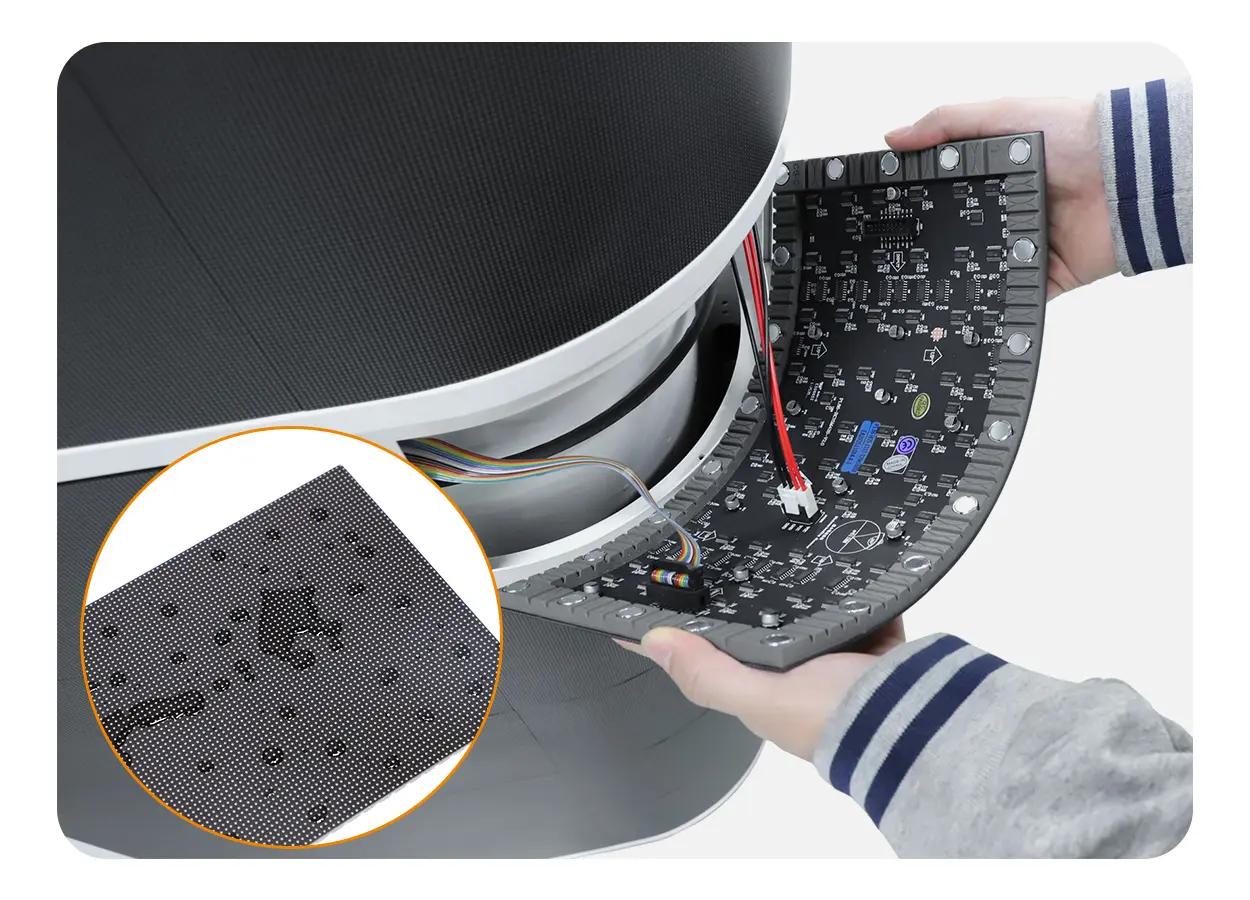

GOB (Glue-on-Board) Protection
GOB (Glue-on-Board) encapsulation adds a protective layer over the LED surface to improve resistance to dust, moisture and incidental impact. It also reduces the risk of pixel damage in busy reception and event environments.

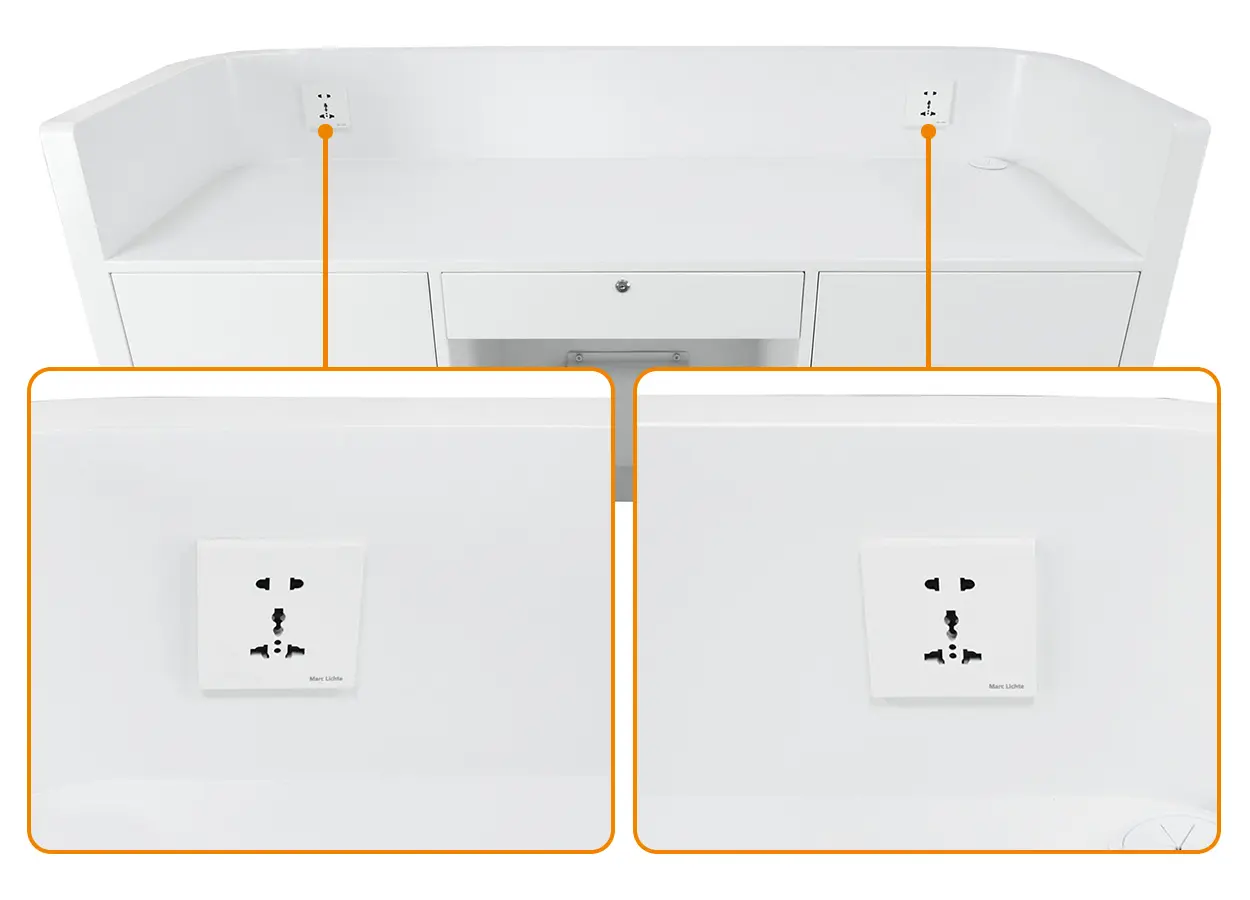

Universal Power Sockets
Dual integrated power sockets can be configured for US, EU, UK or CN standards. Confirm the destination socket, supply and applicable electrical requirements before ordering.

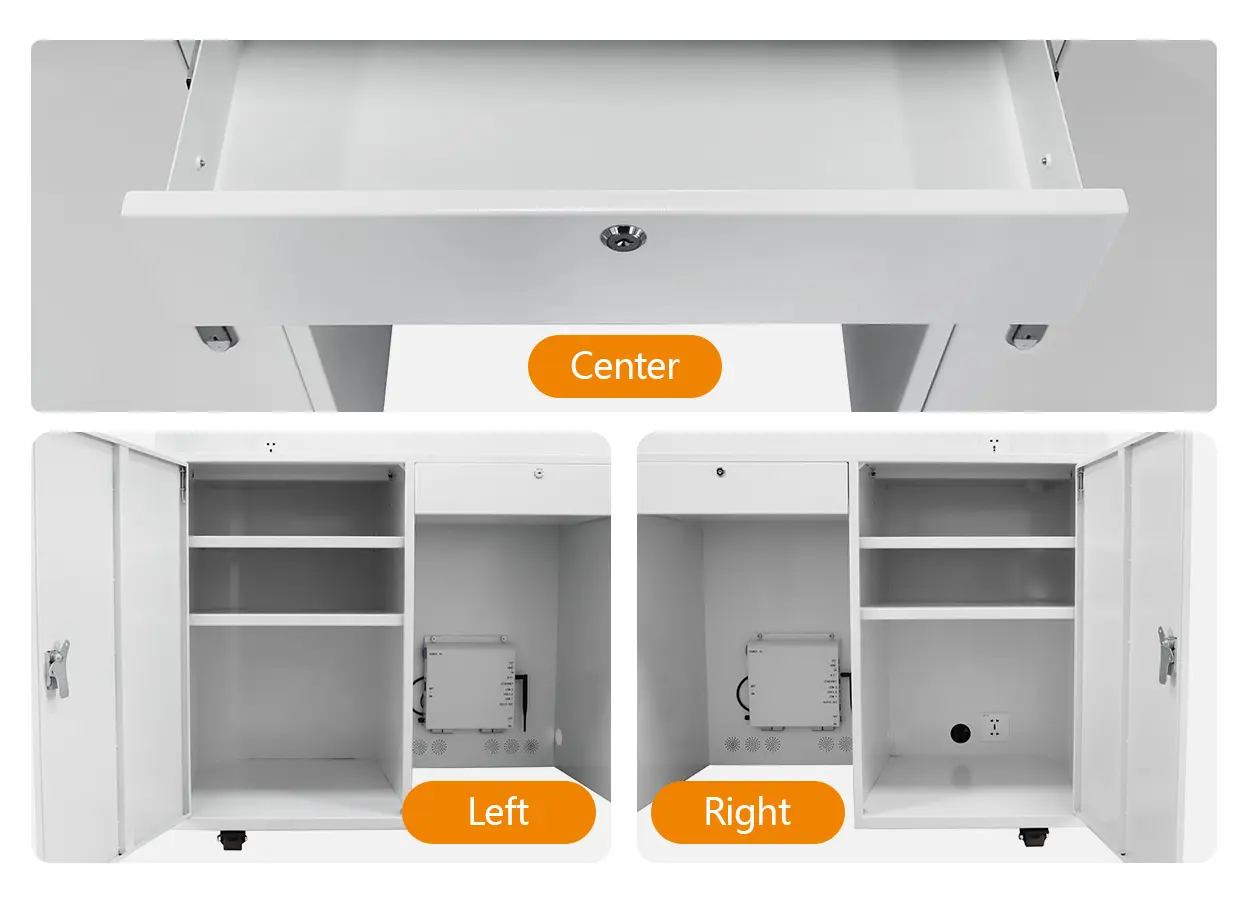

Built-in Storage Compartments
Built-in drawers provide accessible storage for brochures, stationery, tools and daily reception supplies. The integrated design keeps the customer-facing counter organized without adding separate storage furniture.

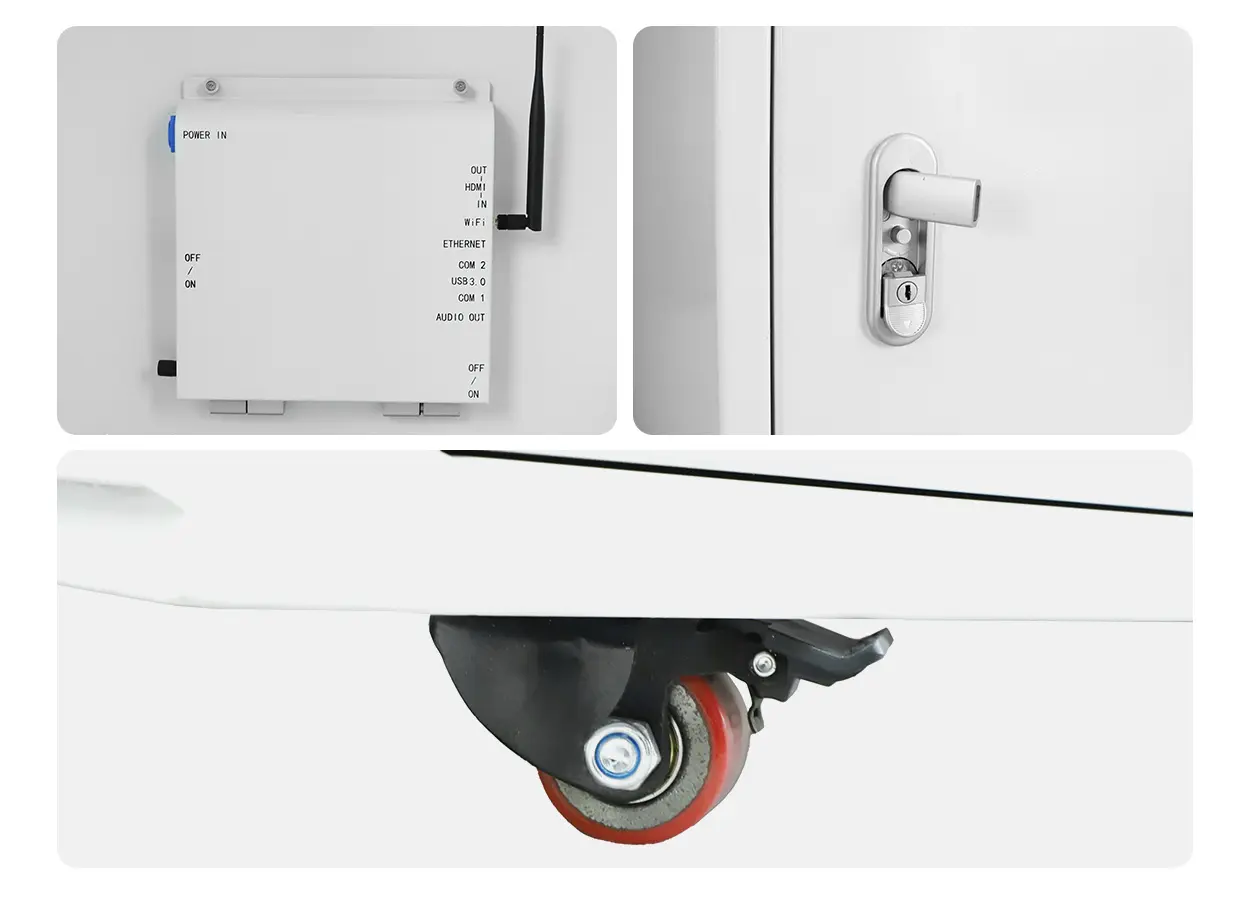

User-Friendly Operation
EA-FD is designed for straightforward setup and daily operation, while smooth casters make the complete unit easy to reposition on level indoor floors. The display supports frequently changing reception, exhibition and event layouts.

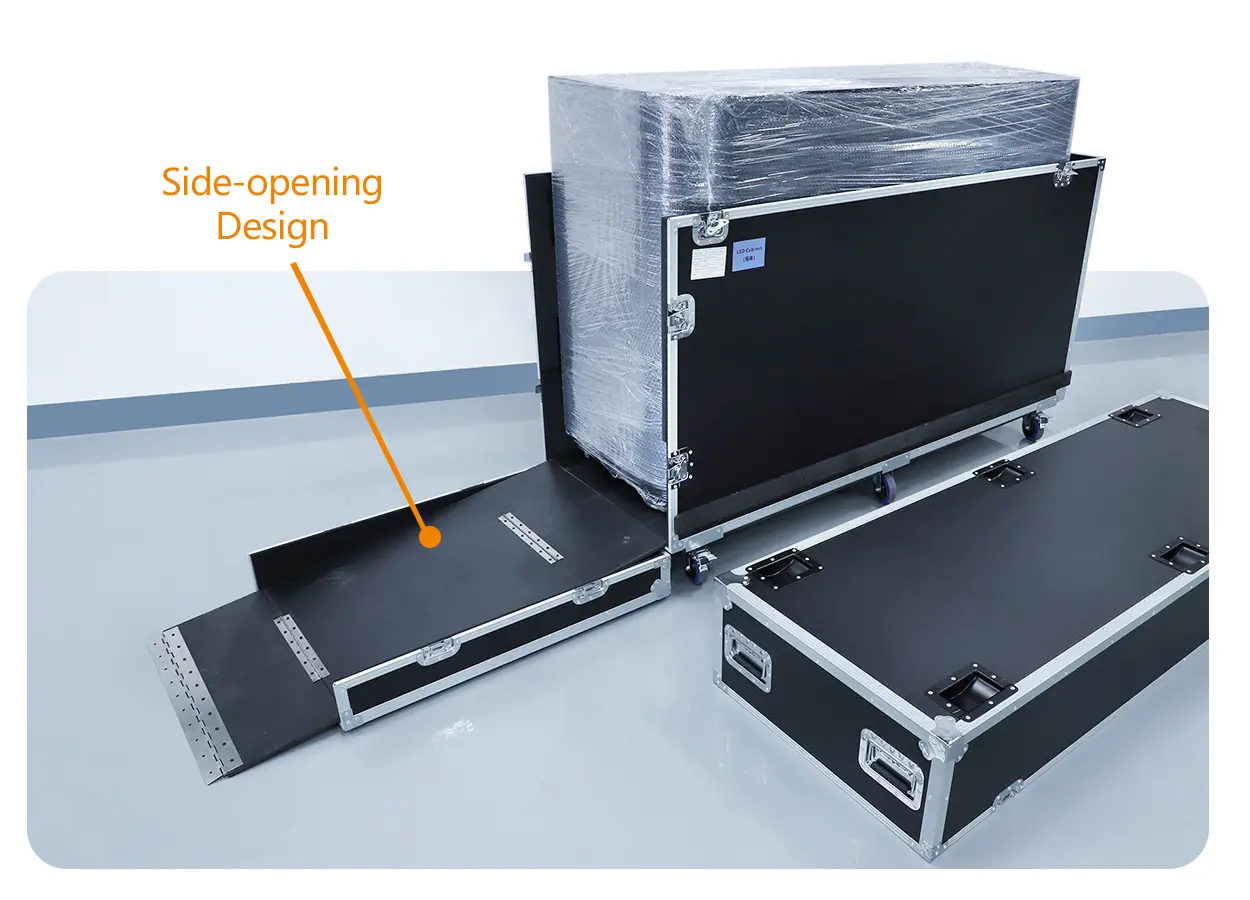

Optional Flight Case for Event Transport
An optional purpose-built flight case uses fold-out ramps for one-person loading without disassembling the LED desk. Its reinforced, shock-resistant construction protects the display during event transport and storage.

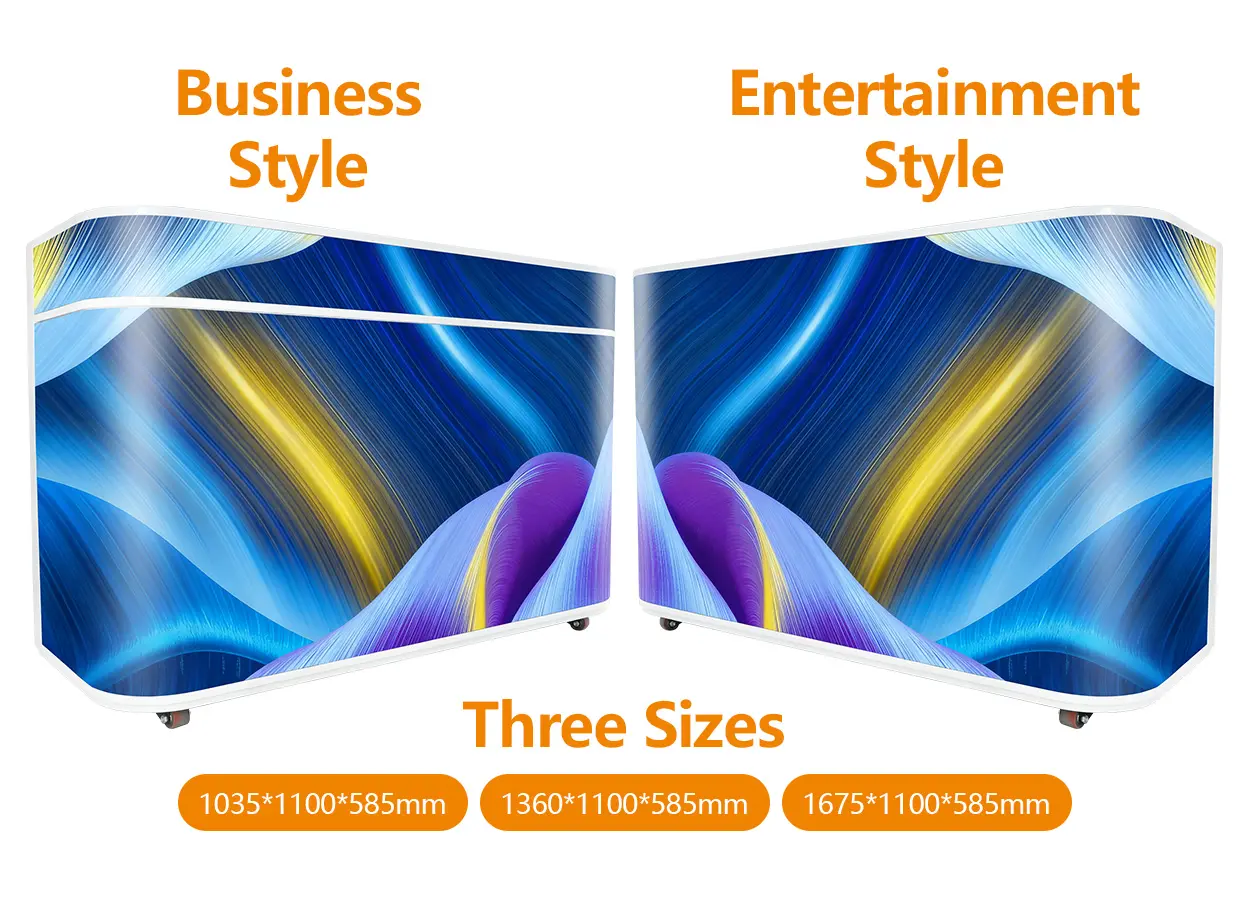

Multiple Style Options
Modern Minimalist and Executive Classic finishes allow the front desk LED display to match contemporary or traditional interiors. Size, exterior finish and socket configuration can be selected for the installation environment.

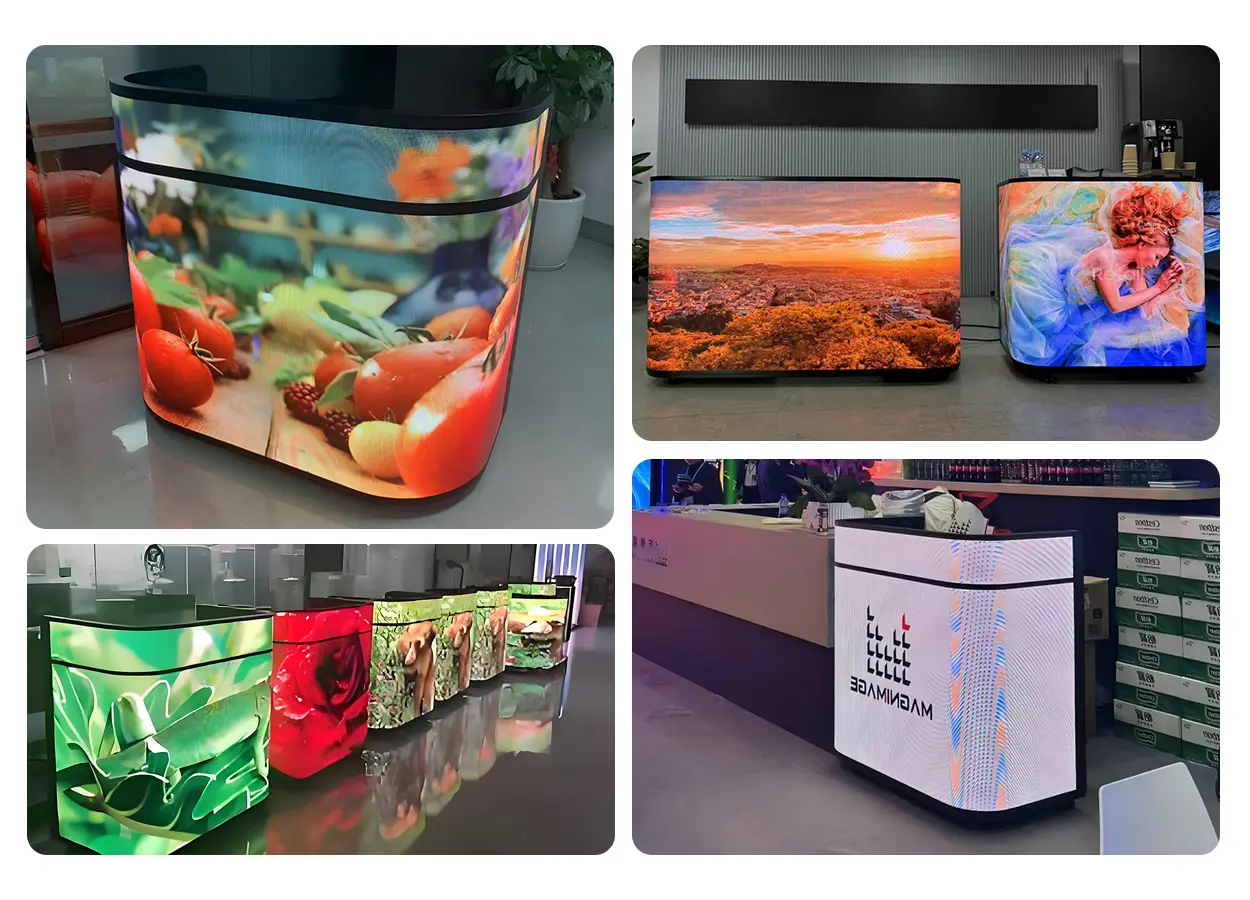

Versatile Application Scenarios
Typical applications include corporate lobbies, hotels, banks, government service centers, exhibitions and event registration areas. The integrated LED surface can present branding, wayfinding, promotions and visitor information at the point of reception.
EA-FD Indoor Front Desk LED Screen Specifications
Front Desk LED Screen EA-FD FAQ
What is the EA-FD front desk LED screen?
EA-FD is a movable indoor reception desk with an integrated GOB LED display, built-in storage and configurable power sockets. It is designed for customer-facing branding, information and wayfinding in lobbies, showrooms and events.
Which pixel pitches are available for EA-FD?
EA-FD is available in P1.53, P1.86 and P2.5 GOB versions. Select a finer pitch for shorter viewing distances or content that requires greater pixel density.
What display sizes are available?
The LED display area is available in 1,920 × 960 mm, 2,240 × 960 mm and 2,560 × 960 mm sizes. The corresponding overall cabinet widths are 1,035 mm, 1,360 mm and 1,675 mm.
How is the EA-FD LED screen maintained?
The LED modules are serviced from the front, so routine module replacement does not require rear access or moving the reception desk. This design is useful where the unit sits against a wall or in a compact lobby.
What protection does the GOB surface provide?
GOB encapsulation covers the LED surface with a protective resin layer that improves resistance to dust, moisture and incidental contact. The complete EA-FD unit is specified with an IP43 protection grade for indoor use.
What are the brightness and refresh rate?
EA-FD is specified at 600 cd/m² brightness and a refresh rate of at least 3,840 Hz. These values support clear indoor viewing and smooth on-camera performance under typical reception-area lighting.
Can the sockets and appearance be customized?
Yes. The integrated dual sockets can be configured for US, EU, UK or CN standards, and the exterior is offered in Modern Minimalist or Executive Classic styles. Confirm finish, screen size and socket type when requesting a quotation.
Is a flight case available for transport?
A purpose-built flight case is available for mobile and event use. Fold-out ramps support one-person loading, while the reinforced case protects the assembled display during transport and storage.
Where is the EA-FD typically installed?
The front desk LED screen is commonly installed in corporate lobbies, hotels, banks, government service centers, showrooms, exhibitions and event registration areas. For presentation-focused venues, compare the EA-PD indoor LED podium display.
