EA-OFixed Outdoor Fixed LED Wall
EA-OFixed is a fixed outdoor LED wall series for advertising and permanent venue installations. Compare the exact cabinet configuration, brightness and electrical load together; the series contains several formats and LED packages, so a pixel-pitch name alone is not a complete purchasing specification.
Customized New LED Display Solutions for You
EA-OFixed Outdoor Fixed LED Display
EA-OFixed is a fixed outdoor LED wall series for advertising and permanent venue installations. Compare the exact cabinet configuration, brightness and electrical load together; the series contains several formats and LED packages, so a pixel-pitch name alone is not a complete purchasing specification.
- Outdoor advertising and permanent-install equipment procurement.
- Published protection: IP65 front and IP54 rear; design the rear weather exposure separately.
- 960 × 960 mm configurations below list 30 kg cabinets.
- Front viewing conditions, rear ventilation and service access affect the installation plan.
On this page
Compare the listed 960 × 960 mm configurations
| Configuration | Brightness | Maximum power per m² | Average power per m² |
|---|---|---|---|
| P4 SMD | 5500 cd/m² | 900 W | 300 W |
| P5 SMD | 5500 cd/m² | 836 W | 280 W |
| P6.67 SMD | 6000 cd/m² | 840 W | 280 W |
| P8 SMD | 5500 cd/m² | 760 W | 260 W |
| P10 SMD, 2S | 5800 cd/m² | 850 W | 285 W |
| P10 DIP | 8000 cd/m² | 520 W | 175 W |
This comparison uses only the page’s 960 × 960 mm specification table. The P10 DIP entries use different module formats; include the complete model, LED package, module format and driving mode in the quotation. Values from another cabinet family should not be substituted.
Power values are published per-square-metre specifications. Estimate electrical distribution from the confirmed configuration and screen area, then have the supply, circuit layout and installation conditions reviewed. Actual average consumption varies with content and brightness settings.
Select brightness for the viewing direction, daytime conditions and planned night dimming. Higher peak brightness is not the only purchase criterion: compare visual detail, control capacity, access, ventilation and order scope for the actual advertising project.
Purchase questions
What should a fixed outdoor LED wall quote include?
Provide screen dimensions, nearest viewing distance, content type, exposure direction and installation drawings. Ask for an itemized scope covering cabinets, controller, power and data distribution, support interfaces, service access and recommended spares.
Can I order by pixel pitch without confirming the cabinet drawing?
Confirm the full cabinet model and mechanical drawing. This series lists several cabinet and module formats; do not use a model-name suffix alone to plan support spacing, screen dimensions or replacement parts.
What does IP65 front / IP54 rear mean for installation planning?
The front and rear have different published protection ratings. Include rear shielding, sealed cable entries, drainage and ventilation in the site design rather than assuming the complete installed wall has one uniform IP65 rating.
Request an EA-OFixed installation quote
Compare the outdoor advertising LED board range for other formats.
Driver IC and Image Performance
The driver system supports ≥3,840 Hz refresh and 14-bit grayscale across the listed configurations, helping produce smooth motion and controlled tonal transitions. Brightness ranges from 5,500 to 10,000 cd/m² depending on the selected pixel pitch and LED package.
Precision Modular Cabinet Alignment
Precision cabinet alignment creates a continuous large-format image with minimal visible seams. The modular structure can be configured to match project-specific screen dimensions and resolution targets.

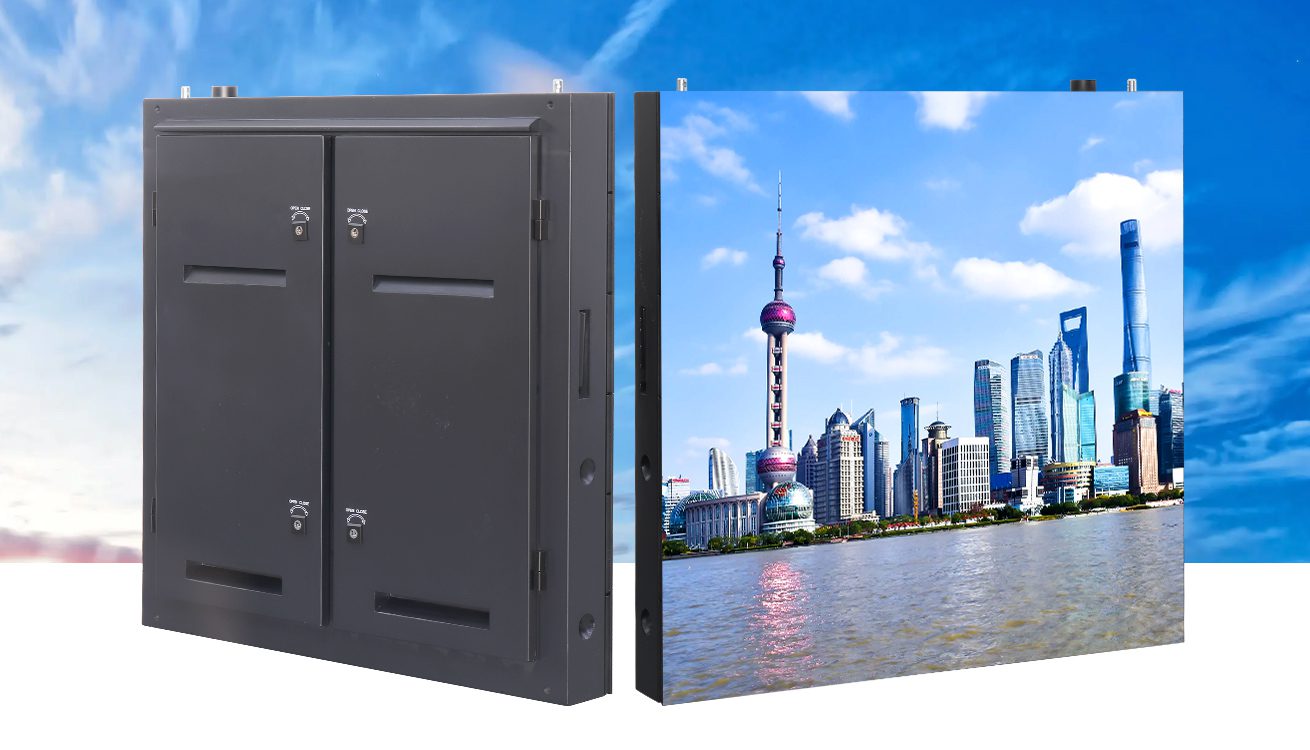

Heat-Treated Iron Cabinet
The heat-treated iron cabinet provides structural rigidity for permanent outdoor installations and is specified for −20 °C to +60 °C operation. Mounting, ventilation, and wind-load engineering should be finalized for the installation site.

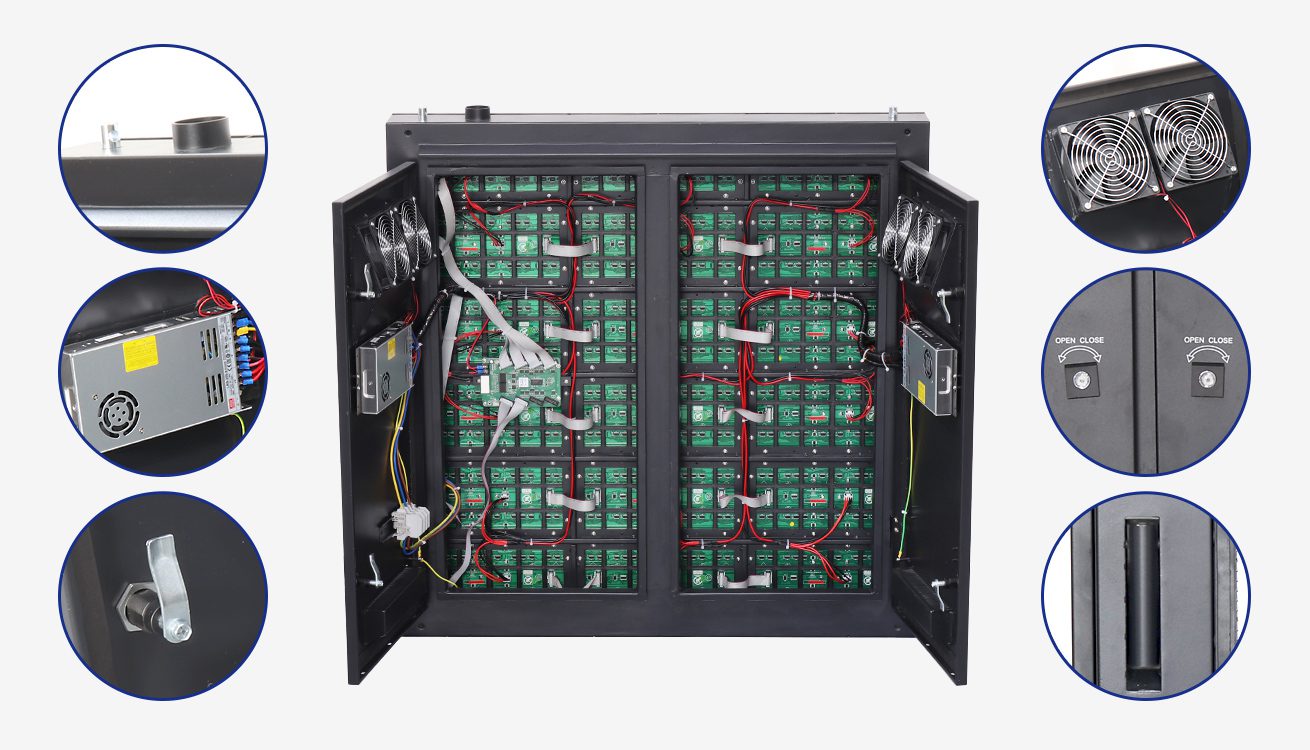

Service-Friendly Cabinet Design
Integrated handles and organized internal components simplify cabinet handling, installation, and routine maintenance. Cabinet weight varies by configuration, so lifting and support requirements should follow the selected model.

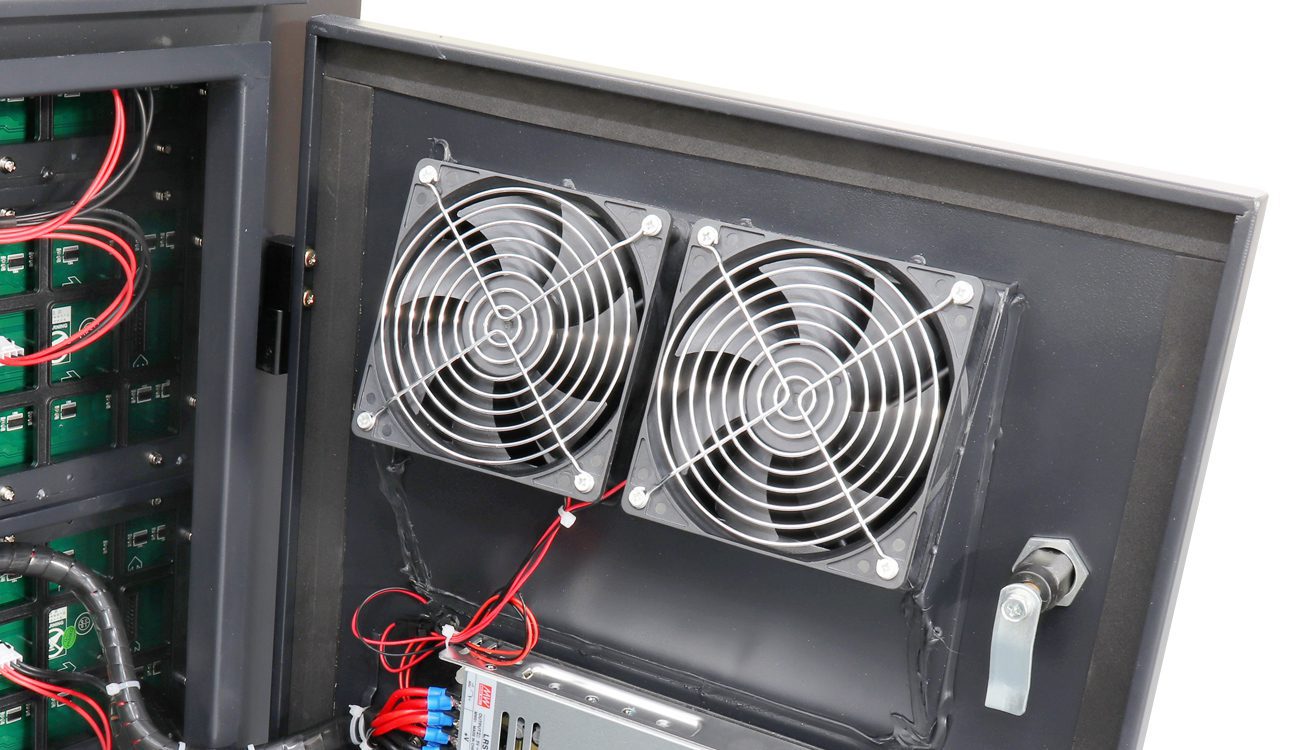

Active Heat Dissipation
Four high-speed fans provide 6.6 m³/min of ventilation and circulate cabinet air up to 25 times per minute. This active airflow removes operating heat to support stable outdoor performance.
Wide Operating Temperature Range
The listed configurations are specified for operation from −20 °C to +60 °C. Final system design should account for direct solar load, ventilation, humidity, altitude, and local electrical requirements.

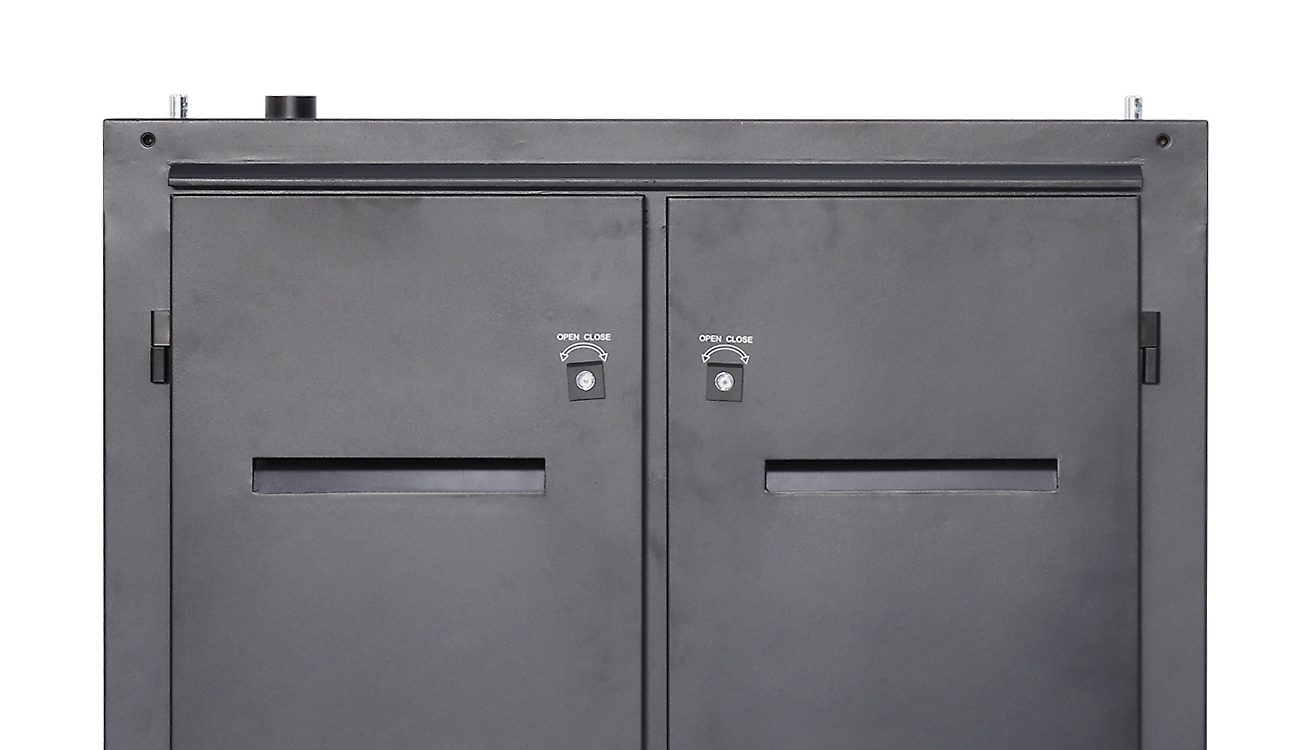

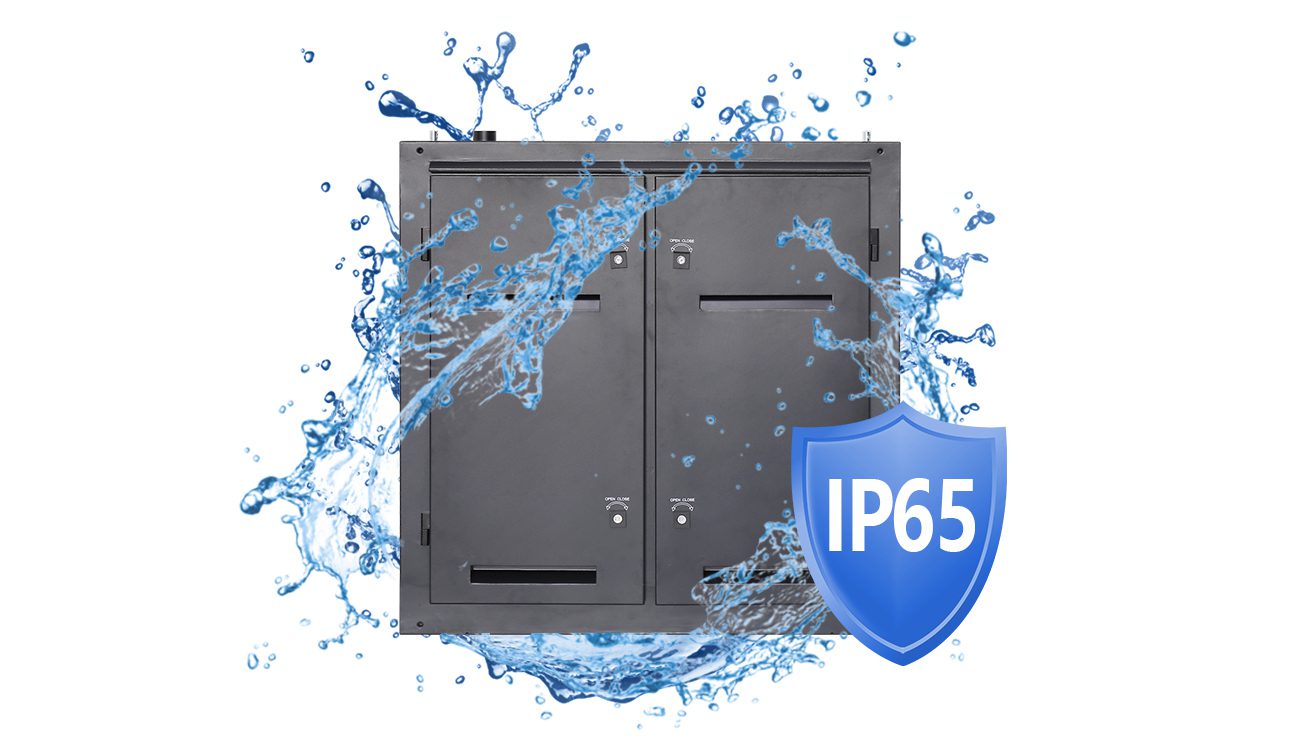

IP65 Front / IP54 Rear Protection
The display face is rated IP65 and the rear cabinet IP54 in the listed configurations, helping protect against dust and rain in fixed outdoor installations. Weather sealing, drainage, cable entry, and cabinet orientation must be verified during installation.
EA-OFixed Outdoor LED Wall – Other Size Specifications
EA-OFixed 960 × 960 mm Outdoor LED Display Specifications
EA-OFixed 640 × 960 mm Outdoor LED Display Specifications
EA-OFixed Outdoor LED Wall FAQ
What is the EA-OFixed outdoor LED wall?
EA-OFixed is a modular fixed outdoor LED display for permanent advertising, facade, venue, and public-information installations. The series combines multiple pixel pitches with high brightness, outdoor-rated cabinet protection, and a wide operating-temperature range.
Which pixel pitches are available for EA-OFixed?
The listed configurations cover P3, P4, P5, P6, P6.67, P8, P10, and P16. Availability depends on cabinet format, LED package, and project requirements.
How should I choose the pixel pitch?
Select pixel pitch from the minimum viewing distance, screen size, content detail, and target resolution. A finer pitch supports closer viewing, while a coarser pitch is often suitable for larger screens viewed from farther away.
How bright is the EA-OFixed outdoor LED display?
Brightness ranges from 5,500 to 10,000 cd/m² across the listed configurations. The required level should be selected for viewing direction, ambient light, local regulations, and power budget.
What refresh rate and grayscale does EA-OFixed provide?
The listed models provide ≥3,840 Hz refresh and 14-bit grayscale. These specifications support smooth motion, stable camera capture, and controlled tonal transitions.
What is the cabinet protection grade?
The listed configurations specify IP65 protection at the front and IP54 at the rear. Complete outdoor performance also depends on correct cabinet sealing, drainage, cable entry, structure, and installation orientation.
What is the operating temperature range?
EA-OFixed is specified for −20 °C to +60 °C operation across the listed models. Site design should still account for solar heat gain, humidity, altitude, airflow, and local weather conditions.
How does the cabinet manage heat?
Four high-speed fans provide 6.6 m³/min of ventilation and circulate cabinet air up to 25 times per minute. Adequate rear clearance and project-specific airflow planning remain important for fixed installations.
What viewing angle and applications does EA-OFixed support?
The listed models provide a 140° viewing angle for wide audience coverage. Typical uses include roadside advertising, building facades, sports venues, transport hubs, and other permanent outdoor LED walls.
