Indoor LED screen modules are the replaceable display units used to build seamless indoor LED video walls. EagerLED offers SMD modules from P1.25 to P5 in 160x160mm, 192x192mm, 256x128mm, 320x160mm and 250x250mm formats. Published models provide 600-800 nits of brightness and 3840-7680 Hz refresh rates, depending on the series.
Choose the pixel pitch for the viewing distance and content detail, then match the module size, resolution, scan mode and connector type to the cabinet. Data and power cables are included, and the modules carry a 2-year warranty.
Indoor LED Screen Panel
LED Lamps
We offer Nationstar, Kinglight or Hongsen SMD LEDs according to the required performance and budget. Confirm the LED brand in the quotation so replacement modules use the same lamp specification and maintain consistent color across the screen.
IC Driver
Available driver ICs include MBI5124, ICN2038S, MBI5153 and ICN2153. The selected IC affects refresh rate, grayscale performance and camera compatibility, so specify whether the screen will be used for live video, broadcast or general indoor signage.
72+ Hours Aging Test
Each indoor LED display module completes at least 72 hours of aging: 48 hours of white-balance aging followed by 24 hours of video aging. This process checks dead pixels, color consistency and operating stability before packing.
Available Pixel Pitches
Current indoor ranges include P1.25, P1.53, P1.56 GOB, P1.86, P1.95 GOB, P2, P2.5, P2.6 GOB, P2.97, P3, P3.076, P3.91, P4 and P5 options. Available pitch, module size, LED type and connector configuration vary by series; use the tables below to compare confirmed models.

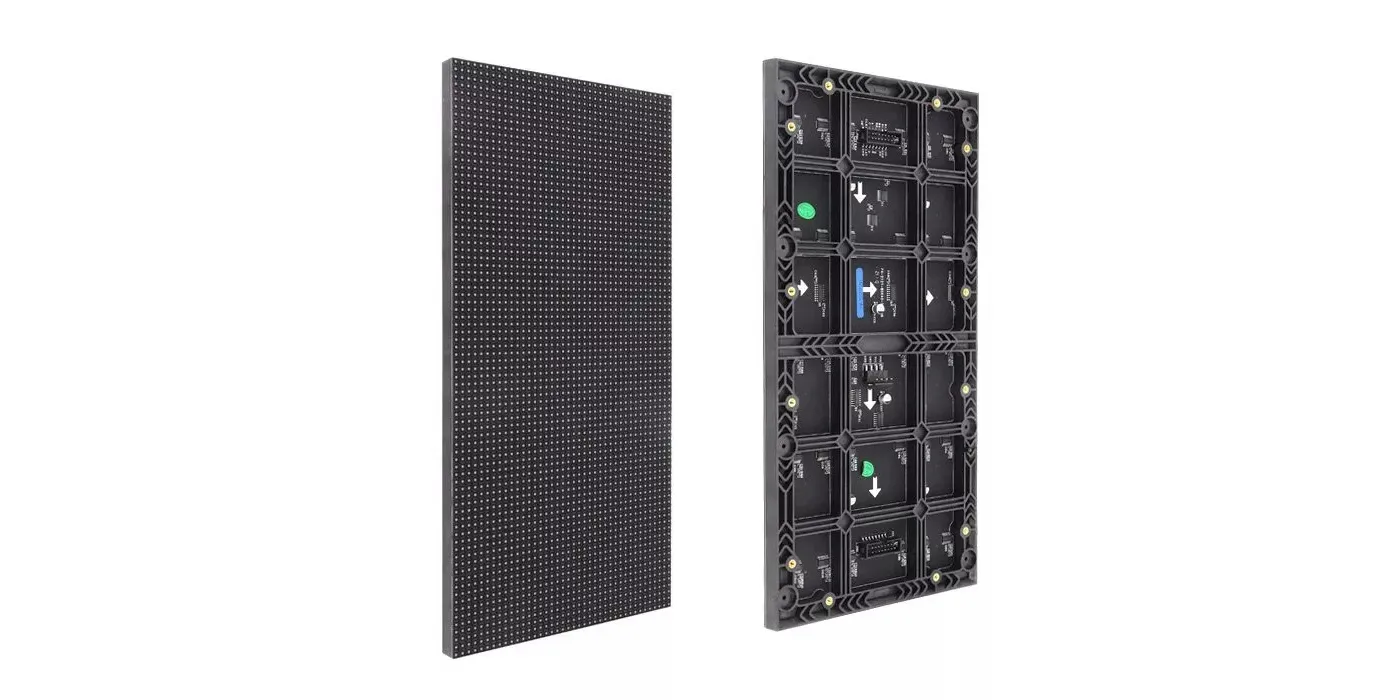

Indoor LED Screen Module
Compare confirmed indoor LED module models by pixel pitch, module size, resolution, scan mode, refresh rate and brightness. The range includes standard 320x160mm, 250x250mm and other cabinet-compatible formats.

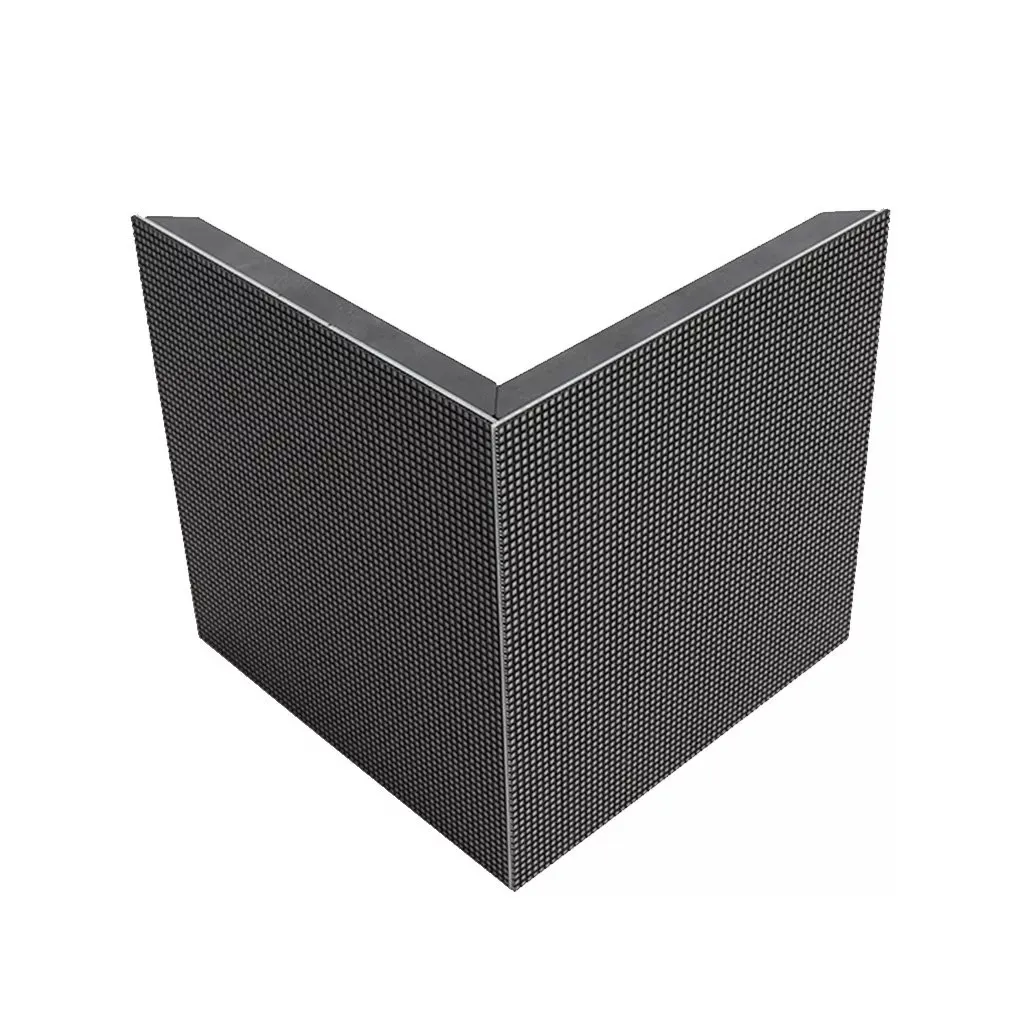

160x160mm P2.5 Right Angle indoor LED display panel

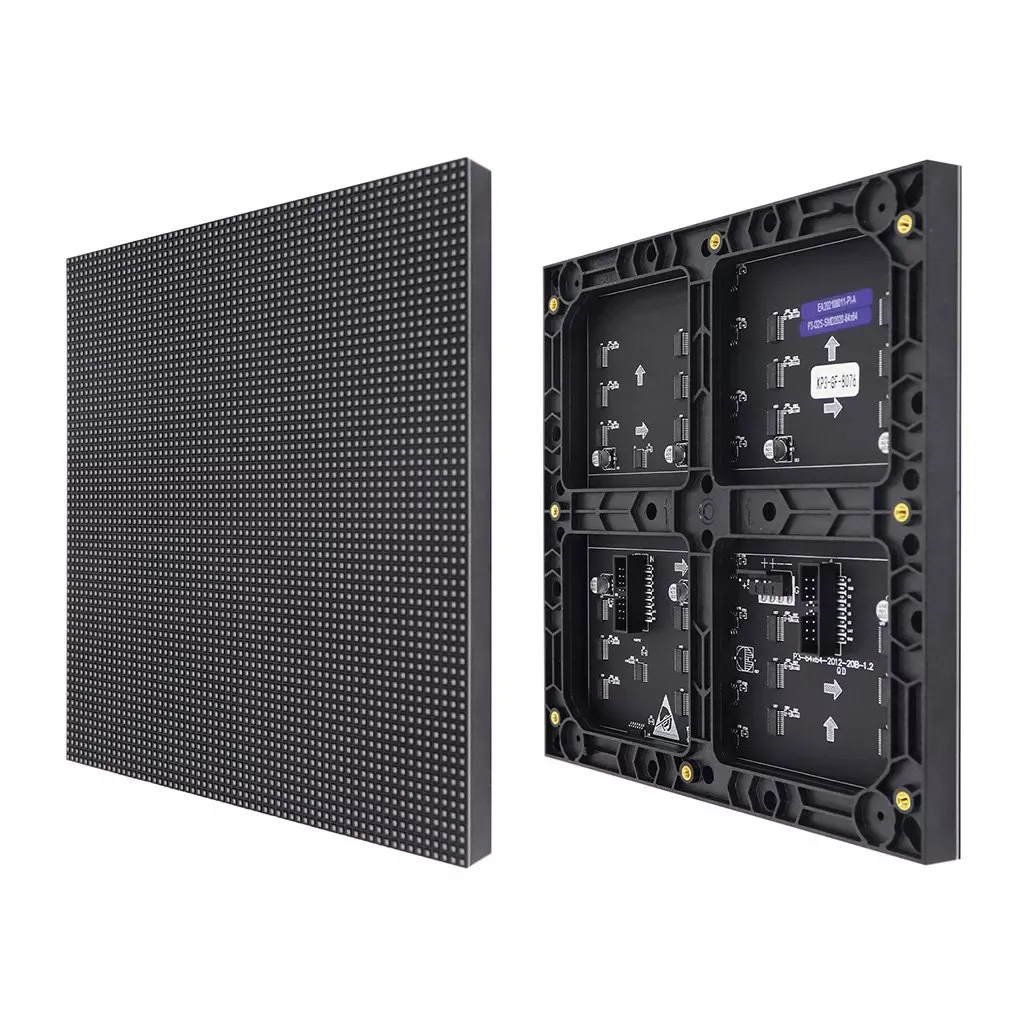

192x192mm P3 indoor LED display panel

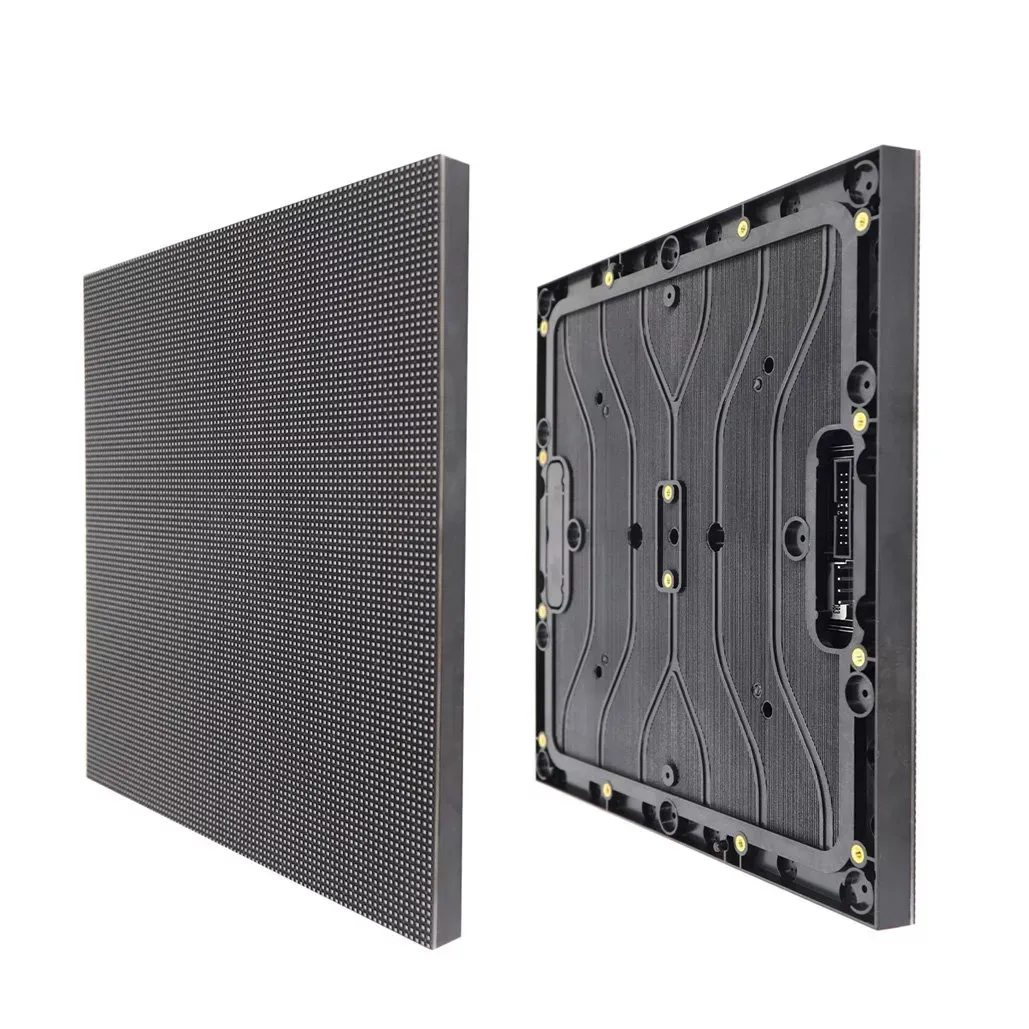

250x250mm P2.6 indoor LED display module

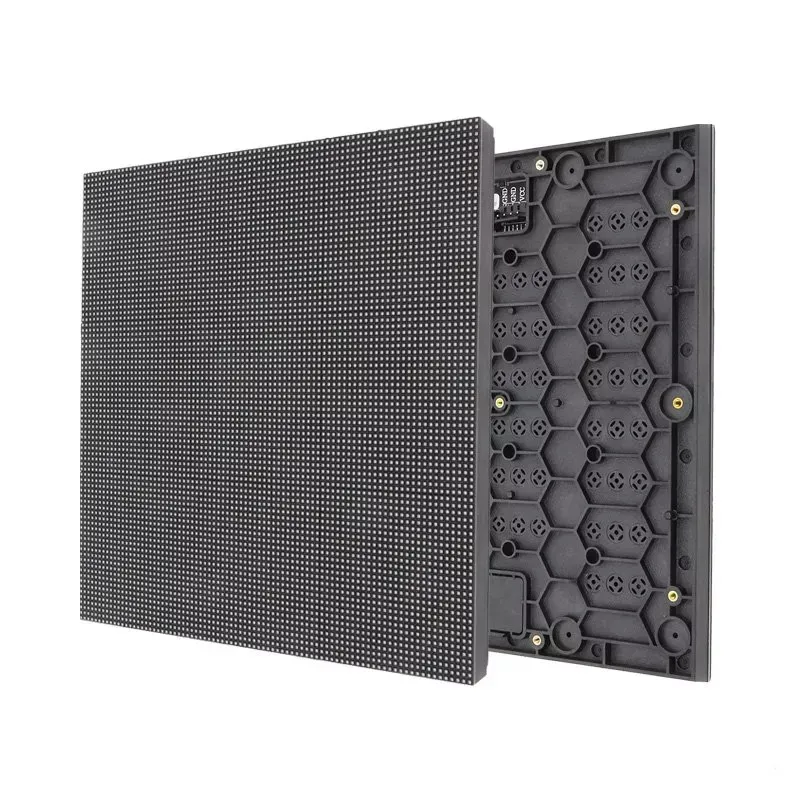

250x250mm P2.97 indoor LED screen module

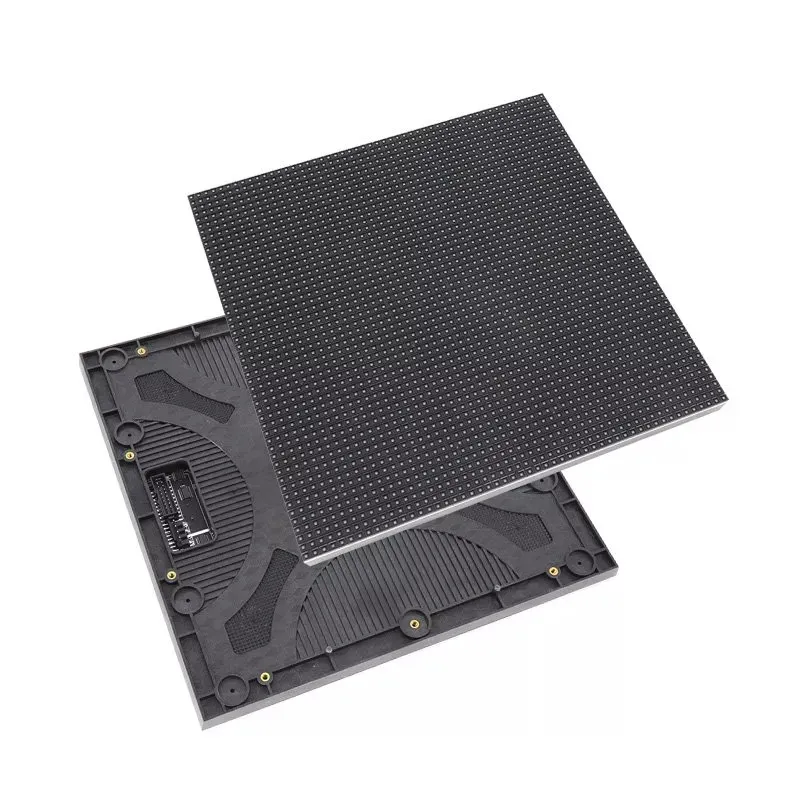

250x250mm P3.91 indoor LED screen panel
250x250mm P4.81 indoor LED screen panel

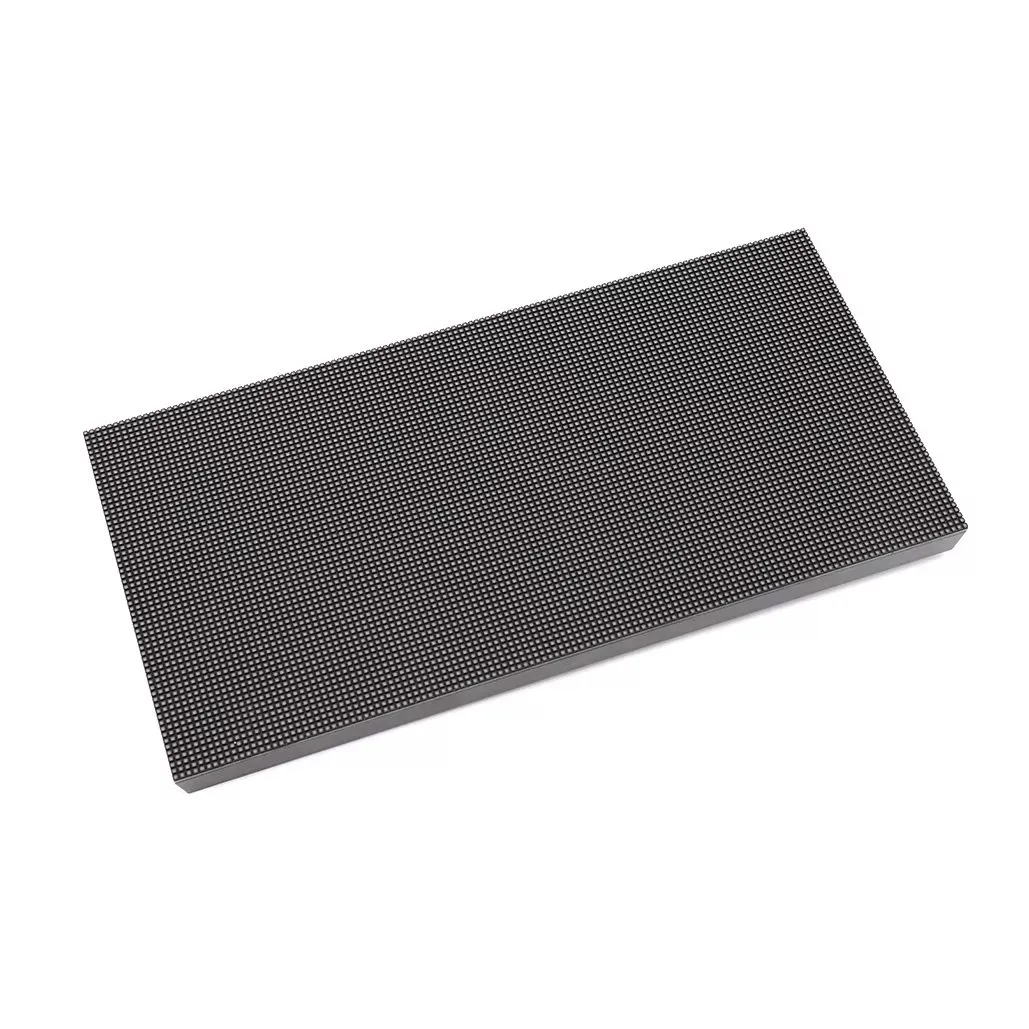

256x128mm P2 indoor LED display panel

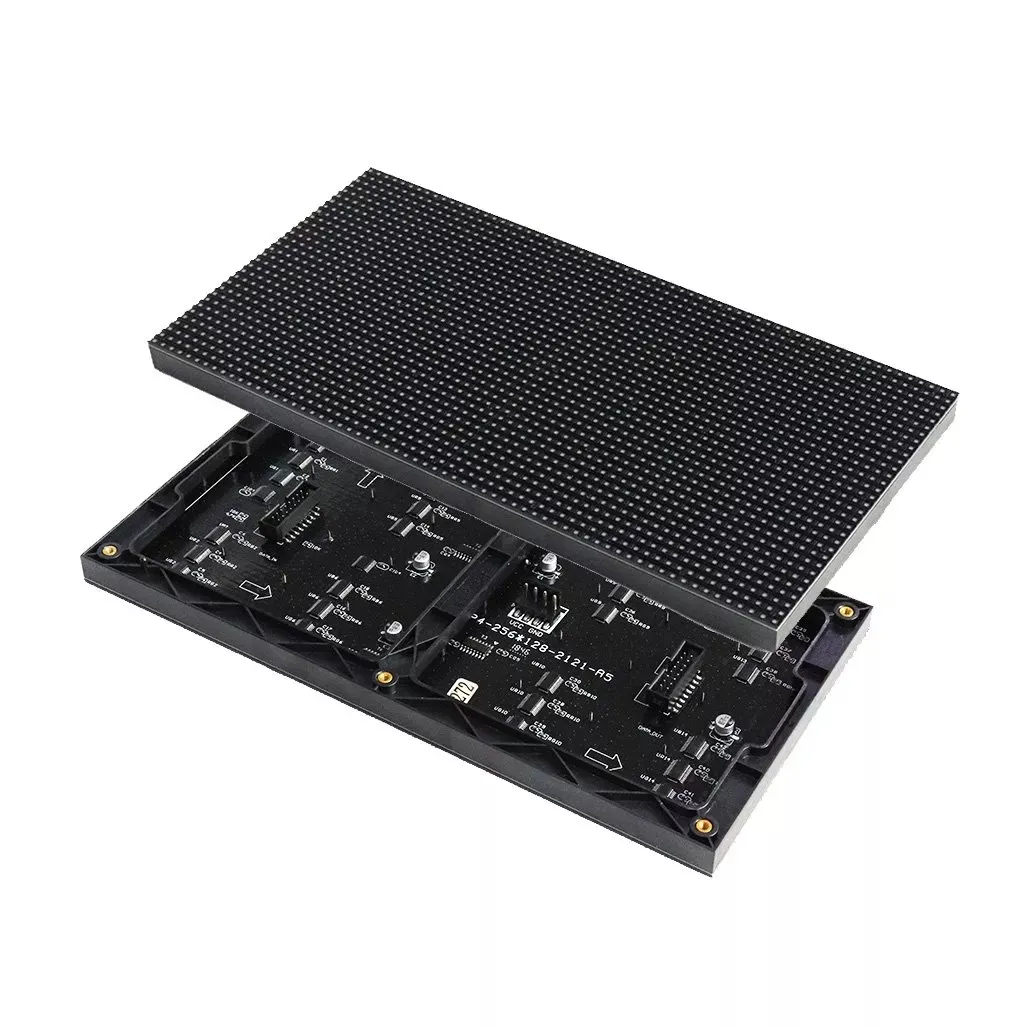

256x128mm P4 indoor LED display panel

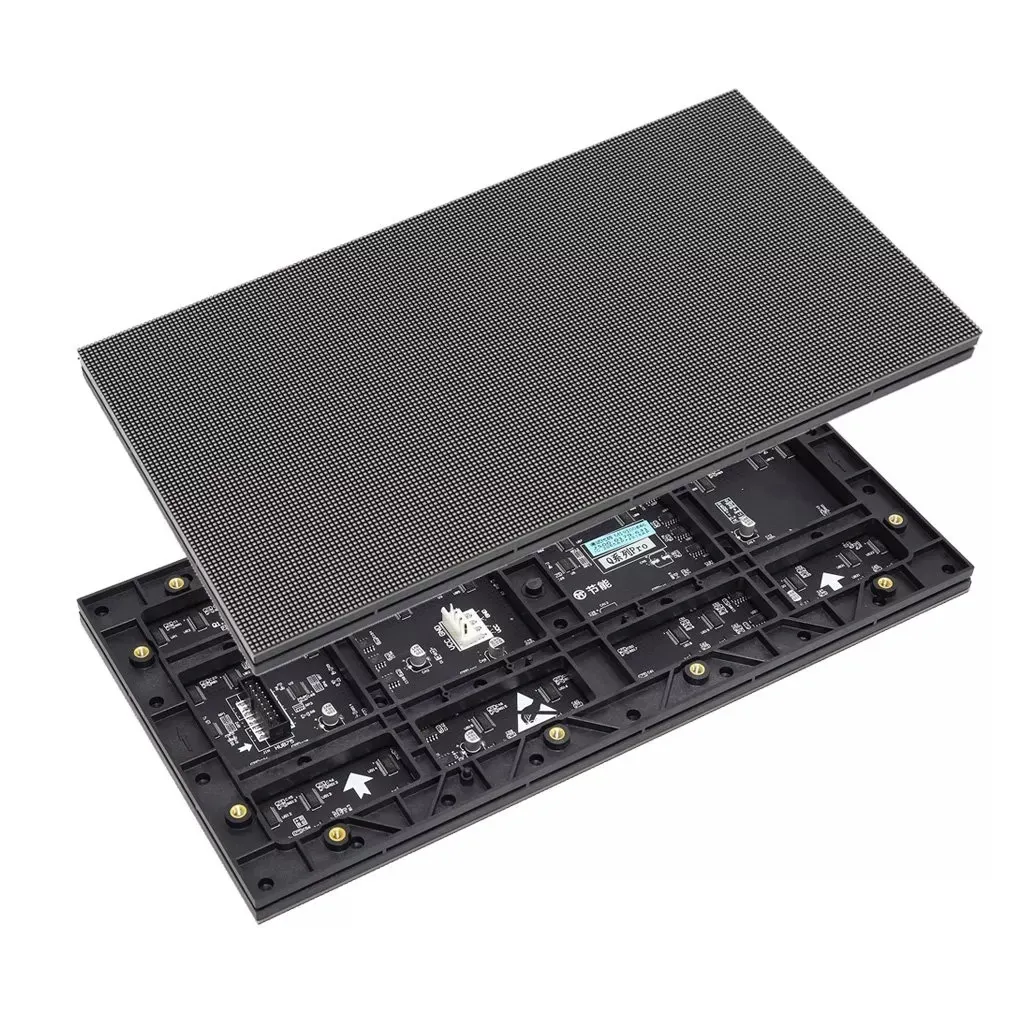

320x160mm P1.86 indoor LED display module

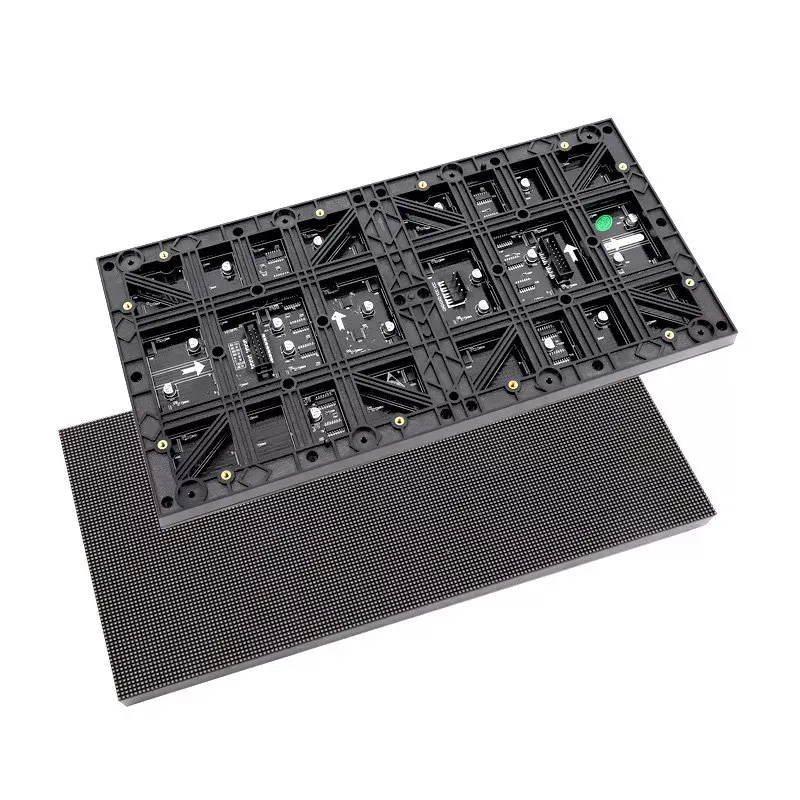

320x160mm P2 indoor LED display module

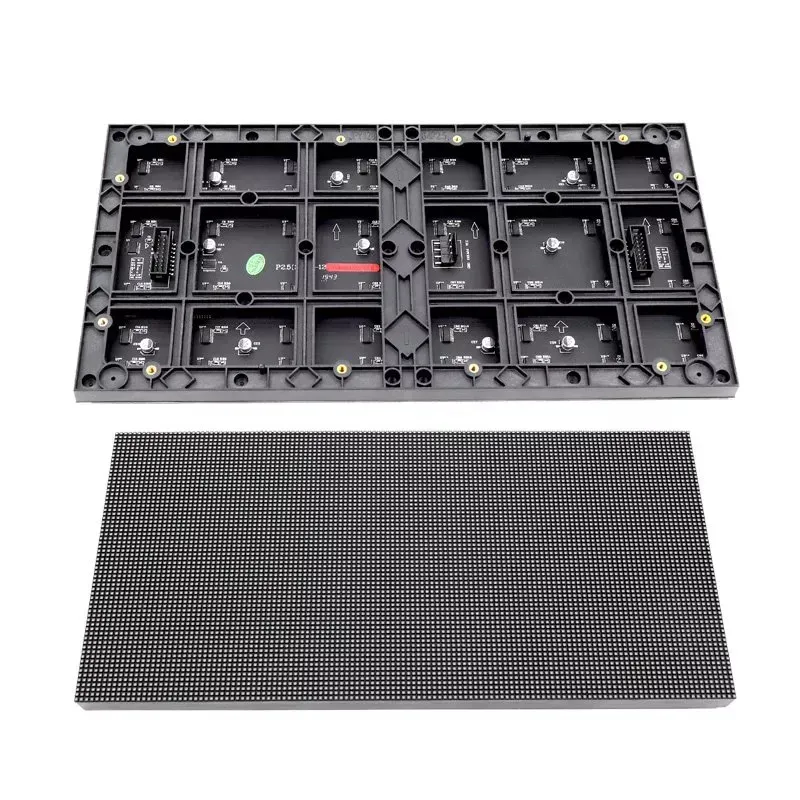

320x160mm P2.5 indoor LED display panel

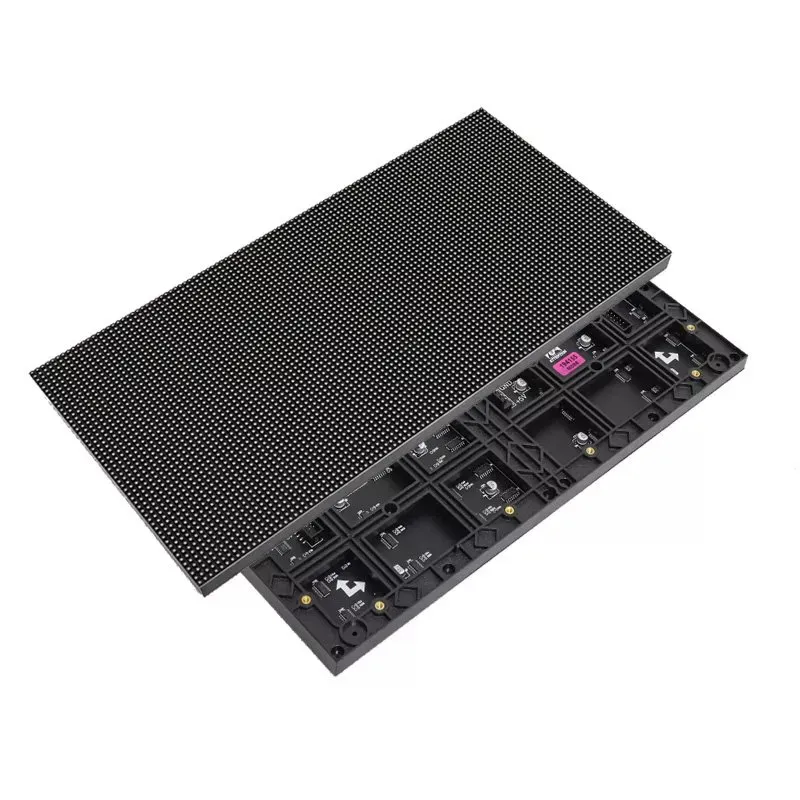

320x160mm P3.076 indoor LED display module

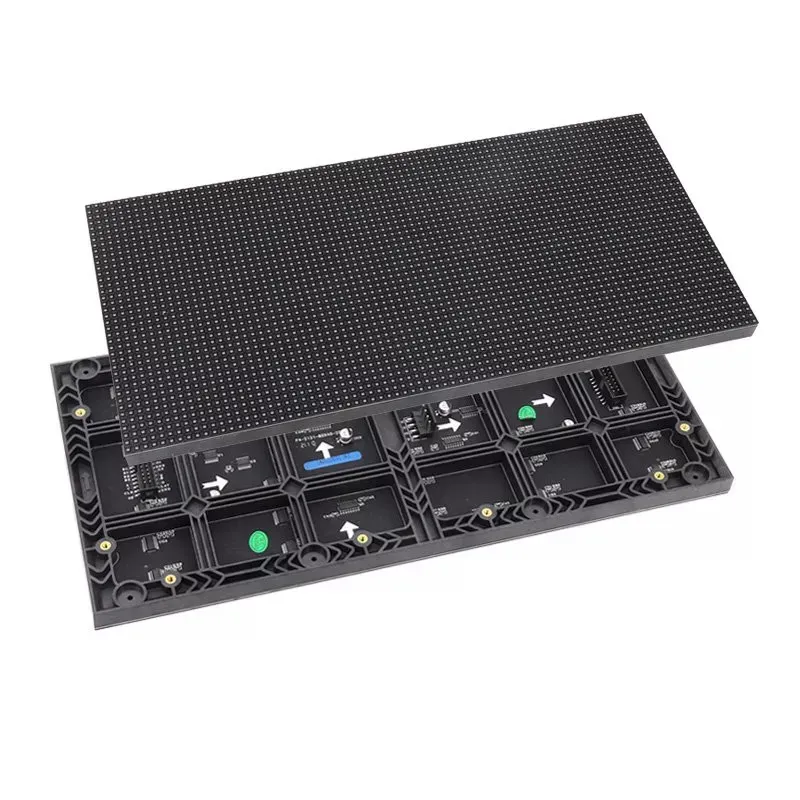

320x160mm P4 indoor LED display panel

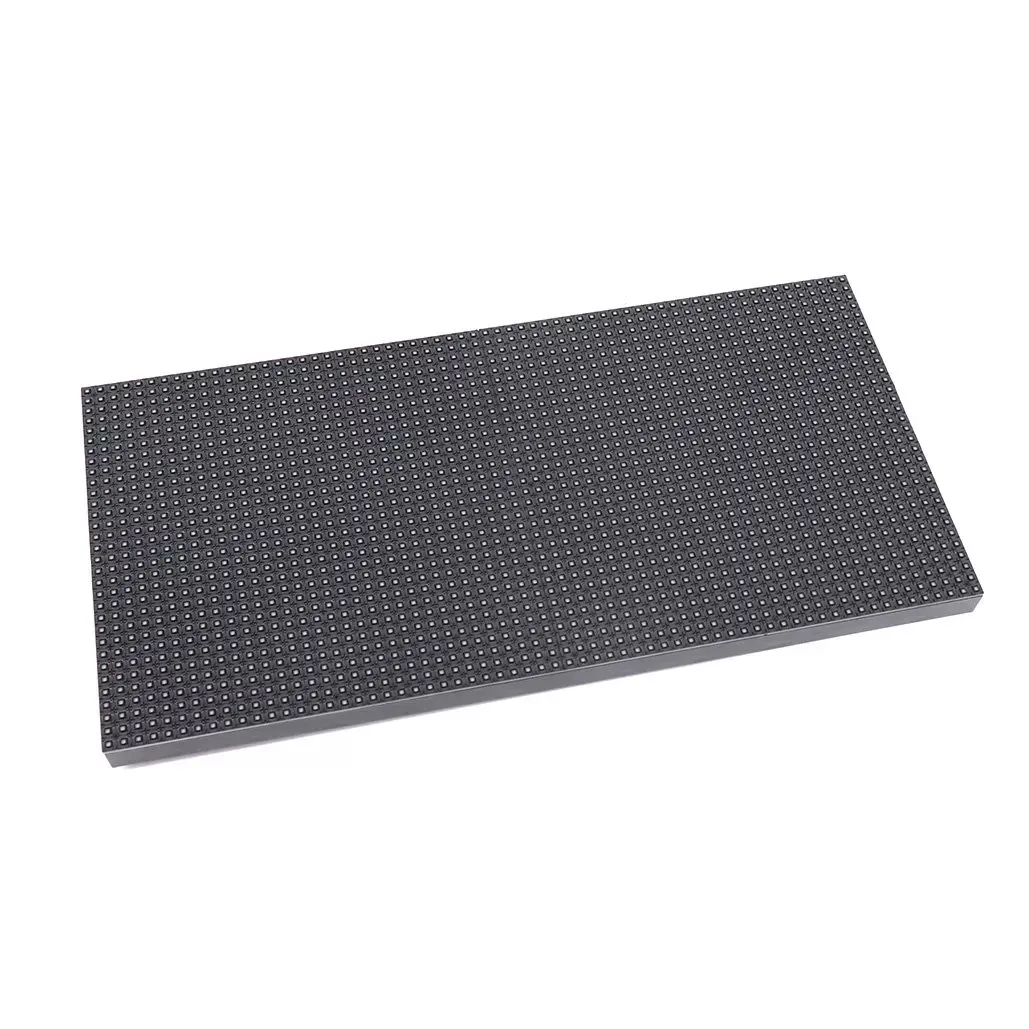

320x160mm P5 indoor LED display panel
320x160mm Series Indoor LED Module
250x250mm Series Cable Connection Indoor LED Module
250x250mm Series Hub Connection Indoor LED Module
Other Series Indoor LED Display Modules
How to Choose an Indoor LED Screen Module
Start with pixel pitch, but do not order by pitch alone. A replacement module must also match the physical dimensions, module resolution, scan mode, LED package, driver configuration and cable or hub connection used by the cabinet.
| Project type | Suggested starting range | What to prioritize |
|---|---|---|
| Control room, studio or close-view display | P1.25-P1.86 | Fine detail, grayscale performance and camera-friendly refresh rate |
| Conference room, showroom or retail video wall | P1.86-P2.5 | Viewing distance, resolution, color uniformity and service access |
| Indoor stage, event or larger venue | P2.5-P3.91 | Refresh rate, fast replacement and cabinet compatibility |
| Large-format indoor signage viewed from farther away | P3.91-P5 | Coverage, brightness and total project budget |
These ranges are a starting point, not a substitute for a project calculation. For help matching pitch to total screen resolution, see the LED screen resolution guide and LED display size guide. If the installation needs extra surface protection, compare the listed P1.56, P1.95 and P2.6 GOB options with the GOB LED module range.
Compatibility checklist before ordering
- Confirm the exact module width and height in millimeters.
- Match pixel pitch, module resolution and scan mode.
- Check the LED package and driver IC requirements.
- Confirm cable connection or hub connection for 250x250mm modules.
- Send a cabinet photo, module label and quantity with the inquiry.
Building a complete display rather than replacing a module? Compare cabinet-level options on the indoor LED screen page, or request a project quotation with screen width, height, viewing distance, application and installation location.
Indoor LED Screen Module FAQ
What is an indoor LED screen module?
An indoor LED screen module is a replaceable circuit-board assembly containing SMD LEDs, driver ICs and connectors. Multiple modules mount inside LED cabinets to form a complete indoor video wall.
Which pixel pitch should I choose for an indoor LED display?
Use a smaller pixel pitch when viewers are close or the content contains fine text and detailed graphics. P1.25-P1.86 is a practical starting range for close-view projects, P1.86-P2.5 for many conference and retail installations, and P2.5-P5 for larger indoor screens viewed from farther away. Final selection should be based on viewing distance, target resolution and screen dimensions.
What module sizes are available?
The listed range includes 160x160mm, 192x192mm, 256x128mm, 256x256mm, 320x160mm and 250x250mm modules. The 250x250mm series is available in cable-connection and hub-connection versions. Always match the dimensions and connector layout of the receiving cabinet.
What refresh rate and brightness do these modules support?
Models in the tables above are rated at 3840 Hz or 3840-7680 Hz refresh rate and 600-800 nits brightness, depending on pixel pitch and series. Confirm the exact model when camera performance or brightness is critical.
Can I use a different indoor LED module as a replacement?
Do not replace a module based only on physical size. Pixel pitch, resolution, scan mode, LED package, driver IC, connector layout and calibration data must be compatible. Send the existing module label and cabinet photos before ordering a replacement.
