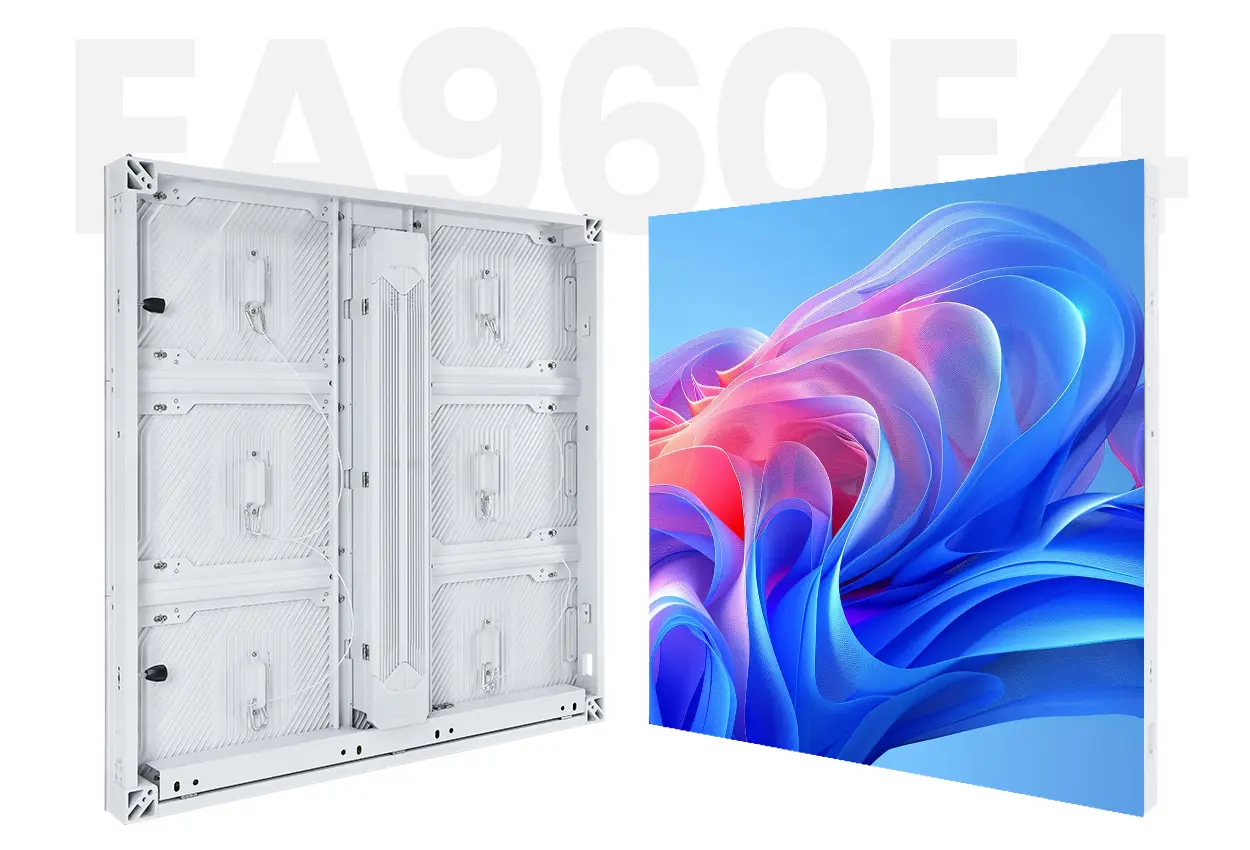

EA960F4 Fixed Outdoor Advertising Display
Specify an EA960F4 outdoor advertising LED display around the site, not cabinet size alone. Define the active screen dimensions, viewing distance, service route and content requirement before selecting the pitch, cabinet layout and optional corner hardware.
- Fixed outdoor equipment with front-and-rear access; confirm what can be serviced from the intended side.
- Listed cabinet formats include 960 × 960 mm, 1440 × 960 mm and 1440 × 640 mm.
- Optional corner formats require a confirmed layout, structure and matching content plan.
- Confirm the selected configuration's brightness, protection, power and control scope in the current quotation.
On this page
What must be confirmed before ordering an outdoor advertising screen?
| Installation plan | Information to confirm |
|---|---|
| Flat façade | Screen dimensions, wall and frame details, front-service working space, cable entry and ventilation. |
| Freestanding billboard | Support drawings, access route, site exposure, power distribution and maintenance arrangements. |
| Right-angle corner | Each face's dimensions, corner hardware, alignment, pixel map and intended content viewpoint. |
How should service access be specified?
Front-service capability does not remove the need for a safe maintenance route. Ask which modules, power supplies and control parts are accessible from the proposed side, and show the installer the clearances around the structure.
What should an itemized quotation cover?
Send the site photos and drawings, active screen width and height, nearest viewing distance, sunlight conditions, preferred service route, content type, destination and target date. Confirm the cabinets, controller, power and signal cables, spare parts and packing included in the equipment offer, and identify the local installation work separately.
Request an EA960F4 project quote
Compare other formats on the advertising LED board selection page. Use this product page to define the EA960F4 configuration and order scope.

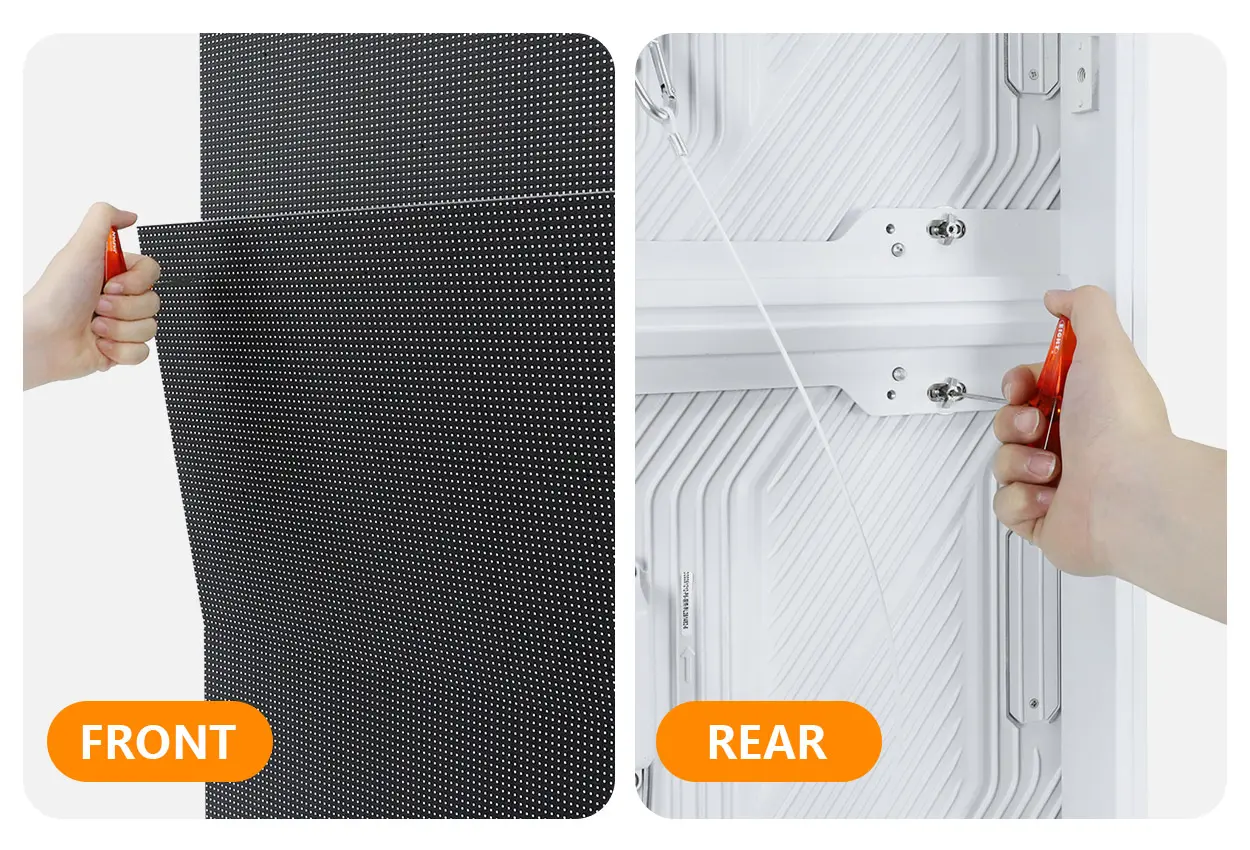

Dual-Side Serviceability
Front and rear access allows technicians to remove modules and reach internal components from either side, supporting wall-mounted installations with limited rear clearance as well as freestanding structures.

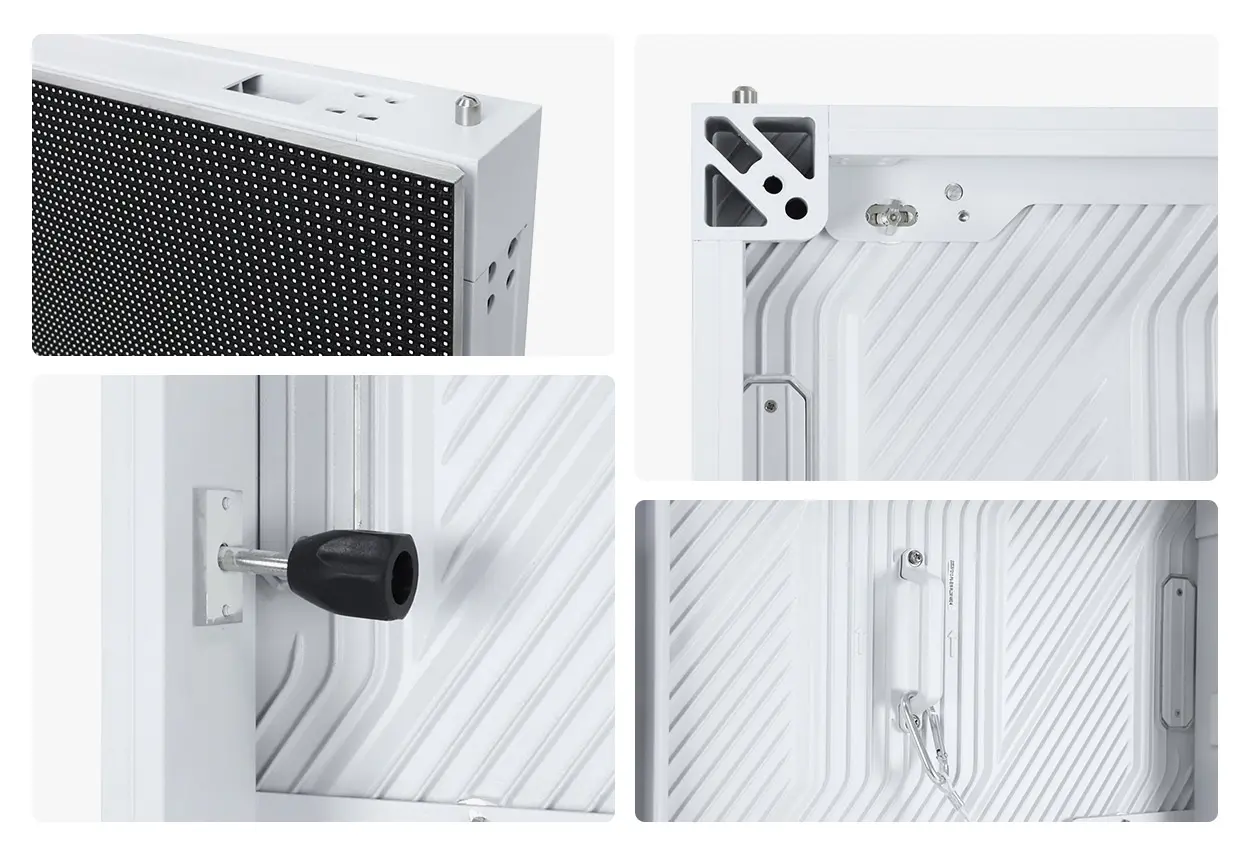

Cabinet Construction
The 960 × 960 mm aluminum cabinet weighs 21.8 kg and uses positioning pins and quick locks for accurate, secure alignment. Safety tethers help retain LED modules during installation and service.

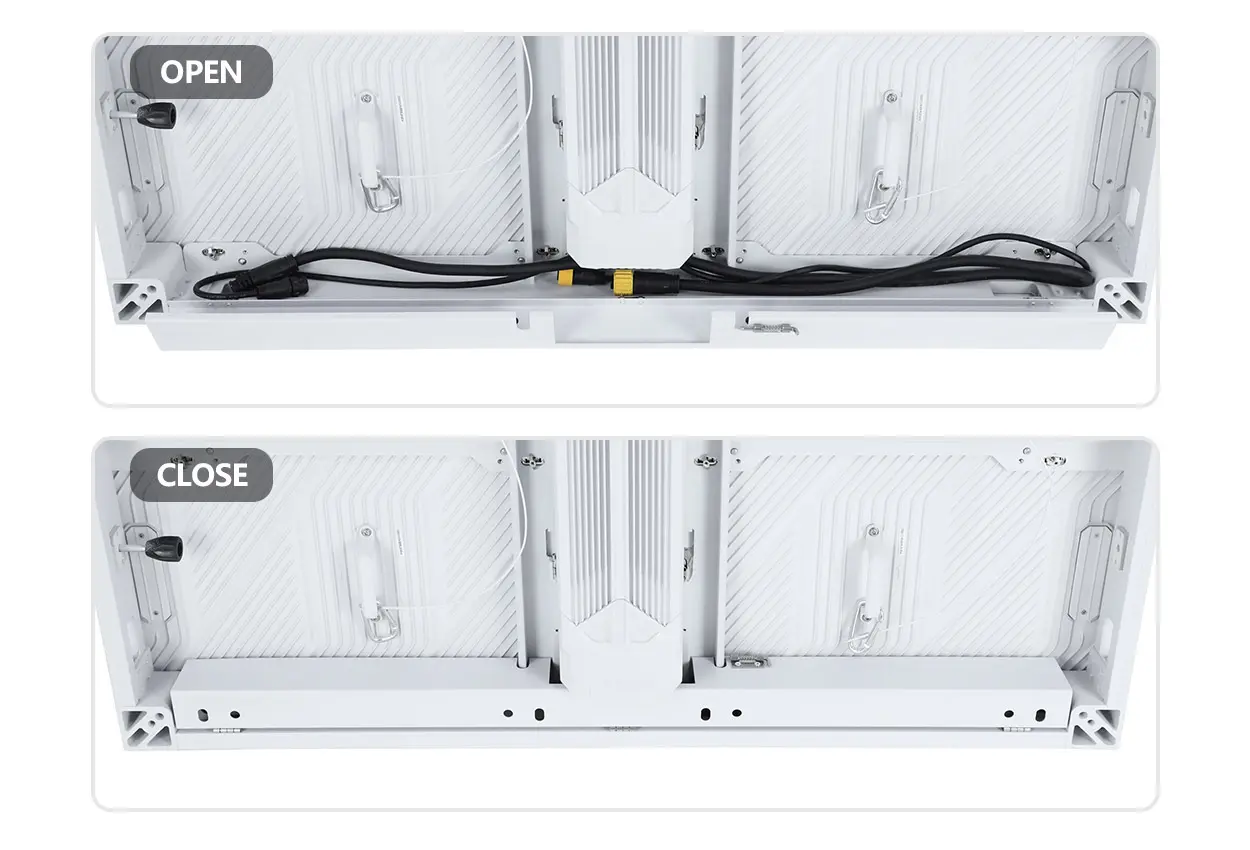

Internal Connection
Internally routed power and data connections keep cabling off the display face and simplify cabinet-to-cabinet integration. The hard-connection layout reduces exposed connectors and supports stable signal distribution.

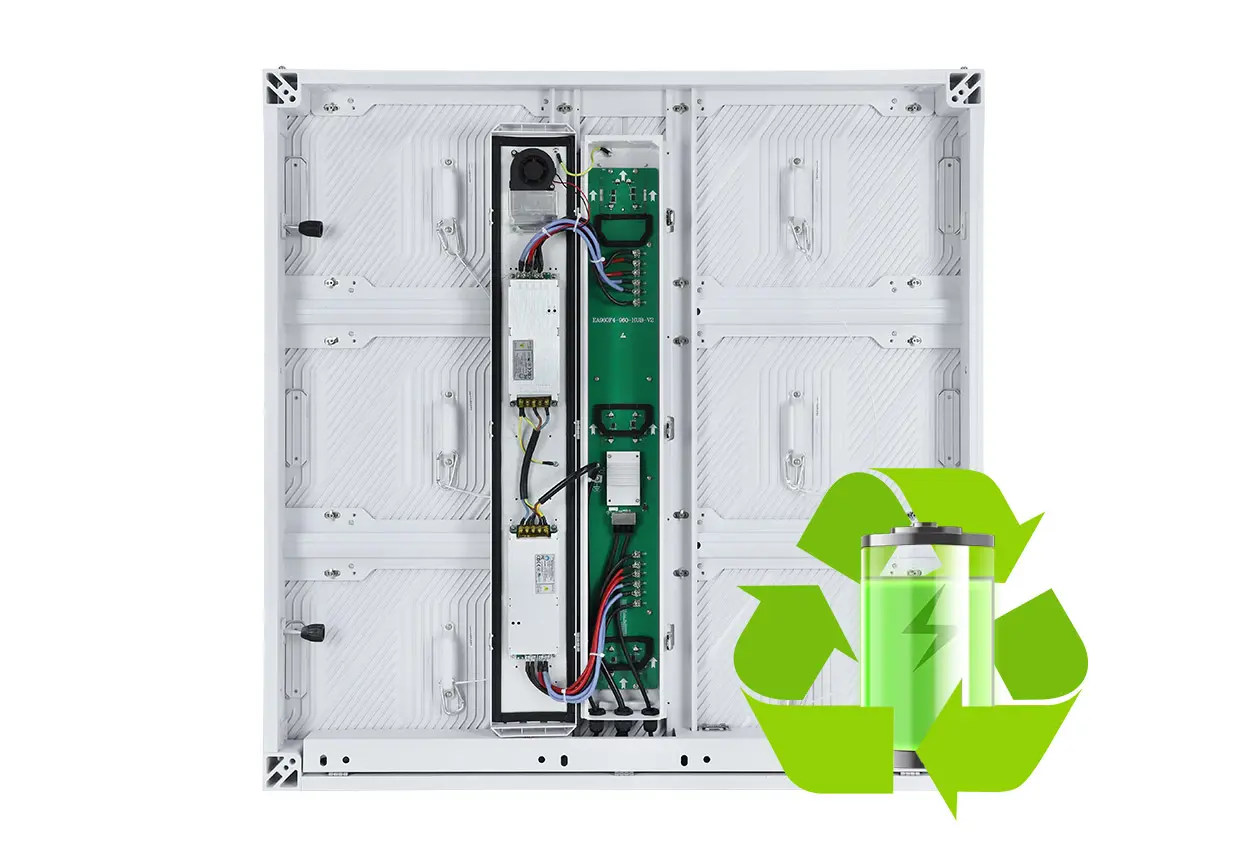

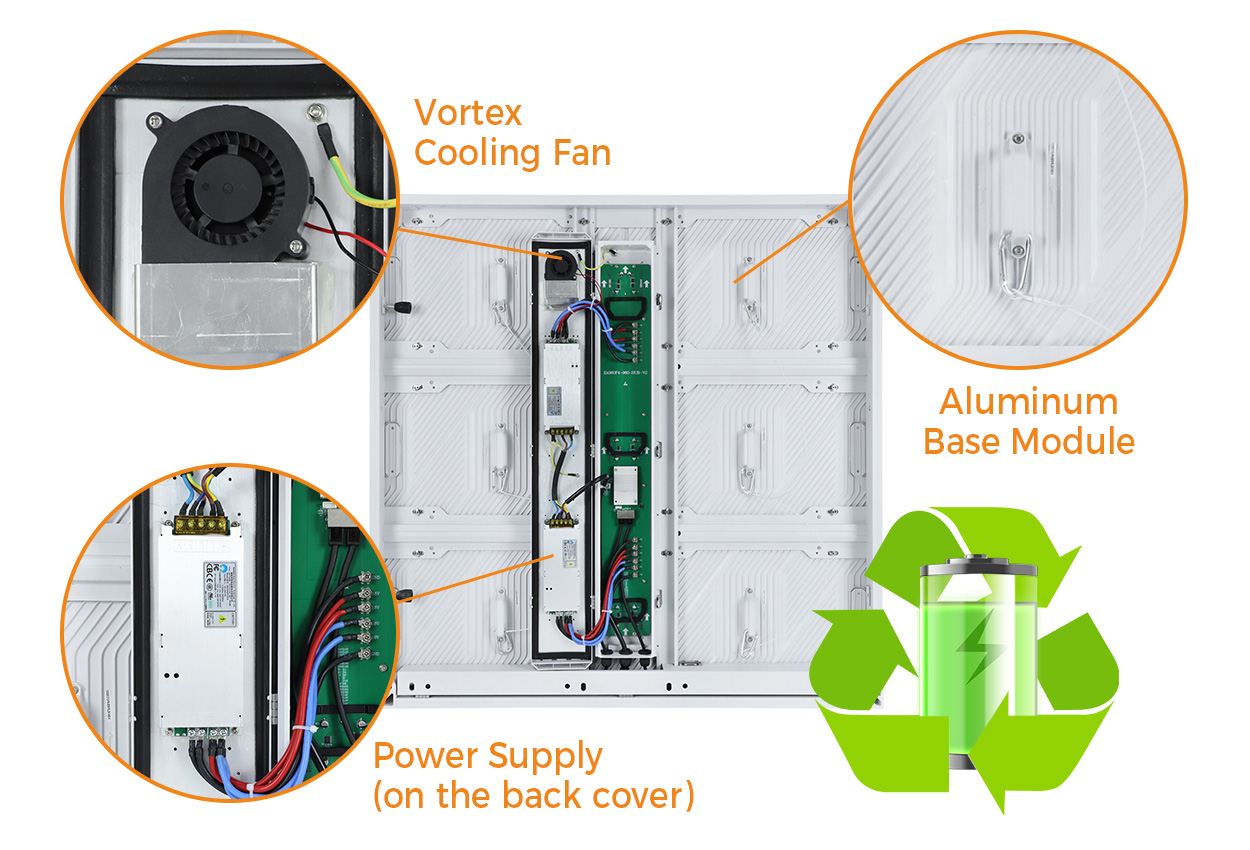

High-Efficiency Cooling
Aluminum modules, eddy-current fans and a dedicated thermal path manage heat inside the cabinet. Thermal grease couples the power supply to the cabinet door to improve heat transfer during continuous outdoor operation.

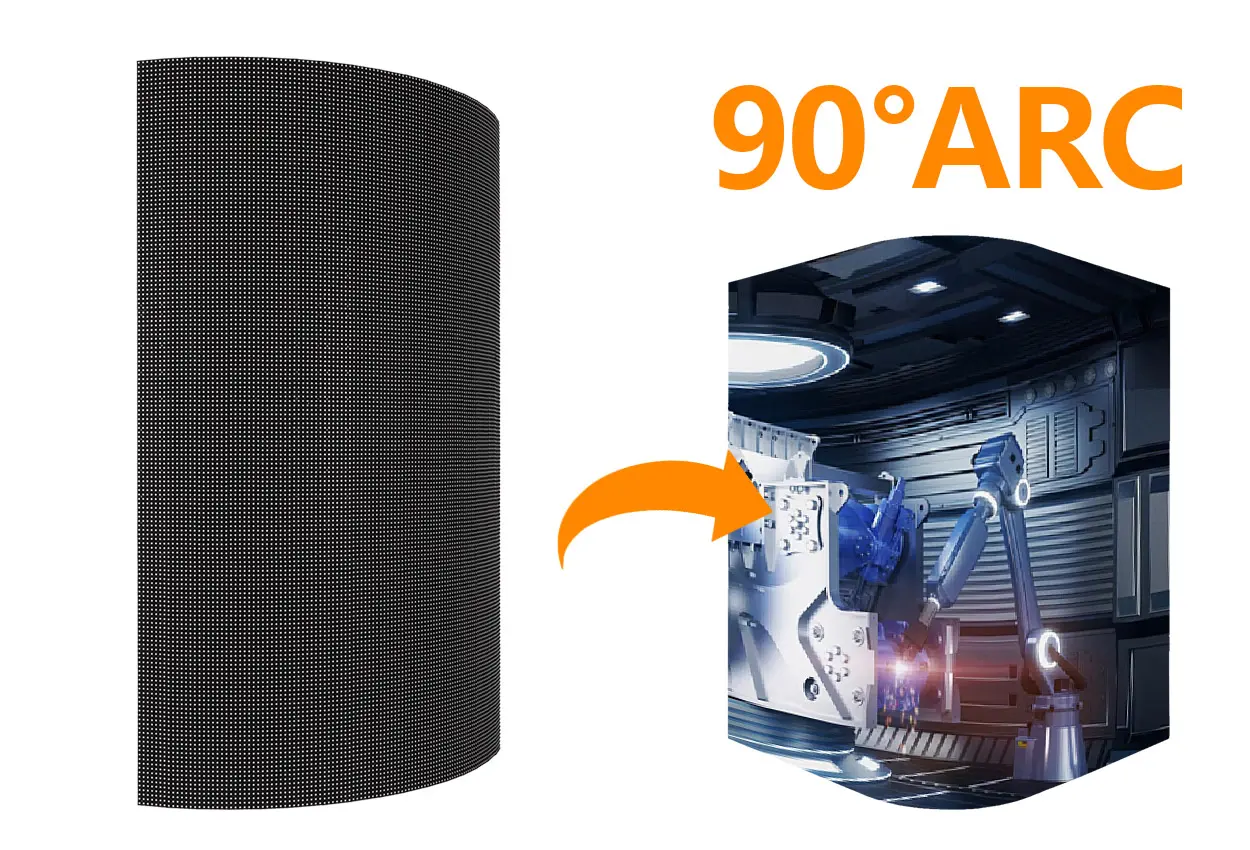

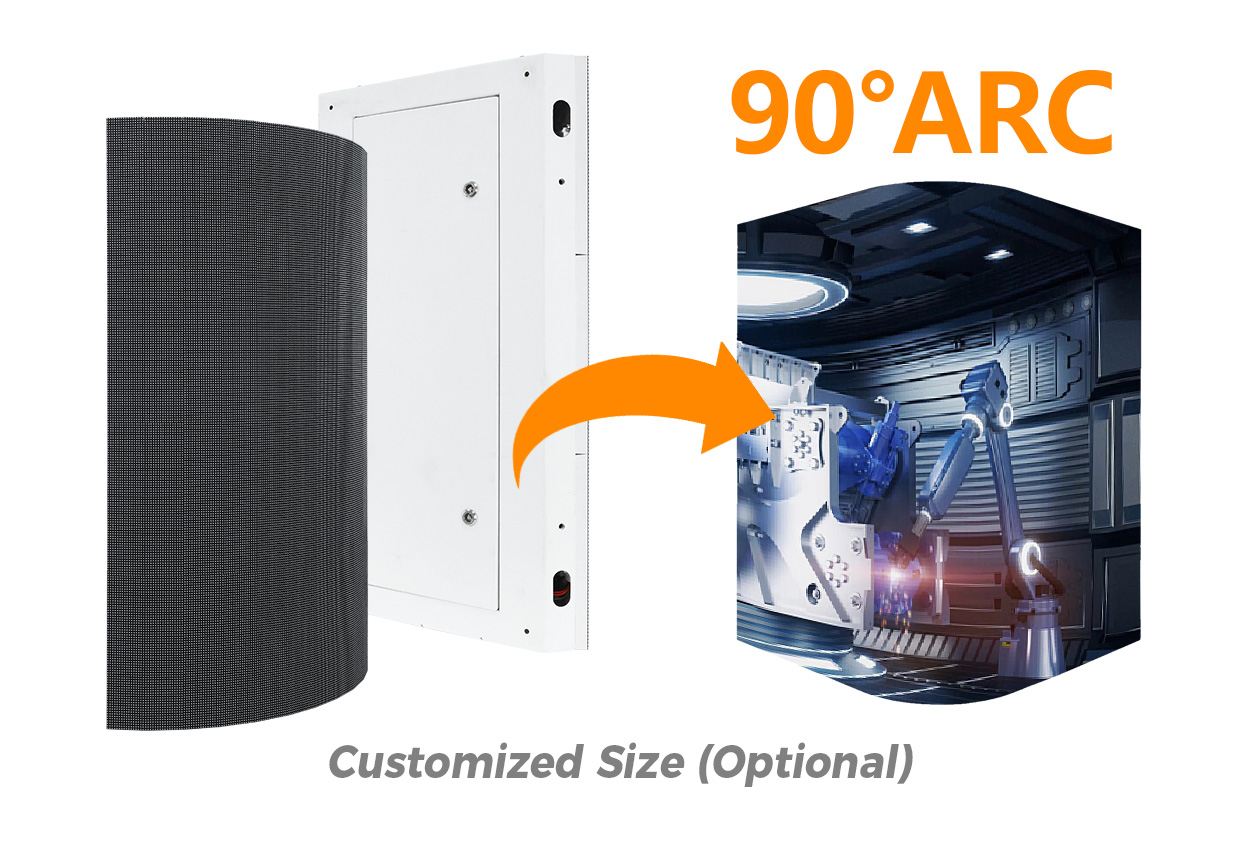

Optional 90° Corner Cabinet
Optional 90° corner cabinets let the EA960F4 wrap building corners without a visible break in the display surface, supporting right-angle layouts and naked-eye 3D creative content.

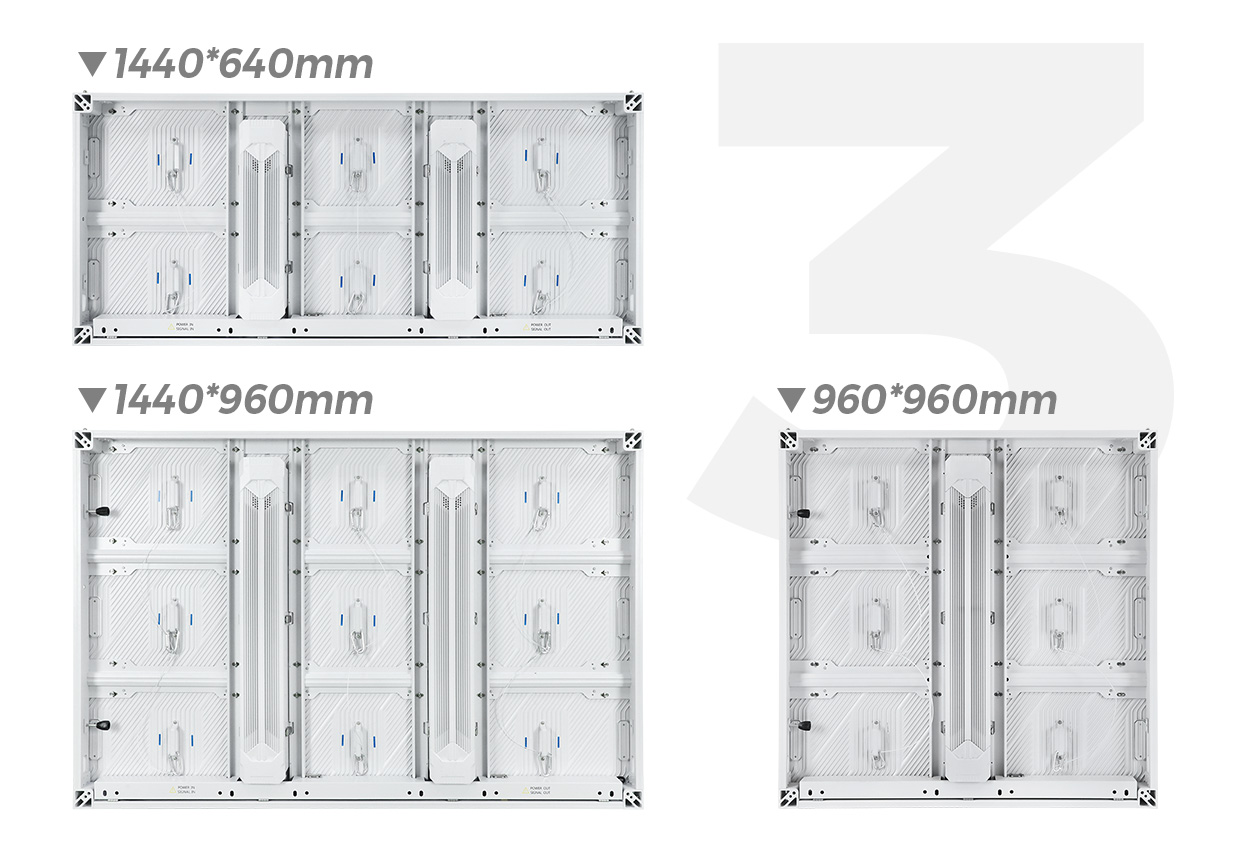

Three Cabinet Sizes
Built around 480 × 320 mm LED modules, the series supports 960 × 960 mm, 1,440 × 960 mm and 1,440 × 640 mm cabinets. The three formats give integrators more flexibility when fitting façades, pylons and billboard structures.

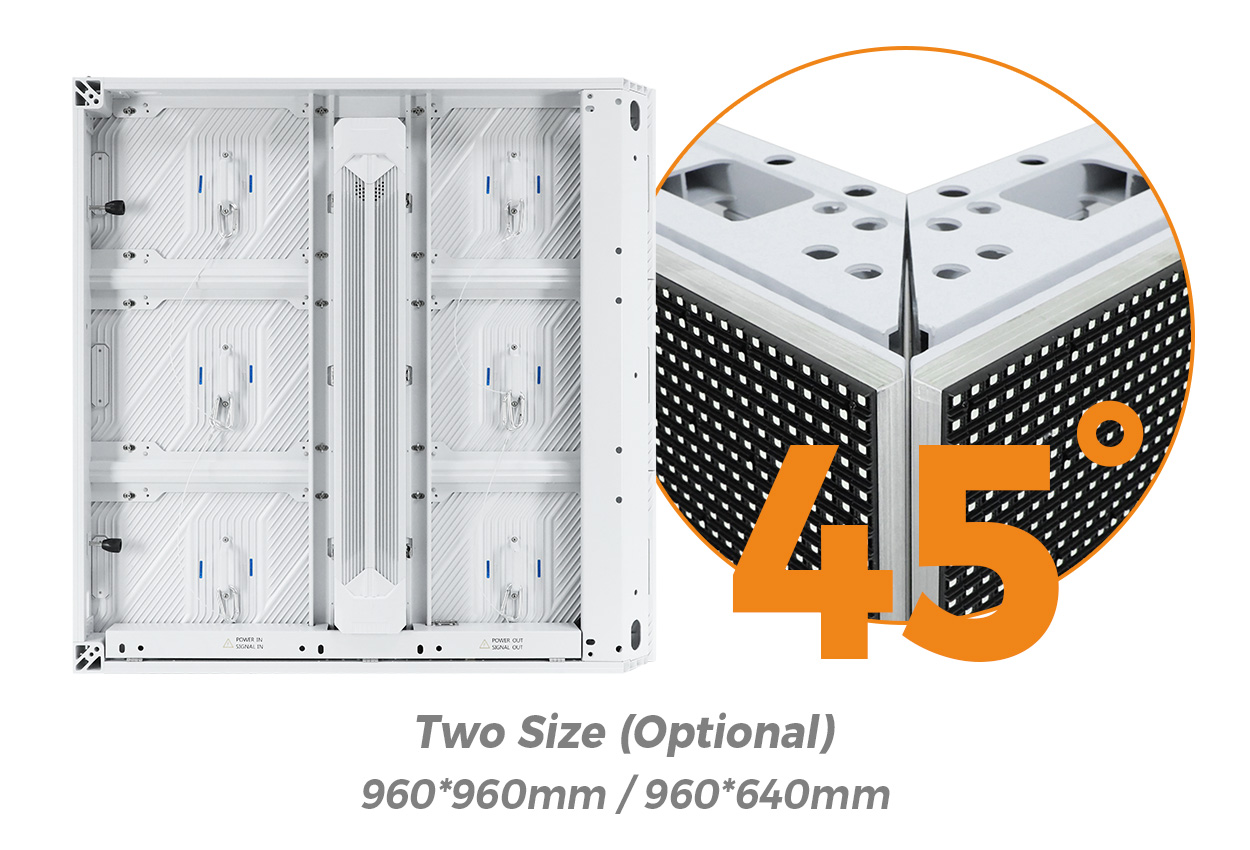

Optional 45° Beveled Cabinets
Optional 45° beveled cabinets join in pairs to form a clean 90° external corner. Two cabinet sizes are available for right-angle display layouts.
High-Brightness Outdoor Image Quality
With brightness up to 6,500 cd/m² and a 3,840 Hz refresh rate, EA960F4 maintains readable outdoor content and smooth video playback. The high refresh rate also helps reduce scan-line artifacts during camera capture.

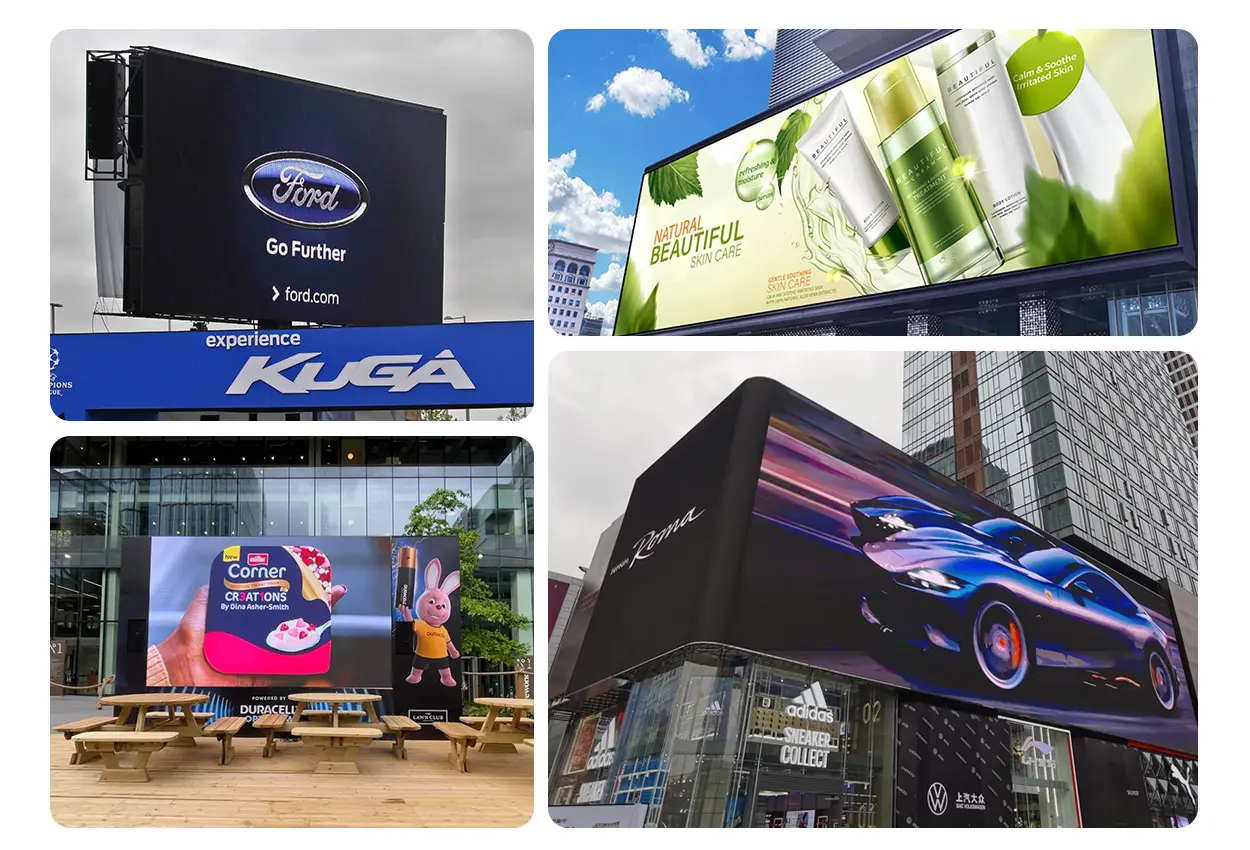

Outdoor Advertising Applications
EA960F4 is suited to retail façades, commercial complexes, landmark buildings, roadside billboards and other fixed outdoor advertising installations. Choose flat, 45° beveled or 90° corner cabinets according to the structure and creative-content requirement.
EA960F4 Flat Cabinet Specifications
EA960F4 Corner Configuration Specifications
EA960F4 Outdoor Advertising Screen FAQ
What is the EA960F4 outdoor advertising LED display?
EA960F4 is a fixed outdoor LED display for façades, billboards and other commercial advertising installations. The series combines an aluminum cabinet, dual-side service access, IP65 protection and optional corner configurations.
What are the standard cabinet size and weight?
The standard EA960F4 cabinet measures 960 × 960 mm and weighs 21.8 kg. It is built around 480 × 320 mm LED modules.
Which cabinet sizes are available?
The series supports 960 × 960 mm, 1,440 × 960 mm and 1,440 × 640 mm cabinets. These formats can be selected to suit the mounting structure and overall screen dimensions.
How bright is the EA960F4, and what is its refresh rate?
EA960F4 provides brightness up to 6,500 cd/m² and a 3,840 Hz refresh rate. This combination supports daylight readability, smooth motion and cleaner camera capture for outdoor advertising content.
Can the EA960F4 be serviced from the front and rear?
Yes. Modules and internal components can be accessed from either the front or rear, giving installers flexibility where rear maintenance clearance is limited.

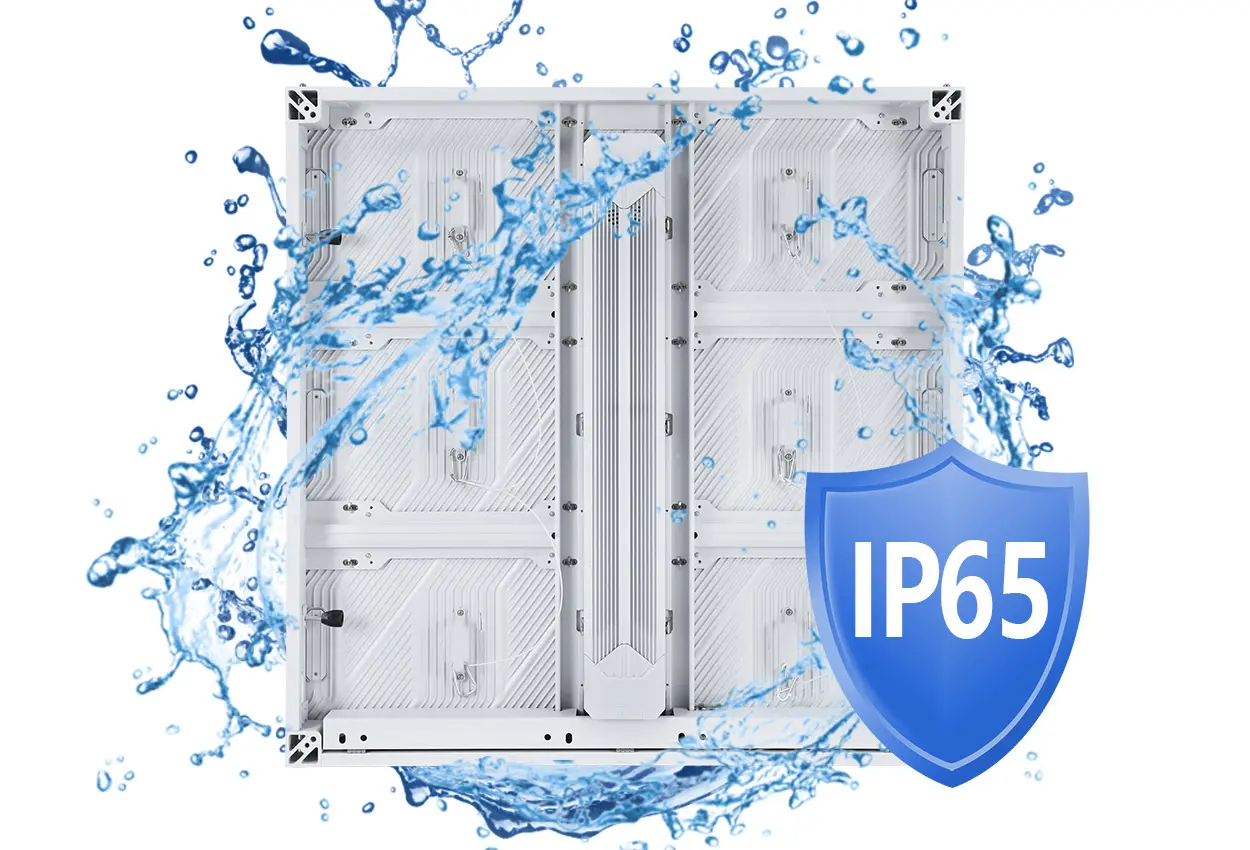

What does the IP65 rating mean for installation?
The EA960F4 is specified with IP65 protection for outdoor use. The final system design should still account for drainage, ventilation, structural loading and local site conditions.
Can the EA960F4 create 90° corners or naked-eye 3D screens?
Yes. Optional 90° corner cabinets and 45° beveled cabinet options support right-angle display layouts, including corner installations designed for naked-eye 3D creative content.
Where is the EA960F4 typically installed?
Typical applications include retail façades, commercial complexes, landmark buildings, roadside billboards and other fixed outdoor advertising screens that require high brightness and service flexibility.
