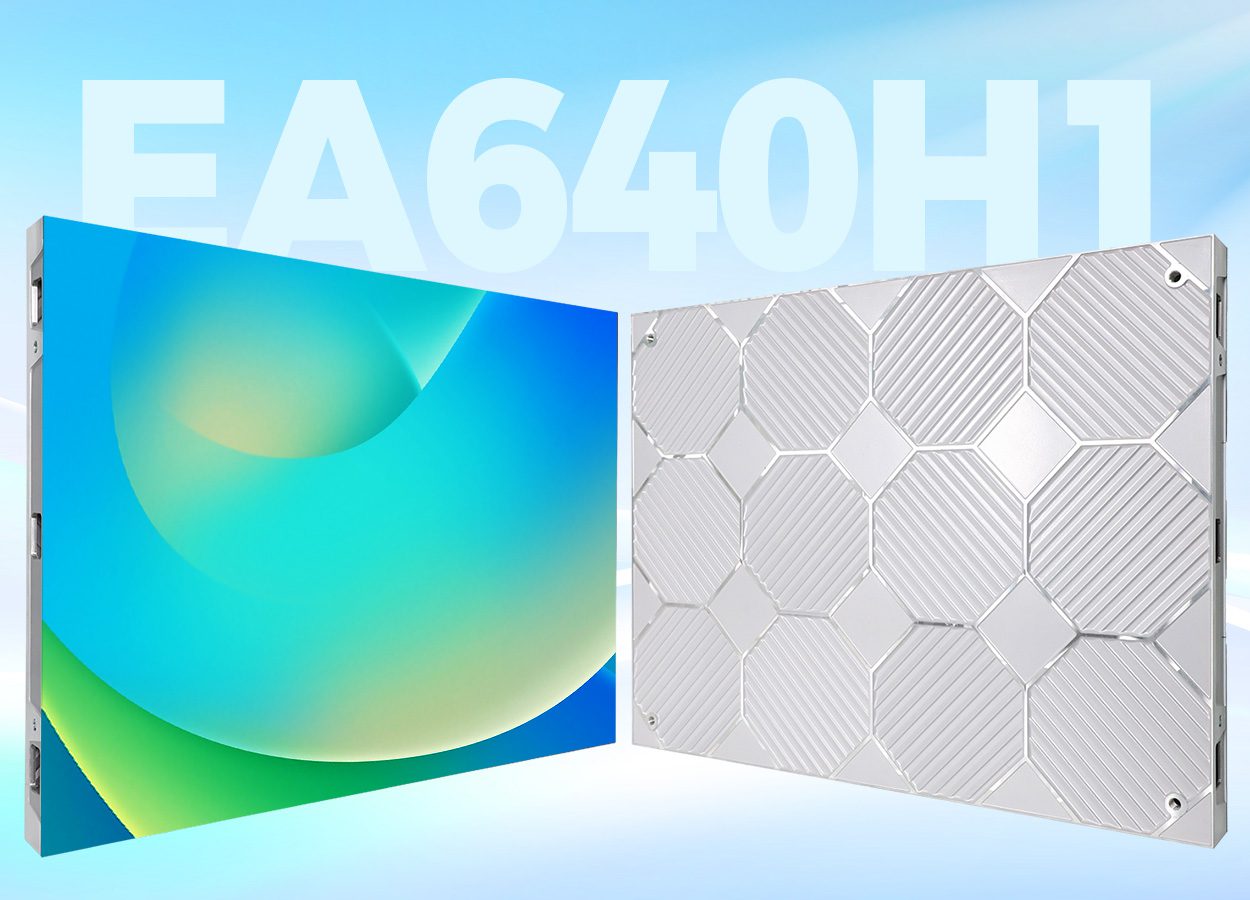

EA640H1 Indoor LED Wall for Fixed Installations
Specify EA640H1 indoor LED wall cabinets for a fixed wall-mounted display when front access and a compact cabinet format suit the room. Match the 640 × 480 mm cabinet grid to the content format, then confirm pixel pitch, control equipment and maintenance clearance.
- Listed 640 × 480 mm cabinet, 48 mm depth and 6.7 kg weight.
- P1.25, P1.53, P1.86, P2 and P2.5 options; choose against audience distance and intended text or video.
- Front-service access and an integrated hub layout; confirm the approved service tool and replacement configuration.
On this page
How many EA640H1 cabinets does the planned wall need?
| Example grid | Nominal cabinet dimensions | Cabinet count / format |
|---|---|---|
| 4 cabinets wide × 3 high | 2560 × 1440 mm | 12 cabinets / 16:9 |
| 3 cabinets wide × 3 high | 1920 × 1440 mm | 9 cabinets / 4:3 |
These are planning calculations using the listed cabinet dimensions, not completed project examples. Confirm the active display dimensions and full pixel canvas for the selected pitch before ordering the controller or preparing content.
What must be checked for a front-service installation?
Show the installer the wall and support drawings, viewing-side working space, ventilation and power/signal routes. Ask which modules and internal components are accessible from the front. A slim cabinet still needs a safe service position and the approved removal tool.
What should the equipment quote include?
Send the required wall dimensions, cabinet grid, nearest audience distance, room lighting, content source, quantity, destination and target date. Confirm the cabinets, processor/controller, cables, matched spare modules and packing in the quote. For camera-facing use, include the intended camera and shutter settings in the acceptance check.
For other cabinet formats and indoor applications, compare the indoor LED screen selection page.
Front-Service Access for Wall-Mounted Installations

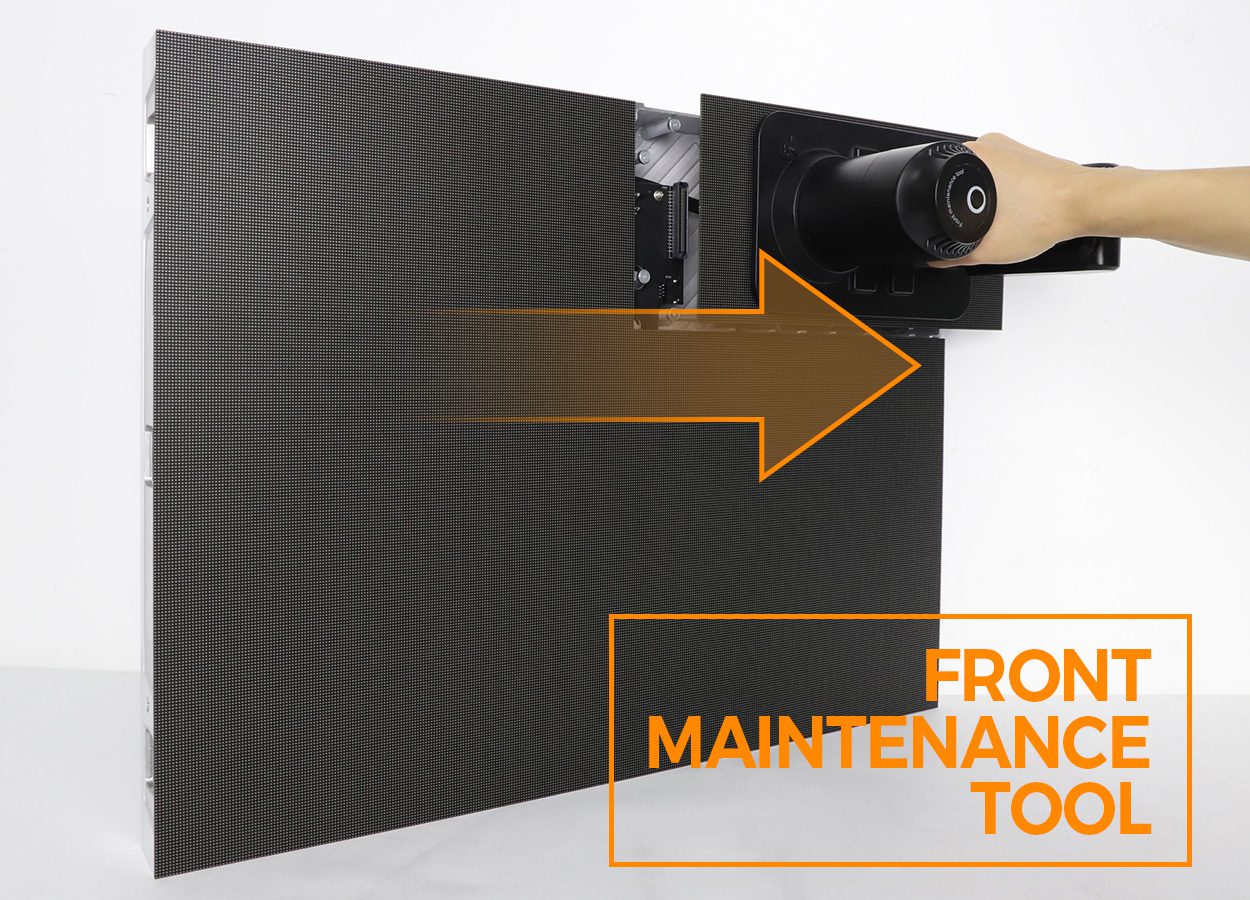

LED modules can be removed from the front with a vacuum suction tool, so the cabinet can be mounted close to a wall without a rear service corridor. This reduces installation depth and keeps serviceable components accessible from the viewing side.
≥3,840 Hz Refresh and 14-Bit Grayscale
All listed configurations support a refresh rate of at least 3,840 Hz and 14-bit grayscale, helping the display reproduce smooth motion, stable gradients and cleaner on-camera images. Brightness ranges from 600 to 800 cd/m² by pixel pitch for controlled indoor lighting.
Cable-Free Hub Connection

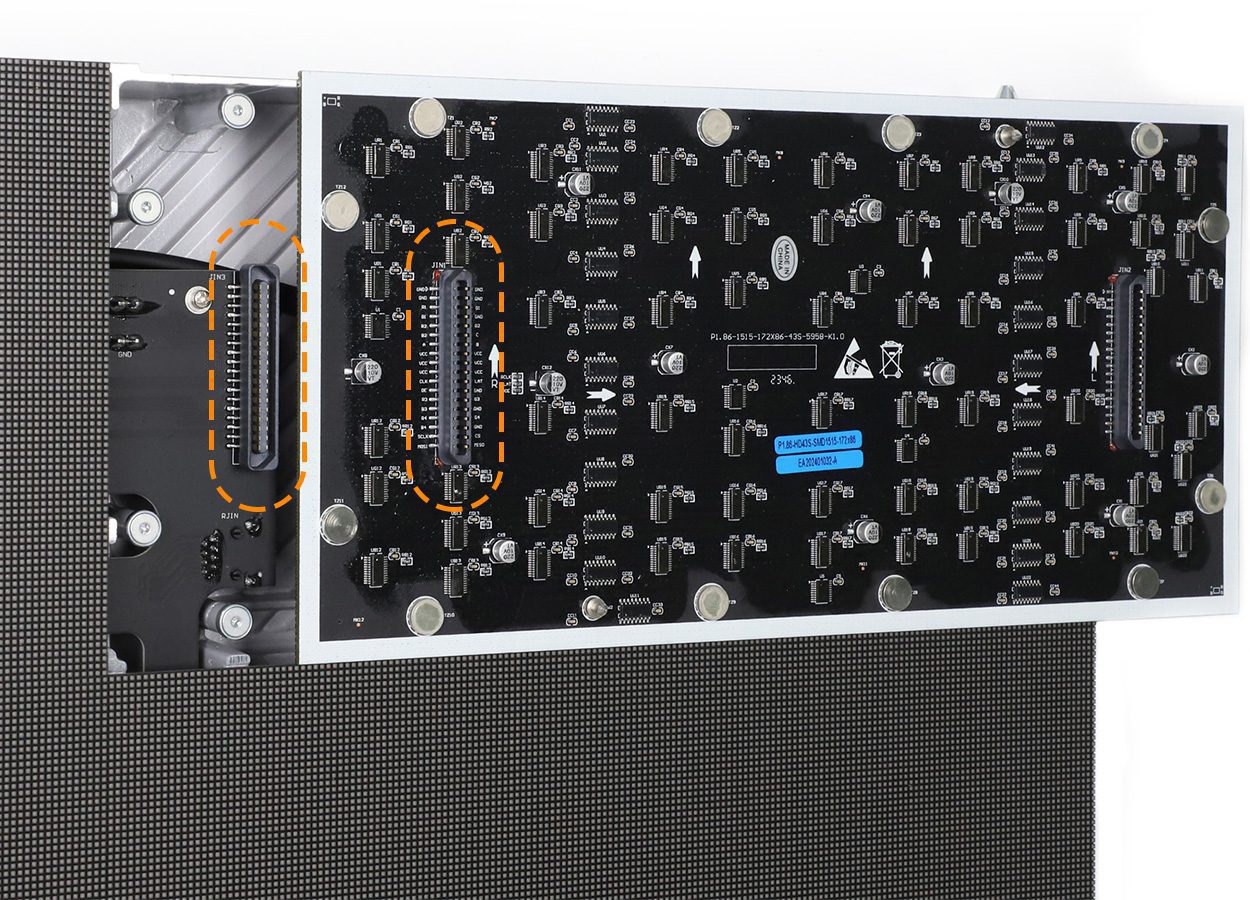

The integrated hub connects LED modules to cabinet power and signal paths without separate inter-module DC or ribbon cables. Fewer internal cables streamline assembly, reduce connection points and make module replacement more efficient.

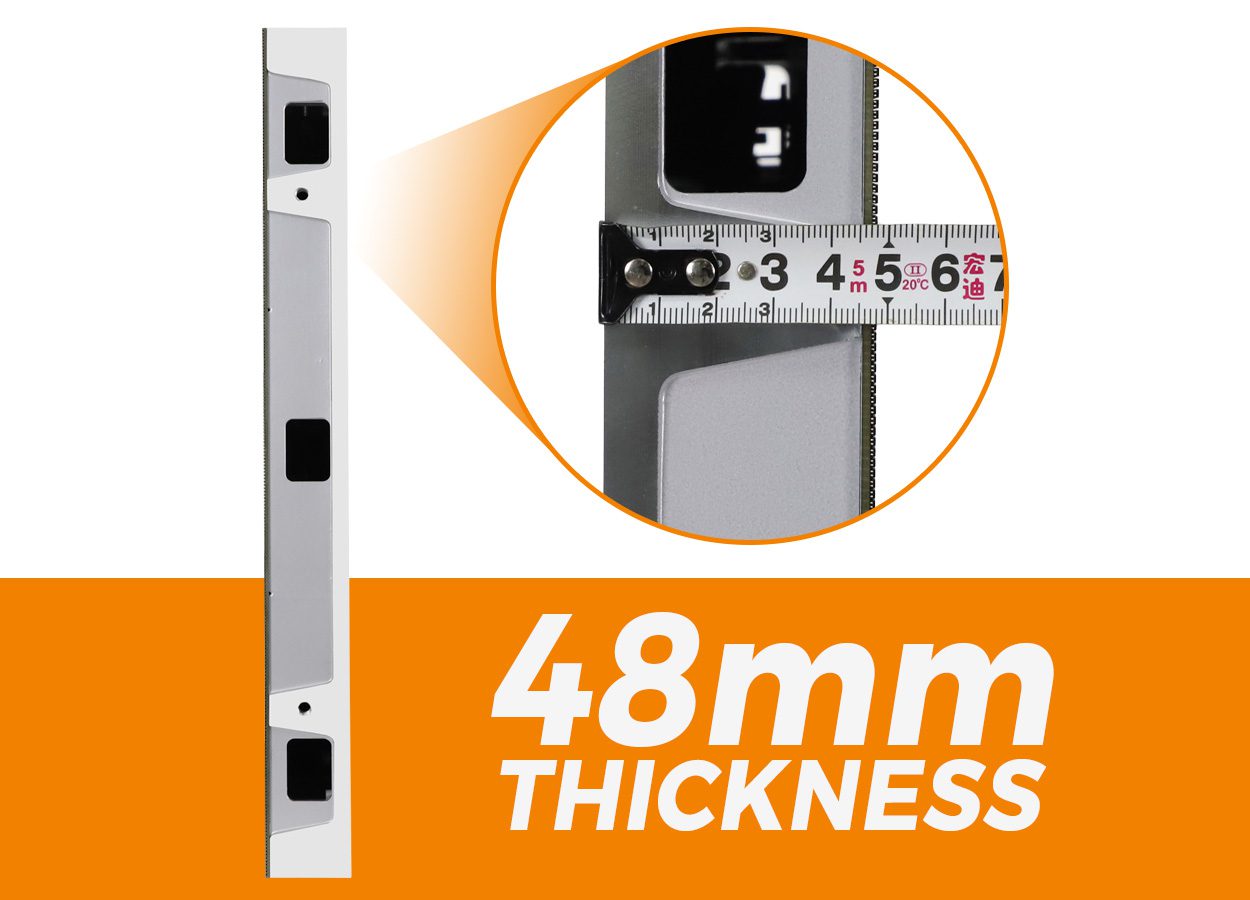

48 mm Slim, 6.7 kg Cabinet
At 48 mm thick and 6.7 kg per 640 × 480 mm cabinet, EA640H1 reduces wall projection and handling weight for fixed indoor installations. The compact format supports easier transport, positioning and maintenance.
Simplified Hub Architecture

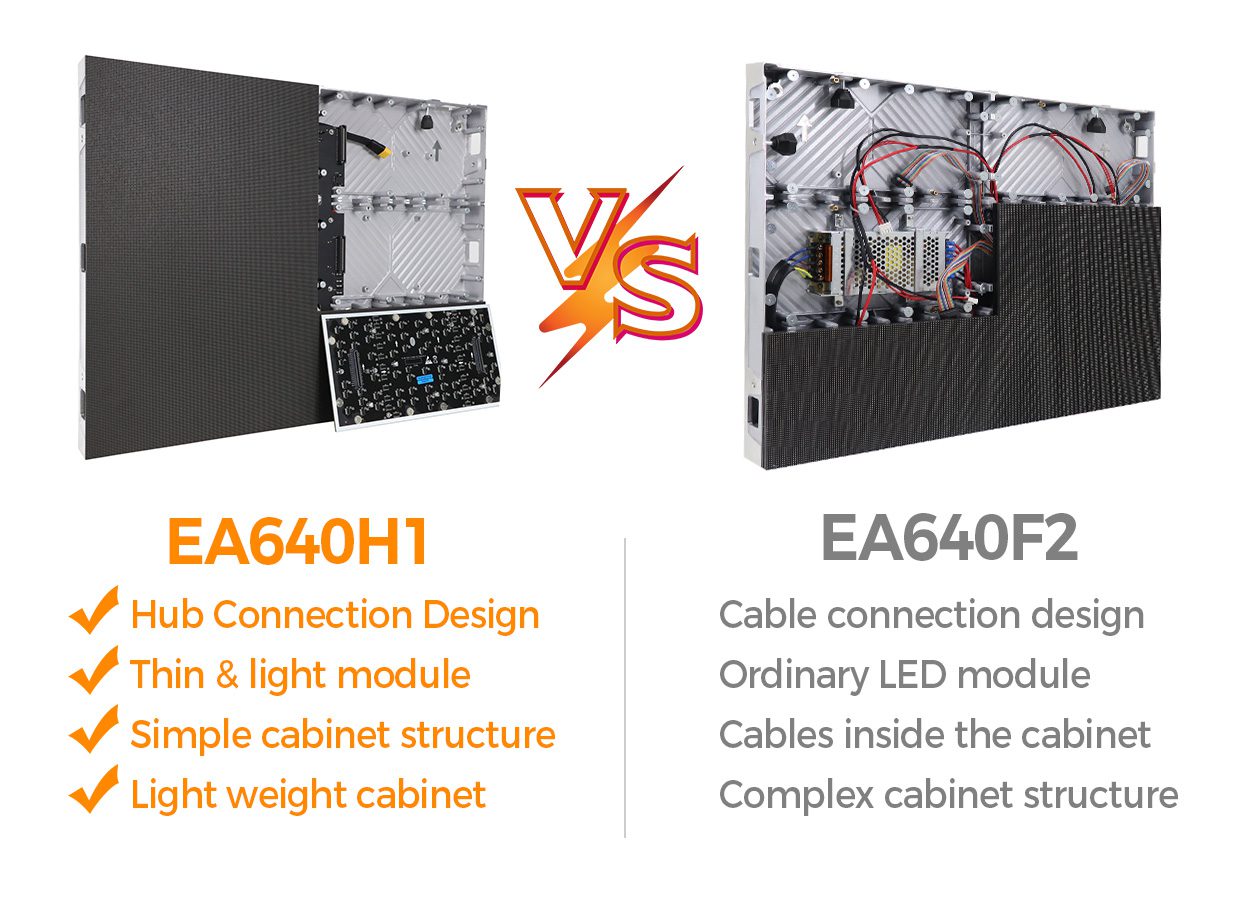

Compared with the earlier EA640F2 cabinet, EA640H1 uses a more integrated hub architecture and a simplified internal layout. The design reduces internal cabling and supports faster cabinet assembly and service.
640 × 480 mm Cabinet with 4:3 Aspect Ratio

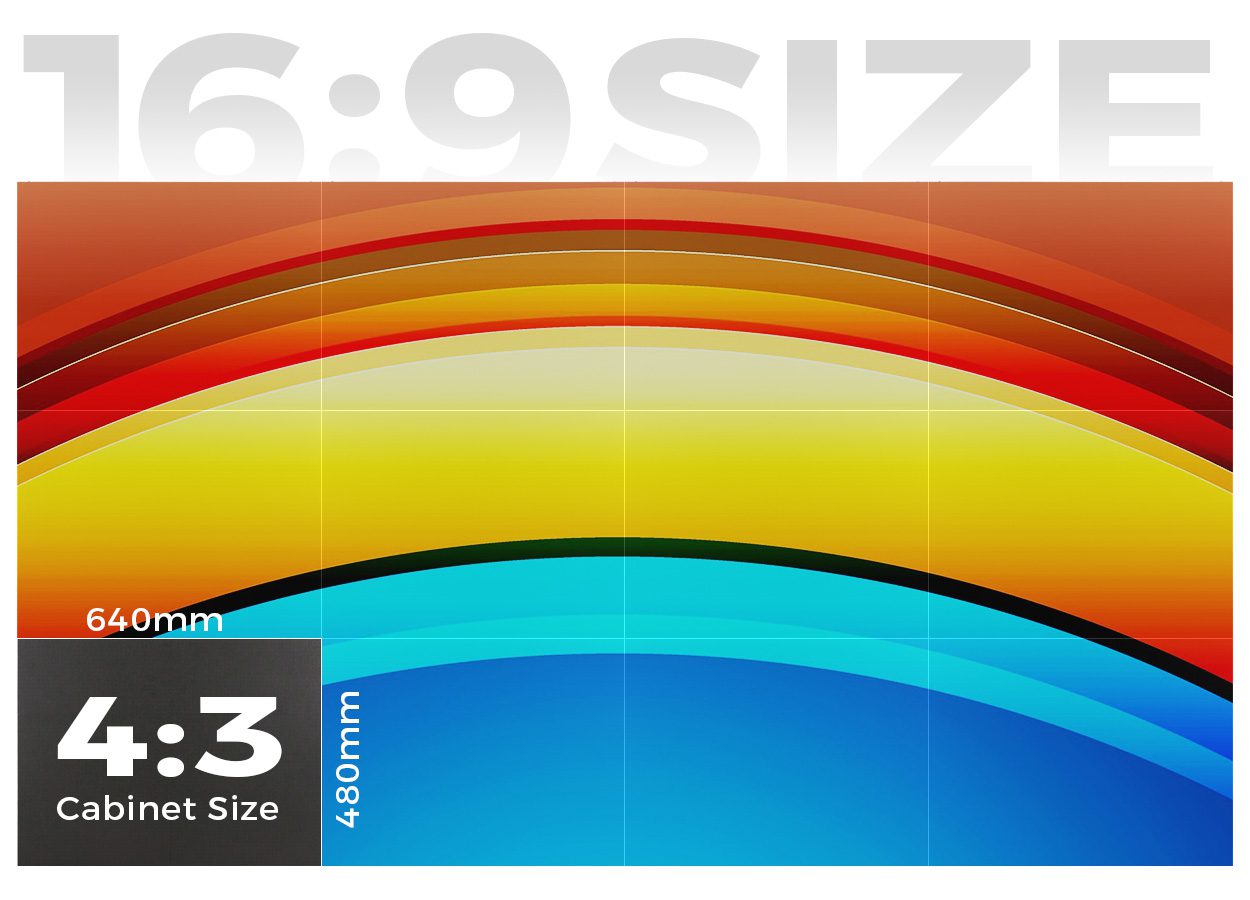

Each cabinet measures 640 × 480 mm, a native 4:3 format that can form standard 4:3 walls or a 16:9 canvas in a four-cabinet-wide by three-cabinet-high layout. P1.25, P1.53, P1.86, P2 and P2.5 options let project teams balance pixel density, viewing distance and budget.
Precision Die-Cast Aluminum Cabinet

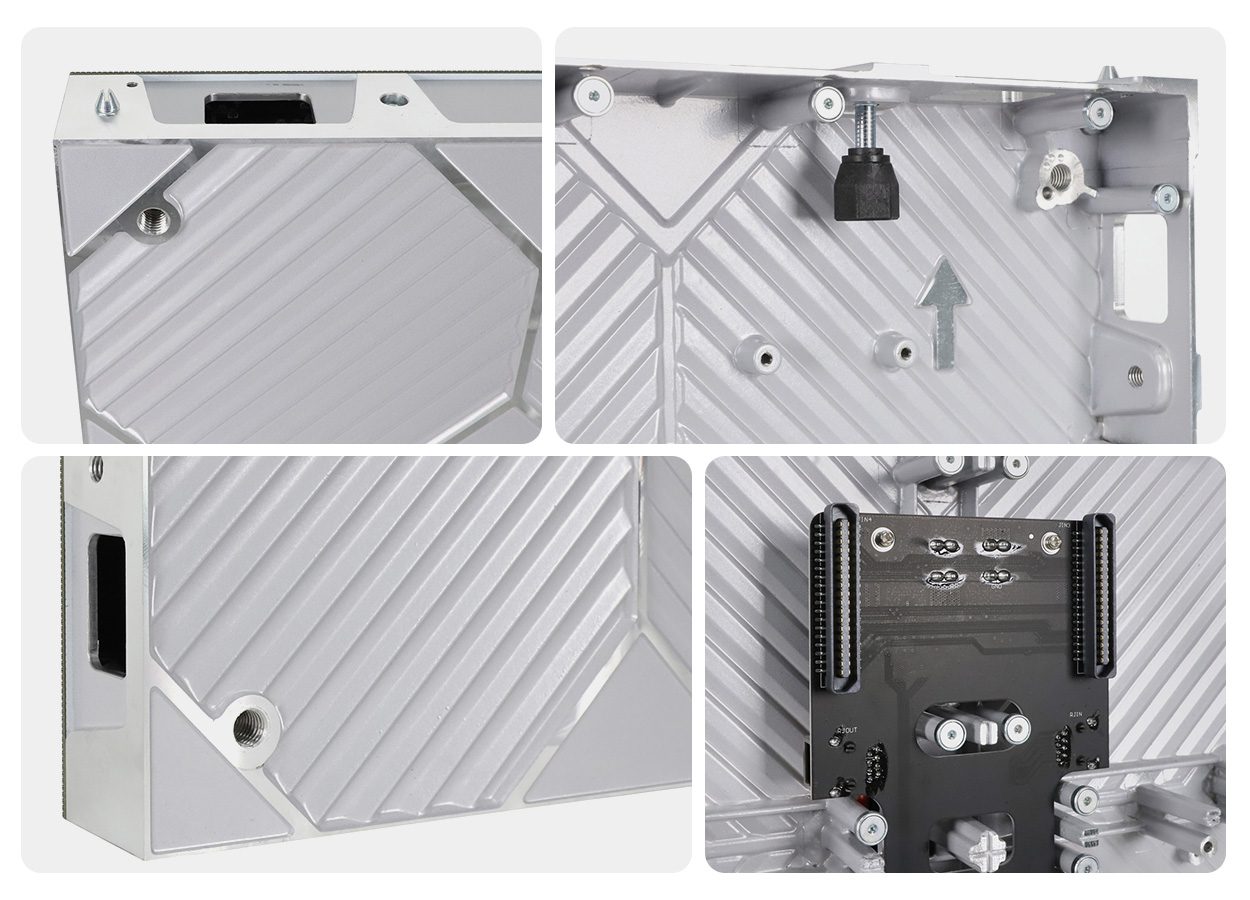

The precision die-cast aluminum frame improves cabinet rigidity and alignment while keeping weight at 6.7 kg. Integrated quick locks support faster cabinet-to-cabinet assembly and accurate panel positioning.
EA640H1 Front-Service Indoor LED Display Specifications
EA640H1 Indoor LED Wall FAQ
What is the EA640H1 indoor LED wall designed for?
EA640H1 is designed for fixed indoor LED video walls in control rooms, conference spaces, retail environments, studios and similar venues. Its front-service, 48 mm slim cabinet is suited to wall-mounted projects where rear maintenance space is limited.
Which pixel pitches are available for EA640H1?
The current specification table lists P1.25, P1.53, P1.86, P2 and P2.5. Selection should be based on viewing distance, required pixel density, content resolution and project budget.
What are the EA640H1 cabinet dimensions, depth and weight?
Each cabinet measures 640 × 480 mm, is 48 mm thick and weighs 6.7 kg. The compact die-cast aluminum format simplifies handling and helps reduce the total depth of a fixed indoor LED wall.
What refresh rate, grayscale and brightness does EA640H1 provide?
All listed models support a refresh rate of at least 3,840 Hz and 14-bit grayscale. Brightness ranges from 600 to 800 cd/m² by pixel pitch, which is intended for controlled indoor environments.
How does front maintenance work on EA640H1?
LED modules can be removed from the viewing side with a vacuum suction tool. This allows service access without a rear corridor, although the supporting structure and surrounding clearance should still follow the project design.
Does cable-free hub connection mean the display uses wireless video?
No. Cable-free refers to the cabinet's internal hub architecture, which connects modules to power and signal paths without separate inter-module DC or ribbon cables. Video input and system control still use the specified controller and signal infrastructure.
Can 640 × 480 mm cabinets form a 16:9 LED wall?
Yes. Because each cabinet has a 4:3 aspect ratio, a layout four cabinets wide by three cabinets high forms a 16:9 physical canvas. Final cabinet quantity and pixel resolution depend on the selected pixel pitch and target screen dimensions.
Is EA640H1 suitable for outdoor installation?
No. The specification table lists IP31 protection, so EA640H1 is intended for dry indoor environments rather than rain or exposed outdoor conditions. Installation should follow the enclosure limits defined for the project.
What information is needed for an EA640H1 quotation?
Share the required screen width and height, viewing distance, preferred pixel pitch, wall or support conditions, project location, video source and delivery schedule. EagerLED can then recommend a suitable configuration and prepare a project-specific quotation. Contact the project team.
