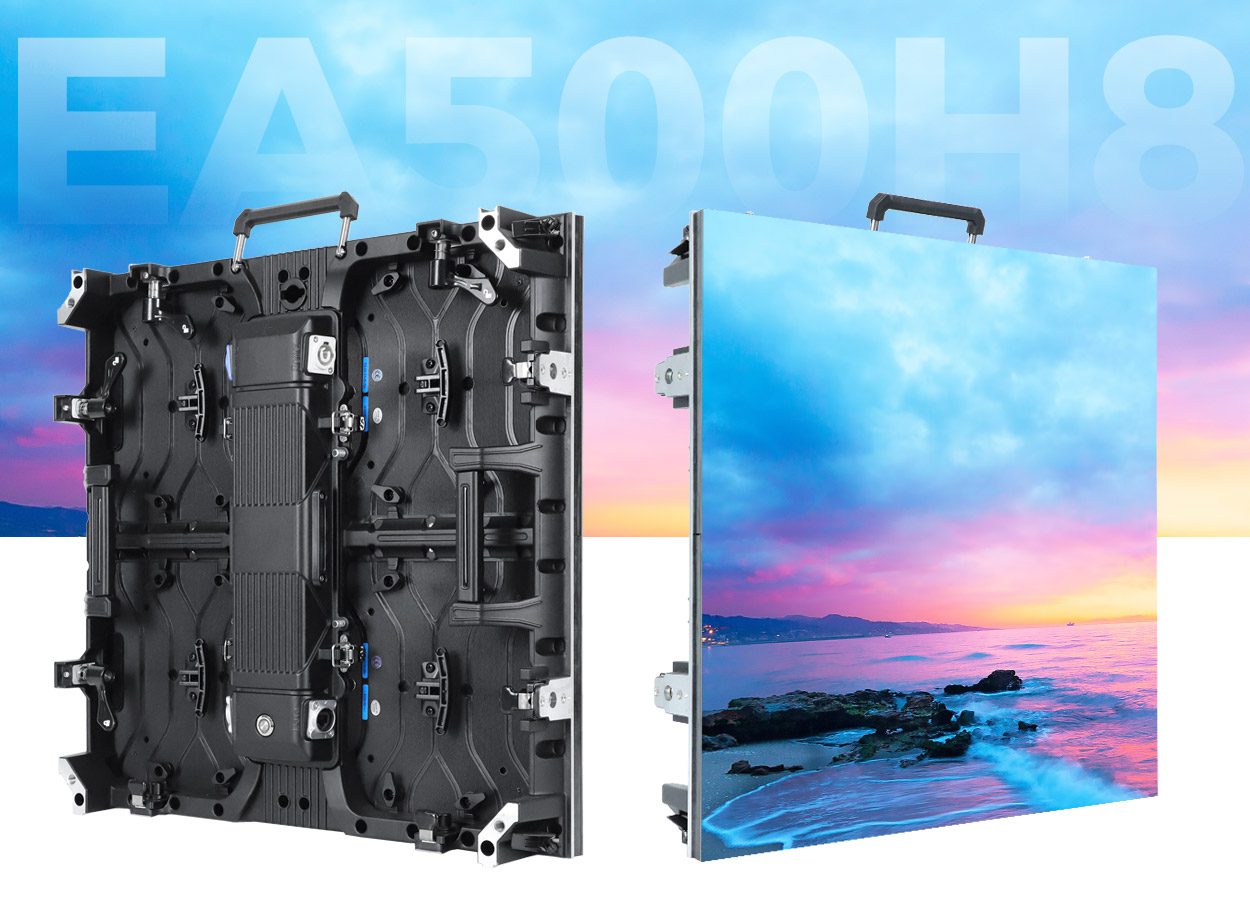

EA500H8 500x500 Outdoor Rental LED Display
EA500H8 is a 500 × 500 mm outdoor rental LED display for event production fleets and stage equipment buyers. Compare the exact pitch and scan version, then plan cabinet quantities, power, control, curve geometry, transport and spares for repeated installation.
Customized New LED Display Solutions for You
Why Choose the EA500H8 500x500 Rental LED Display
EA500H8 is a 500 × 500 mm outdoor rental LED display for event production fleets and stage equipment buyers. Compare the exact pitch and scan version, then plan cabinet quantities, power, control, curve geometry, transport and spares for repeated installation.
- Outdoor cabinets are listed at 6.5 kg; indoor versions have separate specifications.
- Outdoor P3.91 is offered in 16-scan and 8-scan configurations with different brightness and power.
- Published outdoor protection is IP65 front and IP54 rear.
- Arc locks support curved layouts; confirm the required radius and compatible cabinet version.
On this page
Select the outdoor pitch and scan configuration
| Outdoor version | Brightness (cd/m²) | Maximum / average power (W/m²) |
|---|---|---|
| P2.6 / 1⁄24 scan | 4,500 | 500 / 170 |
| P2.97 / 1⁄21 scan | 4,500 | 550 / 185 |
| P3.91 / 1⁄16 scan | 4,800 | 580 / 195 |
| P3.91 / 1⁄8 scan | 6,000 | 650 / 220 |
A flat 4 × 2 m wall uses 8 × 4 cabinets: 32 panels, 8 m² and 208 kg of outdoor cabinet weight. This is a planning calculation before rigging, cables and transport equipment; confirm the final structural and electrical design.
At the published maximum figures, the same 8 m² screen gives a display-only power estimate of 4.0 kW for P2.6 or 5.2 kW for P3.91 1⁄8 scan. The electrical team must also allow for the complete control system and site requirements.
For spare matching, specify pitch, scan mode, receiving cards, connectors and the exact cabinet/module version. Indoor and outdoor panels, or different P3.91 scan versions, should not be assumed interchangeable.
Purchase questions
Is this a local LED screen rental service?
This page is for purchasing rental display equipment for an event fleet. Share your typical wall layouts, transport method, crew workflow and indoor or outdoor operating conditions to define the equipment package.
What needs confirmation for a curved wall?
Provide concave or convex geometry and the intended radius. Confirm the supported lock settings, panel alignment, mounting method and content map for the exact ordered cabinet.
What should the quote include?
Request the selected cabinet version, controller and receiving-card configuration, rigging or stacking scope, cables, flight cases, replacement modules, power boxes and commissioning requirements as separate confirmed items.
Request an EA500H8 fleet quote
Compare the rental LED screen fleet options for other formats.
Camera-Ready 3,840 Hz Refresh and High Brightness
All listed EA500H8 configurations are specified at a refresh rate of at least 3,840 Hz. Outdoor models provide 4,500-6,000 cd/m2 brightness, while indoor models provide 700-750 cd/m2. NovaStar's 2026 solutions brochure notes that improving maximum and low-grayscale refresh rates helps reduce screen flicker and scan lines. Camera results still depend on the controller, frame rate and shutter settings.

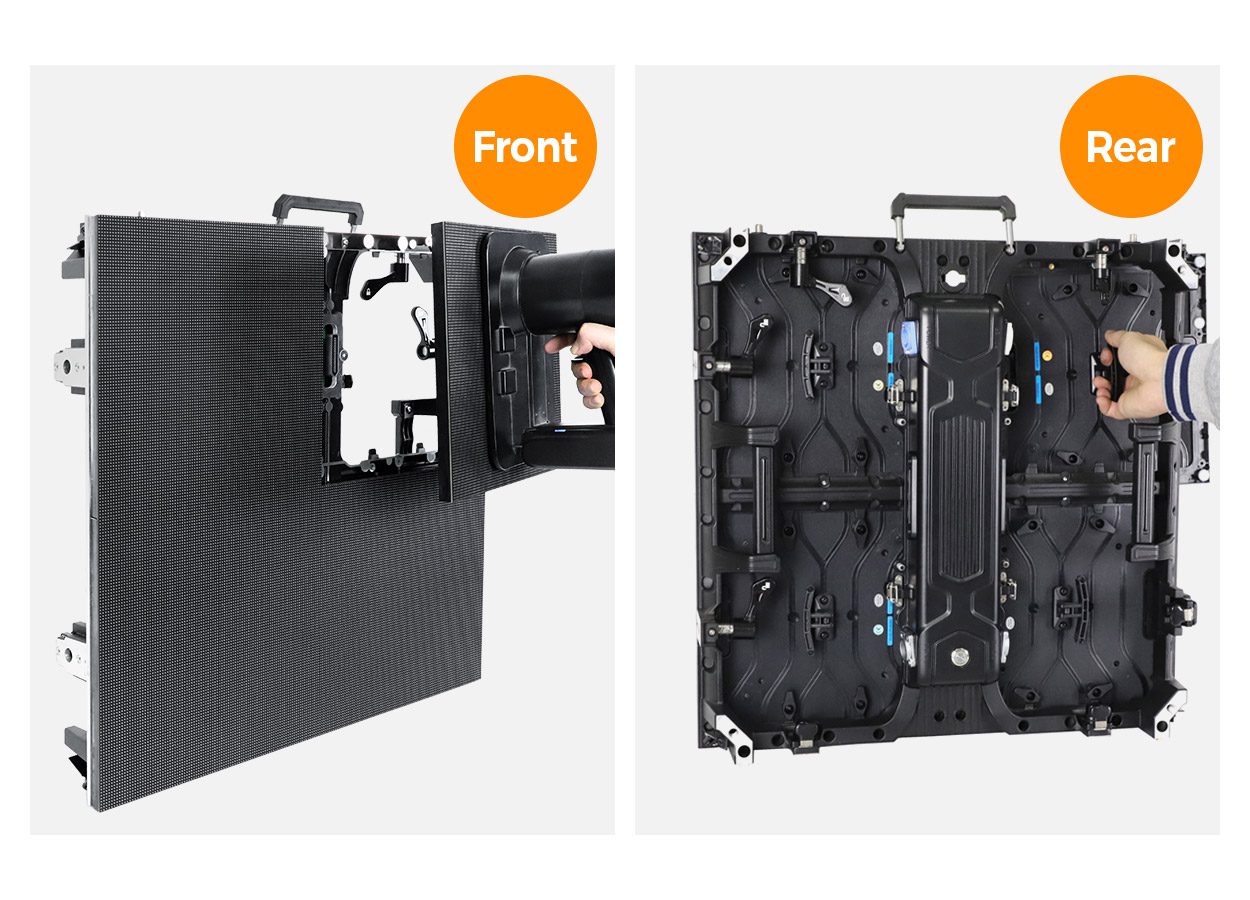

Front and Rear Service Access
The cabinet supports maintenance from both the front and rear, giving technicians direct access to serviceable components in different rigging environments. This can shorten fault isolation and component replacement compared with a rear-only cabinet where front access is required.

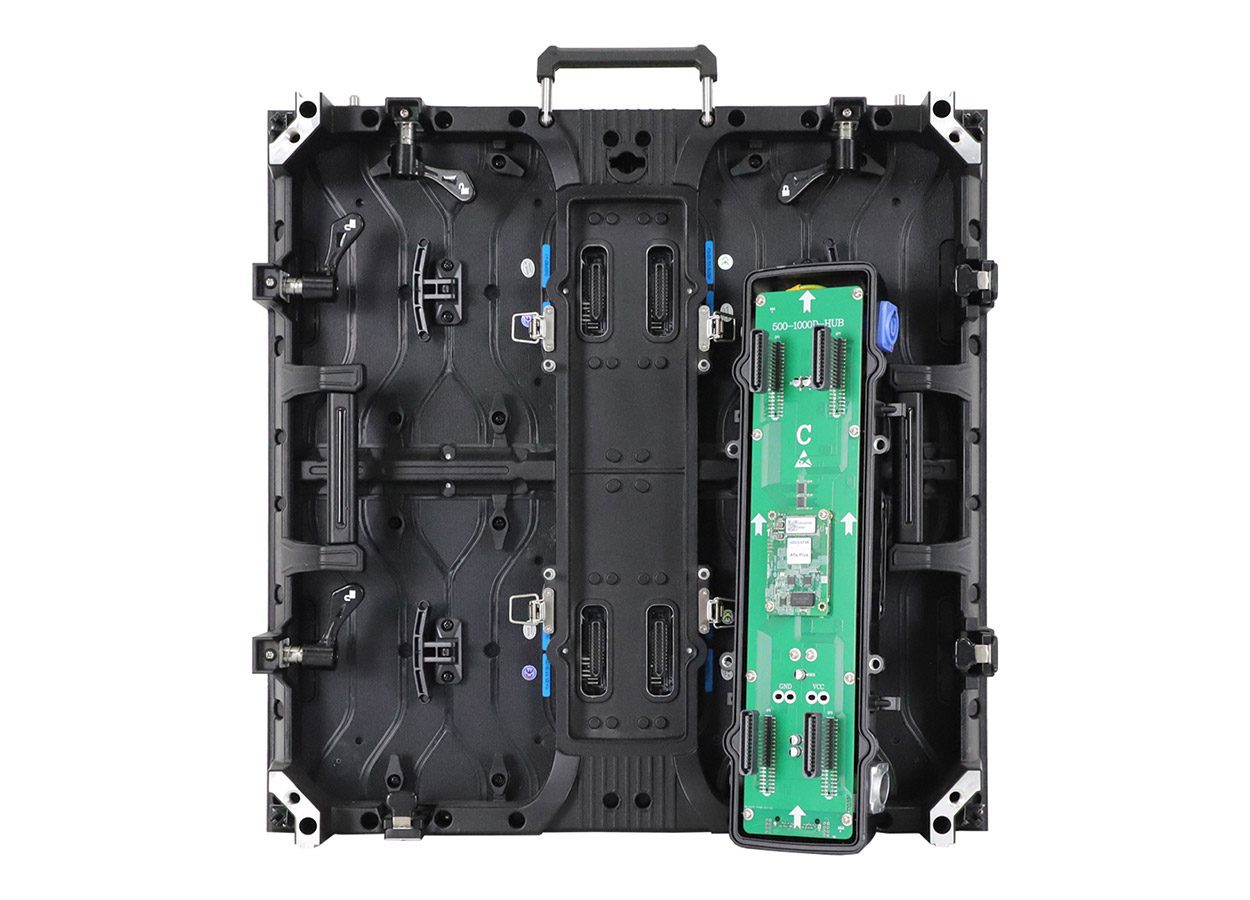

Removable Power Box and Integrated Cabling
The detachable power box can be removed from the cabinet for service or replacement. Its integrated power and signal connection reduces exposed internal cabling and keeps repeated rental assembly more organized.

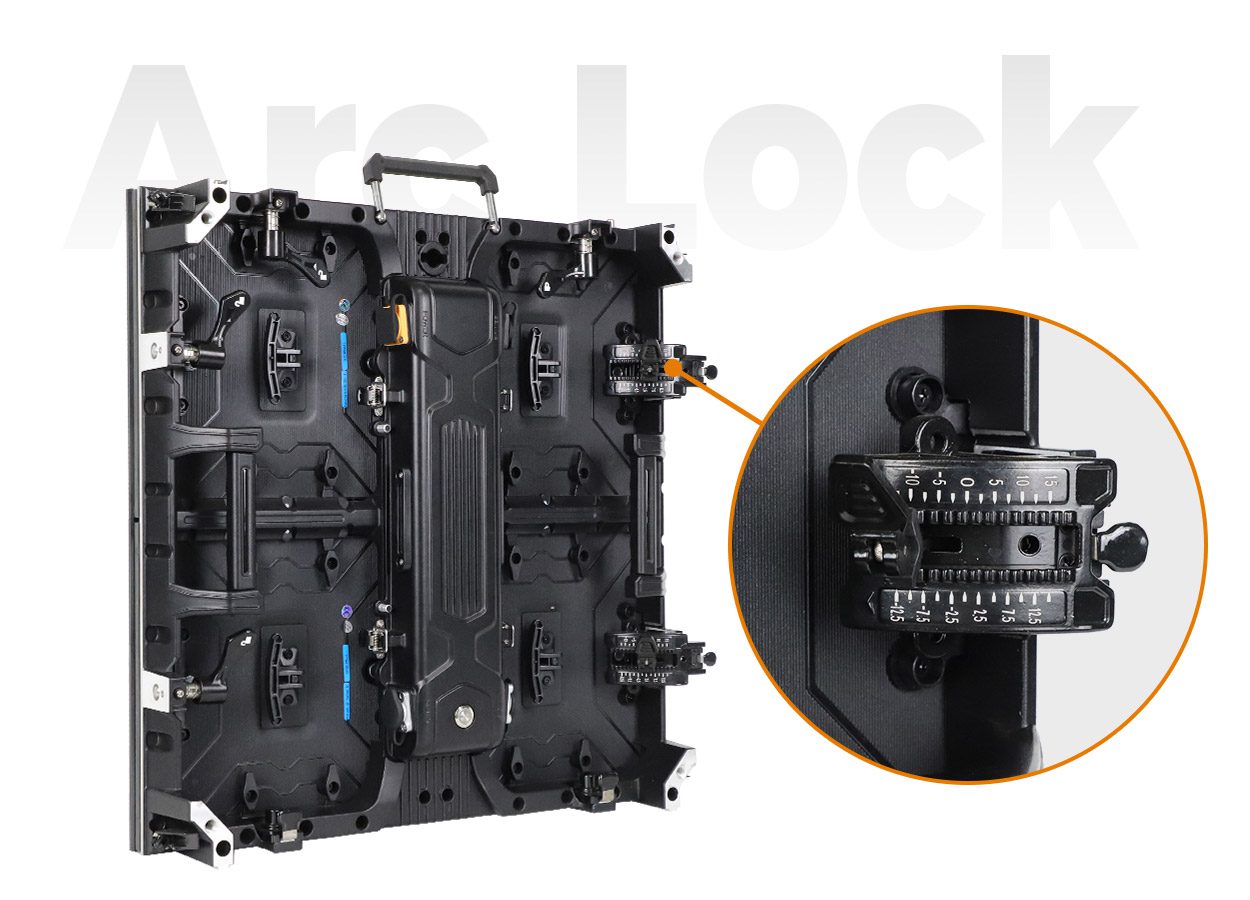

Precision Arc Lock for Curved LED Walls
The arc-lock system supports curved and ring-style LED wall layouts. The current specification table does not publish the supported angle range, so confirm the required concave or convex radius with EagerLED before ordering.

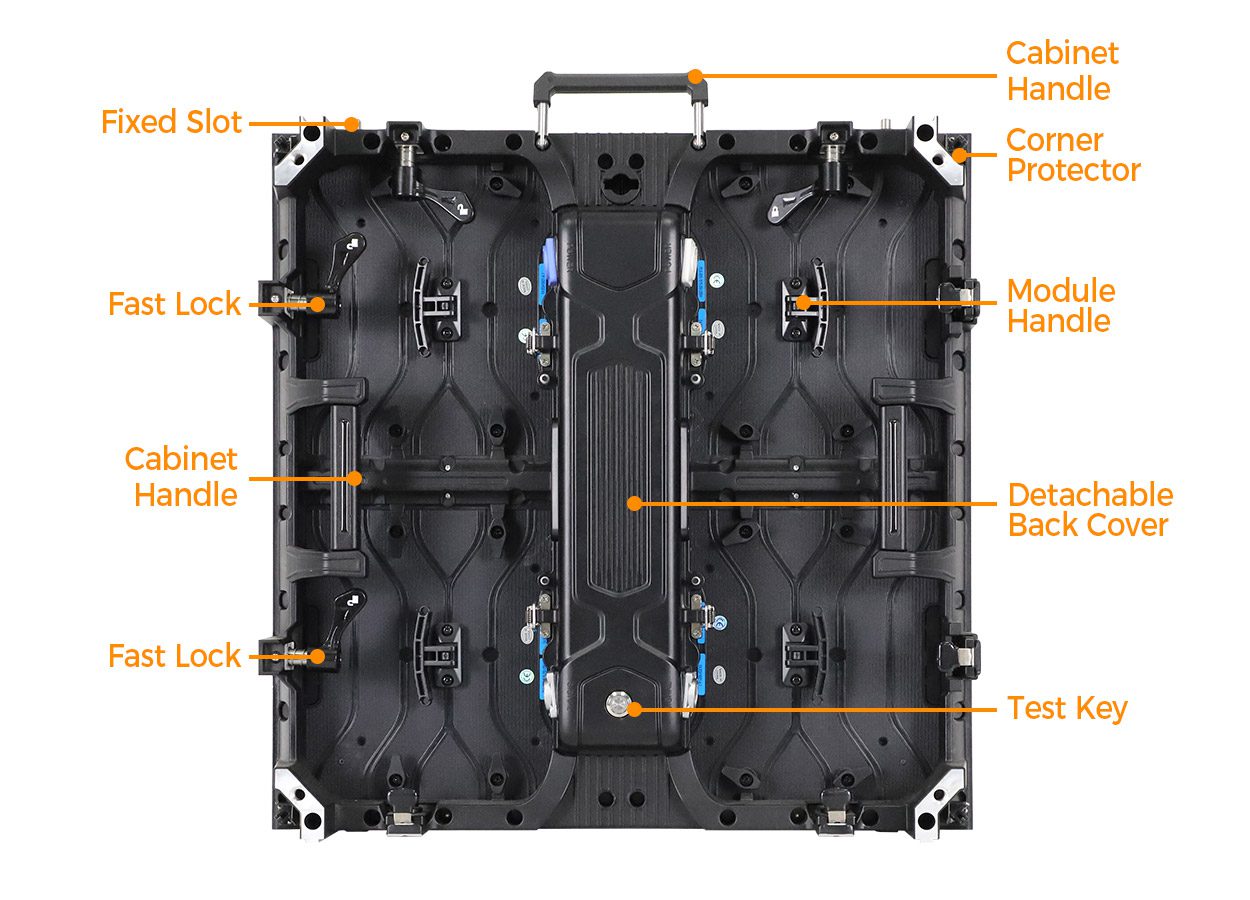

Rental-Ready Cabinet Design
Integrated handles, alignment slots, removable rear covers and protective corners support repeated setup and teardown. The 500 x 500 mm format also combines with other cabinets in a predictable modular grid for staging and event layouts.

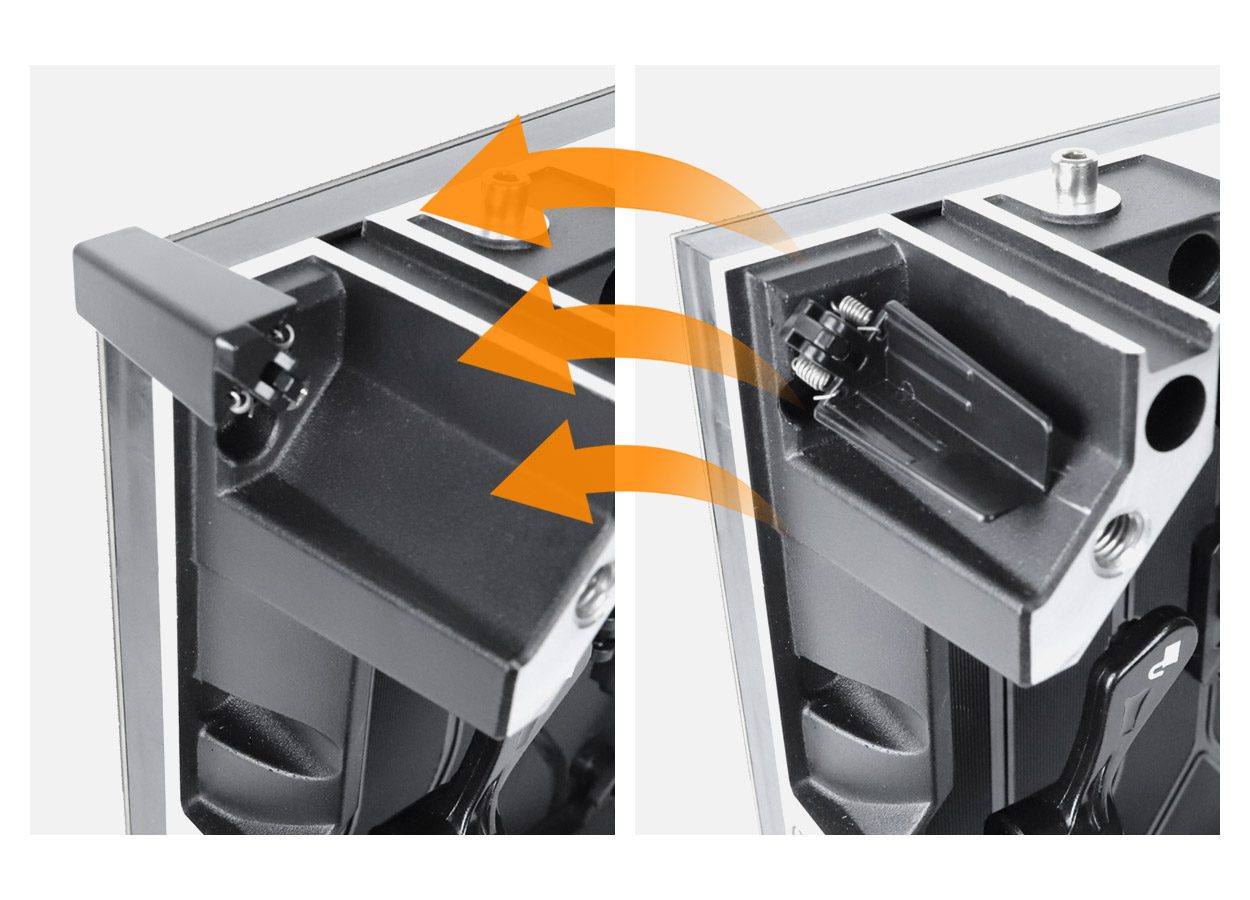

Four Anti-Collision Corner Guards
Four corner guards help protect vulnerable edge LEDs during handling, stacking and transport. They are a practical rental feature for panels that move frequently between cases, rigging points and service areas.

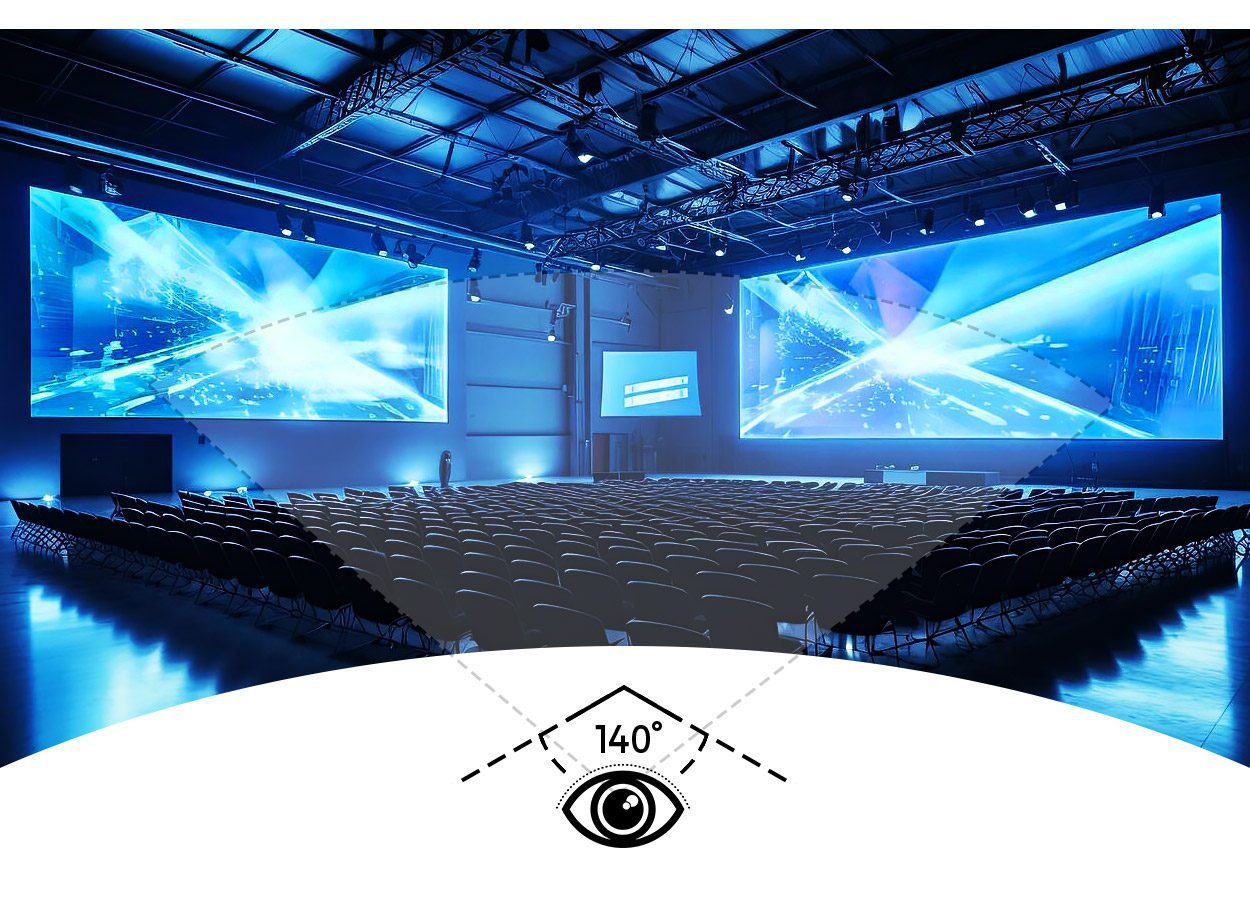

140-Degree Horizontal and Vertical Viewing
The listed 140-degree horizontal and vertical viewing angle supports broad audience coverage across stages, event halls and outdoor viewing areas. Final perceived brightness and color still vary with ambient light, content and viewing distance.

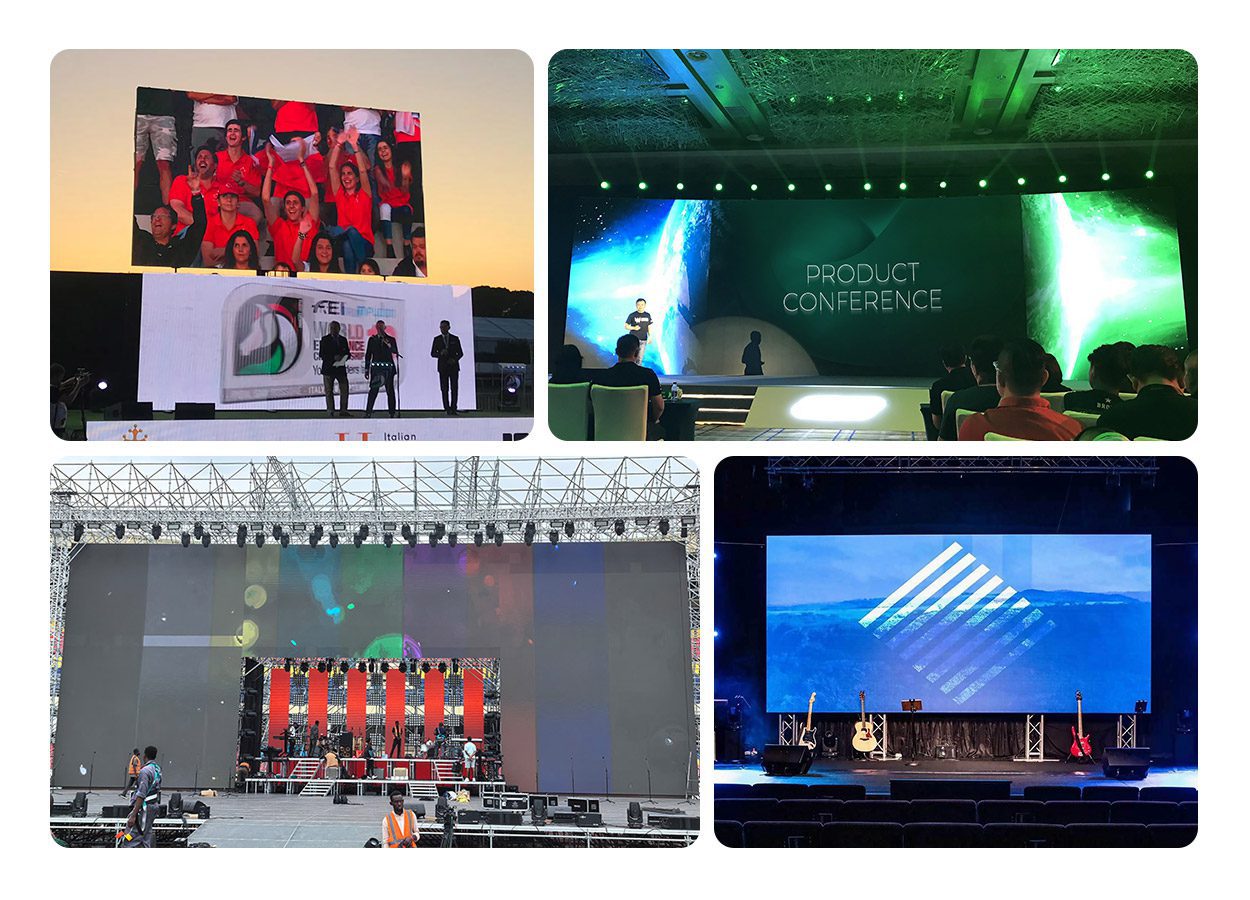

Designed for Events, Stages and Mobile Installations
Use the outdoor EA500H8 for concerts, festival stages, live-event backdrops, temporary advertising displays and mobile video walls. Indoor configurations are available for exhibitions, conference halls and broadcast environments that need finer pixel pitches and lower brightness.
EA500H8 500x500 Outdoor Rental LED Display Specifications
EA500H8 500x500 Indoor Rental LED Display Specifications
EA500H8 Outdoor Rental LED Display FAQs
Which outdoor pixel pitches are available for the EA500H8?
The outdoor EA500H8 is available in P2.6, P2.97 and P3.91 configurations. The product table lists two P3.91 variants with different scan modes and brightness levels, so the final choice should match viewing distance, ambient light and controller requirements.
How bright is the EA500H8 outdoor rental LED display?
Outdoor EA500H8 brightness ranges from 4,000 to 6,000 cd/m2 depending on configuration. P2.6 and P2.97 are specified at 4,500 cd/m2, while the listed P3.91 variants are specified at 4,800 or 6,000 cd/m2.
What is the refresh rate of the EA500H8?
Every listed EA500H8 indoor and outdoor configuration is specified at a refresh rate of at least 3,840 Hz. Camera performance also depends on the LED controller, camera frame rate and shutter settings, so test the final system before a live production.
Is the outdoor EA500H8 weather resistant?
The outdoor specification table rates the cabinet IP65 at the front and IP54 at the rear. IEC 60529 defines the two-numeral IP code used for resistance to dust and liquid ingress. Installation design must still protect rear connections and power distribution for the actual site conditions.
How much does one EA500H8 outdoor cabinet weigh?
One 500 x 500 mm outdoor EA500H8 cabinet is specified at 6.5 kg. Its compact die-cast format, integrated handles and removable power box are designed for repeated rental setup, transport and service.
Can the EA500H8 form curved LED walls?
Yes. The cabinet includes an arc-lock system for curved and ring-style layouts. Because the current specification table does not publish the supported angle range, confirm the required concave or convex radius with EagerLED before ordering.
