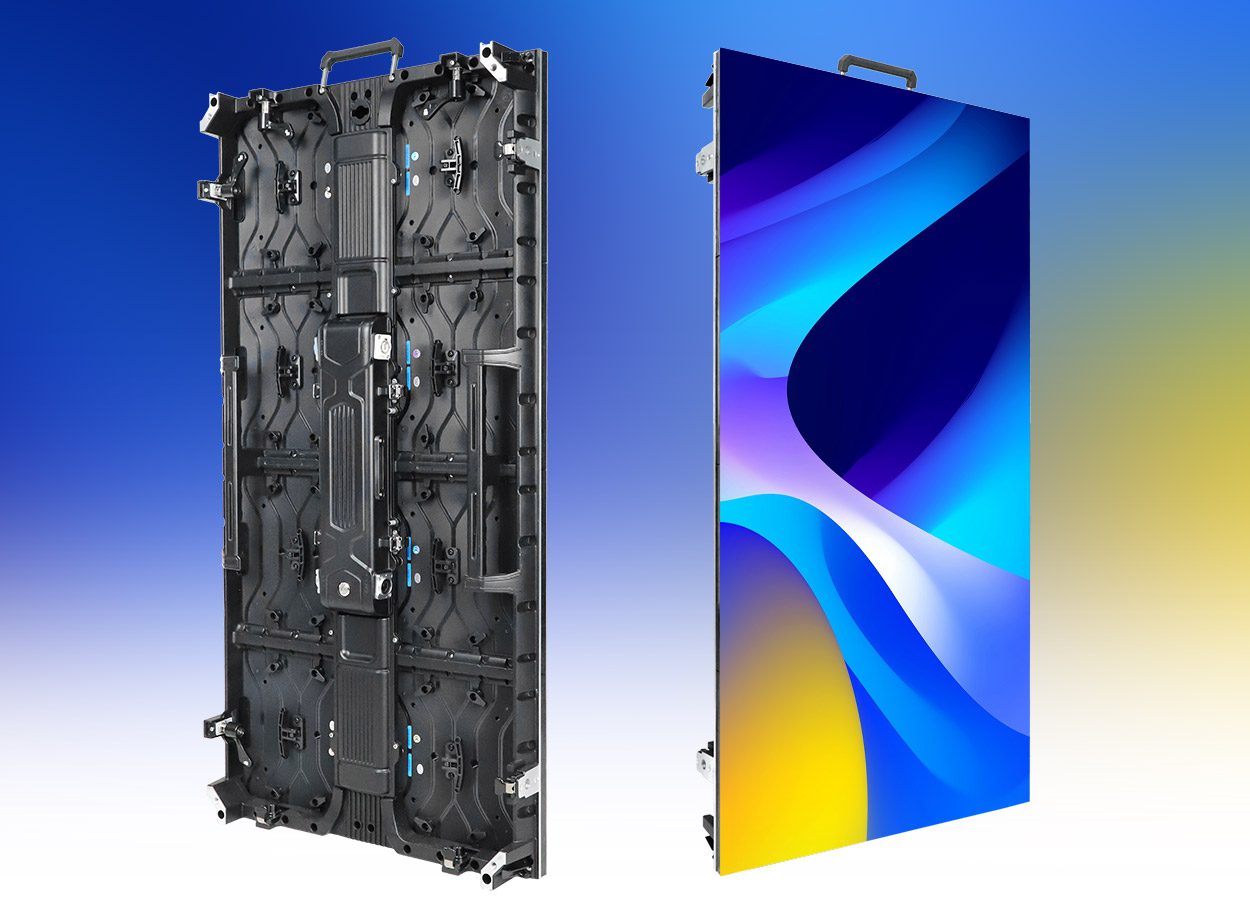

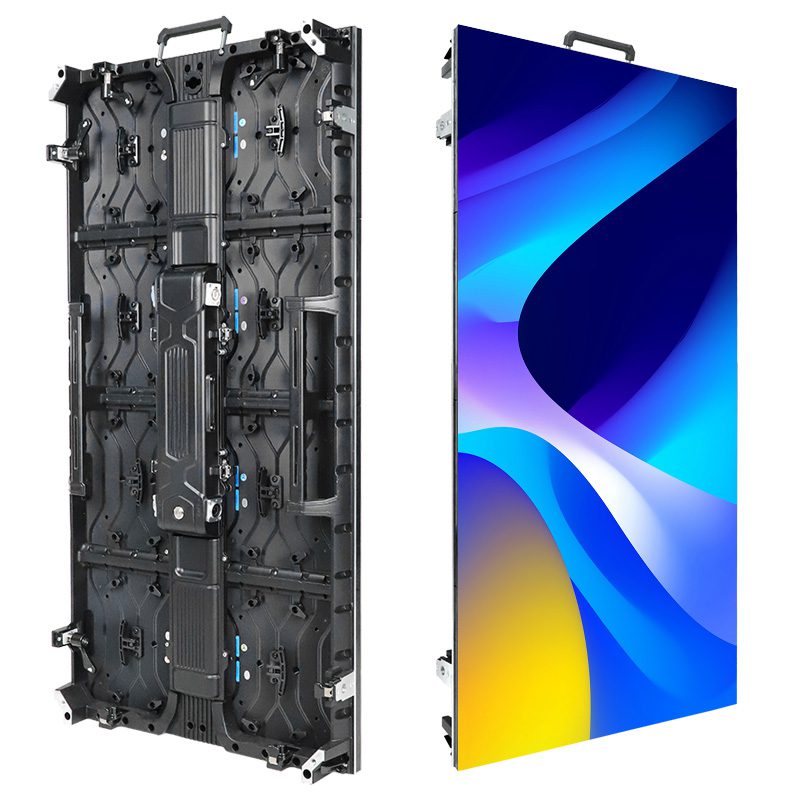

Why Choose the EA1000H8 500x1000 Rental LED Display
The EA1000H8 combines a 500 x 1000 mm cabinet with 250 x 250 mm modules, front and rear service access, and integrated power and signal connections. Indoor and outdoor configurations cover different pixel pitches and brightness levels, while the cabinet hardware supports repeated setup for event and rental workflows.
3,840 Hz Refresh for Live Events and Cameras
All listed EA1000H8 configurations provide a refresh rate of at least 3,840 Hz. This supports smoother motion and more stable on-camera results when the LED controller, camera frame rate and shutter settings are configured together. Indoor brightness is listed at 700-800 cd/m2; outdoor configurations range from 4,000 to 6,000 cd/m2.

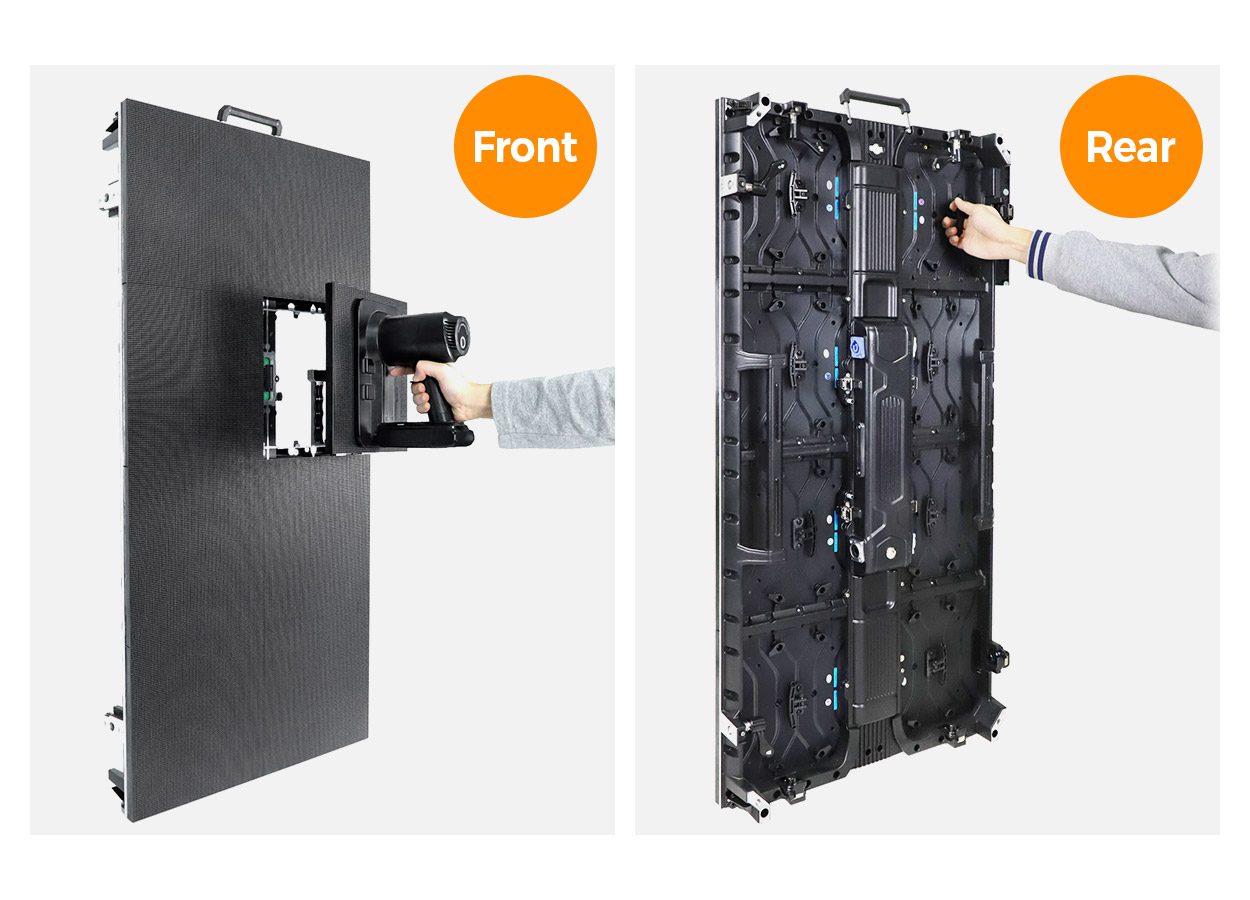

Front and Rear Service Access
Magnetic LED modules and a cabinet designed for service from both sides give technicians direct access in different rigging environments. Front/rear access can shorten fault isolation and component replacement compared with a rear-only service path.

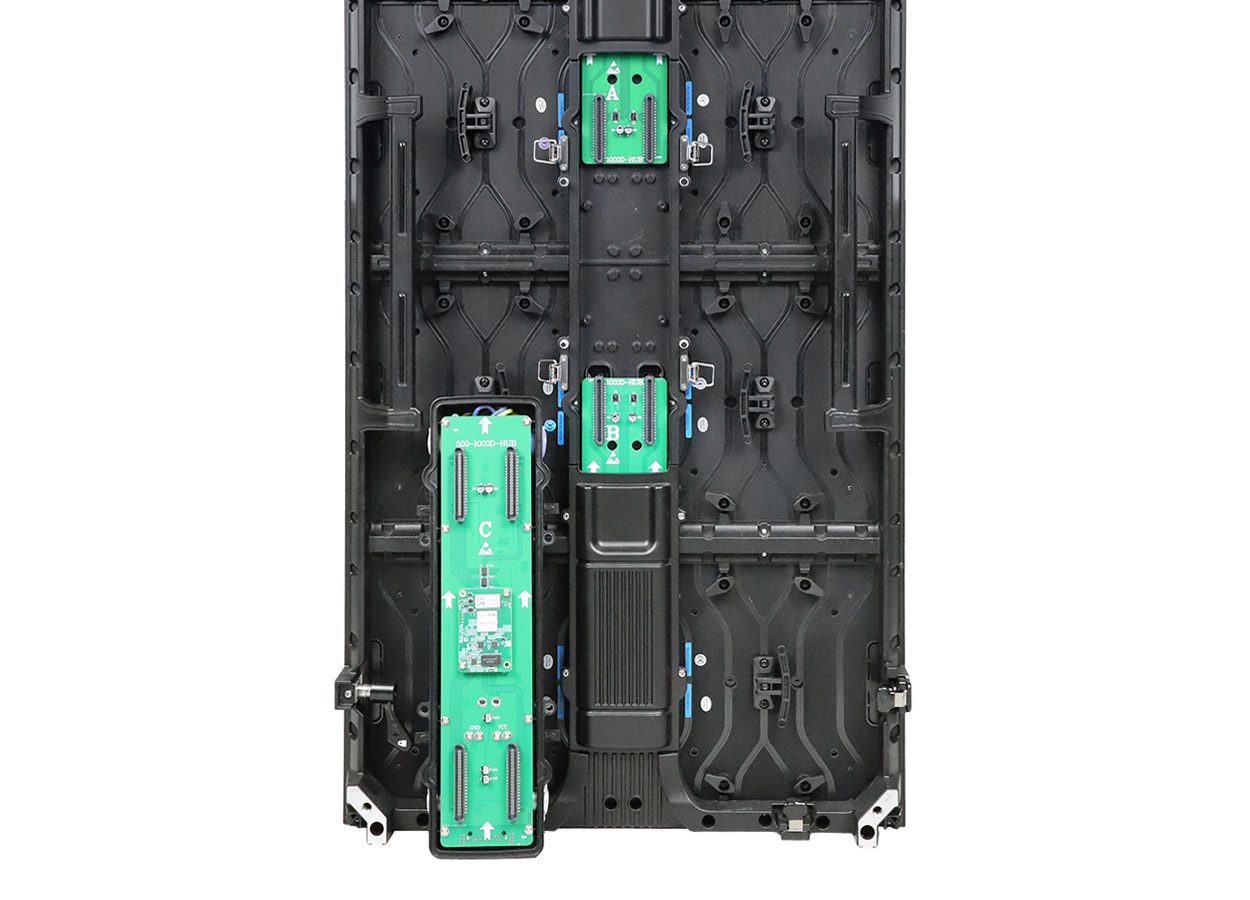

Hub Connection and Detachable Power Box
The hub-style design integrates internal power and signal connections, reducing exposed cabling inside the cabinet. A removable rear cover and detachable power box with quick-release hardware simplify access to the main service components.

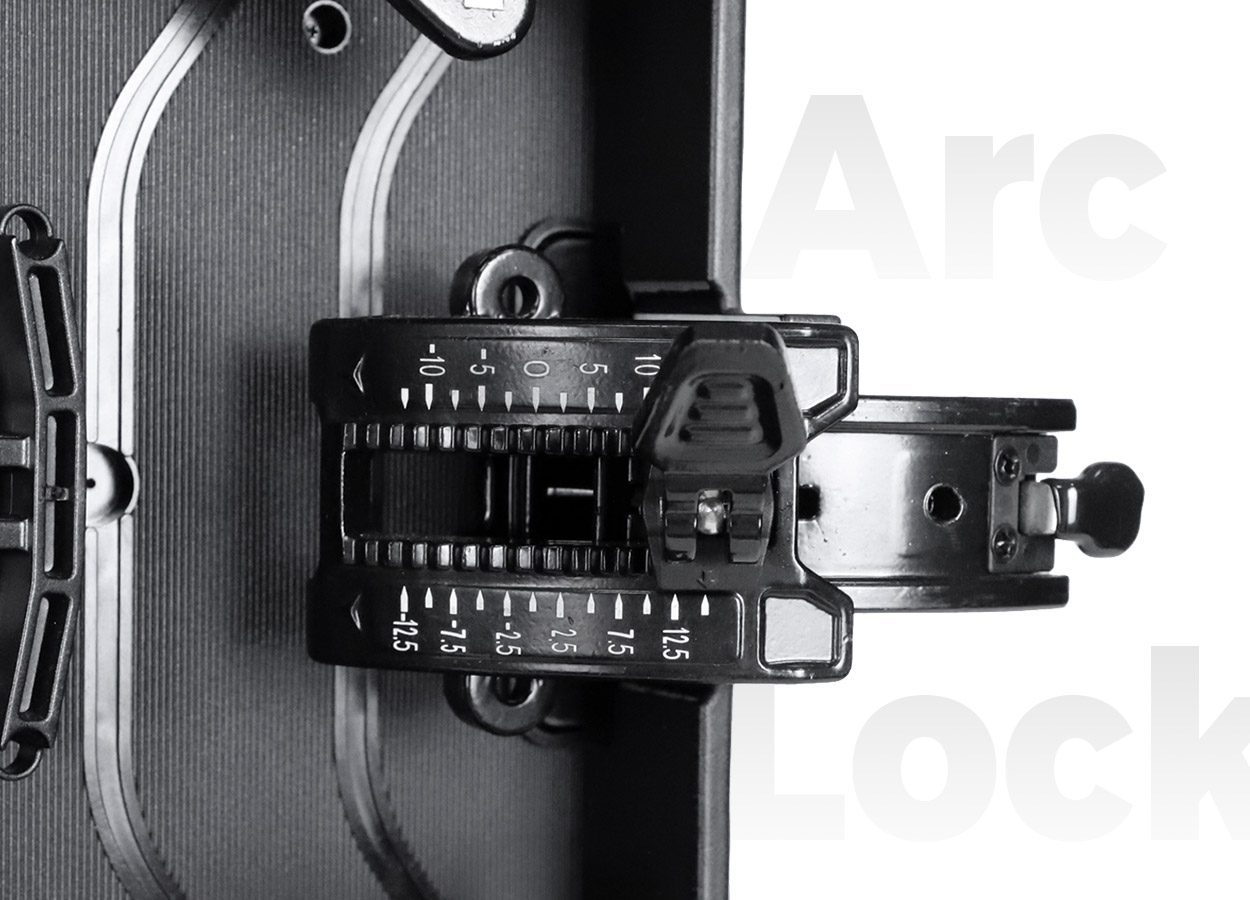

Optional Precision Arc Lock for Curved LED Walls
Optional precision arc locks support curved rental LED wall layouts. Because the published specification does not state the supported angle range, confirm the required concave or convex radius with EagerLED before ordering.

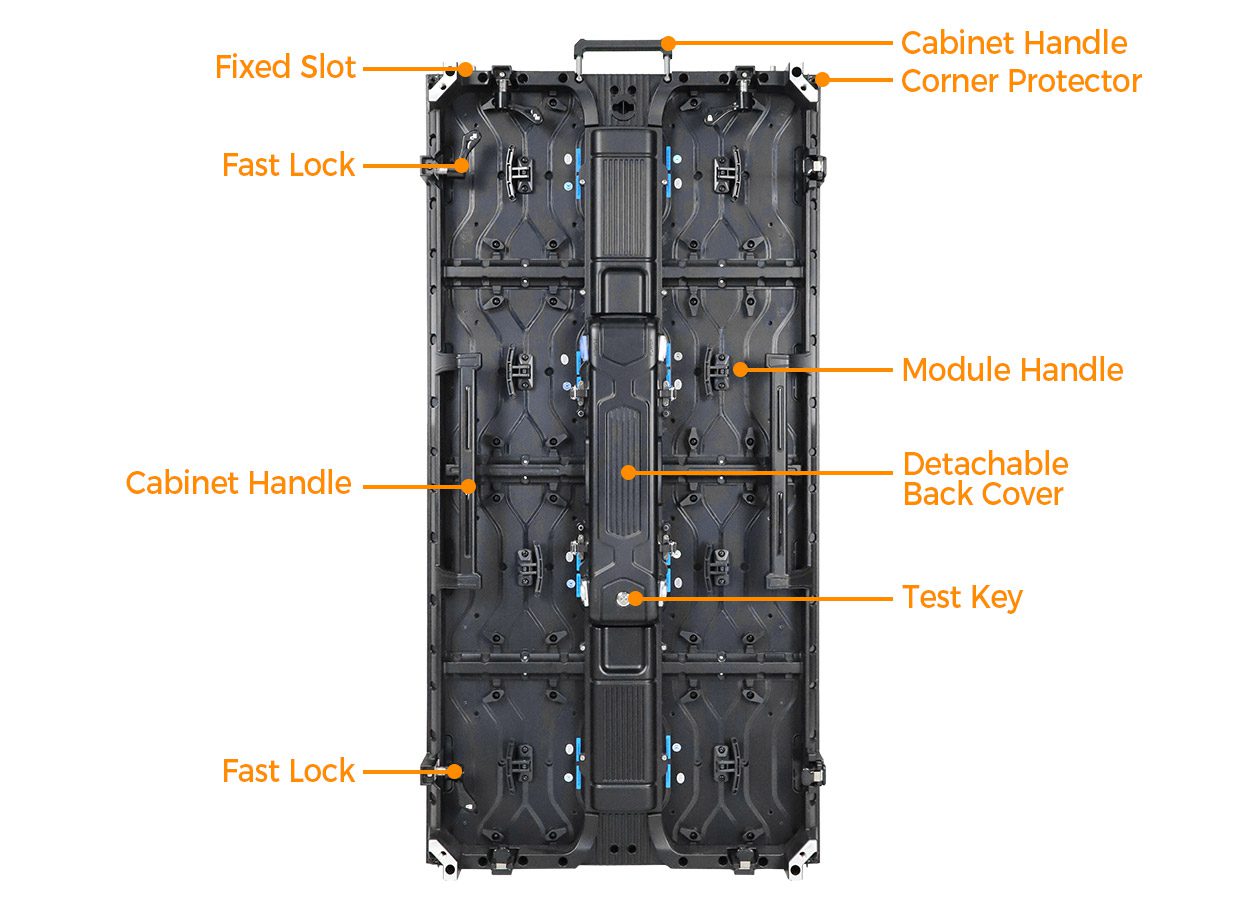

Rental-Ready Cabinet Structure
Integrated handles, fixing slots, quick-lock hardware, corner protectors and a removable back cover support repeated installation and teardown. The 500 x 1000 mm format also reduces the number of cabinet connections needed for larger walls compared with a 500 x 500 mm format.

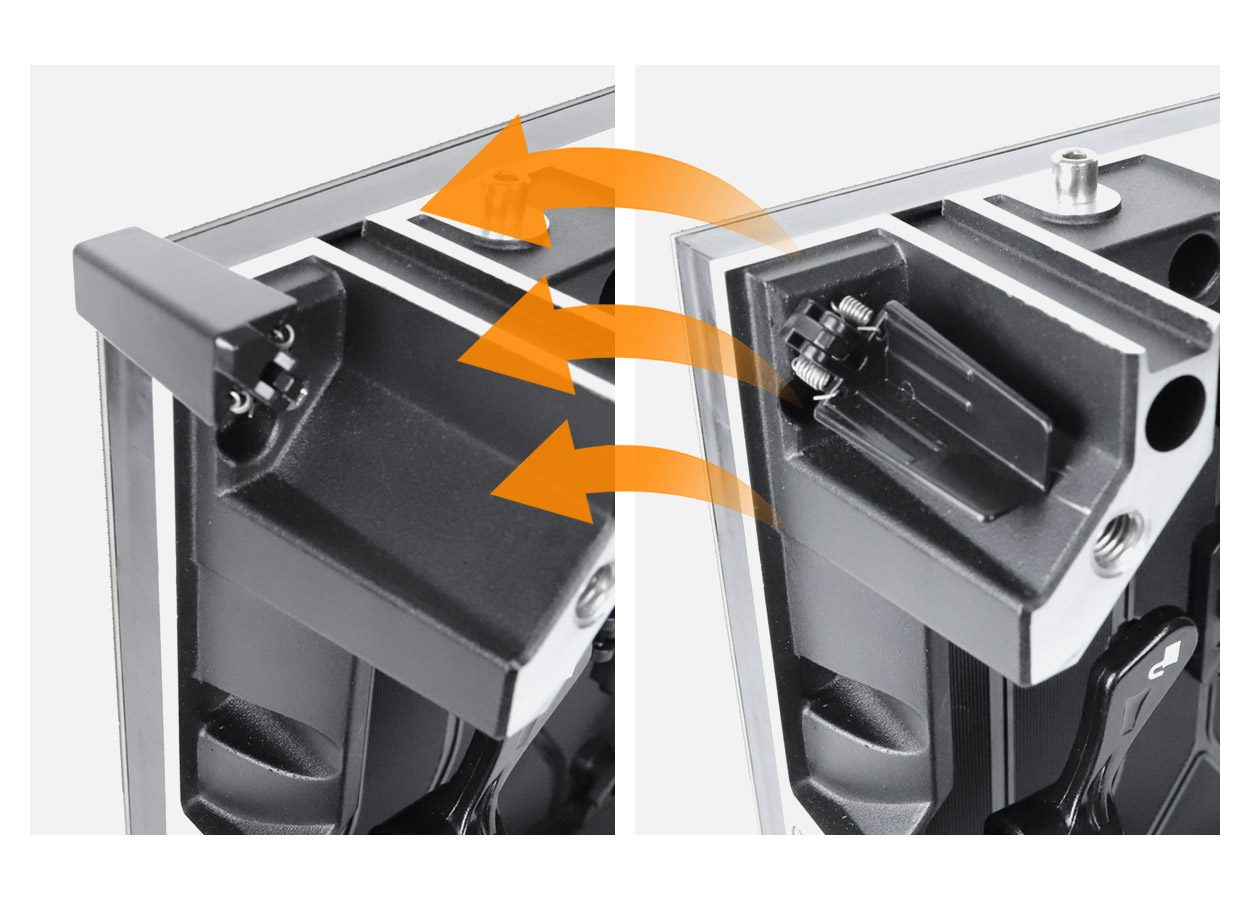

Four Corner Guards for Handling and Transport
Four corner guards help protect vulnerable edge LEDs during handling, stacking, transport and setup. This is a practical feature for cabinets that move frequently between flight cases, rigging points and service areas.

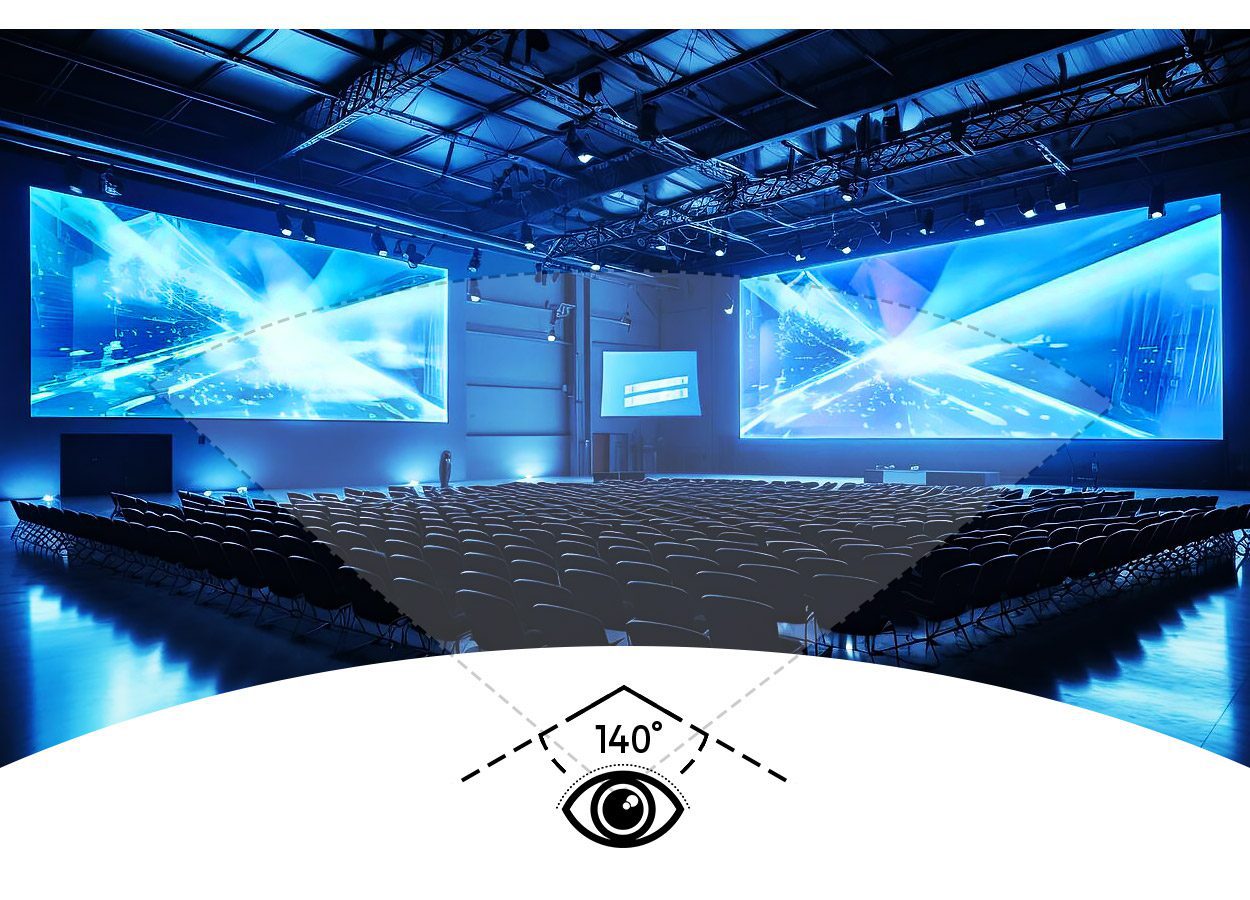

140-Degree Wide Viewing Angle
The listed 140-degree viewing angle supports broad audience coverage across stages, exhibition halls and sports venues. Final perceived brightness and color still vary with ambient light, content and viewing distance.

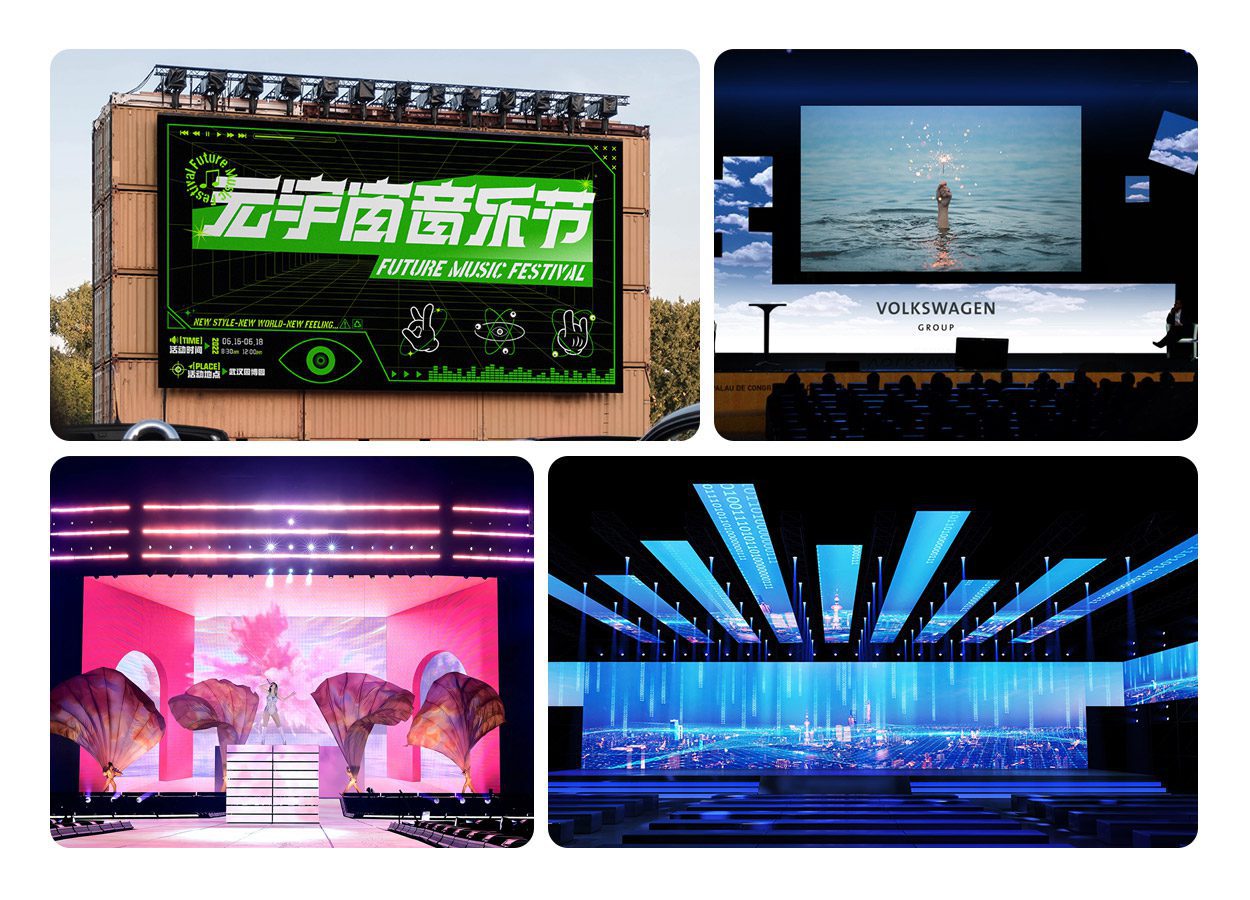

Indoor and Outdoor Rental Applications
Use the EA1000H8 for event stages, exhibitions, performances, sports events, broadcast backdrops and temporary advertising displays. Select the indoor or outdoor configuration by ambient light, viewing distance, weather exposure and camera requirements.
EA1000H8 500x1000 Outdoor Rental LED Display Specifications
EA1000H8 500x1000 Indoor Rental LED Display Specifications
EA1000H8 Rental LED Display FAQs
What size is the EA1000H8 rental LED display?
The EA1000H8 uses a 500 x 1000 mm rental cabinet built from 250 x 250 mm LED modules. The cabinet format is intended for modular indoor and outdoor event displays.
Which pixel pitches are available for the EA1000H8?
Outdoor EA1000H8 configurations are listed in P2.6, P2.97 and P3.91. Indoor configurations are listed in P1.56 GOB, P1.95 GOB, P2.6 GOB, P2.97 and P3.91. Select the pitch by viewing distance, resolution, ambient light and camera requirements.
What is the refresh rate of the EA1000H8?
Every listed indoor and outdoor EA1000H8 configuration is specified at a refresh rate of at least 3,840 Hz. Actual on-camera performance also depends on the controller, camera frame rate and shutter settings, so test the complete system before a live production.
Can the EA1000H8 be used indoors and outdoors?
Yes. Indoor models are specified at 700-800 cd/m2 with IP31 protection. Outdoor models are specified at 4,000-6,000 cd/m2 with IP65 front and IP54 rear protection. The rear connections and power distribution still need a site-appropriate installation plan.
How is the EA1000H8 serviced?
The cabinet supports front and rear service access. Magnetic modules, a removable rear cover, a detachable power box and hub-style internal connections give technicians multiple ways to reach modules, power and signal components.
Can the EA1000H8 form a curved rental LED wall?
Yes. An optional precision arc-lock system supports curved display layouts. Because the published specification does not state the supported angle range, confirm the required concave or convex radius with EagerLED before ordering.
