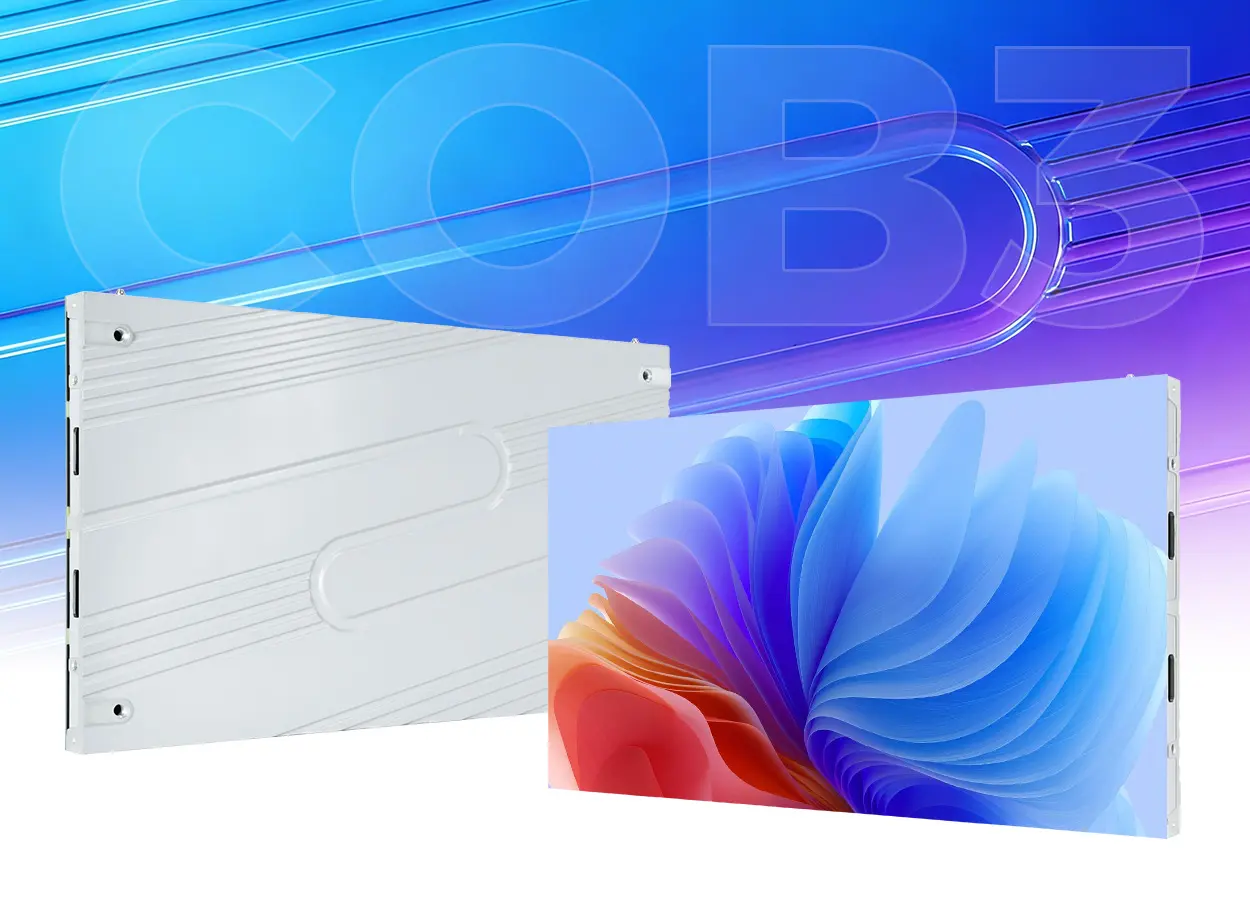

EA600COB3 Fine-Pitch Indoor COB LED Display
EA600COB3 combines flip-chip COB packaging with a slim, front-service cabinet for fine-pitch indoor video walls. Its 16:9 format and six pixel-pitch options support resolution-led design for control rooms, broadcast environments, meeting spaces and premium commercial installations.

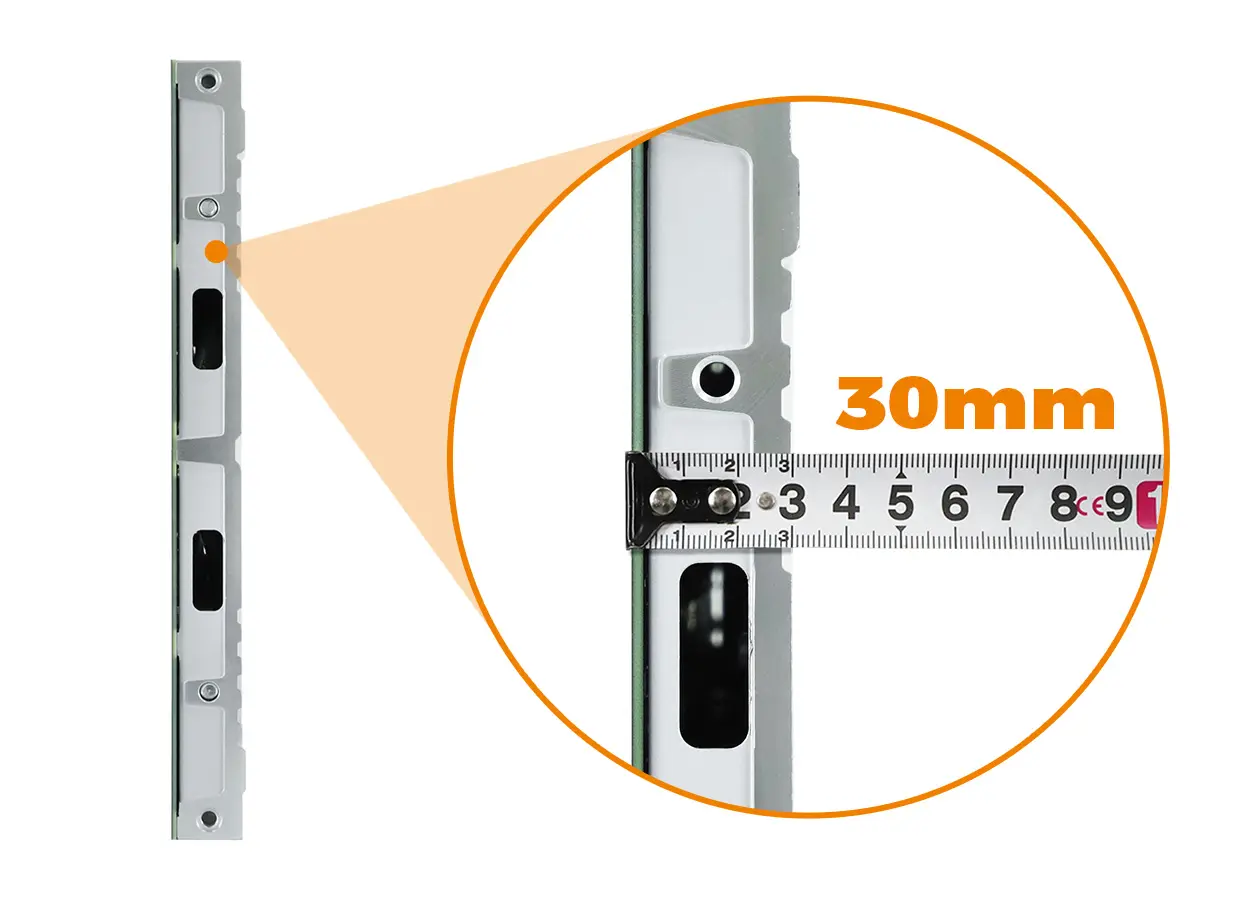

Ultra-Slim & Lightweight Cabinet
At 600 × 337.5 mm, 30 mm deep and 4.1 kg, each cabinet reduces wall projection and simplifies handling during installation. The slim chassis suits close-to-wall video walls where rear service space is limited.

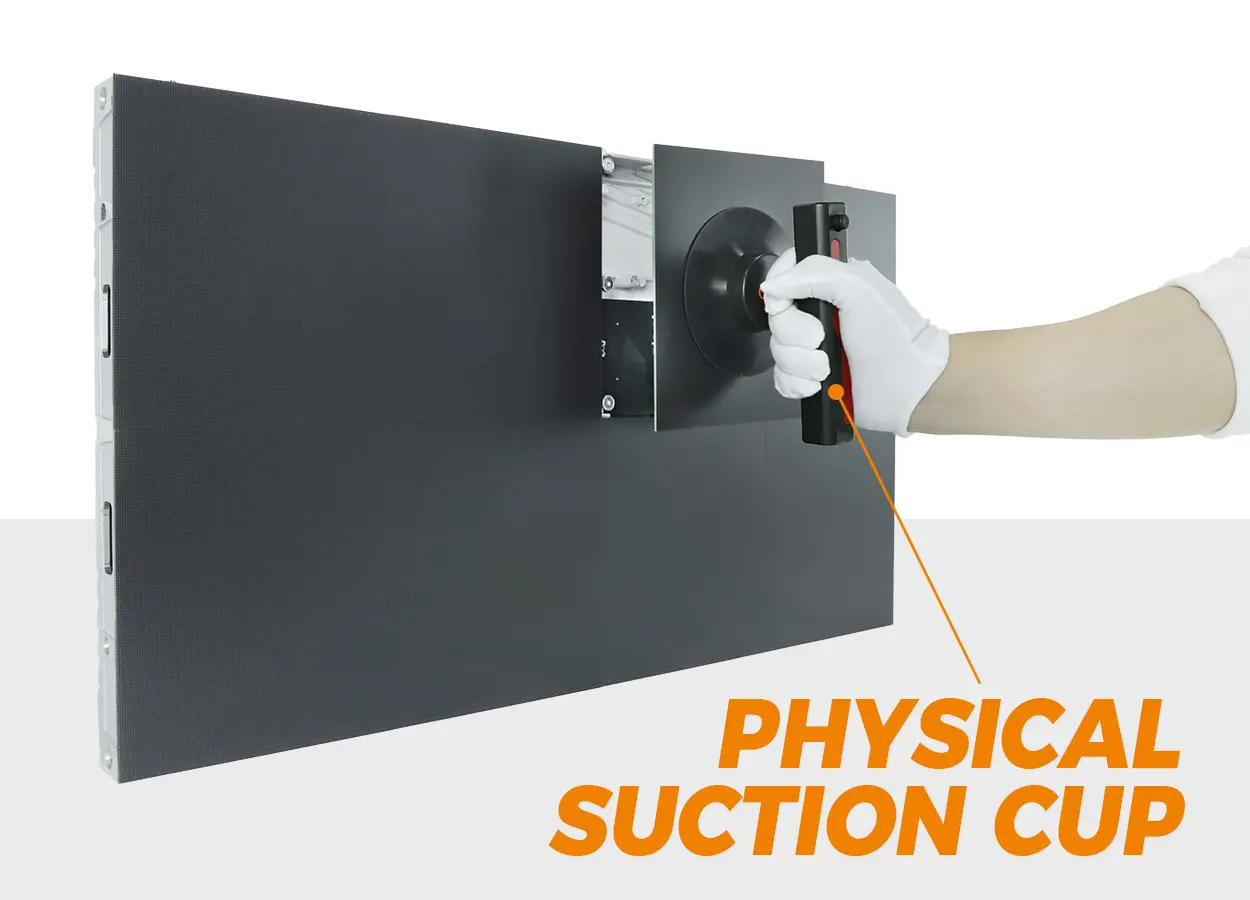

Full Front Access Maintenance
Display modules can be removed and serviced from the front, so routine module access does not require a rear maintenance corridor. This supports cleaner wall integration and faster service in space-constrained interiors.

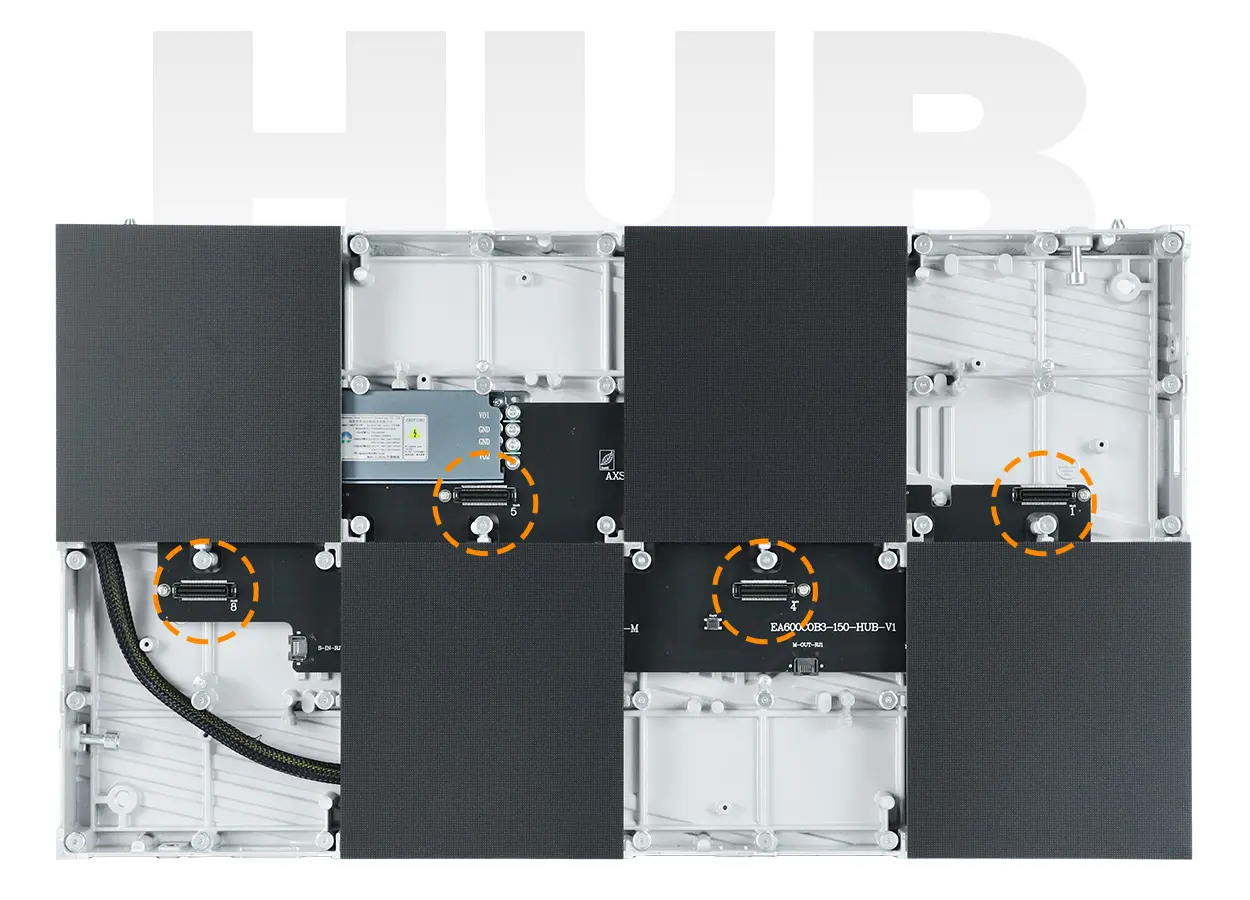

Integrated Power and Data Interface
The module-side HUB interface carries power and data without separate inter-module signal cables. Fewer connection points simplify assembly, keep the cabinet interior organized and support faster fault isolation.

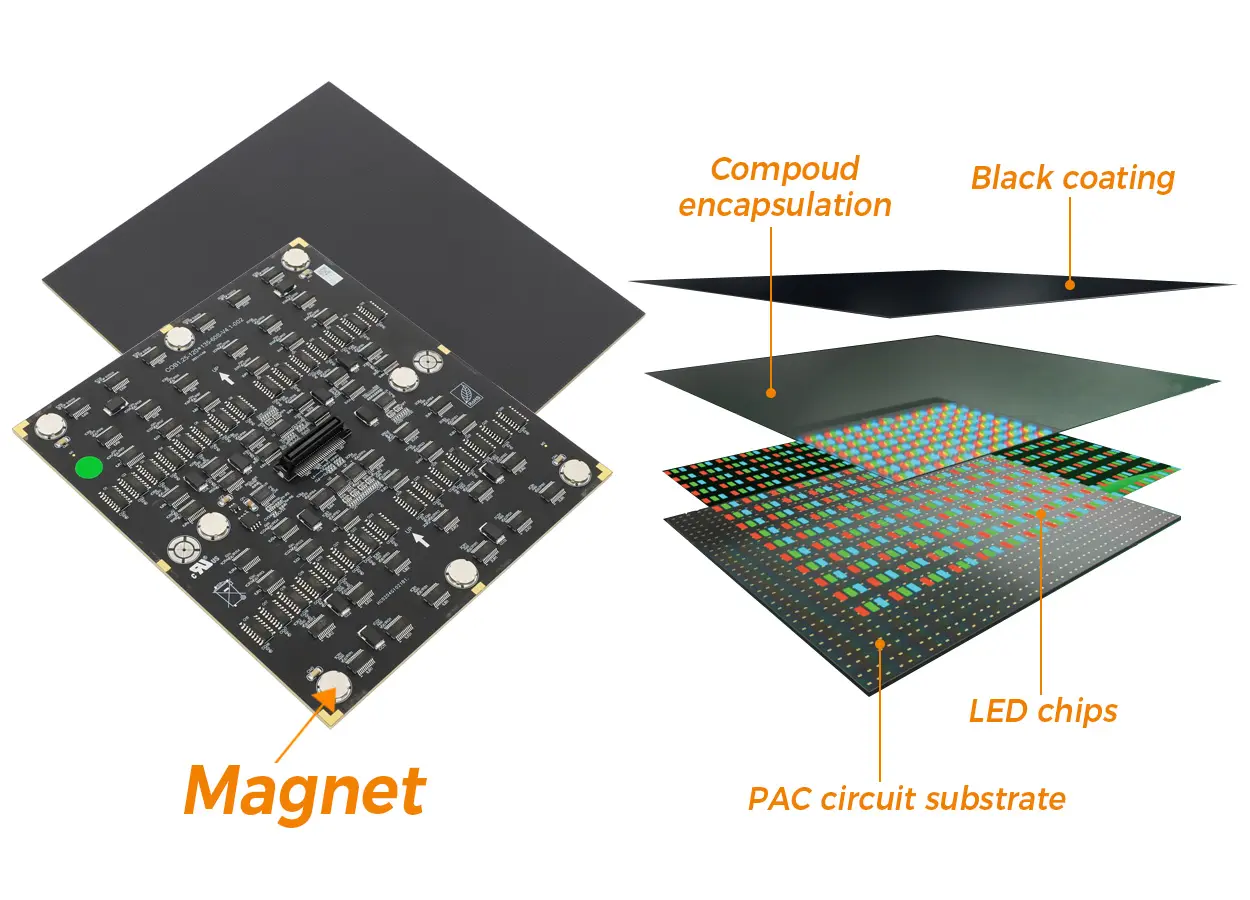

Flip-Chip COB Technology
Flip-chip COB mounts and encapsulates the LED chips directly on the board, supporting fine pixel pitches and improved resistance to surface contact. The complete indoor display is rated IP31; installation conditions should follow the limits in the parameter table.

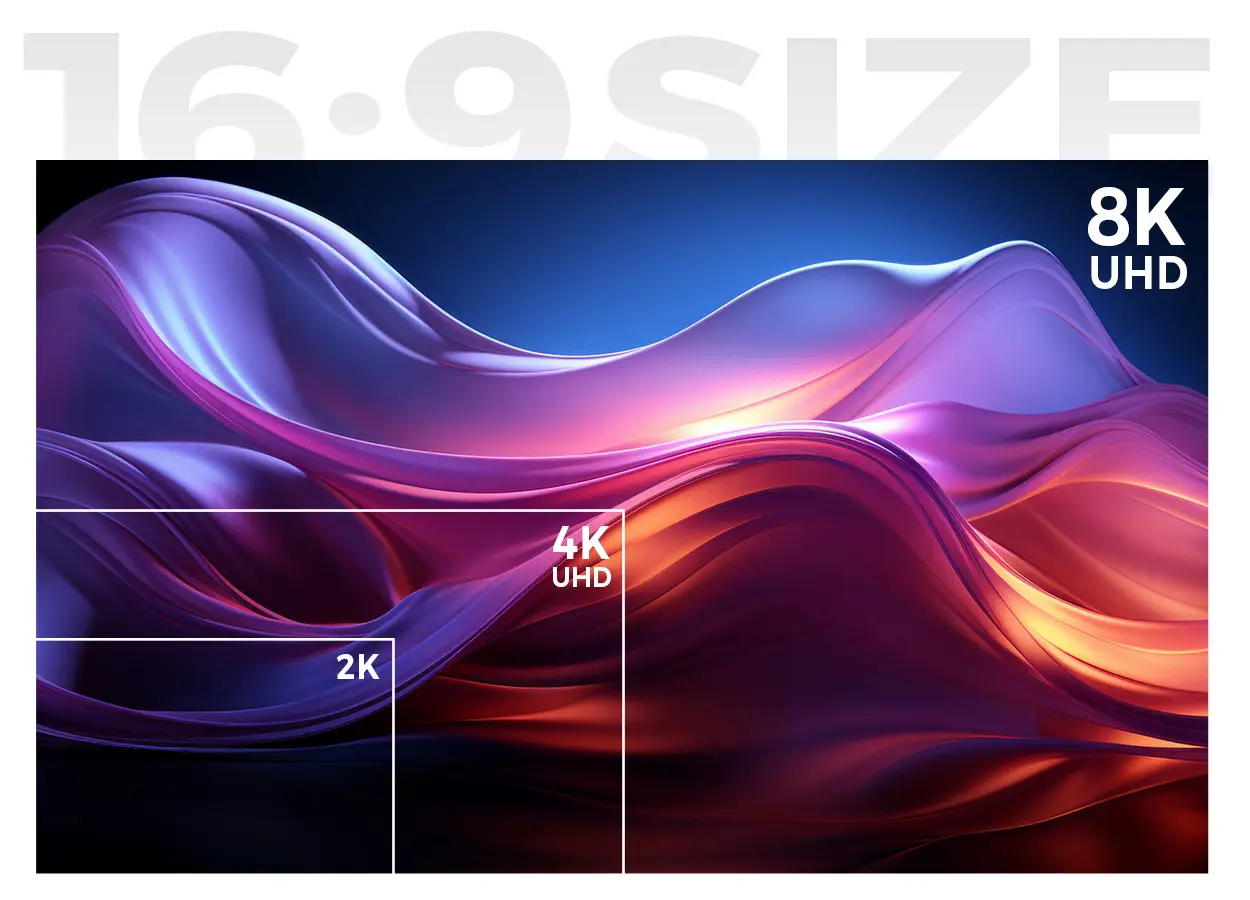

Native 16:9 Cabinet Design
Each 600 × 337.5 mm cabinet has a native 16:9 physical format, which simplifies wall-size planning for widescreen content. A 2K, 4K or 8K canvas is achieved by matching the selected pixel pitch and cabinet matrix to the required pixel dimensions.

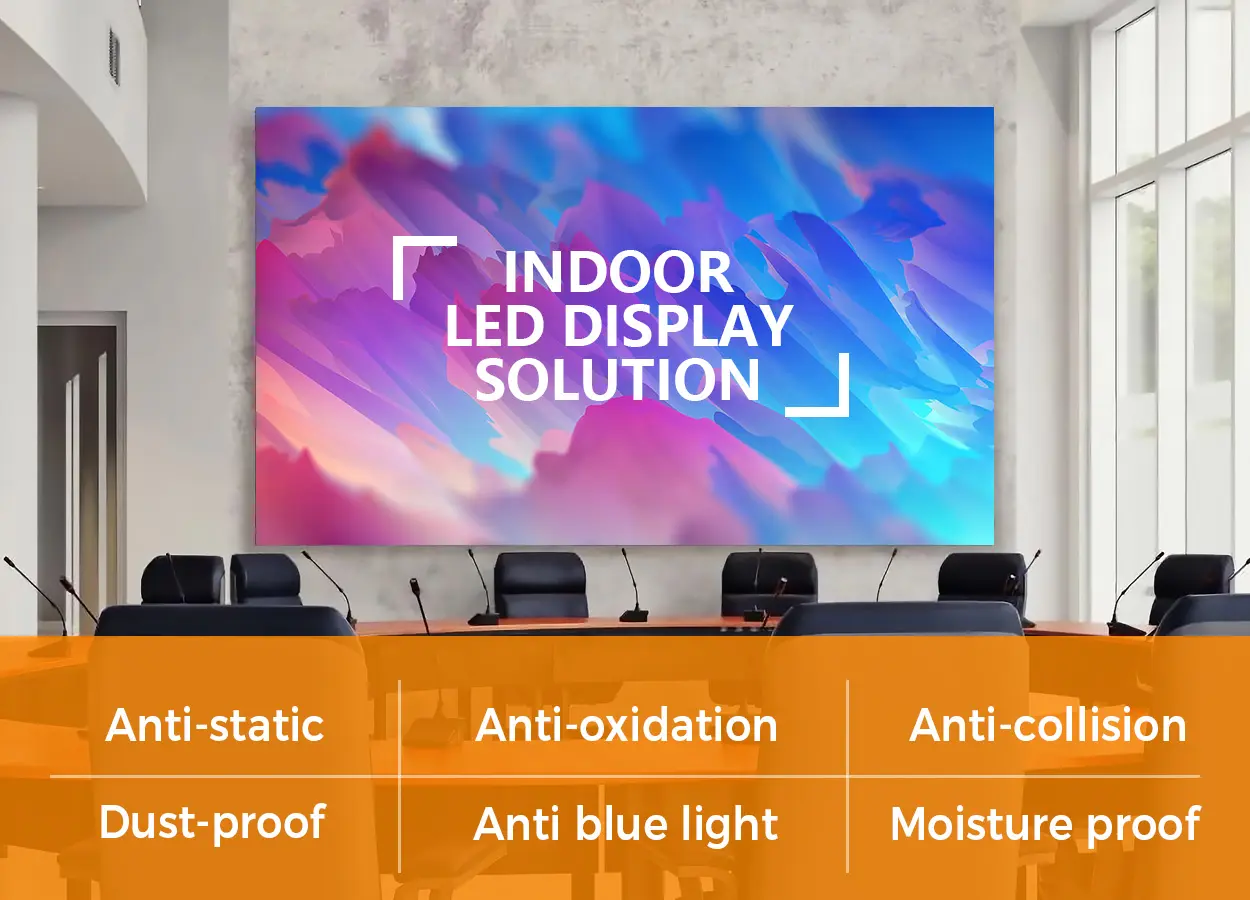

Stable Indoor Operation
The specified operating temperature is −20 °C to +50 °C, with AC 100–240 V, 50–60 Hz input across the series. Average power consumption is 165–260 W/m² and maximum power consumption is 500 W/m² for electrical and thermal planning.
Excellent Visual Performance
A ≥3,840 Hz refresh rate, 16-bit grayscale and 140° viewing angle support smooth camera capture, detailed tonal transitions and consistent off-axis viewing. The specified 600 cd/m² brightness is intended for indoor control rooms, studios, meeting spaces and presentation environments.
EA600COB3 Indoor COB LED Display Specifications
EA600COB3 COB LED Display FAQ
What is the EA600COB3 COB LED display?
EA600COB3 is a fine-pitch indoor COB LED display with a 600 × 337.5 mm native 16:9 cabinet. It combines flip-chip COB packaging, full front service and six pixel-pitch options for fixed indoor video walls.
Which pixel pitches are available for EA600COB3?
The series is available in P0.62, P0.78, P0.93, P1.25, P1.56 and P1.87. All six versions use the same 600 × 337.5 mm cabinet format.
How do I select the right pixel pitch?
Choose the pixel pitch from the minimum viewing distance, screen dimensions, content detail and required total resolution. Shorter viewing distances and data-dense control-room content generally favor a finer pitch.
Can EA600COB3 create a 2K, 4K or 8K video wall?
Yes, provided the selected pixel pitch and cabinet matrix are calculated to match the target pixel dimensions. The 16:9 cabinet format simplifies planning for standard widescreen resolutions.
What are the cabinet dimensions and weight?
Each cabinet measures 600 × 337.5 mm, is 30 mm deep and weighs 4.1 kg. This slim format reduces wall projection and simplifies on-site handling.
How is the EA600COB3 serviced?
Display modules are removed from the front, so routine module access does not require a rear maintenance corridor. The module-side HUB interface also integrates power and data connections to reduce internal cabling.
What visual performance does the display provide?
The series is specified at ≥3,840 Hz refresh, 16-bit grayscale, 140° viewing angle and 600 cd/m² brightness. These values suit indoor applications that require smooth camera capture, tonal detail and off-axis viewing.
What are the operating temperature and protection rating?
EA600COB3 is specified for −20 °C to +50 °C operation and an IP31 protection grade. It is an indoor display, so ventilation, humidity and site conditions should be checked during system design.
Where is the EA600COB3 typically used?
Typical applications include control rooms, broadcast studios, command centers, corporate meeting spaces, showrooms and other fixed indoor video walls where fine pixel pitch and front maintenance are priorities.
