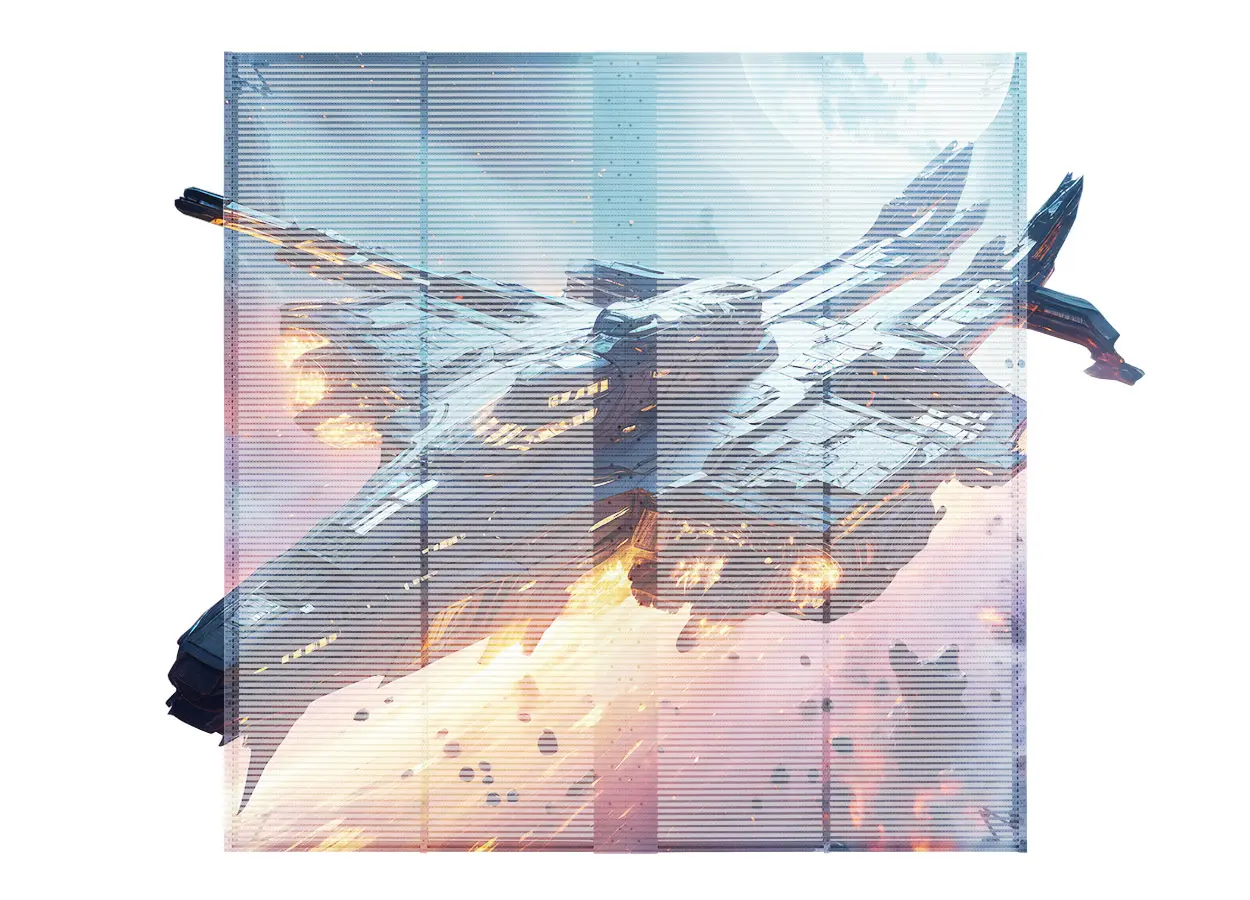

EA1000TiF2 Transparent LED Film for Indoor Installations
EA1000TiF2 combines 60% light transmittance, 6.7 kg cabinets, rear-access serviceability and fanless aluminum construction in an indoor transparent LED film. It delivers high-resolution P2.6–P5.2 content for retail storefronts, corporate lobbies, museums and other spaces that need digital impact without blocking daylight.

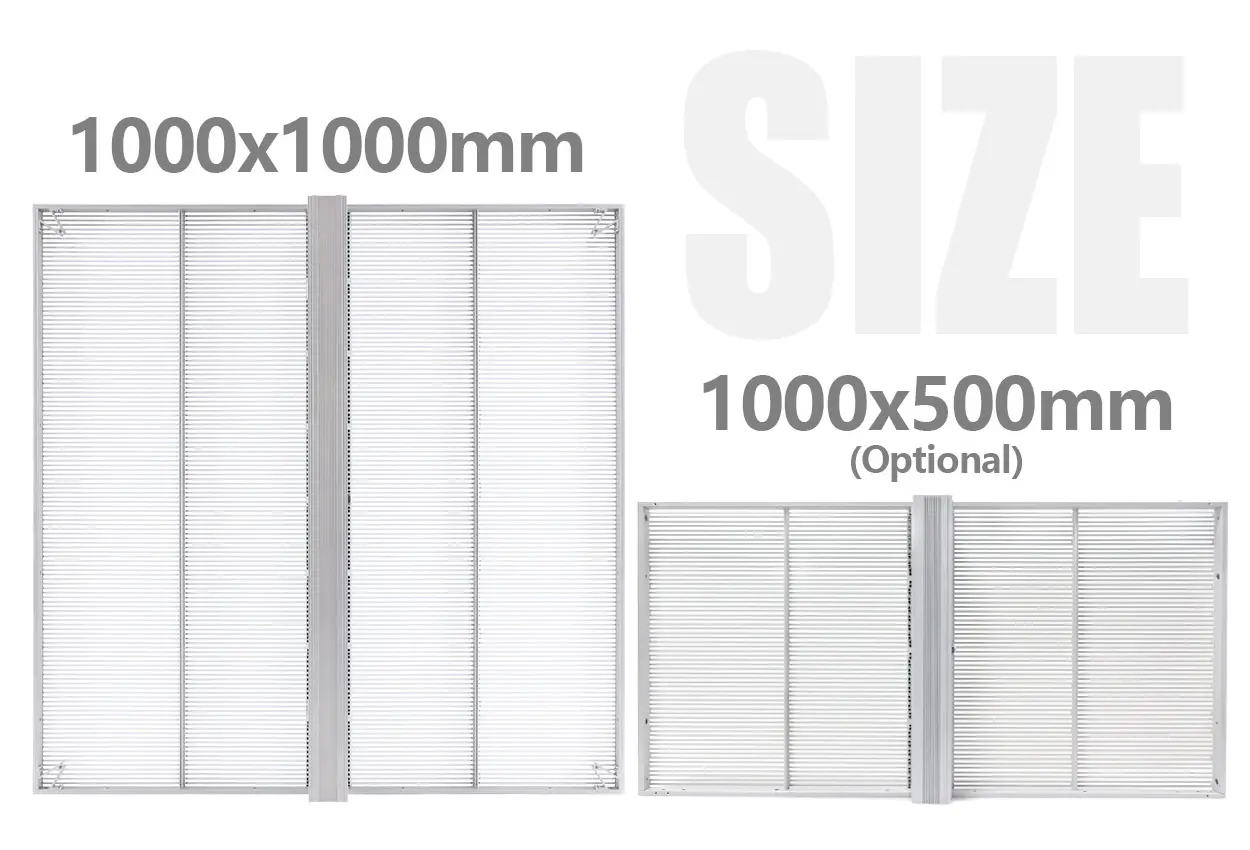

Two Cabinet Sizes for Any Space
Two cabinet formats—1,000 × 1,000 mm and 1,000 × 500 mm—support clean layouts across glass walls, columns and irregular openings. Standardized sizing simplifies system planning while reducing custom fabrication.

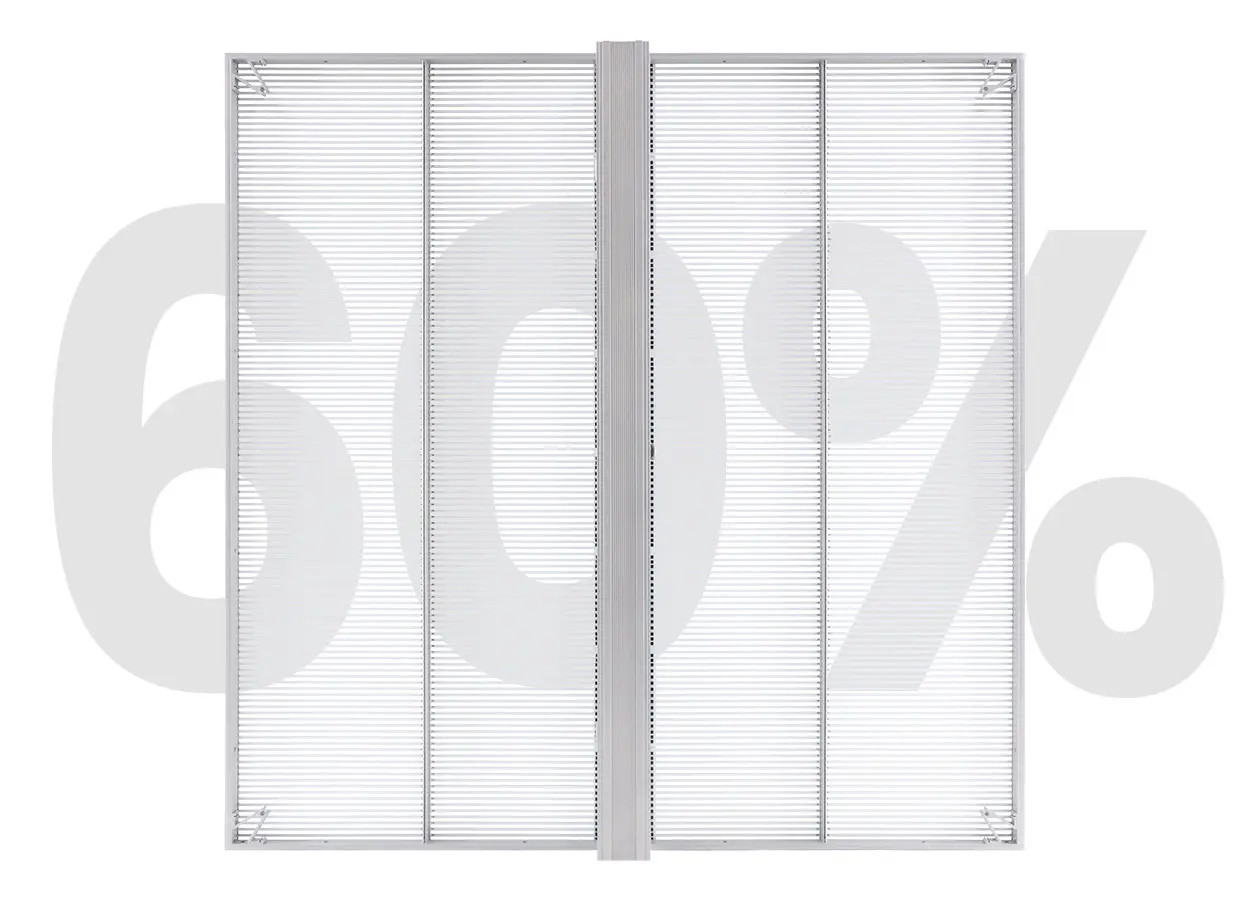

60% Transparency Keeps Spaces Open and Bright
With 60% light transmittance, the screen keeps daylight and views visible behind the display. It suits storefront glazing, glass partitions and atriums where visual openness is part of the design brief.

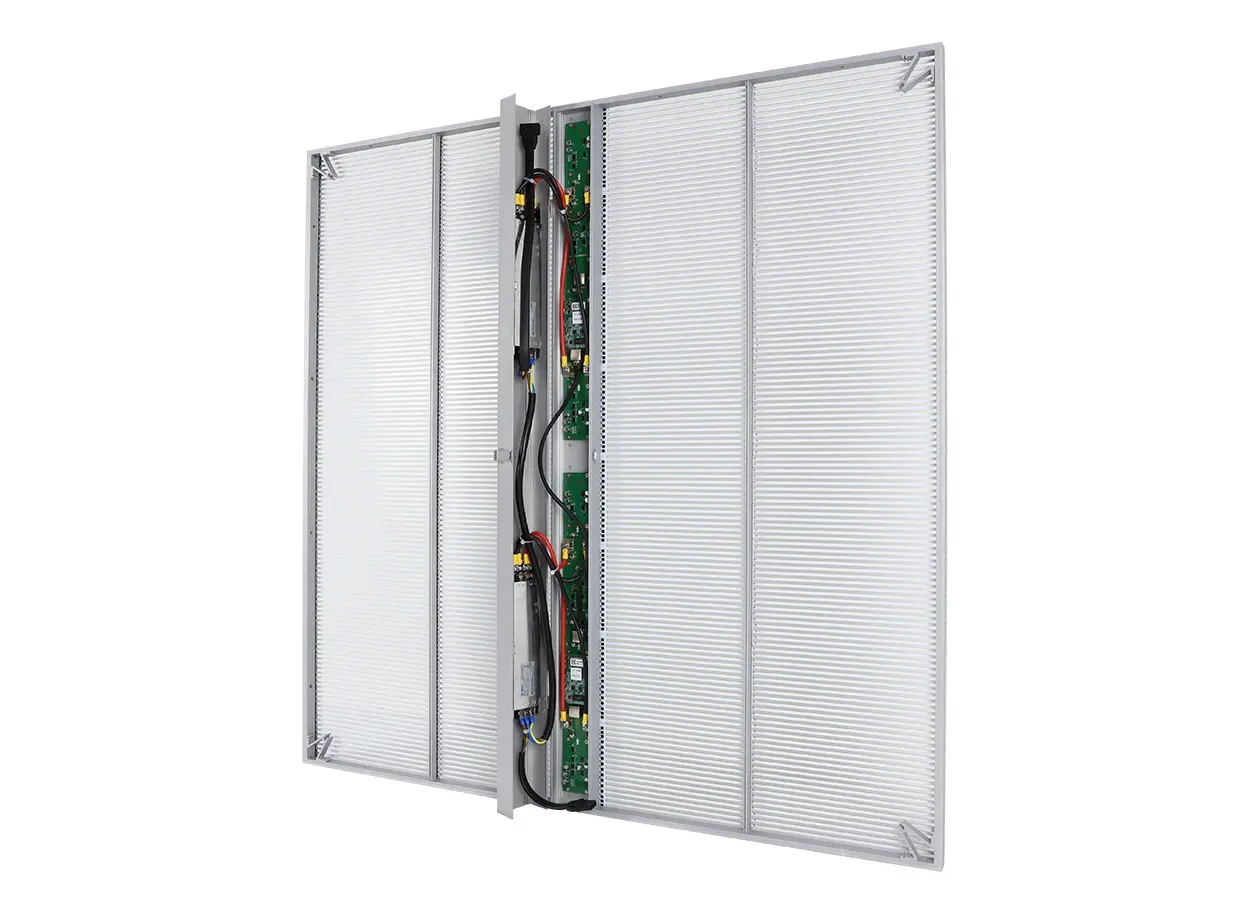

Rear-Access Design Simplifies Maintenance
Rear cover access lets technicians reach power and data components without removing the screen from the wall. This shortens service work and reduces disruption in high-traffic indoor venues.
Ultra-Lightweight Panels Reduce Installation Cost
At 6.7 kg per cabinet, EA1000TiF2 is easier to handle during installation and places less load on supporting structures. Lower handling and mounting demands can simplify deployment on glass or lightweight walls.

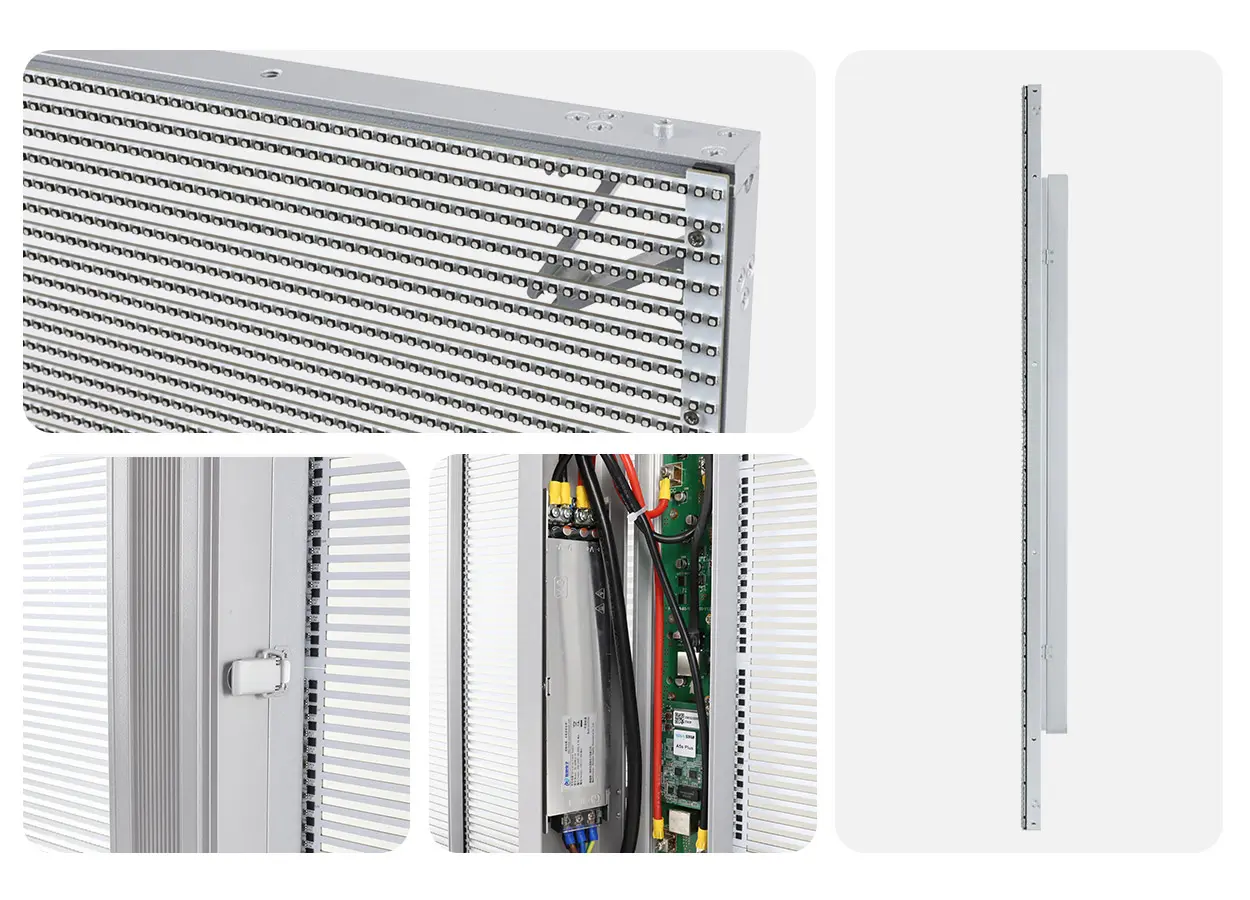

Slim, Fanless Aluminum Cabinet for Silent Operation
An 85 mm die-cast aluminum cabinet uses fanless passive cooling for quiet indoor operation. The rigid metal frame supports long-term flatness in museums, showrooms, offices and other noise-sensitive spaces.
Seamless Splicing for Large, Unified Displays
Precision cabinet alignment creates a continuous image across large video walls, including mixed-size layouts. Consistent geometry helps the finished display read as one integrated glass surface.
EA1000TiF2 Indoor Transparent LED Film Specifications
EA1000TiF2 Transparent LED Film FAQ
What is the EA1000TiF2 transparent LED film?
EA1000TiF2 is an indoor transparent LED film display that combines P2.6–P5.2 pixel pitches, 60% light transmittance, lightweight cabinets and rear-access maintenance for architectural digital signage.
What pixel pitches and cabinet sizes are available?
The series supports P2.6–P5.2 pixel pitches and two standard cabinet formats: 1,000 × 1,000 mm and 1,000 × 500 mm. Final selection should follow viewing distance, content detail and the available wall or glazing layout.
How transparent is the EA1000TiF2 screen?
The display provides 60% light transmittance, allowing daylight and sightlines to pass through the LED surface. It is designed for storefront glazing, glass partitions and atriums where openness matters.
How is the transparent LED film maintained?
The rear cover opens to provide access to power, data and service components without removing the screen from the wall. This layout reduces maintenance clearance and helps shorten service interruptions in busy venues.
How much does each EA1000TiF2 cabinet weigh?
Each cabinet weighs 6.7 kg. The low cabinet weight makes handling easier and reduces the structural load for glass walls and other lightweight indoor mounting surfaces.
Does the display operate quietly?
Yes. The 85 mm die-cast aluminum cabinet uses fanless passive cooling, so the display runs quietly in museums, showrooms, offices and other noise-sensitive interiors.
What refresh rate does the EA1000TiF2 use?
The display is specified at a refresh rate of ≥3,840 Hz for smooth motion and camera-friendly capture. This supports retail, corporate and presentation content where visible scan lines or flicker are unacceptable.
Where is EA1000TiF2 typically used?
Typical applications include retail storefronts, corporate lobbies, museums, luxury showrooms, glass partitions and atriums. It is a strong fit when the project needs visible content without a solid wall of LED modules.
