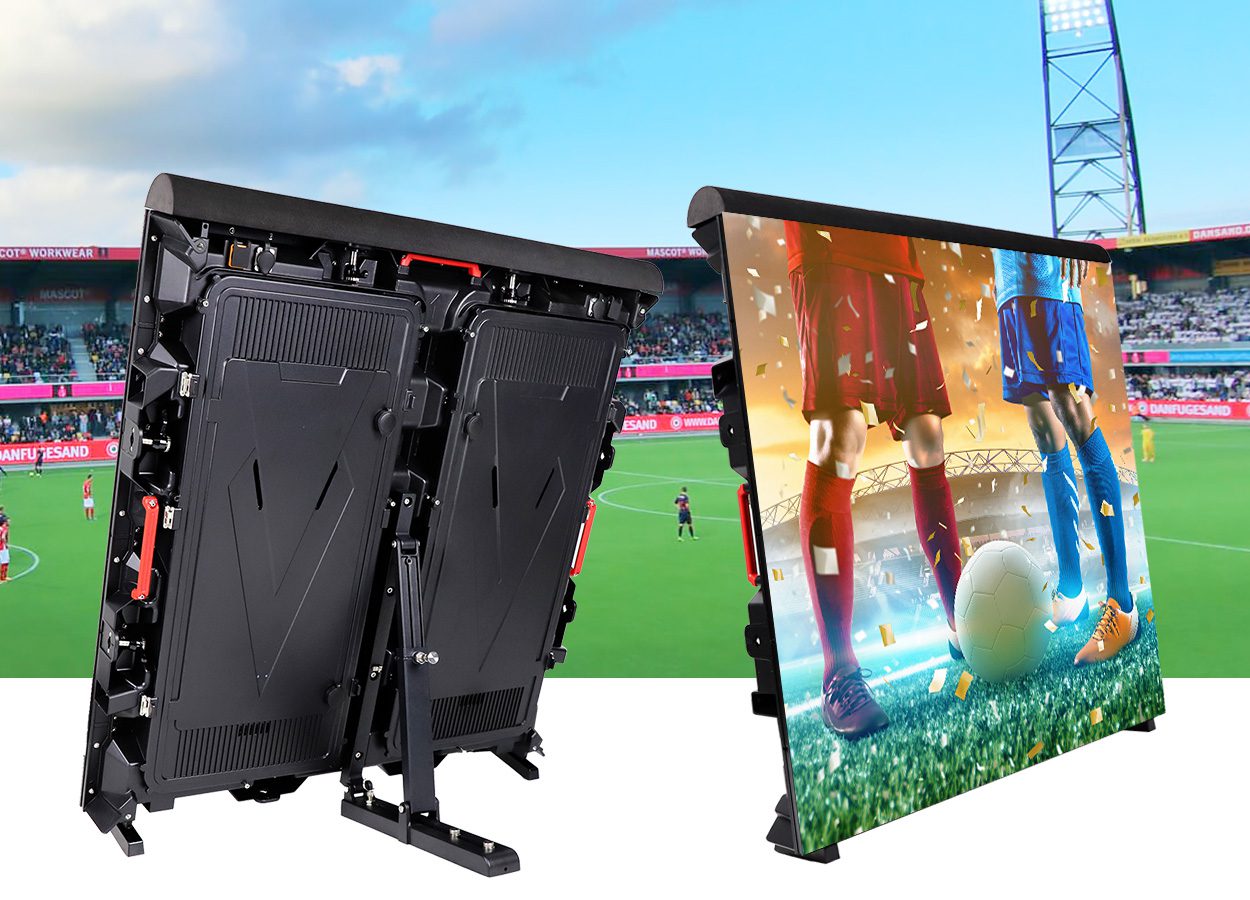

Built for Outdoor Stadium Perimeters

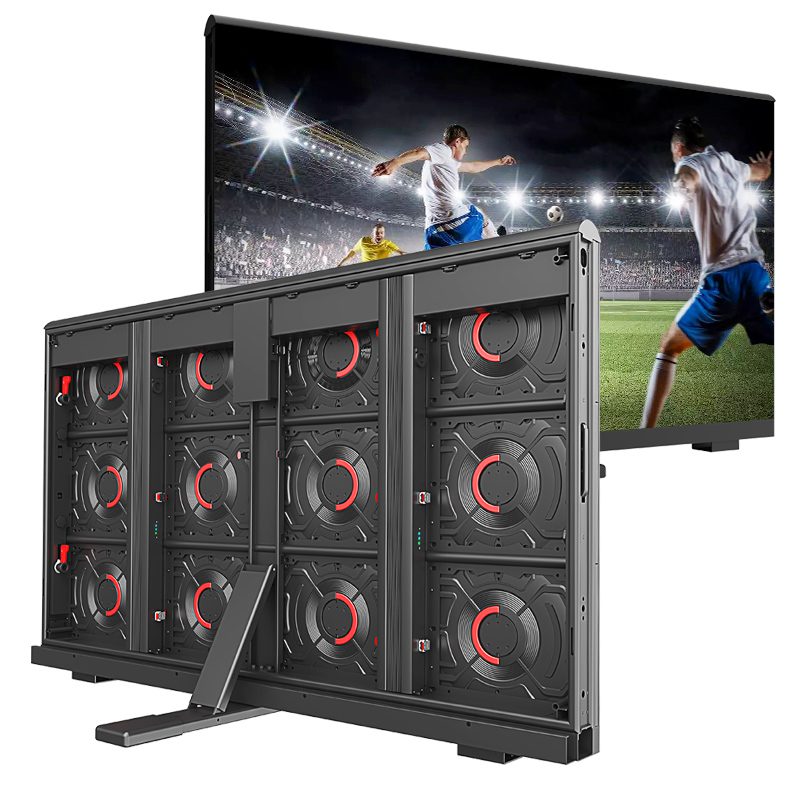

The EA960SP4 combines a reinforced, angle-adjustable support with a soft mask and rubber edge cover to reduce damage from ball impact around the field. Its 960 × 960 mm cabinet is designed for outdoor stadium perimeters and other fixed outdoor display applications.
Bright, High-Refresh Stadium Visuals
With model-dependent brightness of 5,500–6,000 cd/m² and a refresh rate of at least 3,840 Hz, the EA960SP4 delivers clear content in bright outdoor venues and smoother capture for broadcast cameras. All listed variants provide a 140° viewing angle.

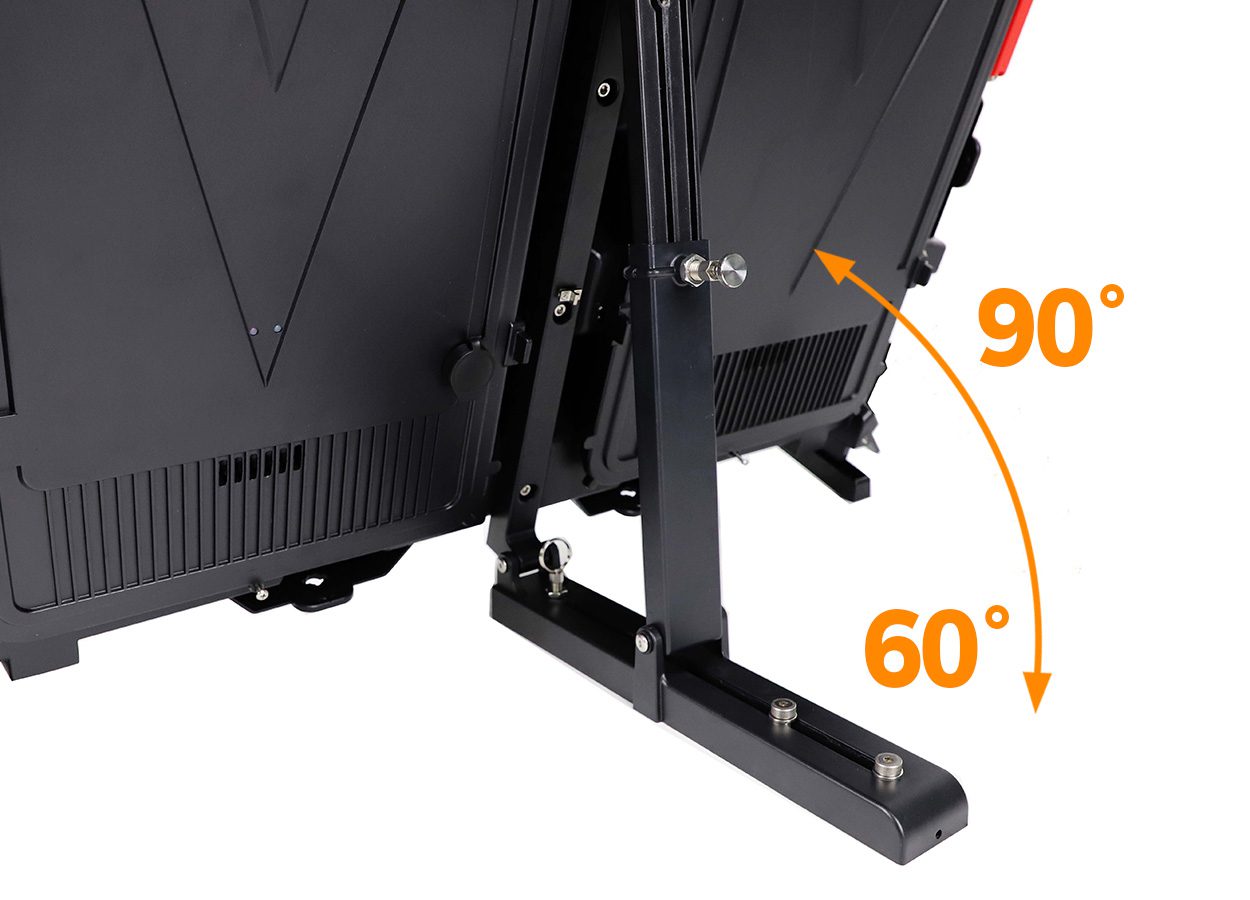

Adjustable Support for Stable Viewing Angles
The reinforced rear support helps the cabinet resist front and rear force while allowing installers to adjust the display angle to suit the venue layout. This makes perimeter alignment more practical across different sideline configurations.

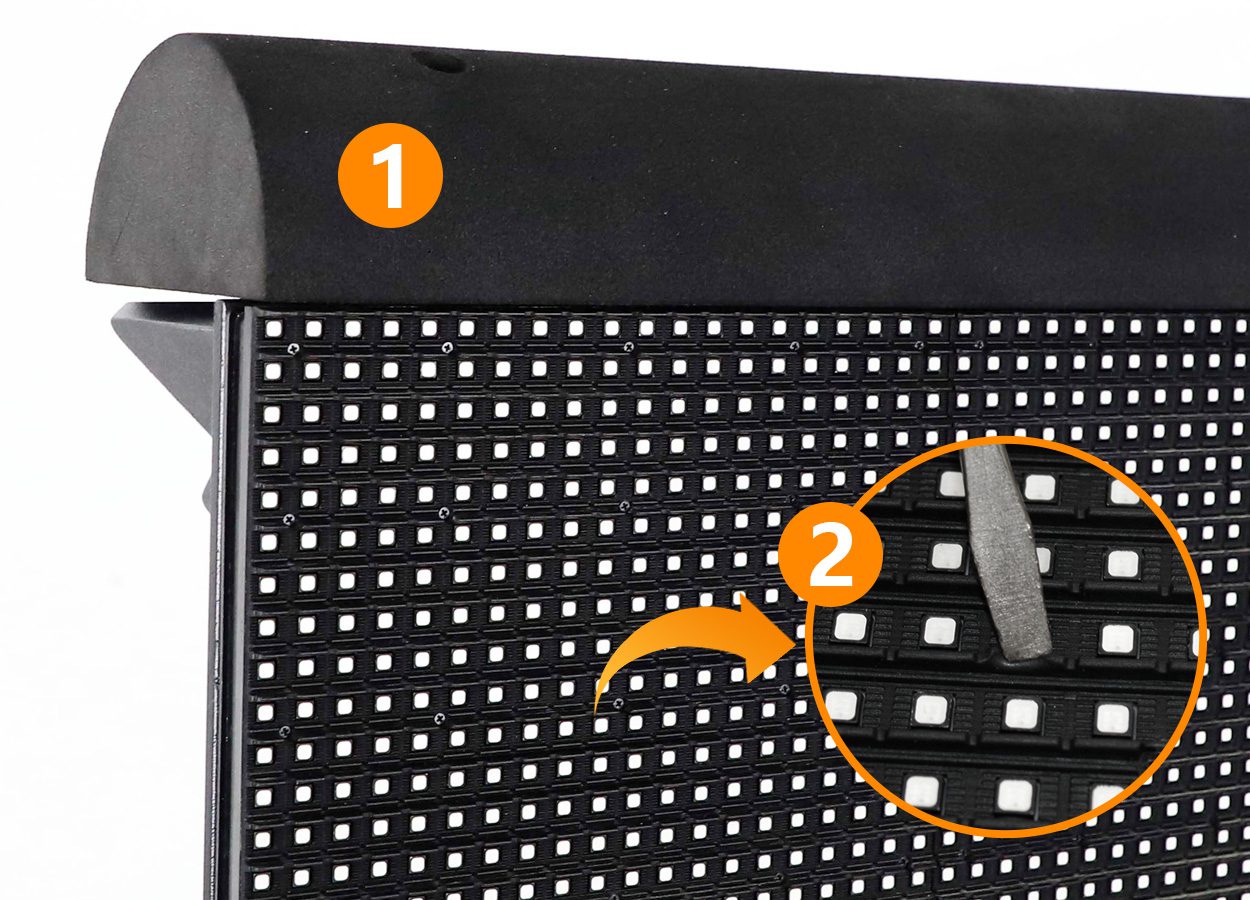

Impact-Reducing Front Protection
A soft mask and rubber edge cover help absorb contact from high-speed balls and reduce damage risk at the field boundary. The protective surfaces also create a more forgiving perimeter-facing edge for sports environments.

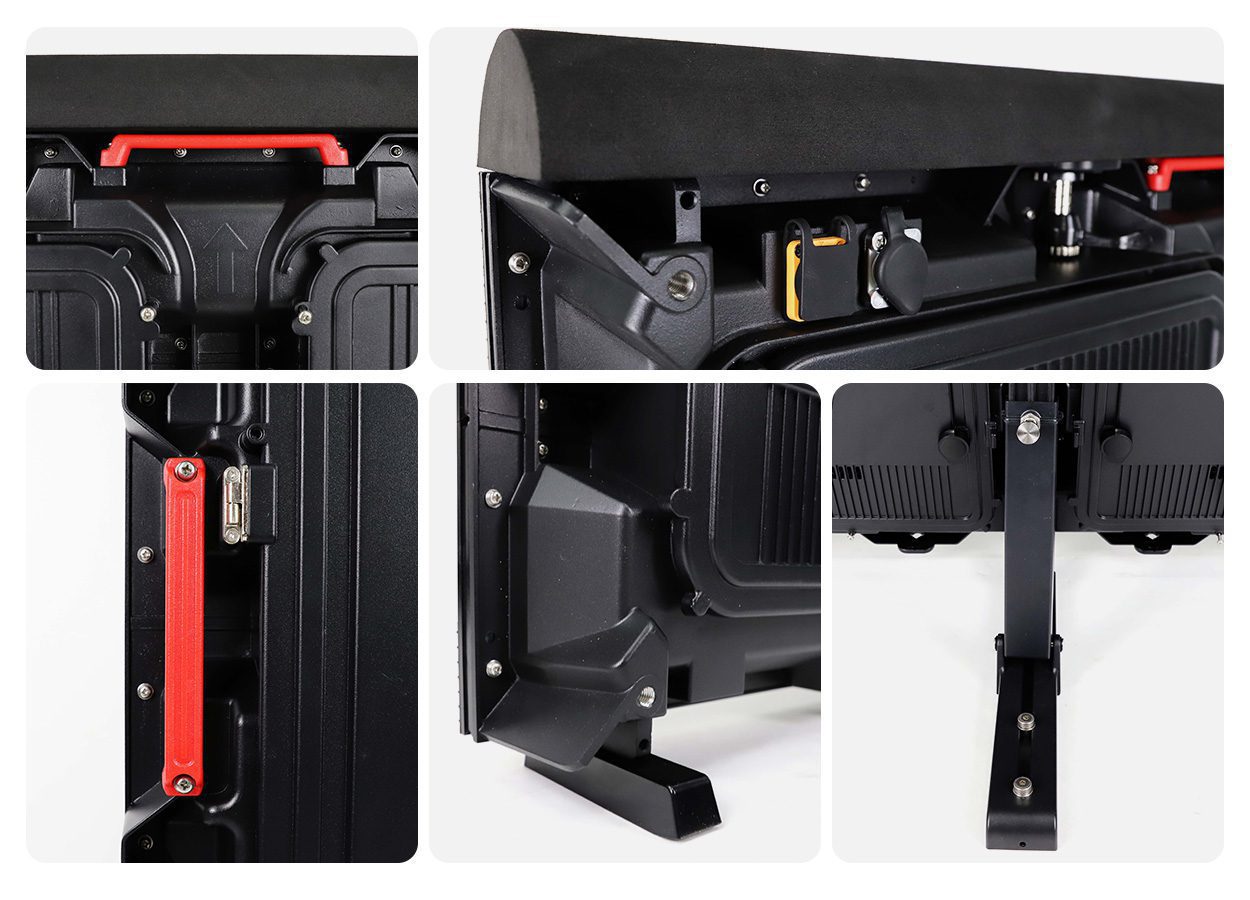

Handling Designed for Installation Crews
Integrated cabinet handles give installers secure grip points when positioning the 26 kg cabinet. The 960 × 960 mm format also supports repeatable alignment across longer perimeter runs.

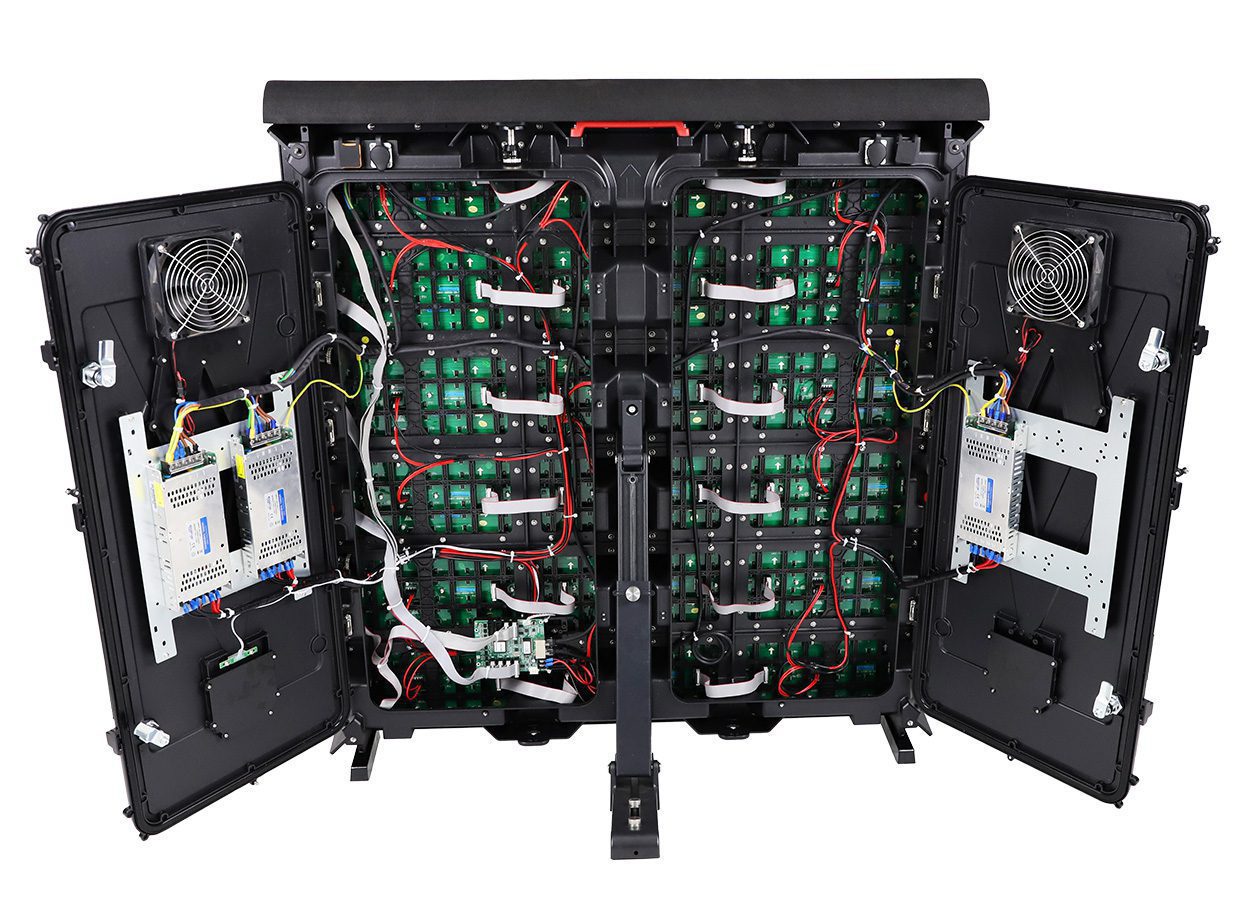

Rear Access for Faster Service
The openable rear cover provides direct access to power and signal connections, simplifying routine inspection, cable management, and module service. Rear access also supports ventilation and heat dissipation during operation.

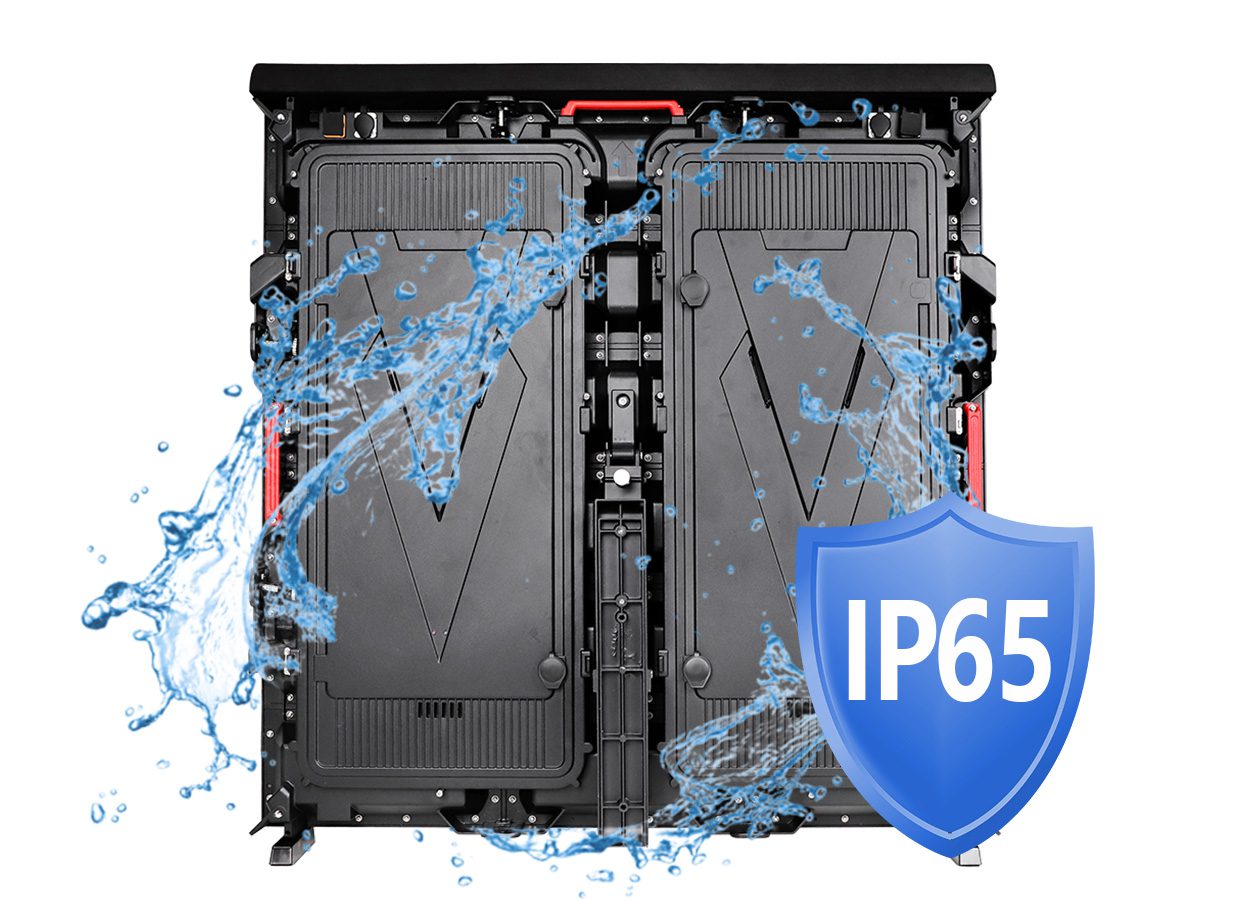

Front IP65 and Rear IP54 Protection
The specification table lists IP65 protection on the cabinet front and IP54 on the rear for most models. Under IEC 60529, IP codes classify enclosure protection against dust and water; final weatherproofing should account for cabinet orientation, cable entries, drainage, and local conditions.

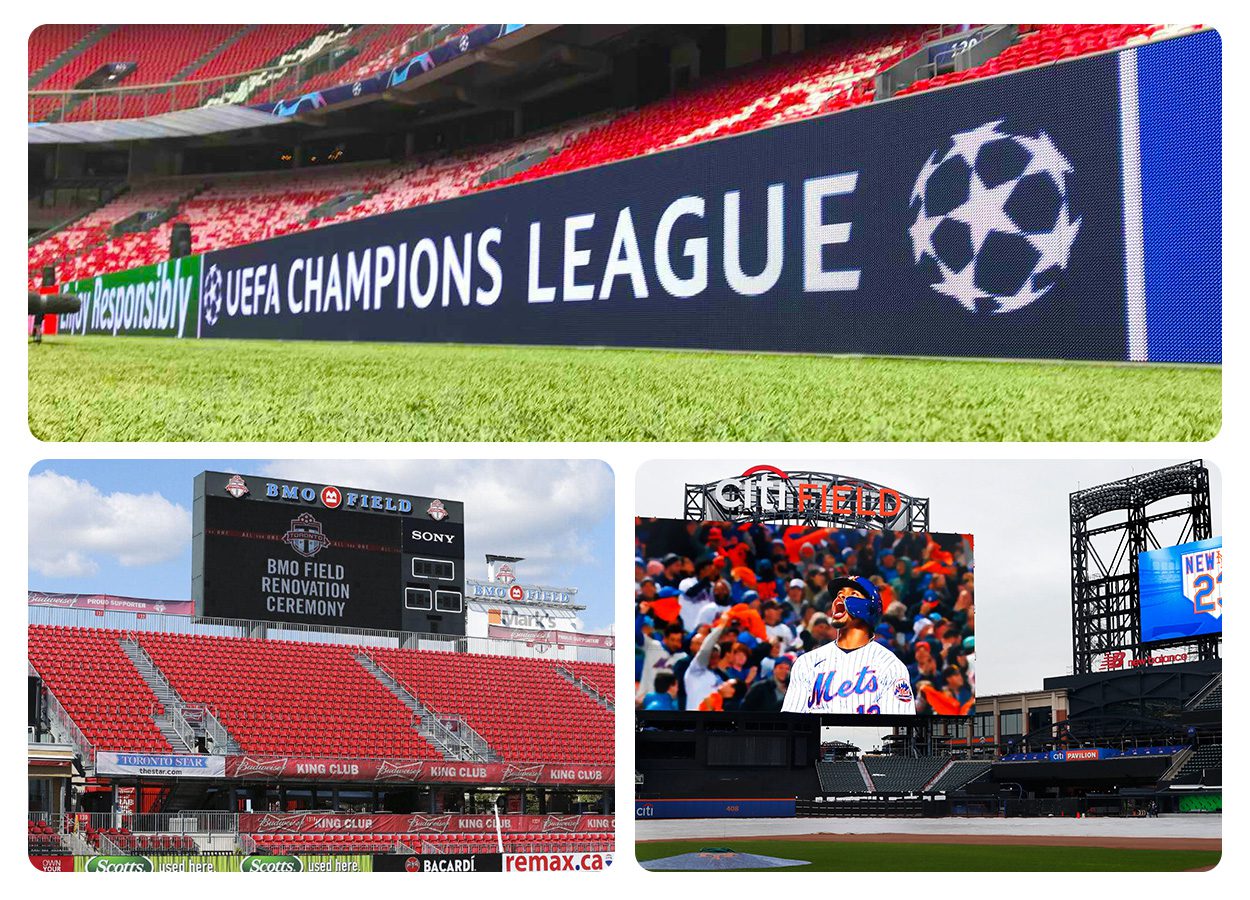

Flexible Installation Options
EA960SP4 cabinets support stadium perimeter use as well as back-mounted or suspended configurations, depending on the supporting structure. Available P5, P6.67, P8 and P10 options let project teams balance viewing distance, resolution and budget.
Outdoor stadium perimeter LED display Series Parameter
EA960SP4 Sports LED Display FAQ
What is the EA960SP4 sports LED display designed for?
EA960SP4 is designed for outdoor stadium perimeter displays and other fixed outdoor installations. Its adjustable rear support, soft mask and rubber edge cover are intended for venues where stable positioning and reduced ball-impact risk matter.
Which pixel pitches are available for EA960SP4?
The current specification table lists P5 with SMD1921 or SMD2727 LEDs, plus P6.67, P8 and P10 options. The right choice depends on viewing distance, required resolution and project budget.
How bright is the display, and what is its refresh rate?
Brightness ranges from 5,500 to 6,000 cd/m² by model. Every listed version has a refresh frequency of at least 3,840 Hz, supporting clear outdoor content and smoother camera capture.
What are the cabinet dimensions and weight?
Each EA960SP4 cabinet measures 960 × 960 mm and weighs 26 kg. The consistent format helps installation teams plan support structures and align longer perimeter runs.
What ingress protection does EA960SP4 provide?
Most listed models are rated IP65 on the front and IP54 on the rear. IP ratings are defined by IEC 60529; actual outdoor performance also depends on installation orientation, sealed cable entries, drainage and site conditions. See the IEC ingress protection guide.
How does EA960SP4 reduce damage from ball impact?
The front uses a soft mask and rubber edge cover to help absorb contact and reduce damage risk. These protective parts complement the reinforced support structure but do not replace venue-specific safety planning.
How is the display installed and maintained?
EA960SP4 supports stadium perimeter, back-mounted and suspended configurations when paired with a suitable engineered structure. The openable rear cover provides access to power and signal connections for routine inspection and service.
What information is needed for an EA960SP4 quotation?
Share the screen dimensions, viewing distance, preferred pixel pitch, installation method, project location and required delivery date. EagerLED can then recommend a configuration and prepare a project-specific quotation. Contact the project team.
