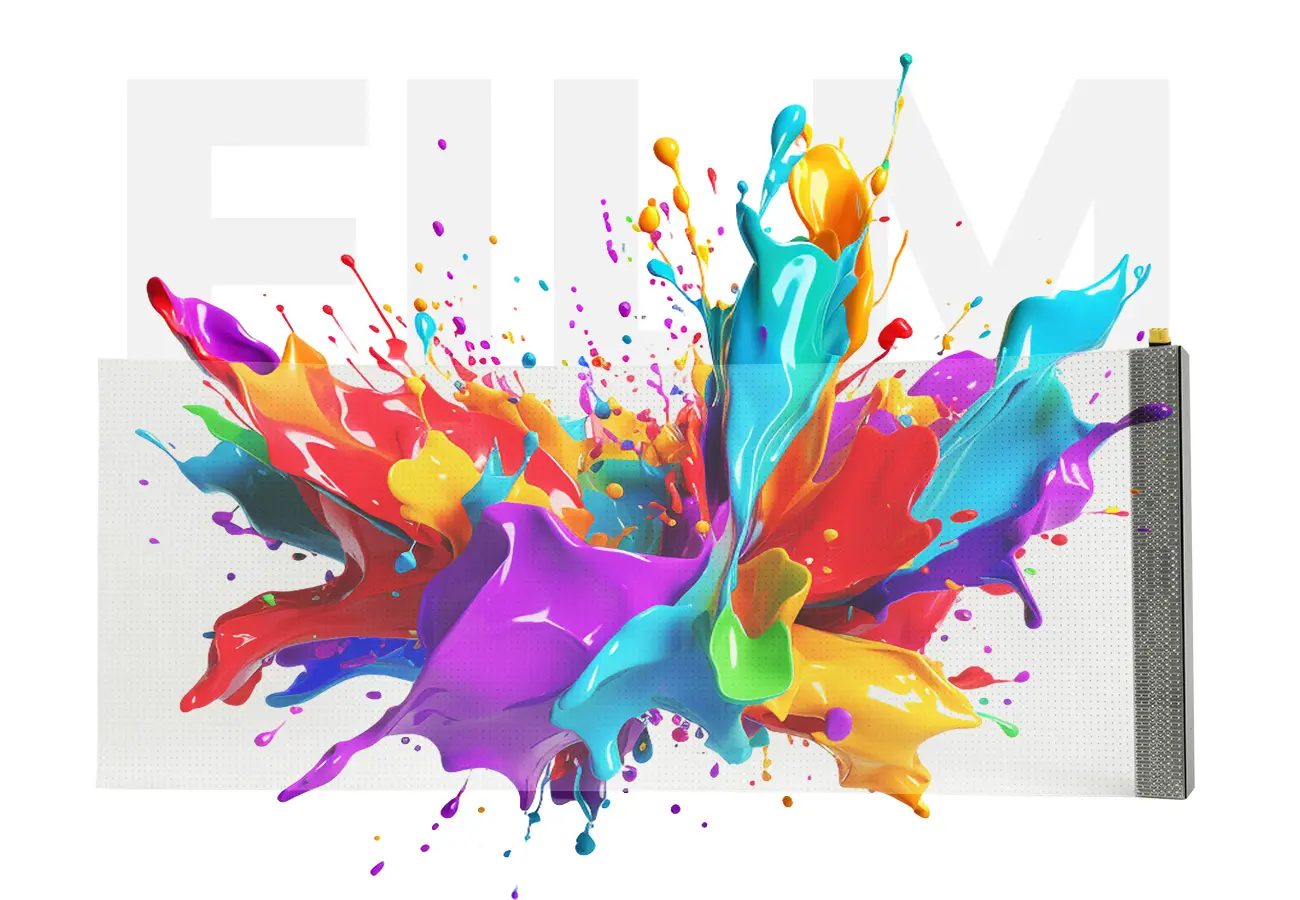

EA-iFilm2 indoor 95% transparent LED film
EA-iFilm2 is a flexible transparent LED film for suitable indoor glass. It can display content on retail windows and architectural glass while retaining part of the view through the installation. The listed P4–P20 versions differ in pixel detail and transparency, so confirm the exact module and glass conditions before ordering.
- Choose viewing distance, content detail and required light transmission together.
- Confirm glass dimensions, substrate condition, bend limits and safe service access.
- Define the full pixel canvas, control equipment, cabling and spare modules in the quotation.
On this page
Match the film to the glass and content layout
| Installation plan | Checks before selecting a version |
|---|---|
| Flat indoor glass | Glass size and condition, viewing distance, intended content and electrical route. |
| Curved indoor glass | Drawing, bend direction, minimum approved radius, substrate suitability and service method. |
| Multi-panel canvas | Panel count, pixel map, controller scope, interconnection cables and replacement access. |
What should I send for an EA-iFilm2 quotation?
Send the glass drawings and photos, indoor location, viewing distance, desired content, panel quantity, control workflow, destination and target date. Ask for the exact P4–P20 configuration, packing, spares and current datasheet. EA-iFilm2 is described here for dry indoor use; review the transparent LED screen range if the project needs a different mounting format or outdoor exposure.

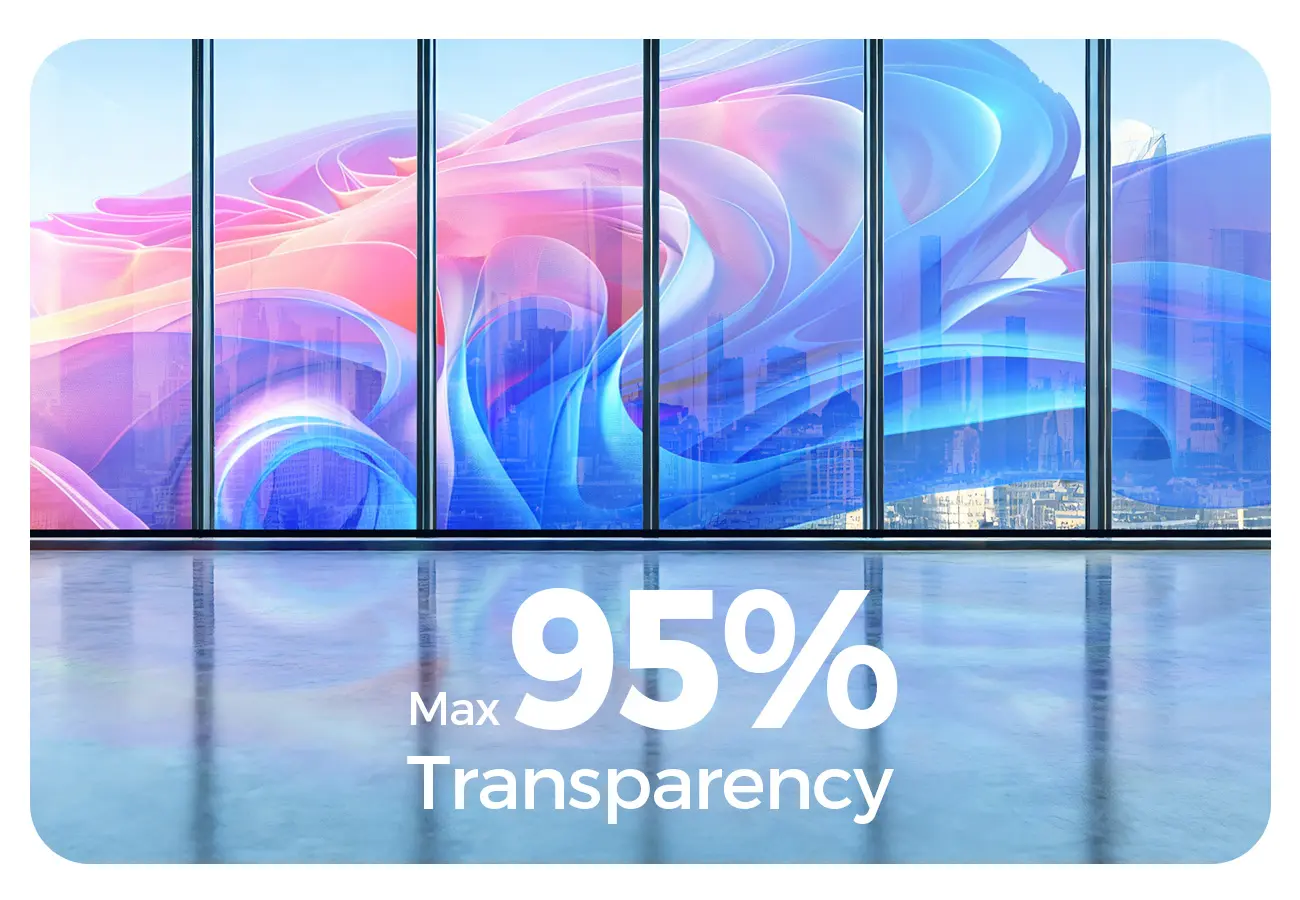

95% transparency
Transparency ranges from 90% at P4 to 95% at P20, with higher pixel pitches preserving more of the original glass view. Choose pitch by balancing viewing distance, resolution and required light transmission.

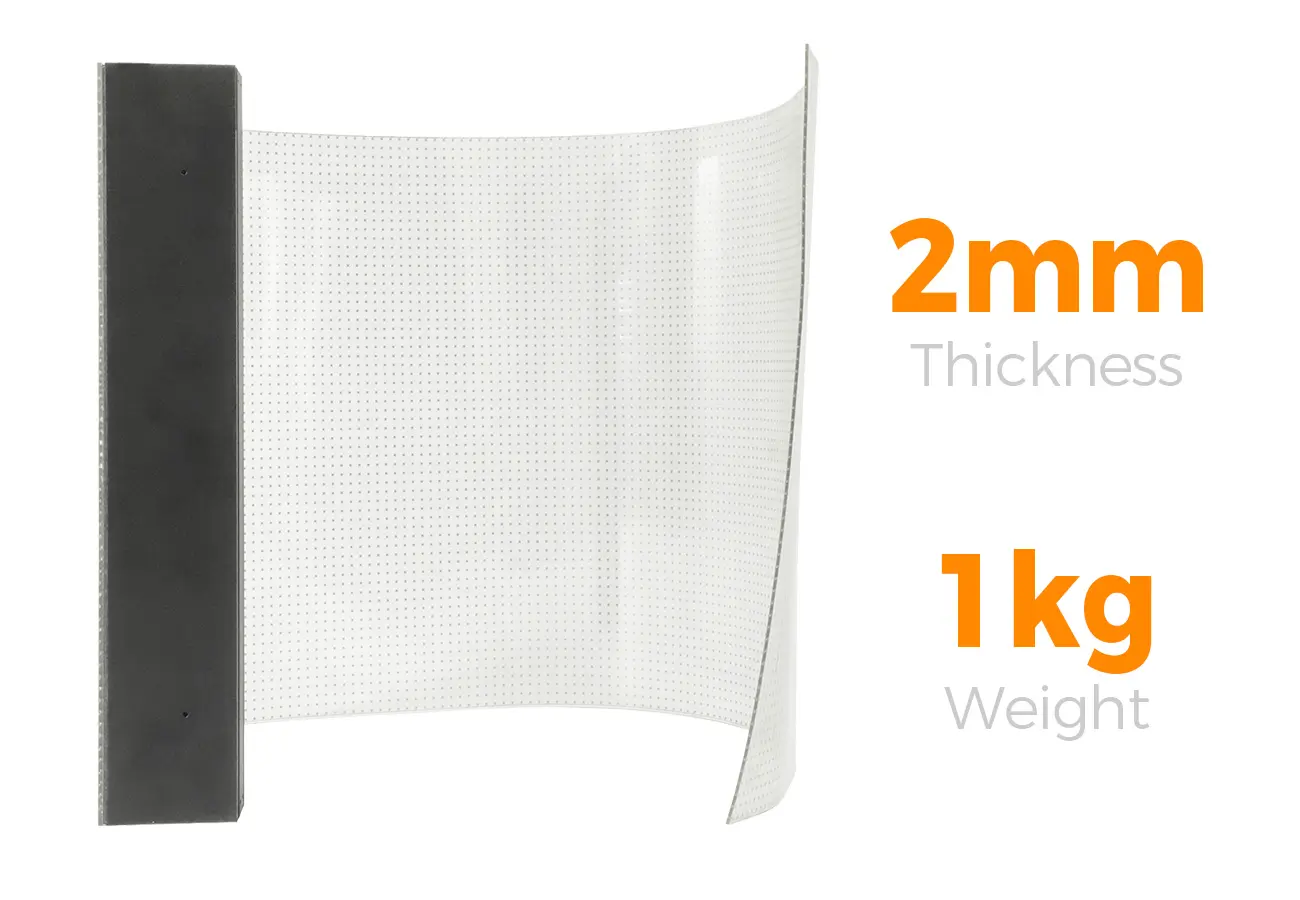

2 mm Profile and 1.0–1.3 kg Modules
P4 and P5 modules weigh 1.0 kg; P6.25–P20 modules weigh 1.3 kg. The slim, lightweight format reduces loading on suitable glass and simplifies installation handling.

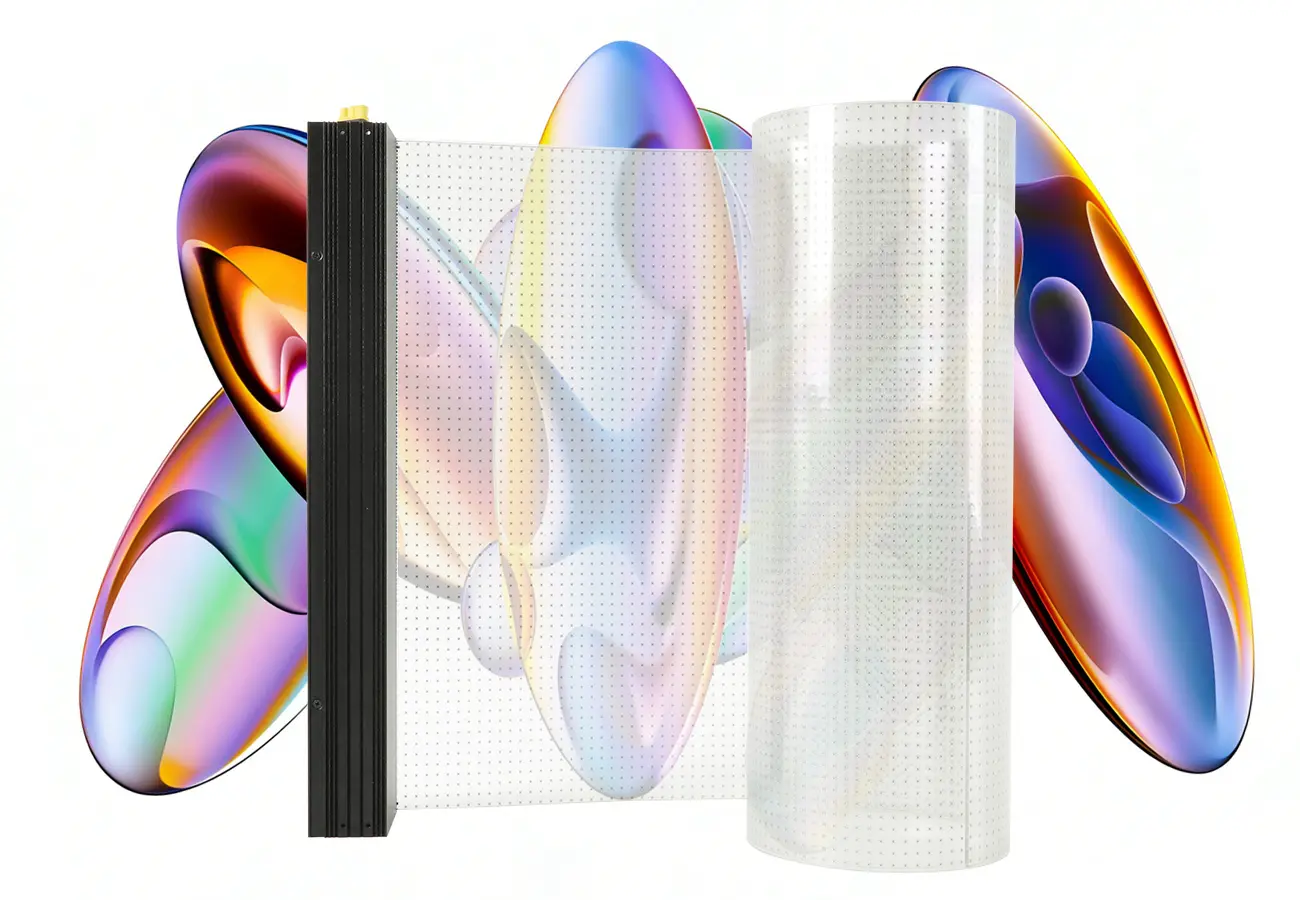

Flexible Film for Curved Glass
The film can follow compatible cylindrical and curved glass surfaces, enabling layouts that rigid cabinets cannot reproduce. Confirm the minimum bend radius and substrate suitability from the project drawing before installation.

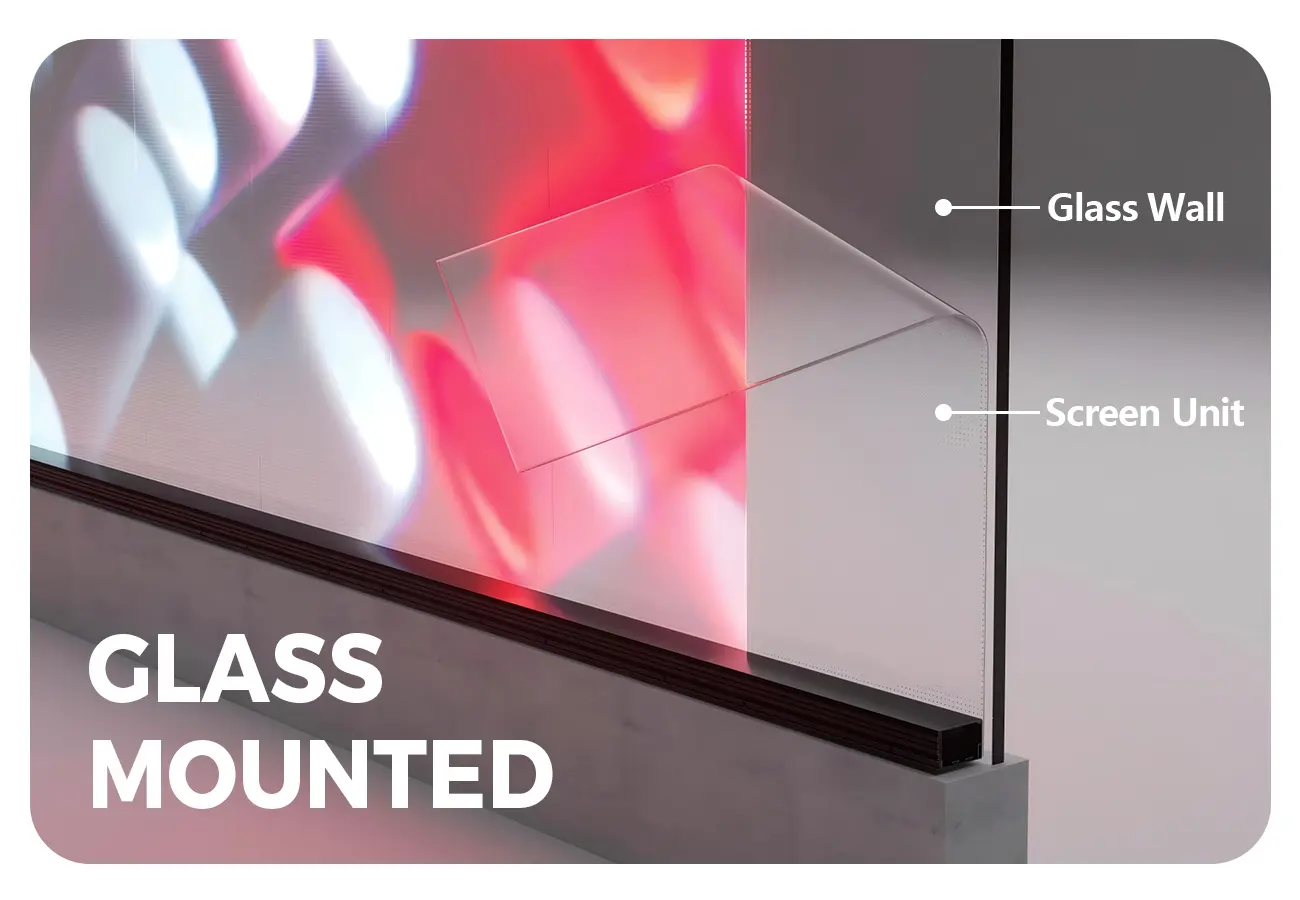

Self-Adhesive Indoor Glass Installation
The adhesive layer mounts the film directly to compatible indoor glass without a separate steel cabinet structure. Clean the substrate and plan power, signal routing and service access before application.
2,000 cd/m² Brightness and ≥3,840 Hz Refresh
All listed models provide 2,000 cd/m² brightness, ≥3,840 Hz refresh and 16-bit grayscale for smooth indoor video reproduction. The high refresh rate suits camera-facing retail and event content.

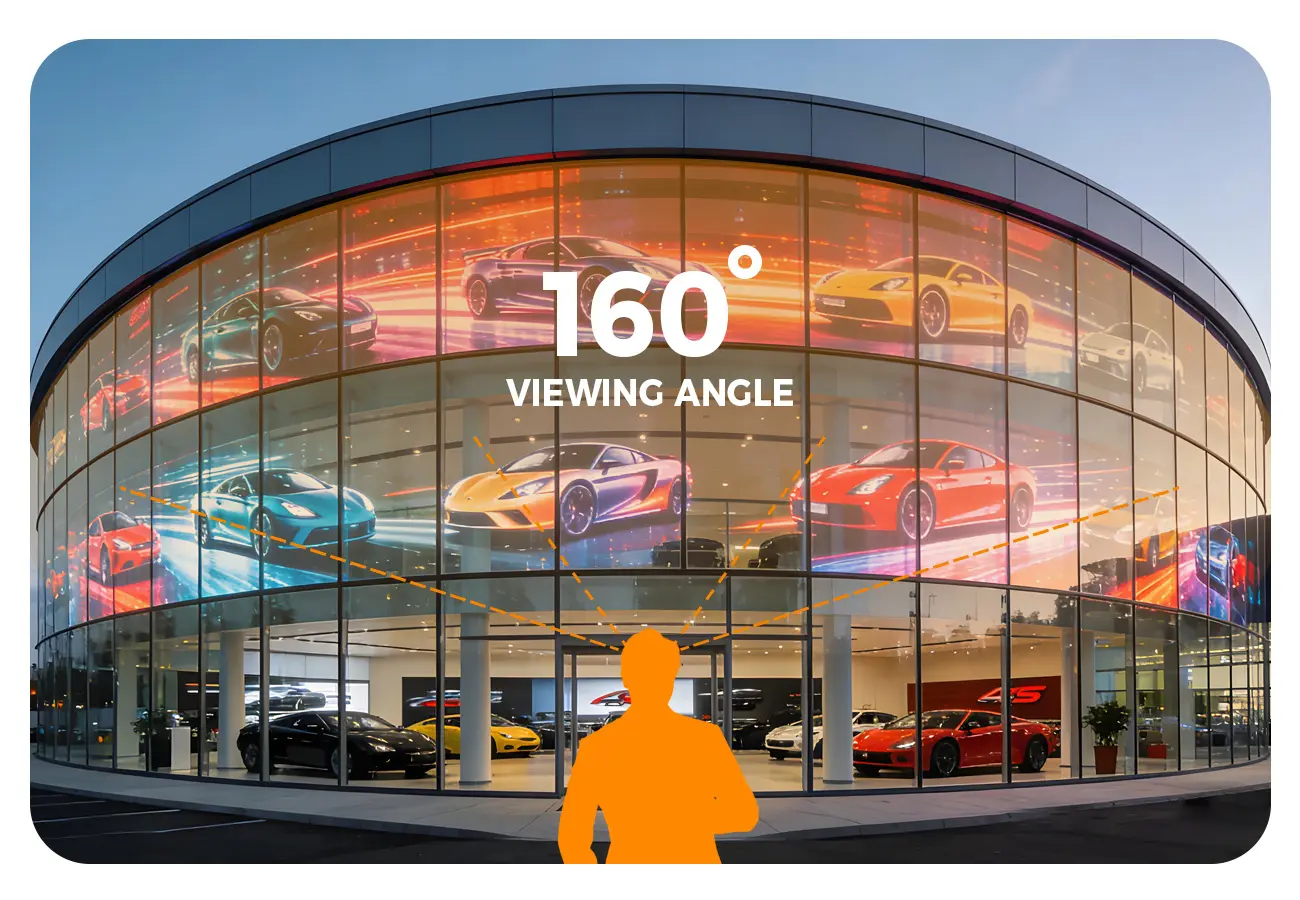

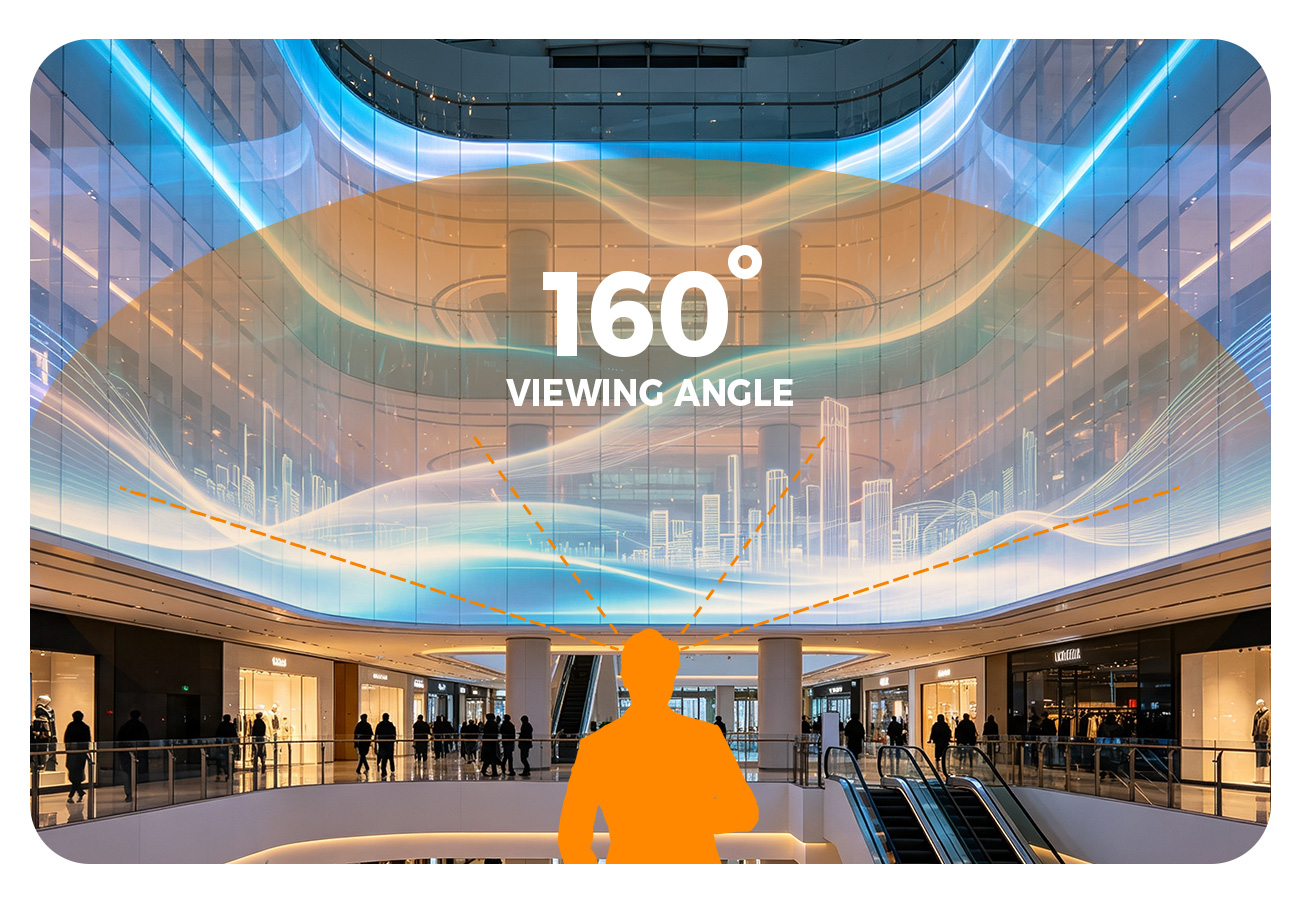

160° Wide Viewing Angle
A 160° viewing angle keeps content visible across wide storefronts, atriums and exhibition approaches. Select the pixel pitch according to viewing distance and required image detail.

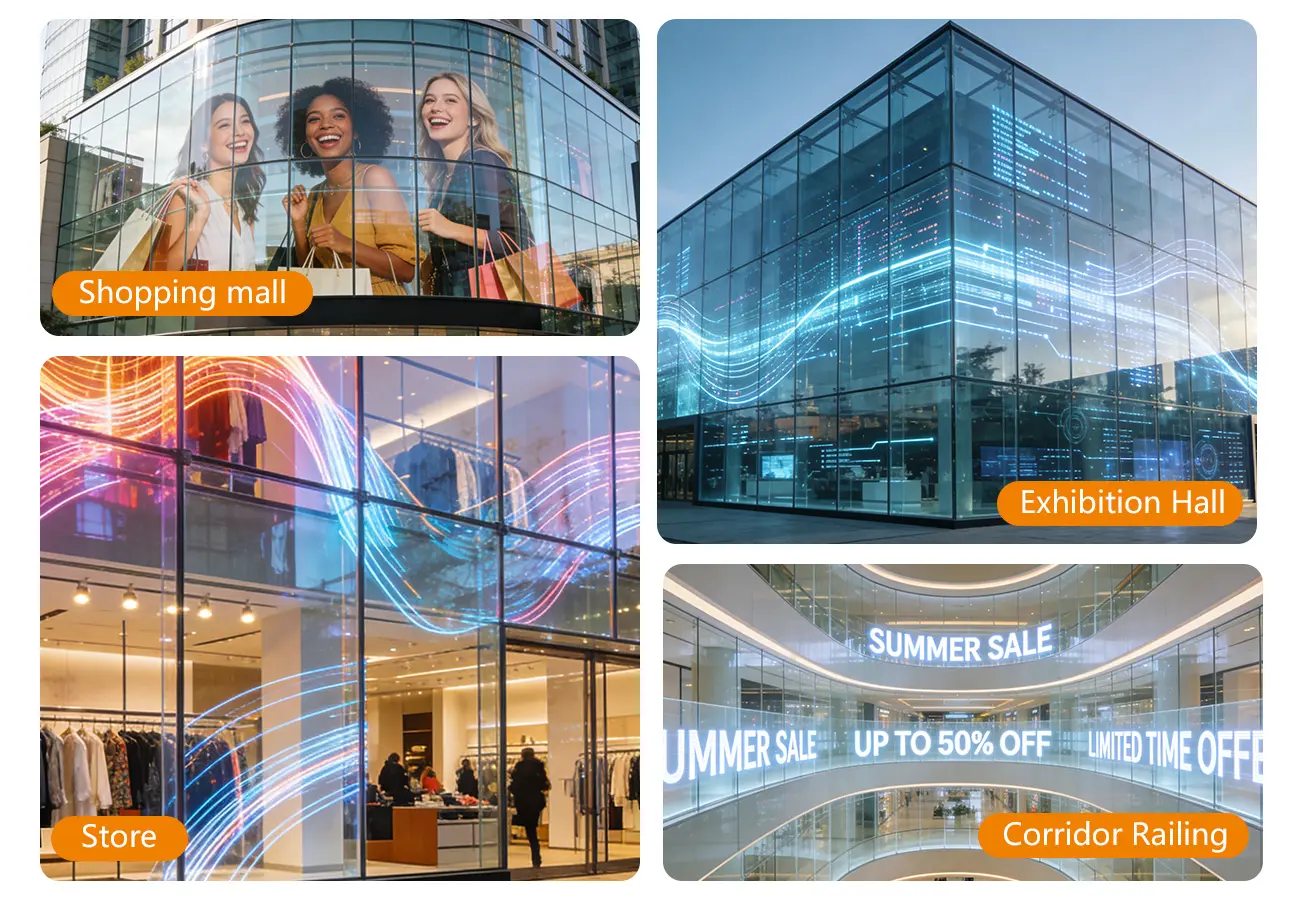

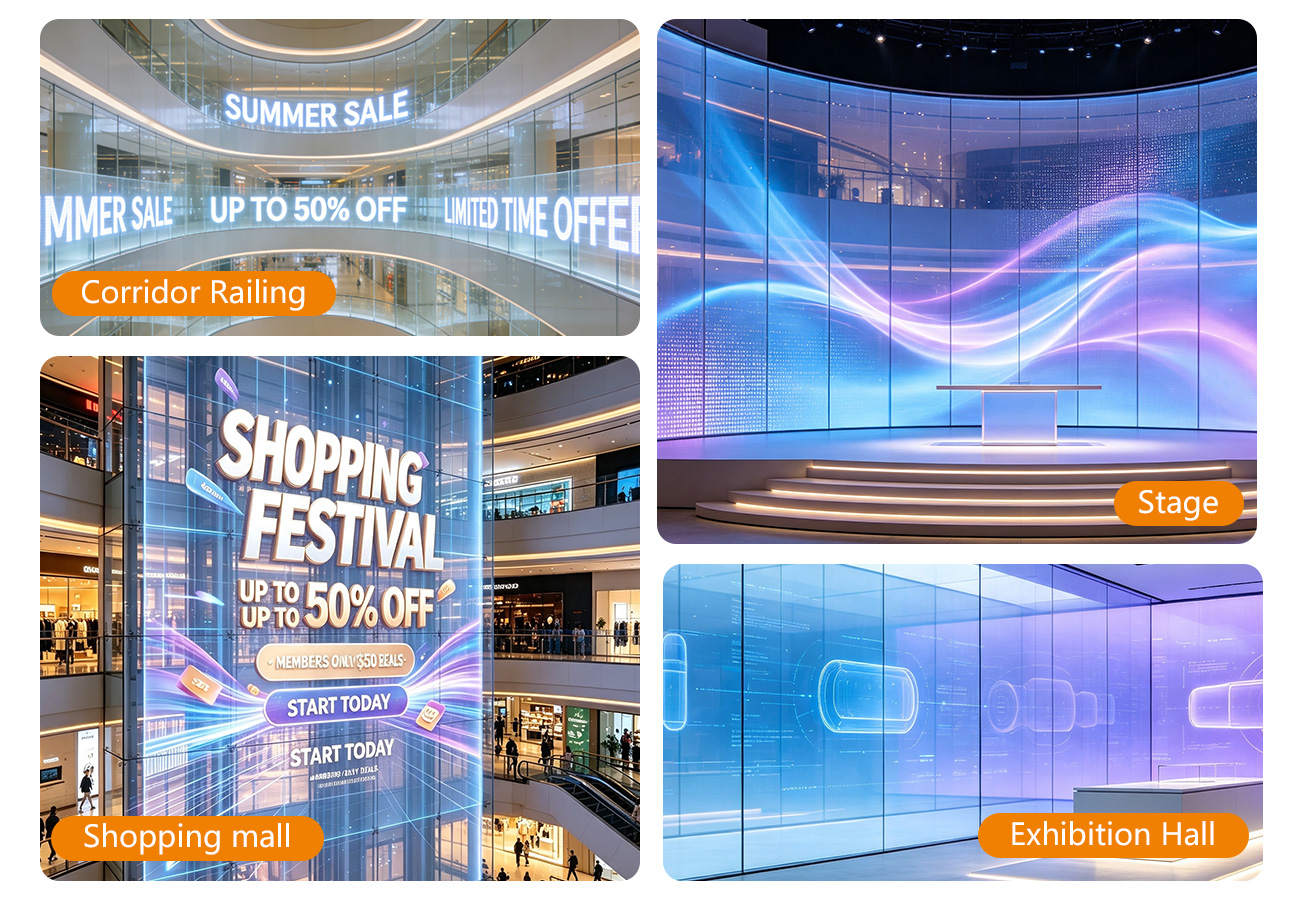

Transparent LED Film Applications
EA-iFilm2 is intended for indoor shop windows, glass railings, curtain walls, exhibition spaces and transportation interiors. Its high transparency lets digital content coexist with daylight and the original architecture.
EA-iFilm2 Transparent LED Film Specifications
EA-iFilm2 Transparent LED Film FAQs
How transparent is EA-iFilm2 LED film?
EA-iFilm2 transparent LED film transparency ranges from 90% at P4 to 95% at P20. P5 provides 91%, P6.25 and P8 provide 92%, and P10 provides 94% transparency.
Which pixel pitches are available?
EA-iFilm2 is available in P4, P5, P6.25, P8, P10 and P20. Choose finer pitch for closer viewing and higher image detail, or wider pitch for greater transparency.
What module sizes are available?
P4 and P5 use 1,000×240 mm modules. P6.25, P8, P10 and P20 use 1,000×400 mm modules.
How much does EA-iFilm2 weigh?
P4 and P5 modules weigh 1.0 kg, while P6.25–P20 modules weigh 1.3 kg. Confirm the total installation load against the glass specification.
What are the brightness and refresh rate?
All listed configurations provide 2,000 cd/m² brightness and a refresh rate of at least 3,840 Hz, supporting smooth indoor video and camera-facing content.
Can the film be installed on curved glass?
The flexible film can follow compatible curved and cylindrical glass surfaces. Confirm the minimum bend radius, glass condition and installation method before production.
Is EA-iFilm2 suitable for outdoor use?
No. The listed IP30 protection grade follows the enclosure classification defined by IEC 60529, so EA-iFilm2 is designed for dry indoor environments.
