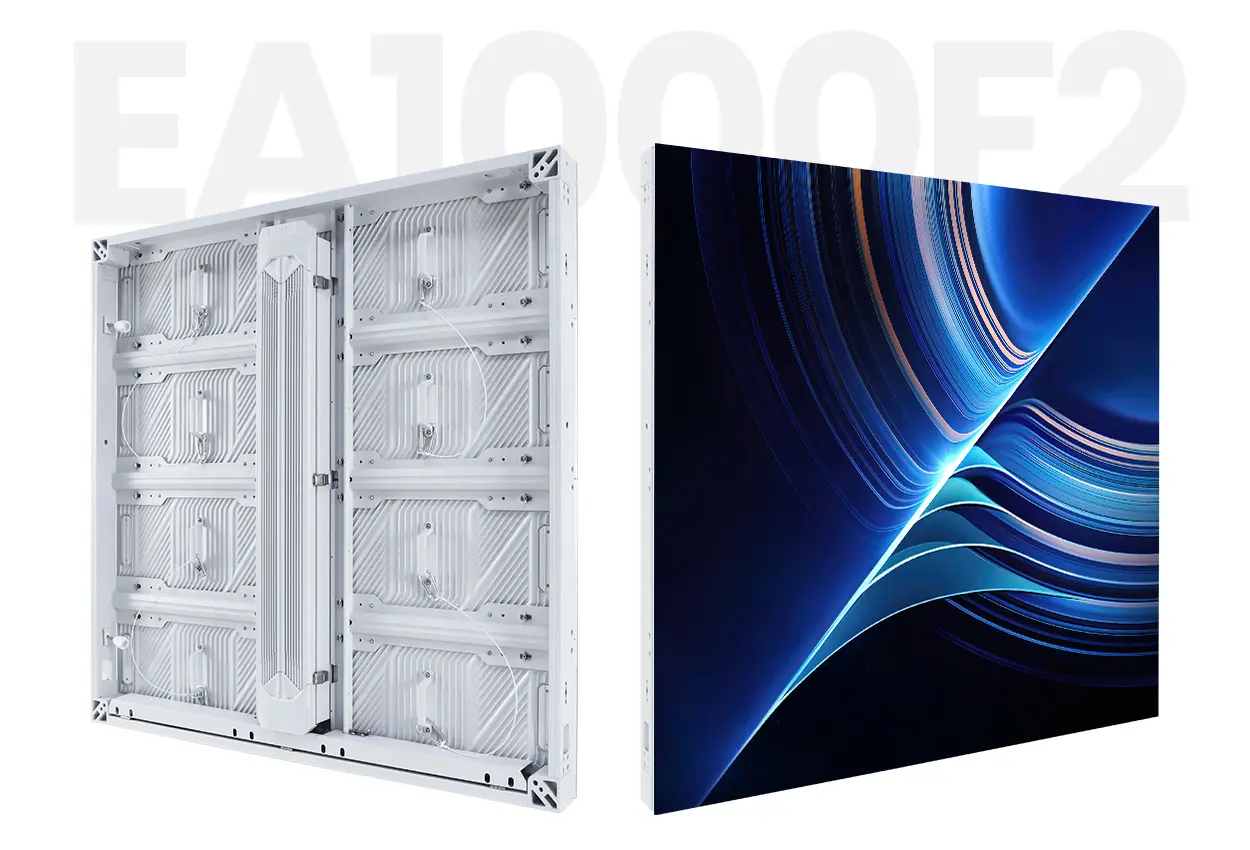

EA1000F2 Outdoor LED Advertising Screen
EA1000F2 is an outdoor LED advertising screen series with front and rear service for fixed billboards and commercial façades. Select the exact pitch and driving configuration, then confirm the flat or corner cabinet layout, power distribution and maintenance access for the site.
Customized New LED Display Solutions for You
EA1000F2 Outdoor LED Advertising Screen Overview
EA1000F2 is an outdoor LED advertising screen series with front and rear service for fixed billboards and commercial façades. Select the exact pitch and driving configuration, then confirm the flat or corner cabinet layout, power distribution and maintenance access for the site.
- Fixed outdoor advertising equipment for media owners, contractors and integrators.
- The published flat 1000 × 1000 mm cabinet weighs 28.4 kg.
- P3.91 has separate 16S and 8S configurations with different published brightness.
- Corner and curved versions need their own mechanical drawing and module specification.
On this page
Compare flat-cabinet configurations before quoting
| Published configuration | Brightness | Maximum W/m² | Average W/m² |
|---|---|---|---|
| P2.97 | 5000 cd/m² | 520 | 175 |
| P3.91 16S | 5000 cd/m² | 450 | 150 |
| P3.91 8S | 6500 cd/m² | 450 | 150 |
| P6.25 | 6500 cd/m² | 450 | 150 |
| P10.42 | 6500 cd/m² | 550 | 185 |
This comparison follows the published flat-cabinet table. P3.91 pitch alone does not distinguish the 16S and 8S variants; include the full configuration in the quotation and spare-module list.
Choose the screen pixel map from actual advertising text, nearest viewing distance and cabinet layout. Plan daylight visibility and nighttime dimming together, then confirm controller capacity and the required creative-file dimensions.
Treat the curved/corner specification table separately. It lists different cabinet and module dimensions from the flat version, so do not assume a flat module or cabinet can be substituted in a corner without confirmation. A right-angle screen also needs mapped creative content; its geometry alone does not create a naked-eye 3D effect.
Purchase questions
What affects an outdoor LED advertising screen quotation?
Screen area, pitch and driving variant, flat versus corner geometry, controller, power distribution, mounting interfaces, access arrangement, transport and spare parts affect the scope. Send the site layout and intended operating hours for an itemized quotation.
Does front service remove every rear-clearance requirement?
Confirm service access for LED modules, power supplies, receiving cards and connections individually. Front module removal does not establish that ventilation, cable routing or every internal component can be serviced with zero clearance.
How should a corner billboard be specified?
Provide dimensioned front and side views, the angle and corner dimensions, closest audience position and content requirements. Request the exact corner cabinet drawing, compatible modules and control mapping before the order is approved.
Request an EA1000F2 advertising quote
Compare the outdoor advertising LED board range for other formats.

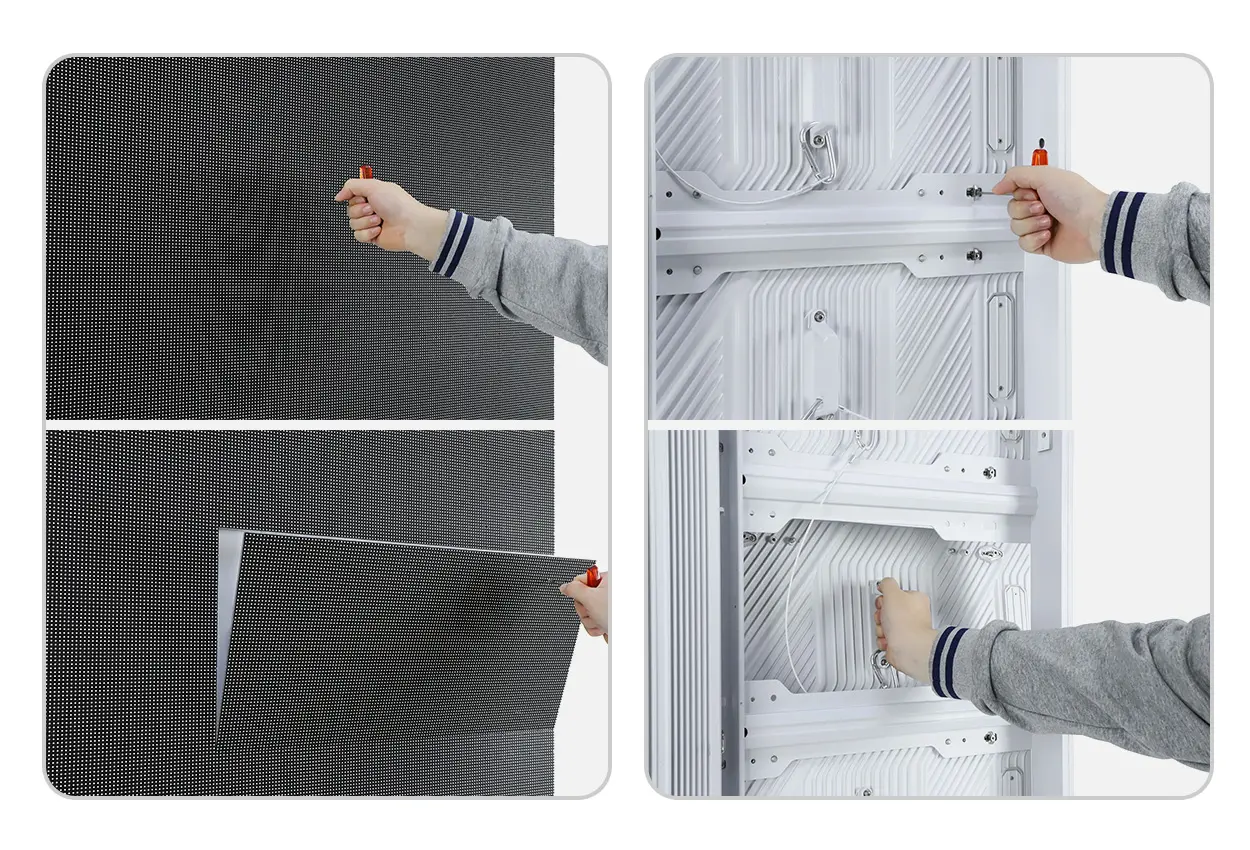

Front and Rear Service
Front and rear service options help plan different installation arrangements. Confirm access for modules, power supplies, receiving cards and connections separately; include ventilation and cable clearance in the final mechanical layout.

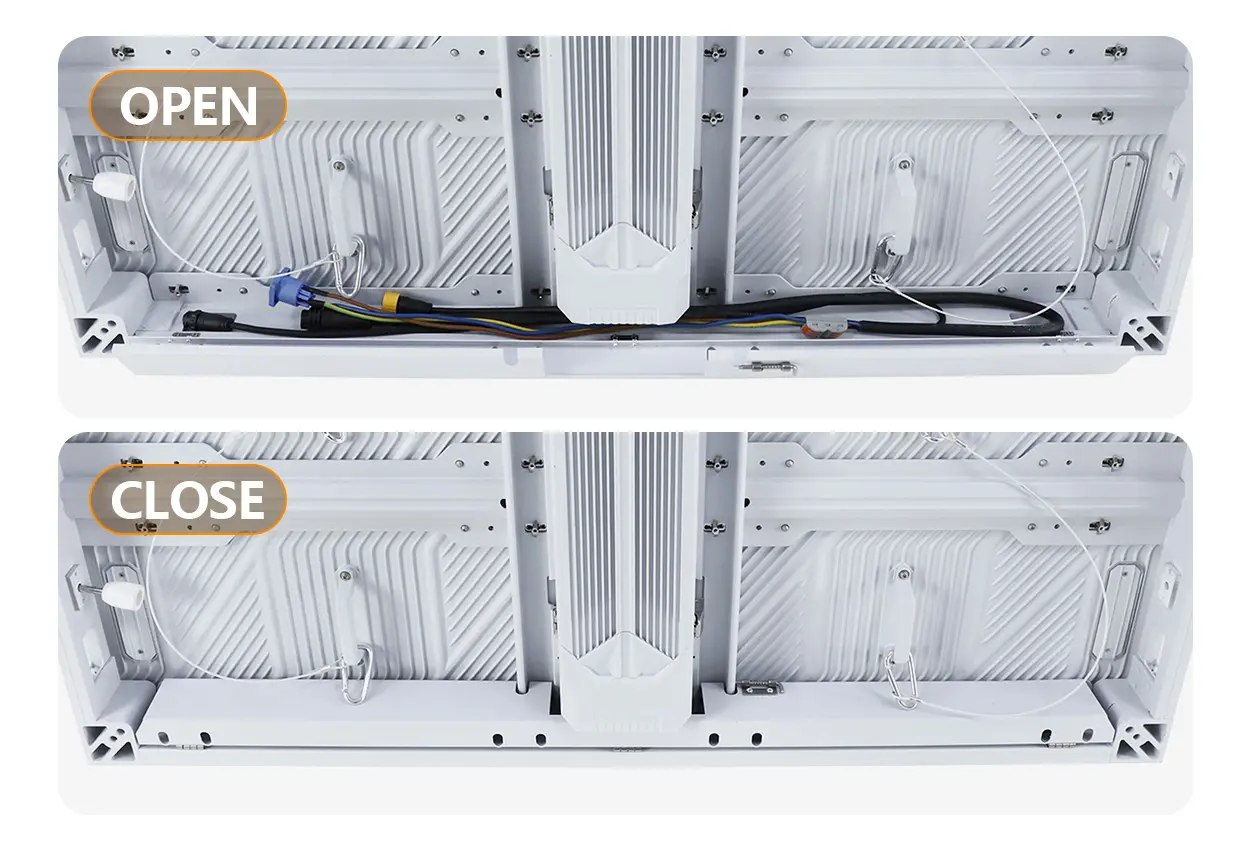

Cable-Free Internal Connections
Power and data signals are routed through internal rigid interconnection boards, reducing exposed cabinet-to-cabinet wiring. This simplifies installation, keeps the cabinet interior orderly and reduces loose-connector service points.

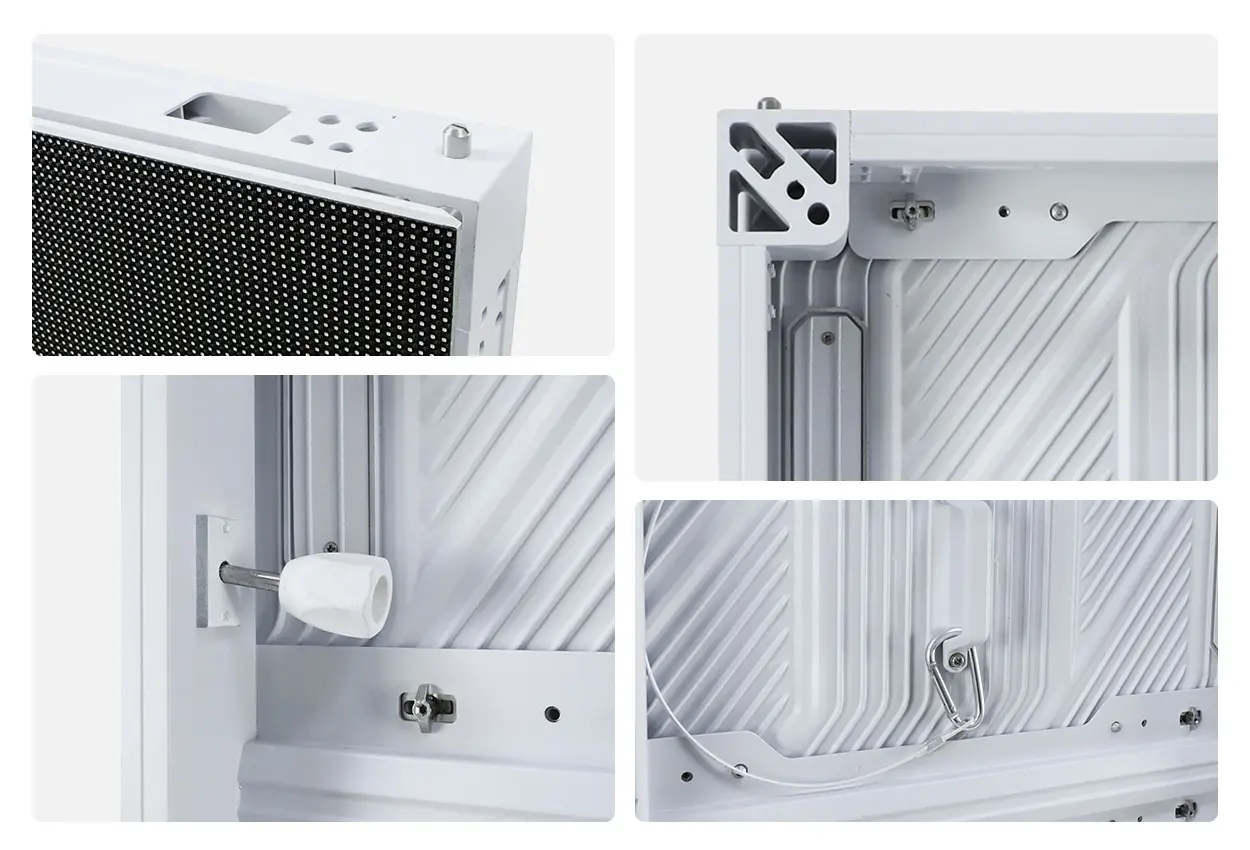

Aluminum Cabinet and Fast Assembly
The 1,000 × 1,000 mm aluminum cabinet combines structural rigidity with easier on-site handling. Quick locks, locating pins and module safety straps support accurate alignment and safer installation or maintenance.

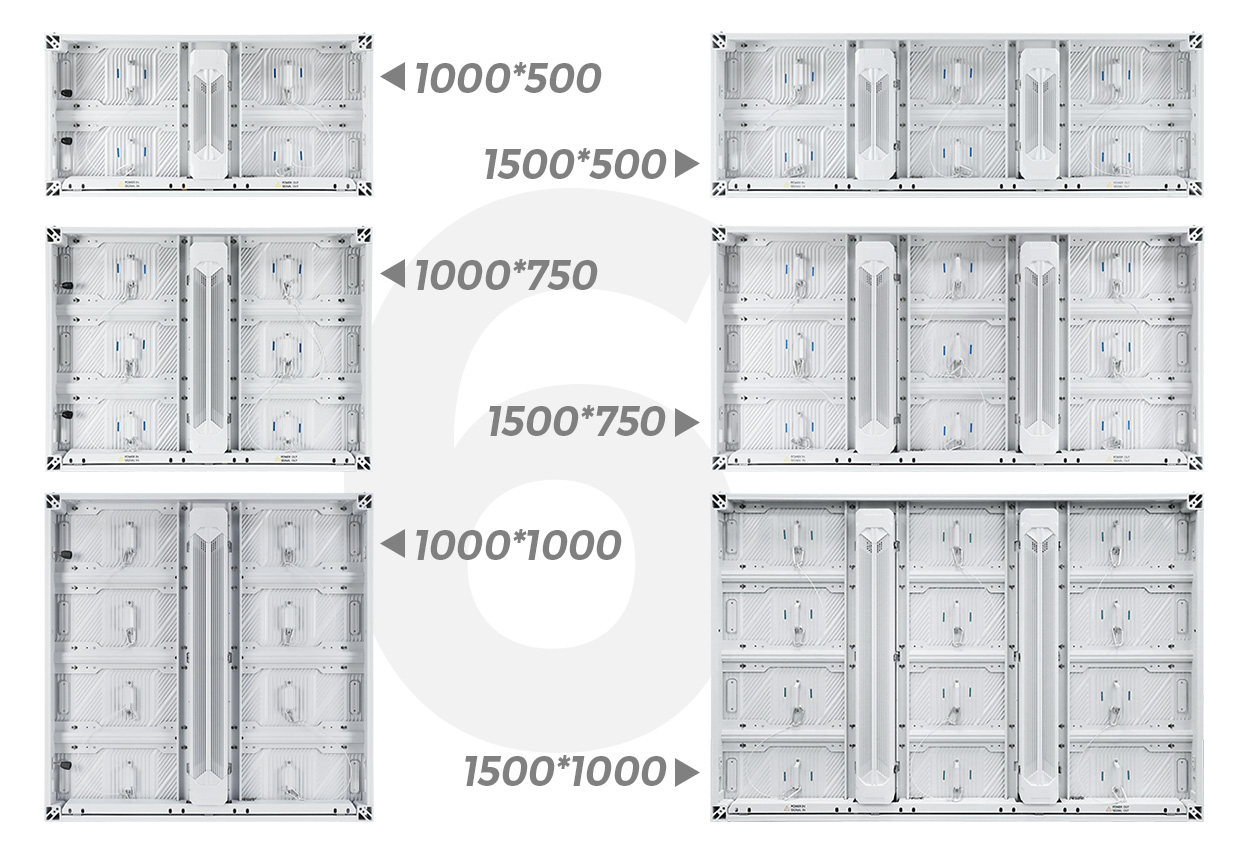

Six Cabinet Sizes
The 500 × 250 mm LED module supports six cabinet formats: 1,000 × 500, 1,000 × 750, 1,000 × 1,000, 1,500 × 250, 1,500 × 750 and 1,500 × 1,000 mm. This range helps match screen dimensions, support structures and corner layouts while retaining a common module platform.

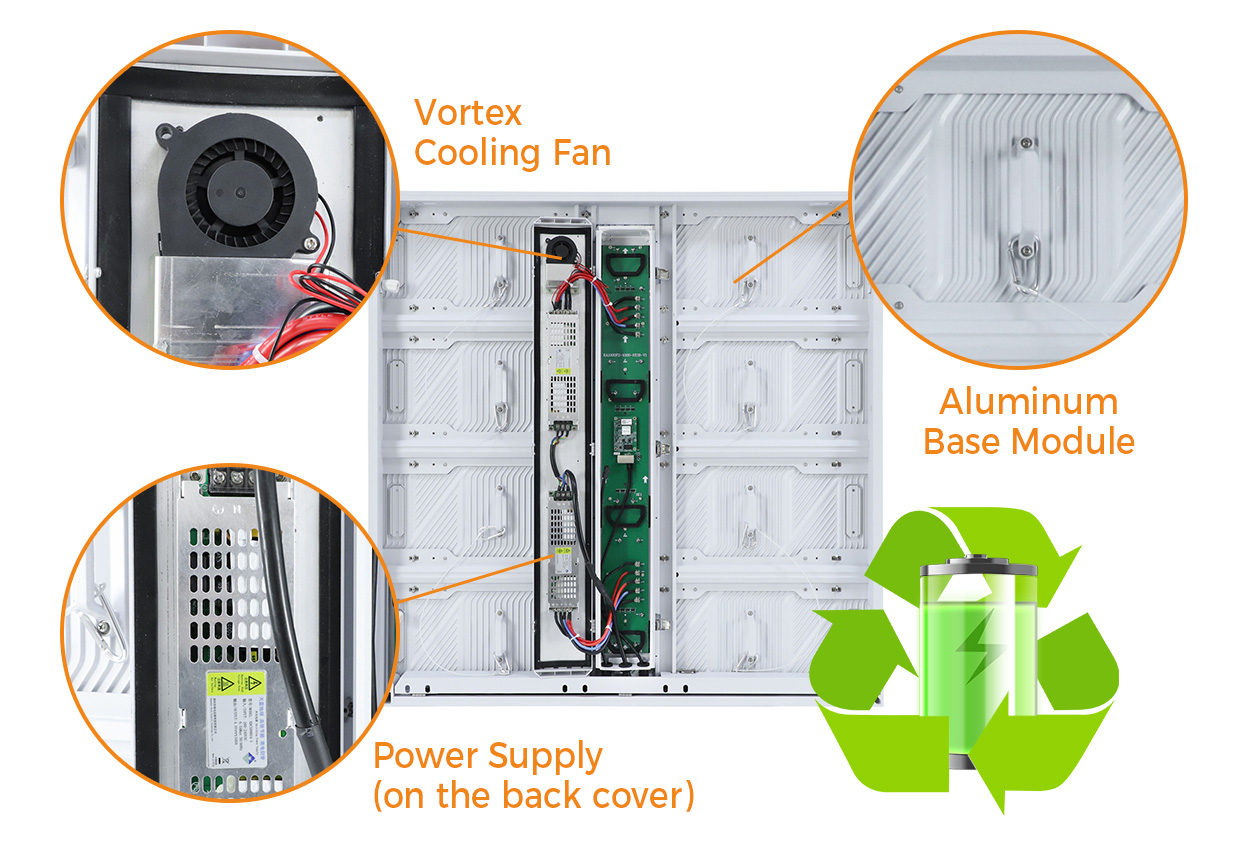

Thermal Management
Aluminum-backed modules, vortex fans and a thermally optimized power-supply layout accelerate heat transfer from critical components. The cooling path is designed to support stable continuous operation in outdoor fixed installations.

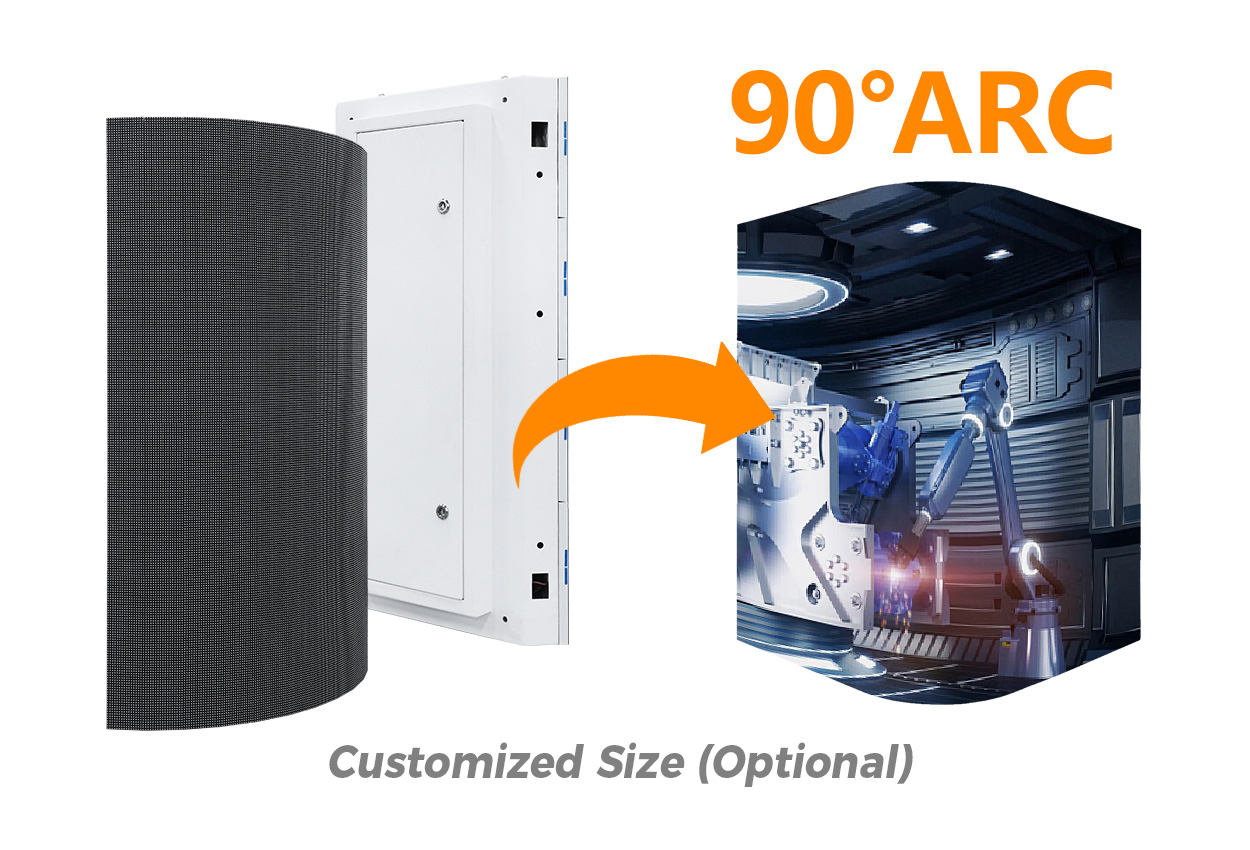

Optional 90° Corner Cabinet
Optional 90° corner cabinets are available in three sizes for right-angle LED displays. They support wraparound façades and naked-eye 3D content layouts with compatible model-specific modules confirmed in the quotation.

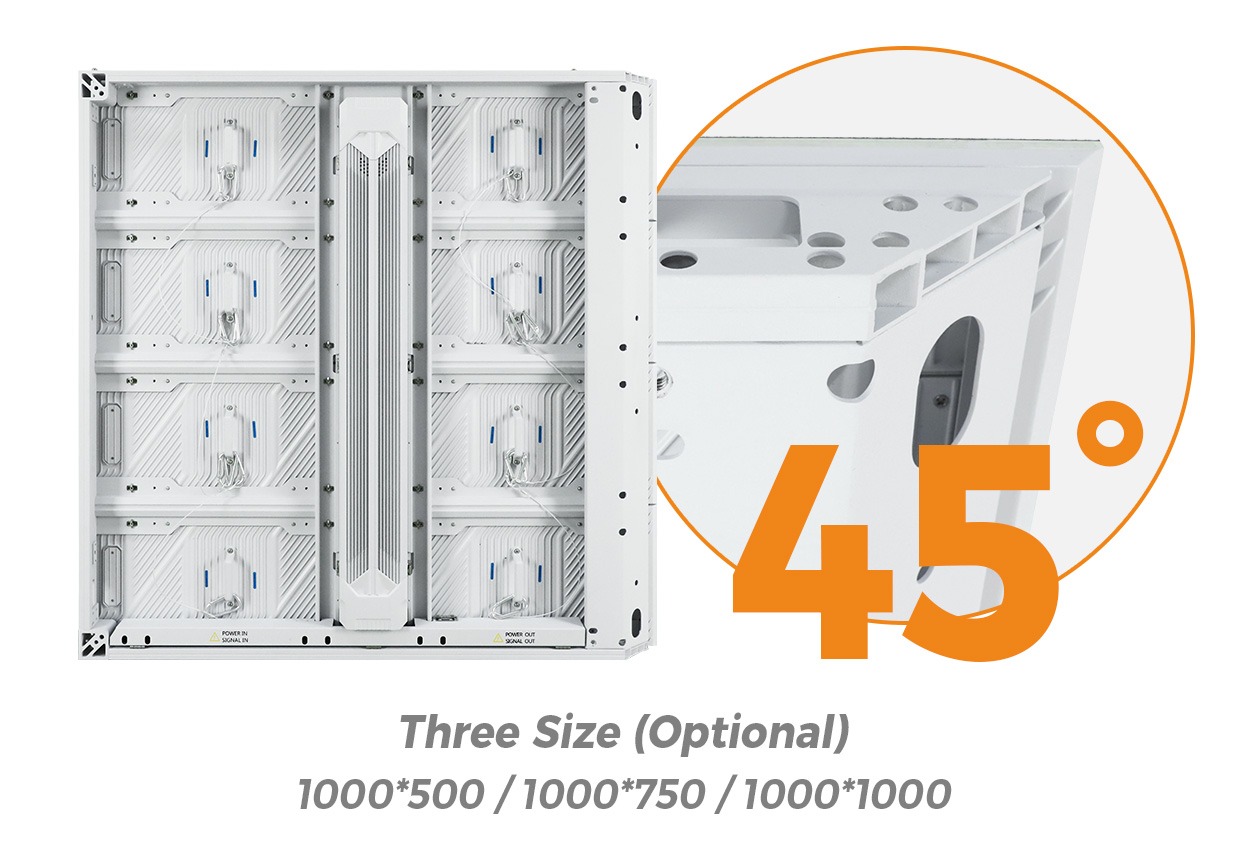

Optional 45° Beveled Cabinet
Optional 45° beveled cabinets are available in three size configurations and pair to form a 90° corner. This creates a clean edge for corner advertising displays without a wide central seam.
3,840 Hz Refresh and Up to 6,500 cd/m²
Pixel pitches from P2.97 to P10.42 cover close-to-long viewing distances, while brightness reaches up to 6,500 cd/m² for daylight visibility. A 3,840 Hz refresh rate supports stable camera capture and smooth motion playback.

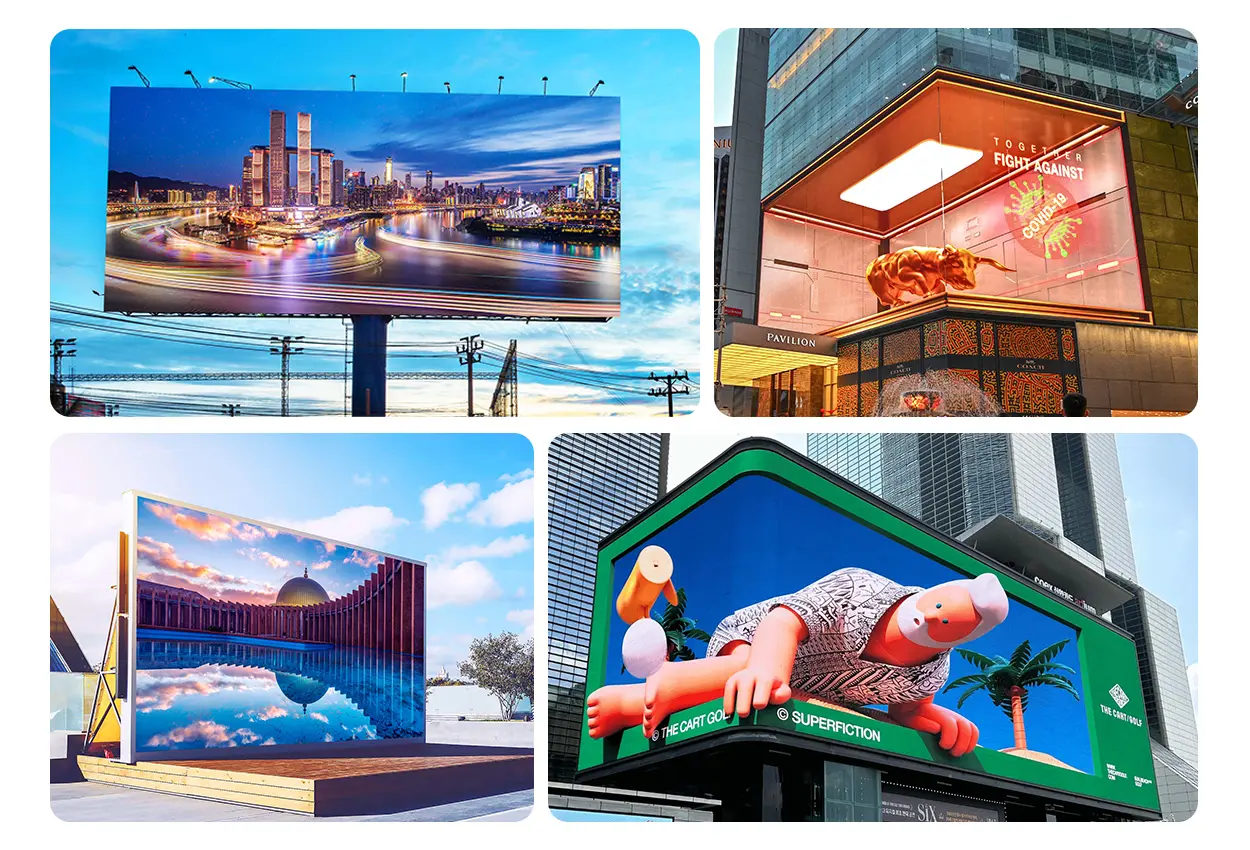

Outdoor Advertising Applications
Designed for outdoor fixed installations, EA1000F2 suits commercial façades, roadside billboards and landmark media displays. IP65-rated protection, dual-side service and optional corner cabinets support exposed sites and creative screen geometries.
EA1000F2 1000 × 1000mm Outdoor LED Screen Specifications
EA1000F2 Curved Outdoor LED Screen Specifications
EA1000F2 Outdoor LED Advertising Screen FAQ
What is the EA1000F2 outdoor LED advertising screen?
EA1000F2 is a fixed-installation outdoor LED display with a 1,000 × 1,000 mm aluminum cabinet, P2.97–P10.42 pixel pitches, front and rear service, IP65-rated protection and a 3,840 Hz refresh rate. It is designed for billboards, building façades and commercial media screens.
Which pixel pitches are available for EA1000F2?
The series covers P2.97, P3.91, P4.81, P6.25, P7.81 and P10.42. Select the pitch according to the nearest viewing distance, required screen resolution, display dimensions and ambient-light conditions.
How bright is the EA1000F2 outdoor LED screen?
Brightness reaches up to 6,500 cd/m² for daylight-visible outdoor content. The final calibrated brightness depends on the selected pixel pitch, LED configuration and project settings.
How is the EA1000F2 maintained?
The cabinet supports both front and rear maintenance. Front access is useful when a wall or structure limits rear clearance, while rear access suits freestanding installations with a service corridor.
Which cabinet sizes are available?
Six cabinet sizes are available: 1,000 × 500, 1,000 × 750, 1,000 × 1,000, 1,500 × 250, 1,500 × 750 and 1,500 × 1,000 mm. They use a common 500 × 250 mm LED module platform.
What does the IP65 rating mean for an outdoor installation?
EA1000F2 is specified with IP65-rated protection against dust and water jets. Overall weather resistance also depends on cabinet sealing, cable entries, the supporting structure, drainage and correct on-site installation.
Can EA1000F2 build 90° corner or naked-eye 3D displays?
Yes. Optional 90° corner cabinets and 45° beveled cabinets are available in three size configurations for right-angle screens, wraparound façades and naked-eye 3D content layouts.
Why is a 3,840 Hz refresh rate useful?
A 3,840 Hz refresh rate supports smooth motion reproduction and more stable camera capture, helping reduce visible scan lines or flicker in photographed and filmed content.
Where is the EA1000F2 typically installed?
Typical applications include roadside LED billboards, shopping-center façades, transport hubs, landmark buildings and corner advertising displays. Pixel pitch, brightness, structure and service access should be engineered for the specific site.
