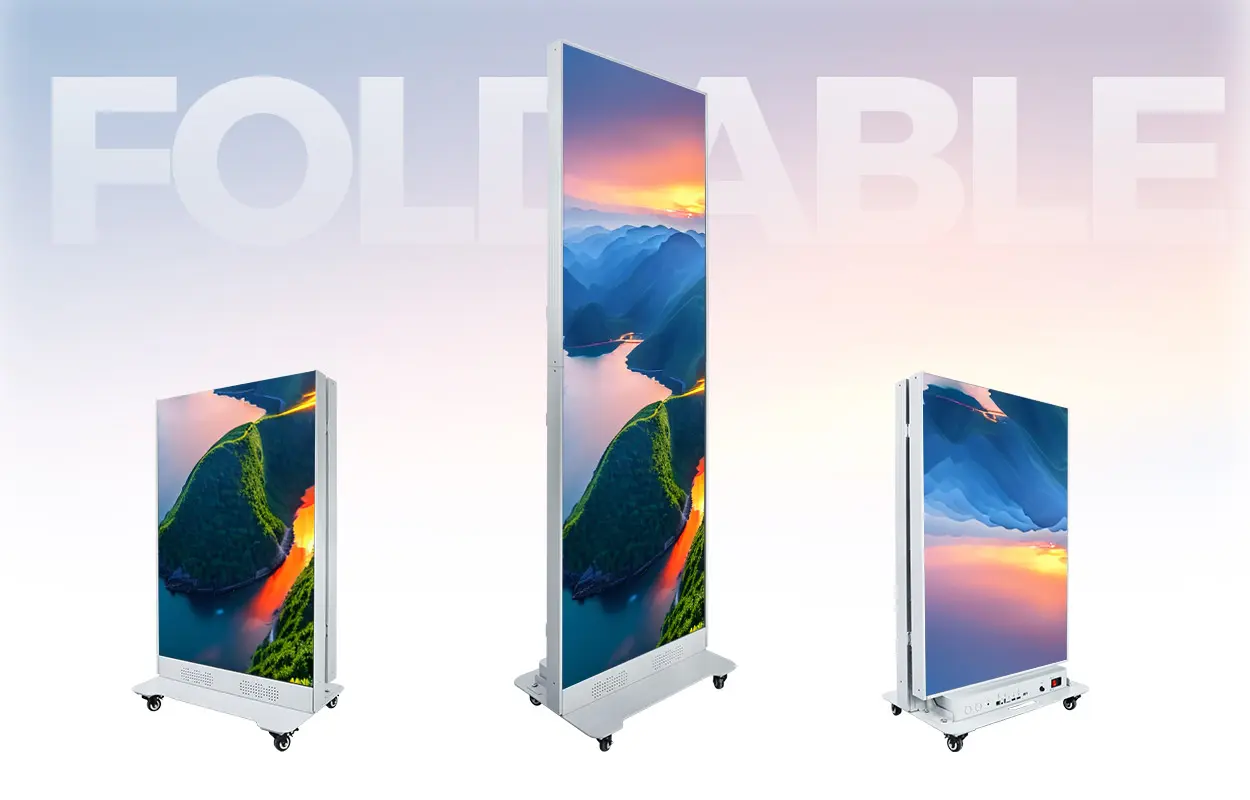

Indoor Foldable LED Poster for Flexible Digital Signage
The EA1920iP5 is an indoor foldable GOB LED poster for retail signage, exhibitions and recurring promotional displays. Its 640 × 1,920 mm cabinet format combines a central hinge, front-service access and configurable content control. Confirm the intended open or folded arrangement and the selected controller before placing an order.
- Indoor foldable GOB poster for retail, exhibitions and repeat campaigns.
- Confirm open footprint, viewing distance, content schedules and control software.
- Agree a sample configuration, packing and spares before a multi-site order.
On this page
EA1920iP5 Indoor Signage Purchase Checks
Plan the display around the closest shopper or visitor, the content detail and the route between storage and the operating position. Specify whether each face should show the same campaign or different scheduled content; the control configuration must support the intended workflow.
- Physical deployment: check the open footprint, hinge and locking arrangement, doorway clearance and service space.
- Content management: identify who will publish content, whether sites need independent schedules, and which network or direct-input workflow is required.
- Order configuration: confirm pixel pitch, controller, software, audio needs, cables, packing and spare parts rather than quoting the cabinet alone.
- Environment: this is an indoor display. GOB surface protection should not be treated as proof of outdoor weather suitability.
What should I confirm before a multi-site order?
Agree a sample configuration and content test, then document the required controller and software for every unit. Send quantities, viewing distance, site conditions, display mode and destination through our EA1920iP5 quotation enquiry. Compare the LED poster range if outdoor use or another display format is needed.

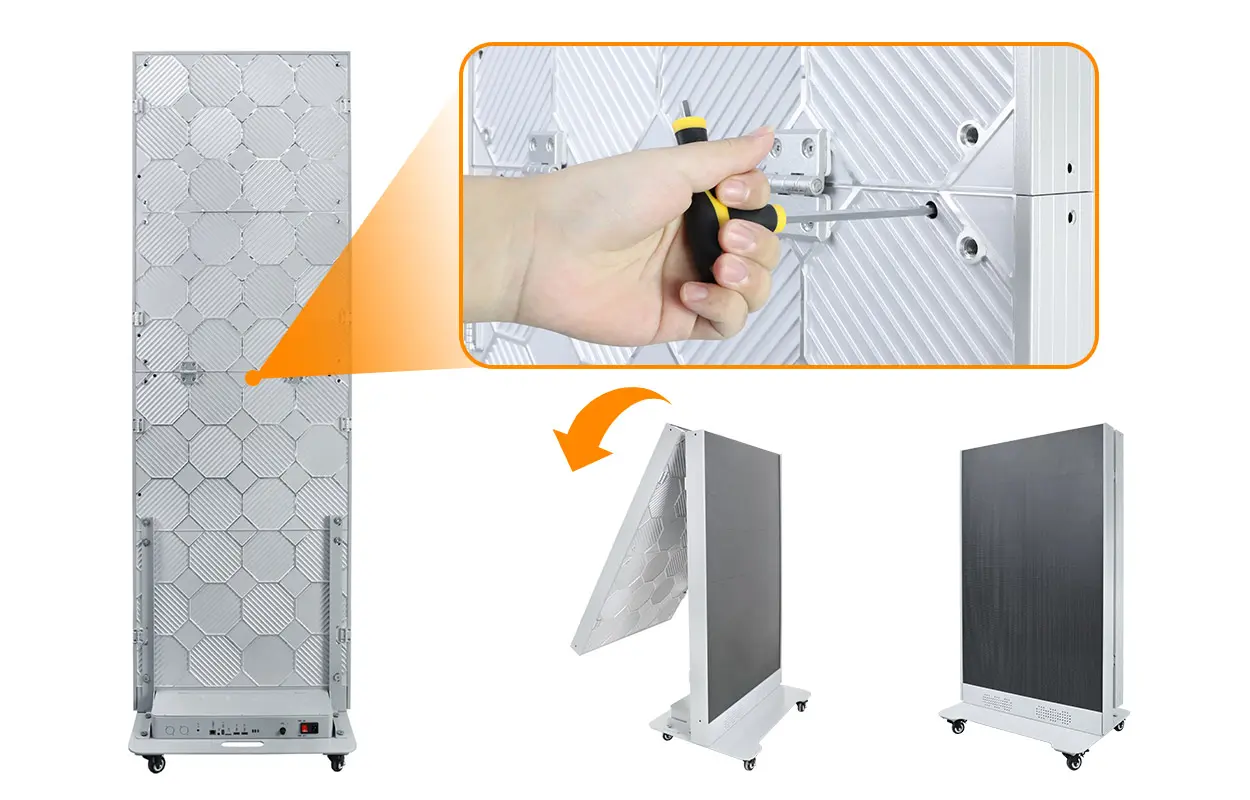

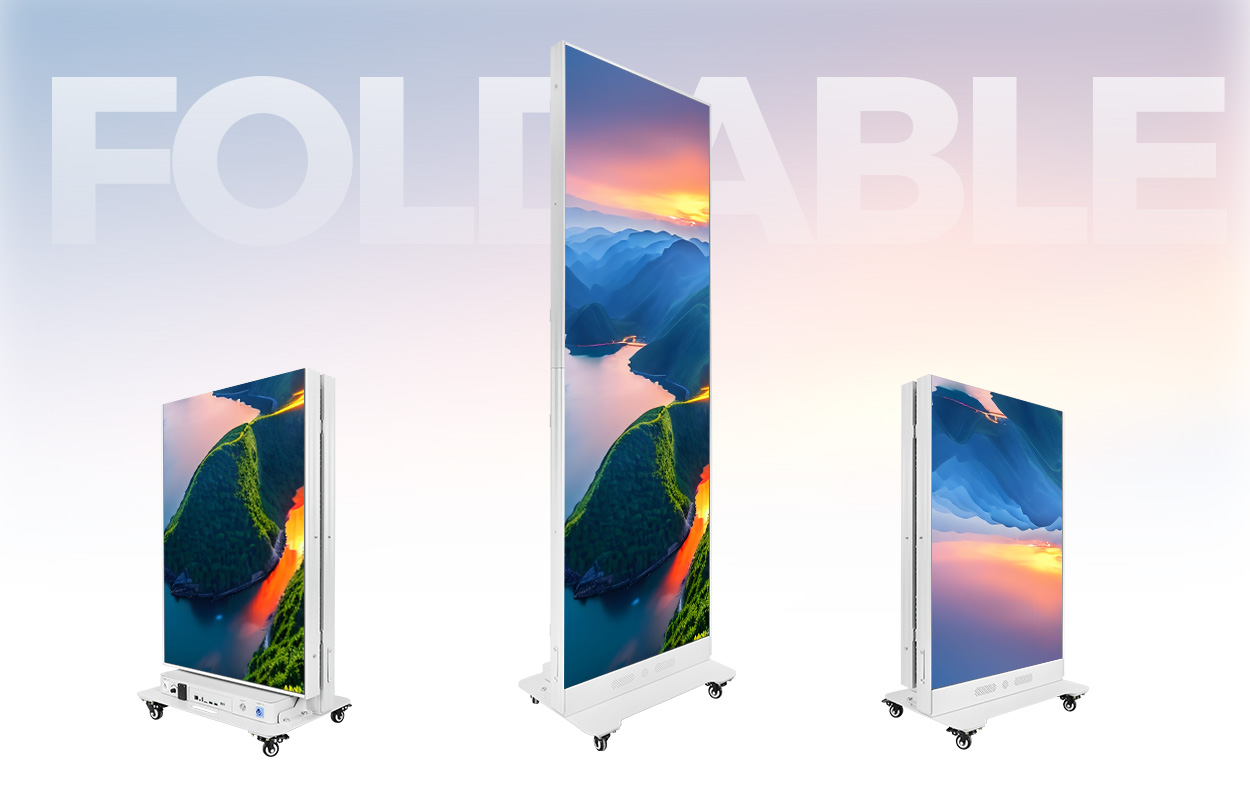

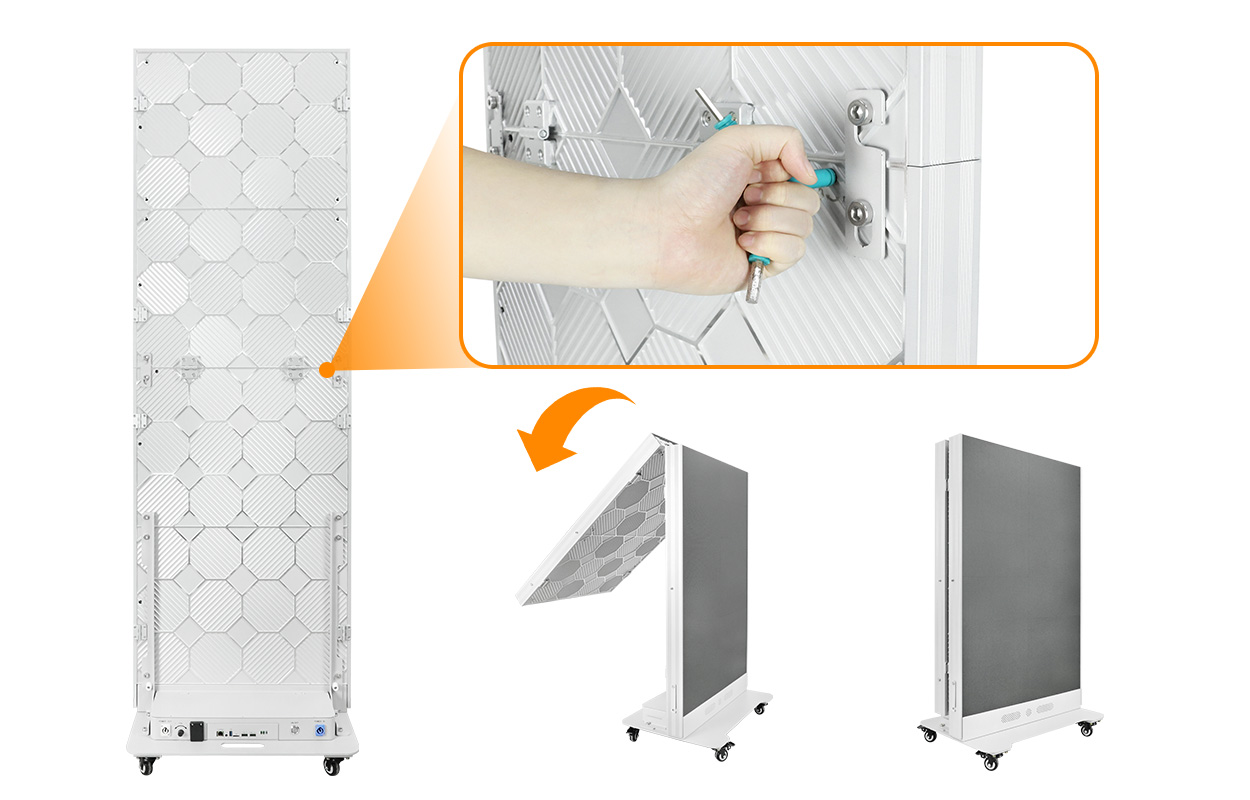

Central-Hinge Foldable Design
Two display sections are connected by a reinforced hinge and secured by rear locking fasteners. Once opened, the two faces can show synchronized or separately scheduled content when supported by the selected controller and software.

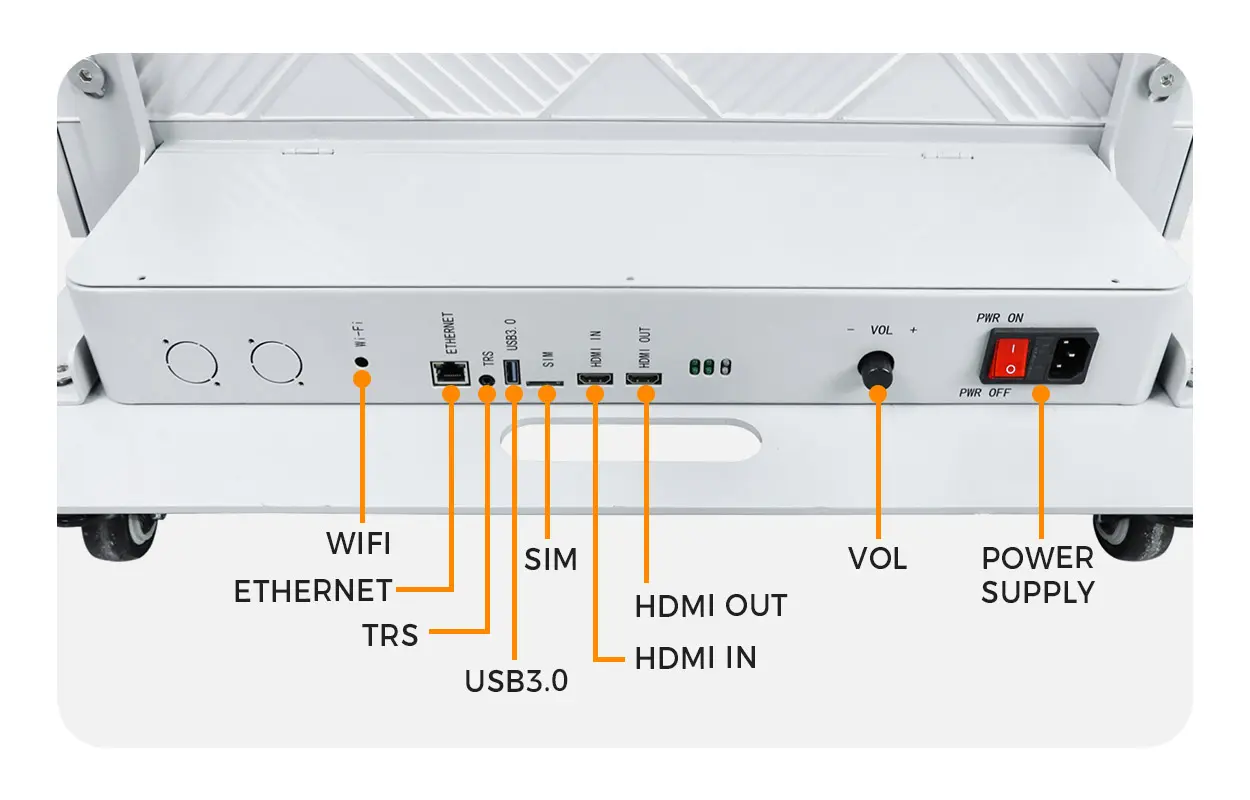

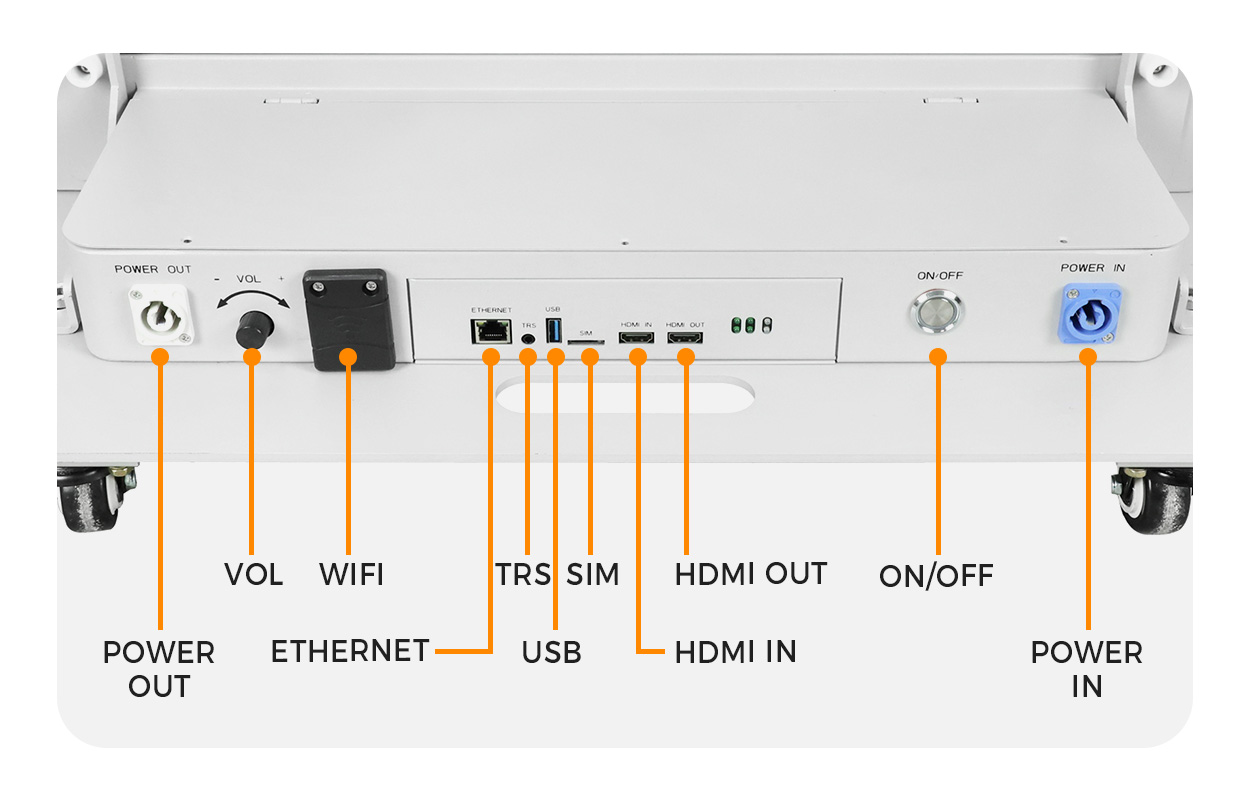

Flexible Signal and Network Connectivity
Wi-Fi, SIM, Ethernet, HDMI and USB interfaces support networked publishing and direct source input. Available workflows depend on the installed controller and content-management software.

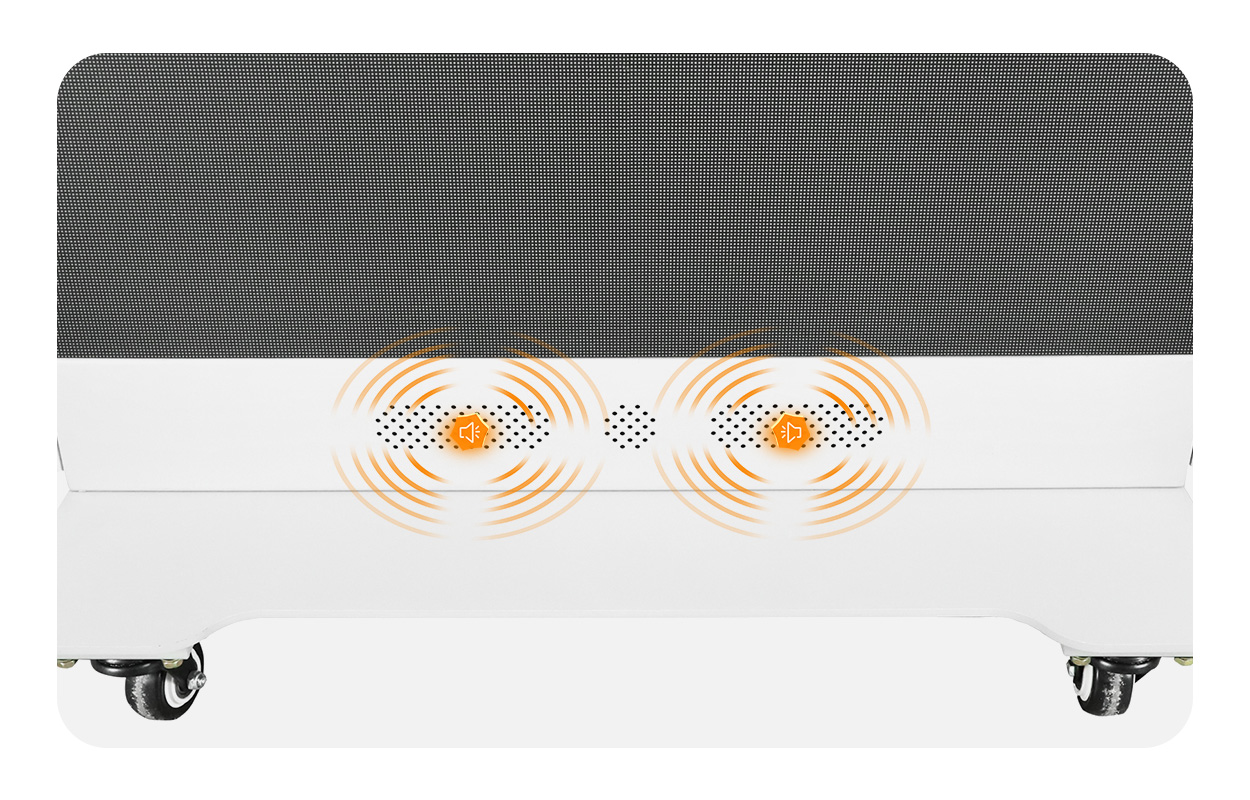

Integrated Audio for Digital Signage
Built-in speakers add audio playback for advertising, wayfinding and presentation content without a separate speaker system. Audio level and coverage should be matched to the installation environment.

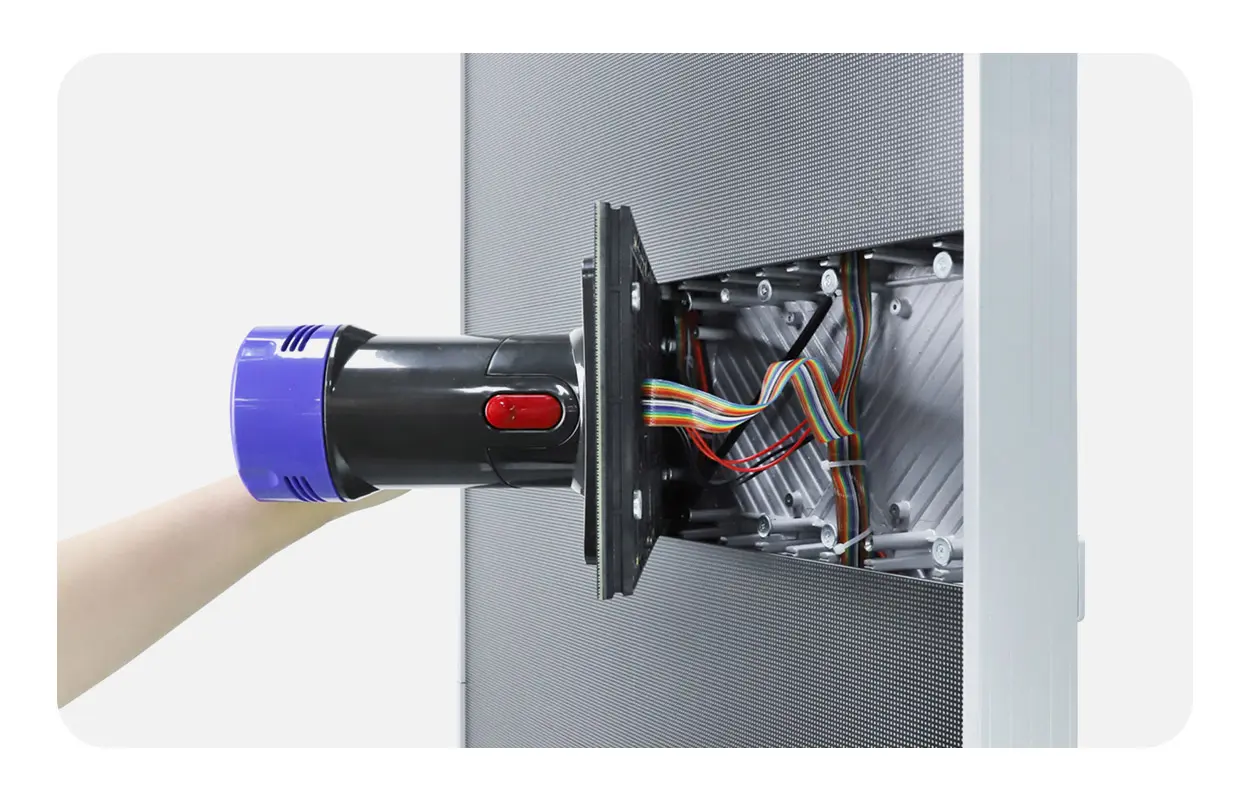

Front-Service Component Access
LED modules, power supplies and control cards are accessible from the front, reducing the rear clearance required for routine service. This layout is useful where the display is positioned close to a wall or within a constrained footprint.

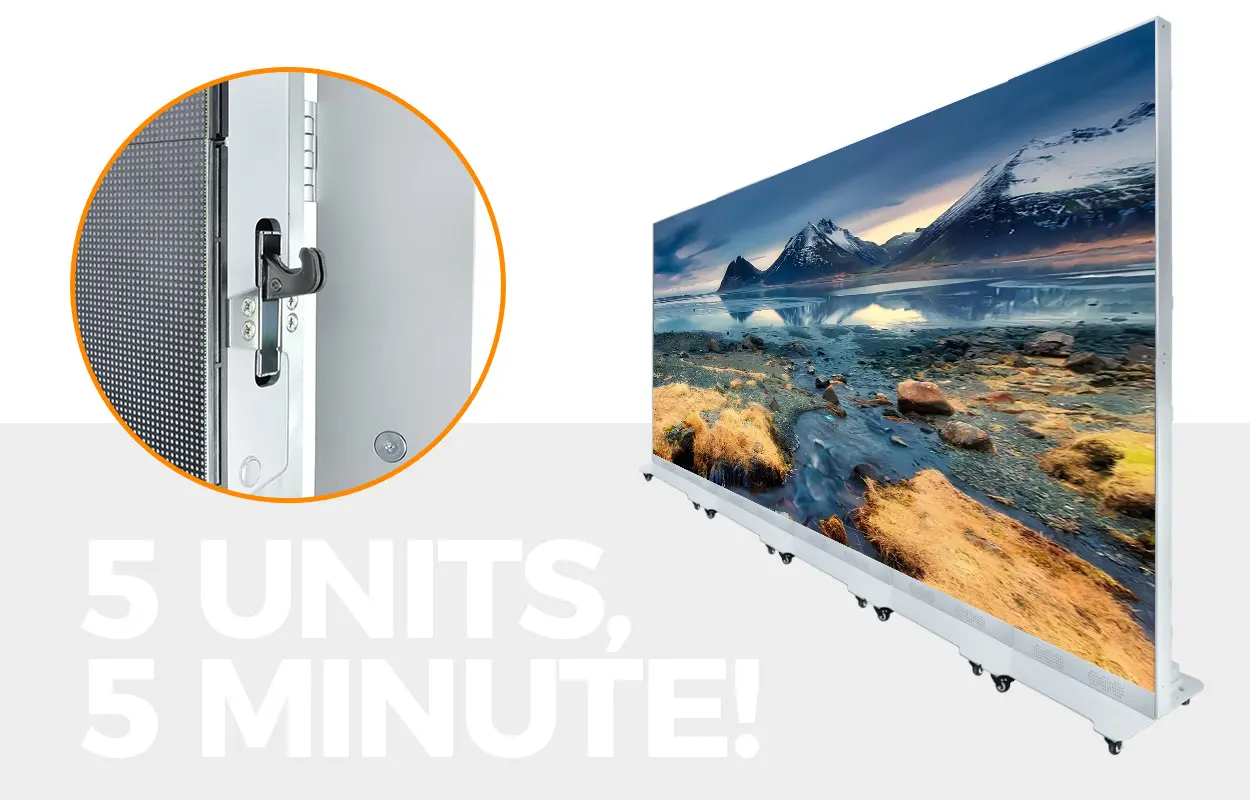

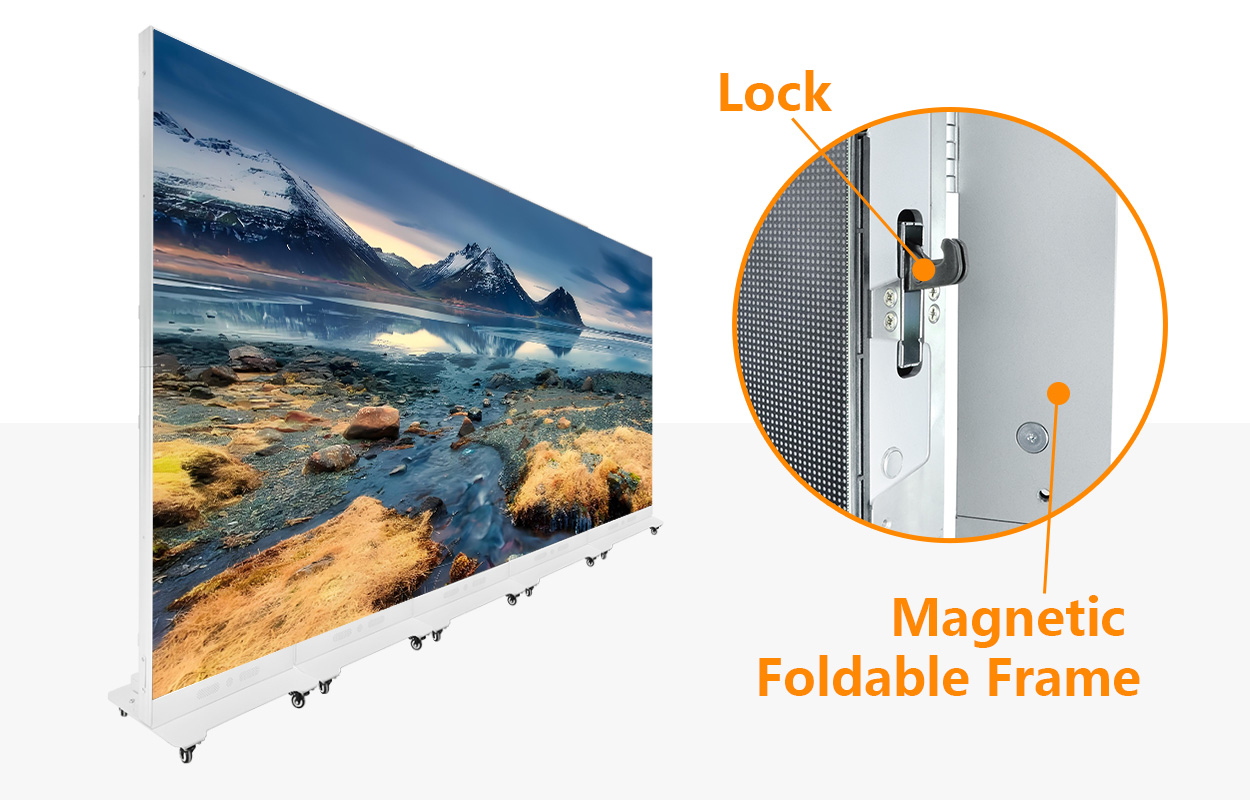

Modular Splicing for Larger Displays
Multiple EA1920iP5 units can be aligned vertically or horizontally to create a larger indoor canvas. The support structure, signal routing and pixel map should be engineered for the final screen dimensions and orientation.

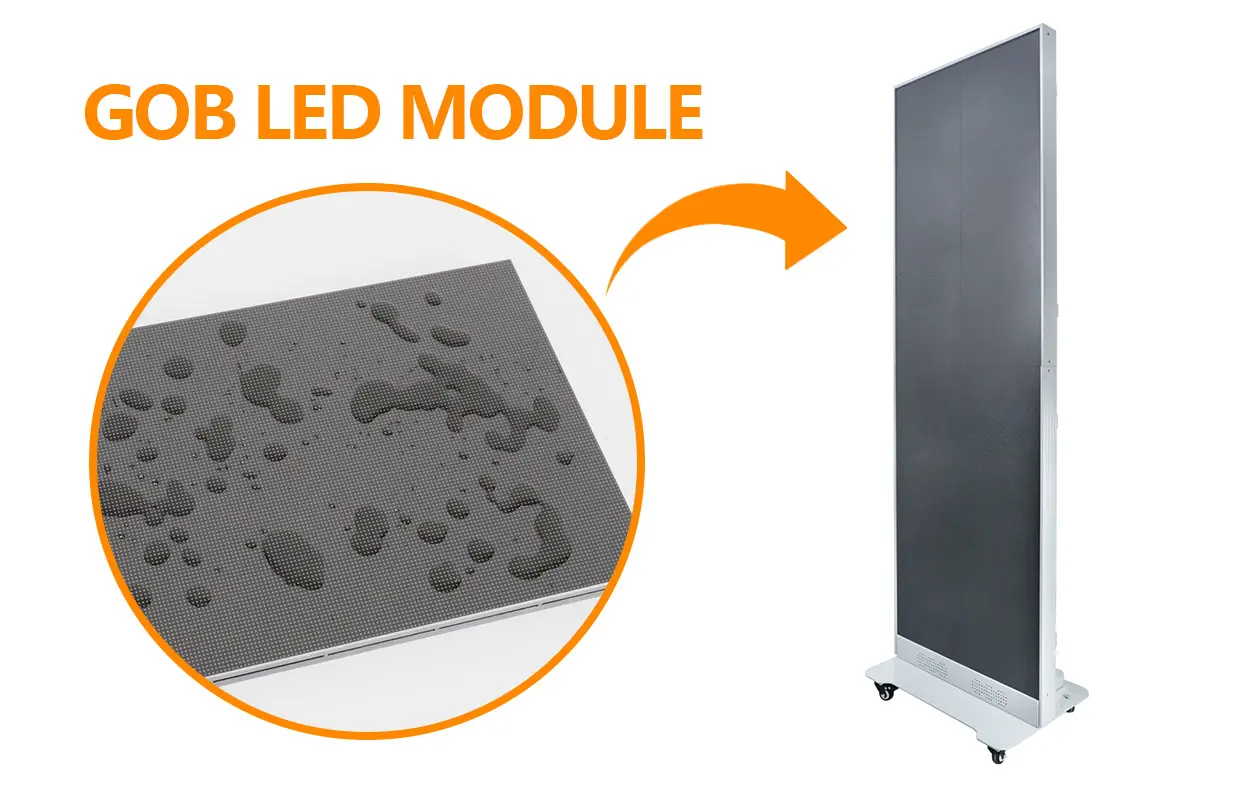

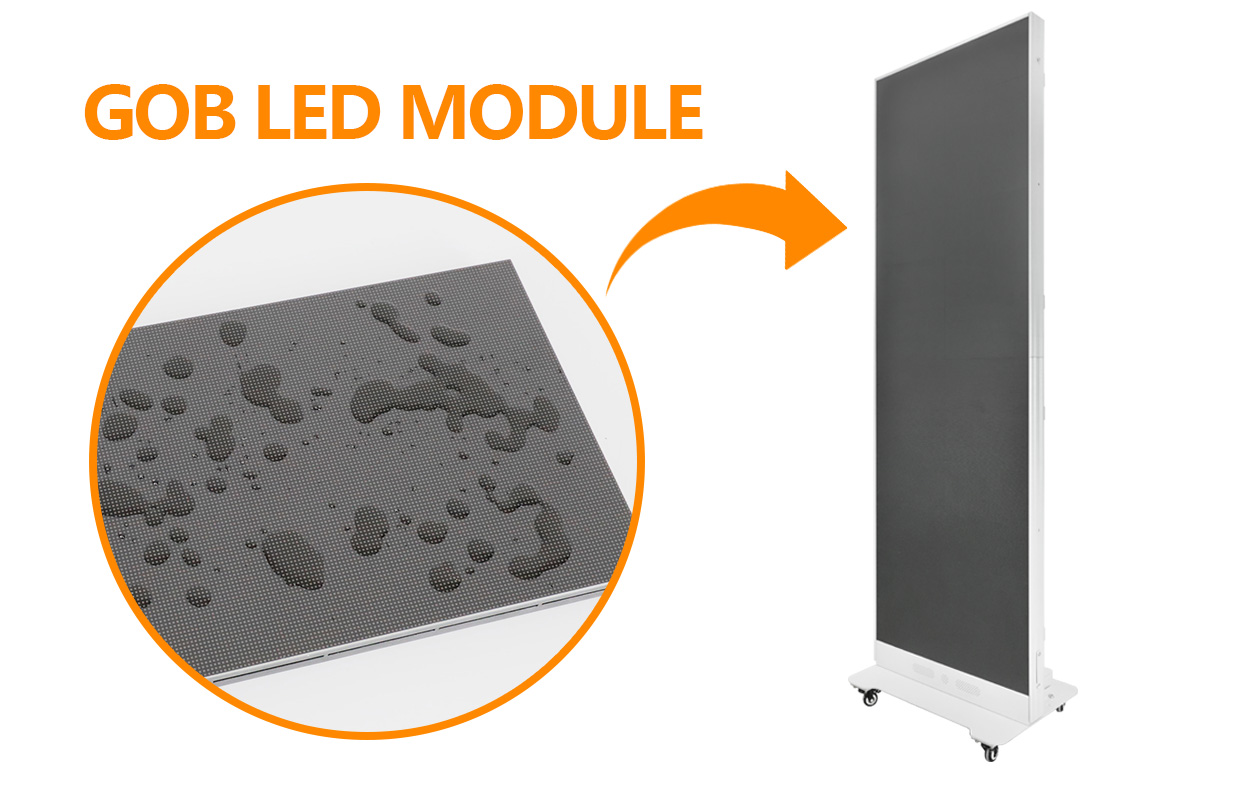

GOB Surface Protection
On the GOB configuration, the encapsulated LED surface improves resistance to dust, cleaning moisture and accidental impact while creating a smooth, easier-to-clean face. The product is rated IP31 and is intended for indoor use, not direct exposure to rain or outdoor weather.

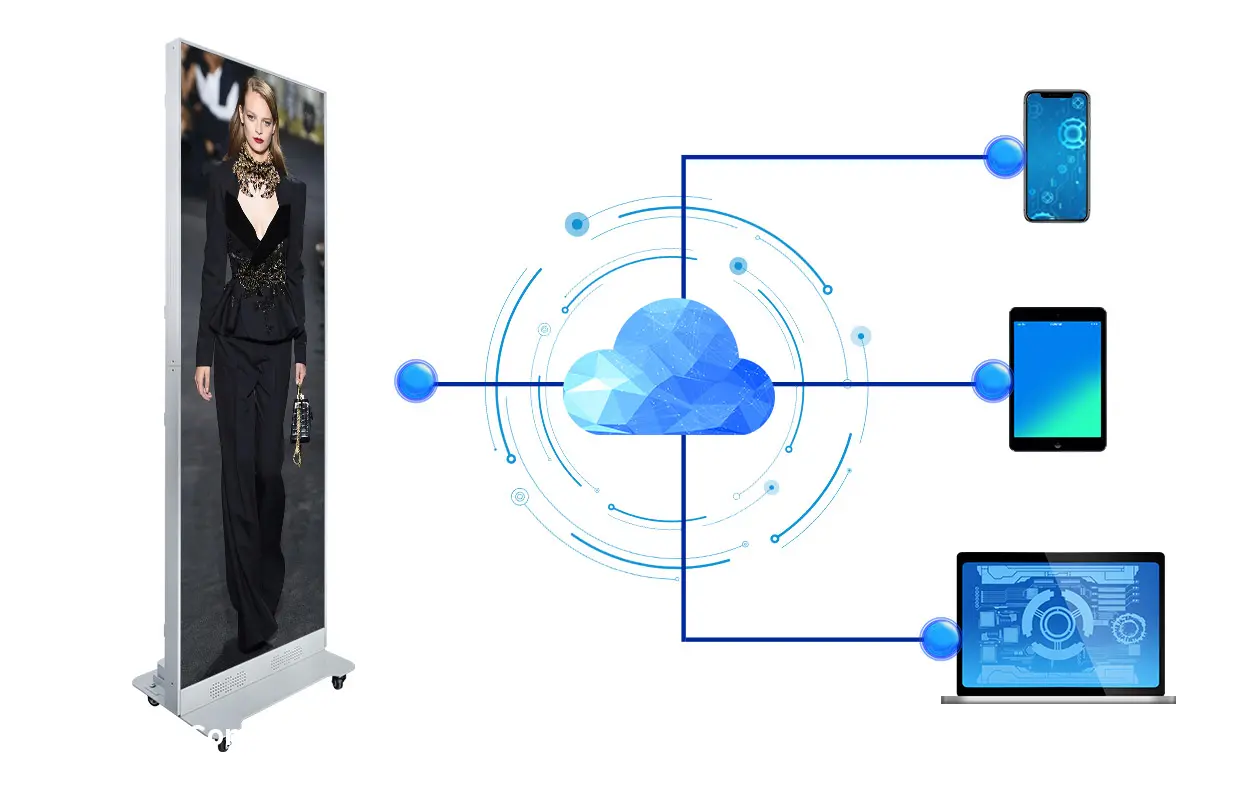

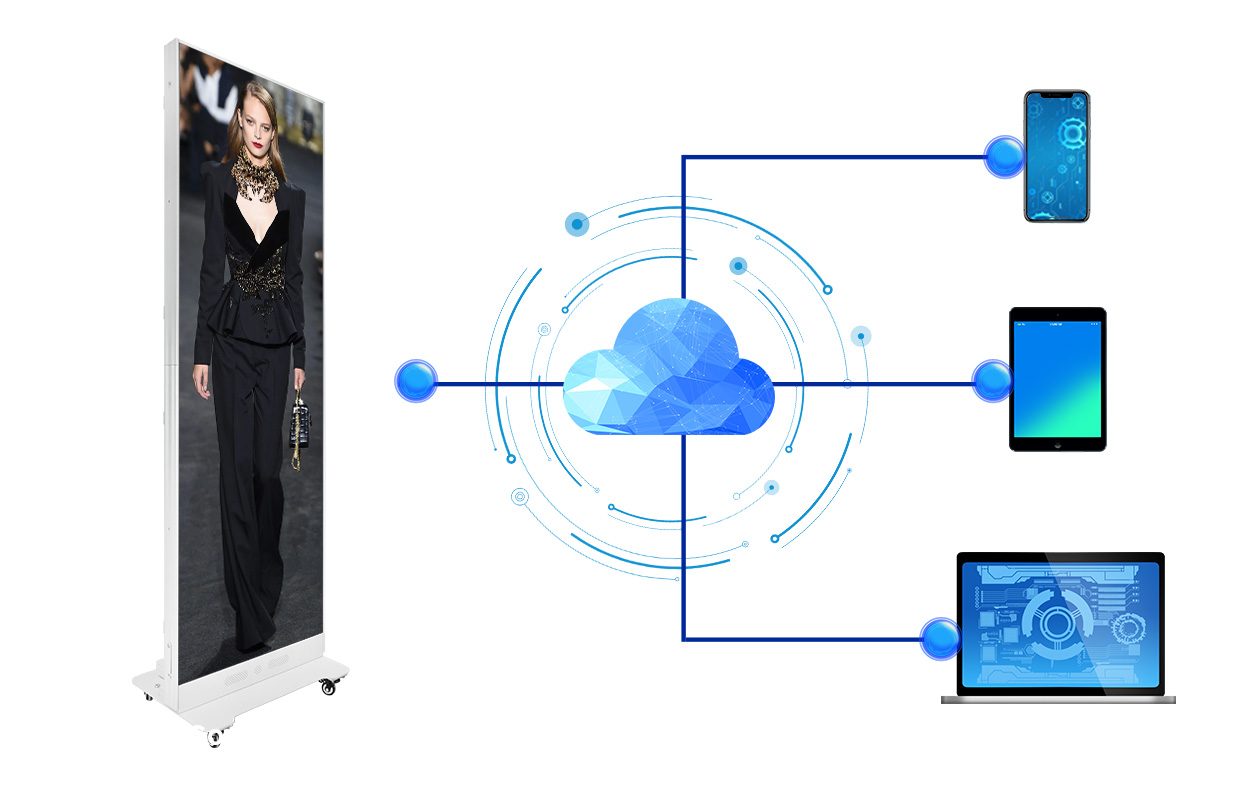

Multi-Platform Remote Content Management
With a network connection and compatible control system, operators can publish and update content from phones, tablets or computers. Scheduling, dual-screen playback and remote monitoring depend on the selected controller and software package.

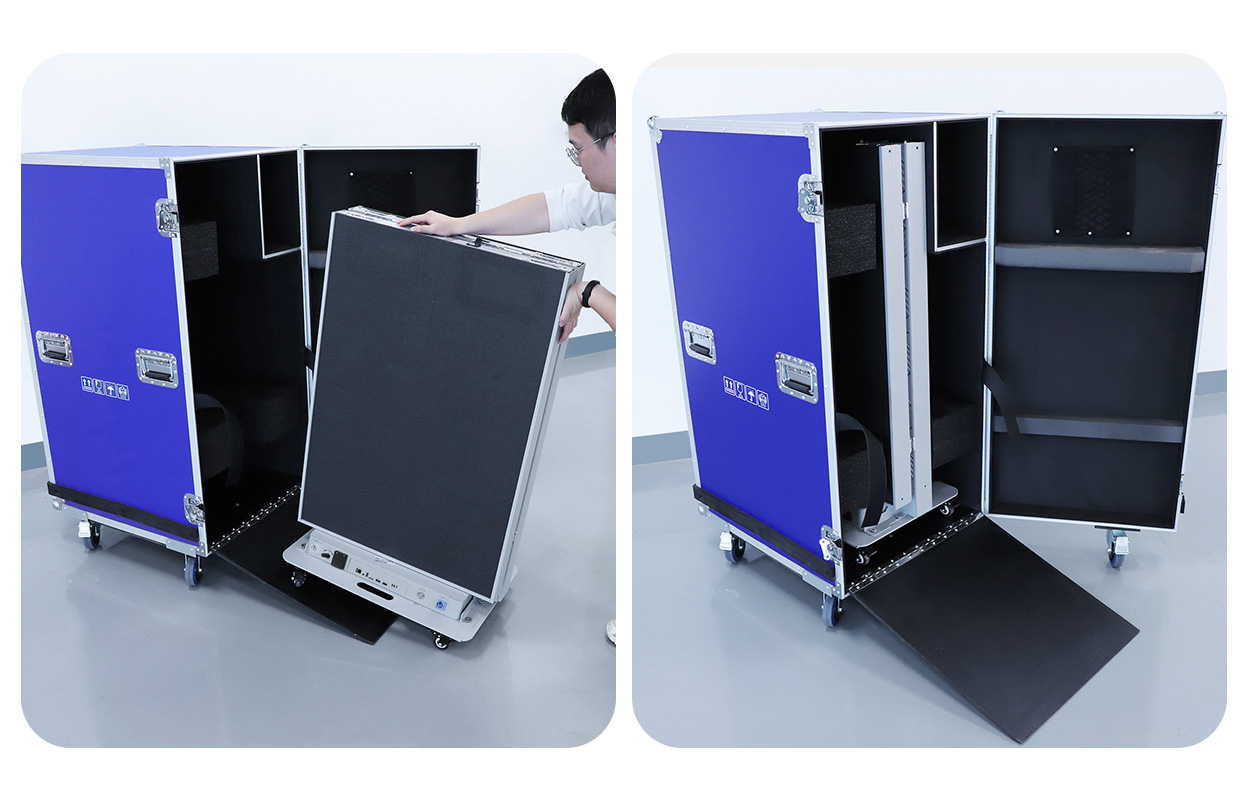

Flight-Case Protection for Transport
A dedicated flight case protects the display during storage and transport and supports repeat deployment. Because the complete display weighs 55 kg, appropriate lifting and handling equipment should be planned for site operations.
EA1920iP5 640 × 1920 Indoor Foldable SMD LED Poster Specifications
EA1920iP5 640 × 1920 Indoor Foldable COB LED Poster Specifications
EA1920iP5 Foldable LED Display FAQ
What is the EA1920iP5 foldable LED display?

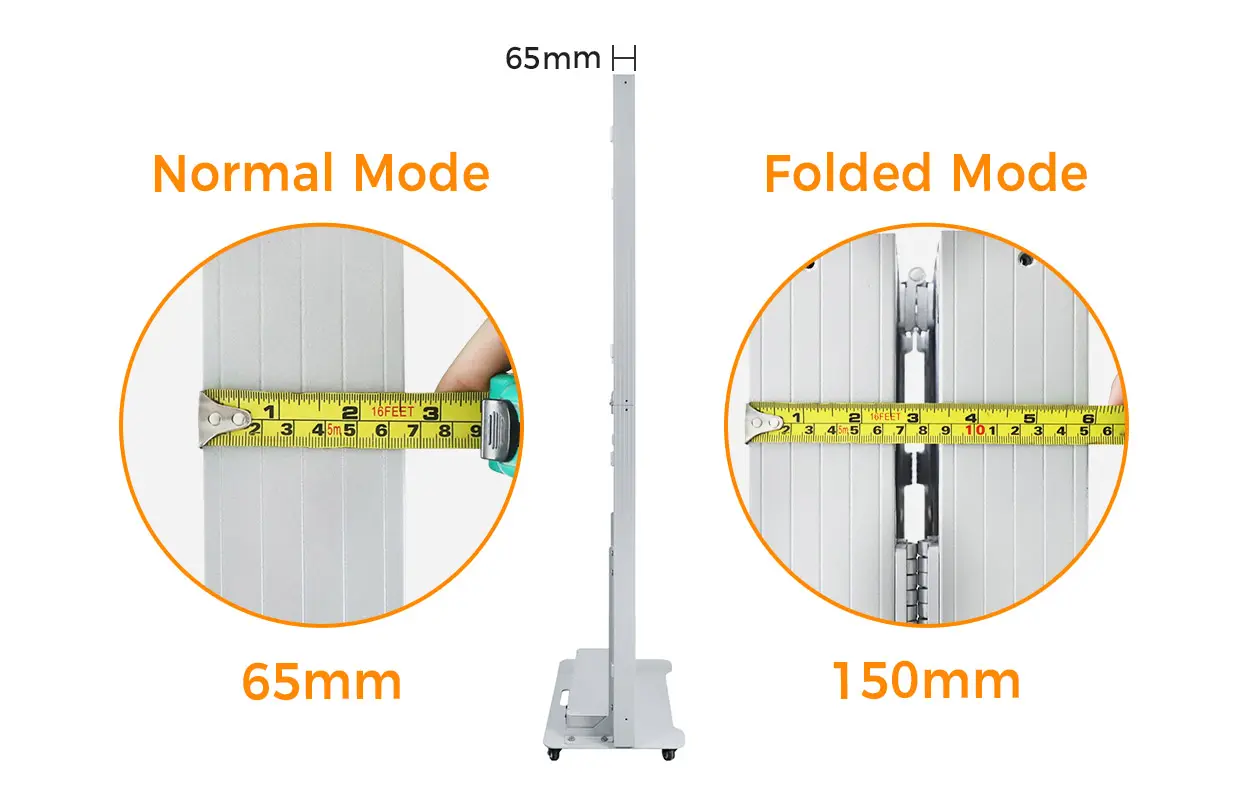

EA1920iP5 is a 640 × 1,920 mm indoor LED poster with a central hinge, 65 mm cabinet depth and front-service component access. It is available in SMD and flip-chip COB configurations for digital signage, showrooms, exhibitions and indoor event spaces.
Is the EA1920iP5 suitable for outdoor use?
No. Its IP31 protection rating and 600-800 cd/m² brightness range identify it as an indoor display; it should not be exposed directly to rain, outdoor dust or weather.
Which pixel pitches are available?
SMD versions are available in P1.25, P1.53, P1.86, P2 and P2.5. Flip-chip COB versions are listed in P1.25, P1.53 and P1.86, allowing the pitch to be selected for viewing distance and content detail.
What are the display dimensions and weight?
The active display size is 640 × 1,920 mm, the cabinet is 65 mm deep and the complete display weighs 55 kg. Site access, floor loading and handling should be checked before installation or repeated deployment.
How does the foldable design work?
Two display sections are joined by a reinforced central hinge and secured by rear locking fasteners. The cabinet can be used as a single poster or opened for dual-sided presentation, subject to the selected support and control configuration.
What visual performance does EA1920iP5 provide?
All listed variants provide a 140° viewing angle, 14-bit grayscale and a refresh rate of at least 3,840 Hz. Brightness is 600 cd/m² for P1.25-P1.86, 700 cd/m² for P2 and 800 cd/m² for P2.5.
How is the display serviced?
LED modules, power supplies and control cards can be accessed from the front. This reduces the need for a rear maintenance corridor and simplifies component replacement in space-constrained indoor installations.
Which control and input connections are supported?
The product supports Wi-Fi, SIM, Ethernet, HDMI and USB connectivity for network publishing and direct source input. Exact scheduling, monitoring and dual-screen playback functions depend on the controller and software selected for the project.
Can multiple EA1920iP5 units form a larger screen?
Yes. Multiple units can be aligned vertically or horizontally, provided the support structure, power distribution, signal routing and pixel mapping are engineered for the final layout.
