Configure Your EA500C6 Rental LED Video Wall

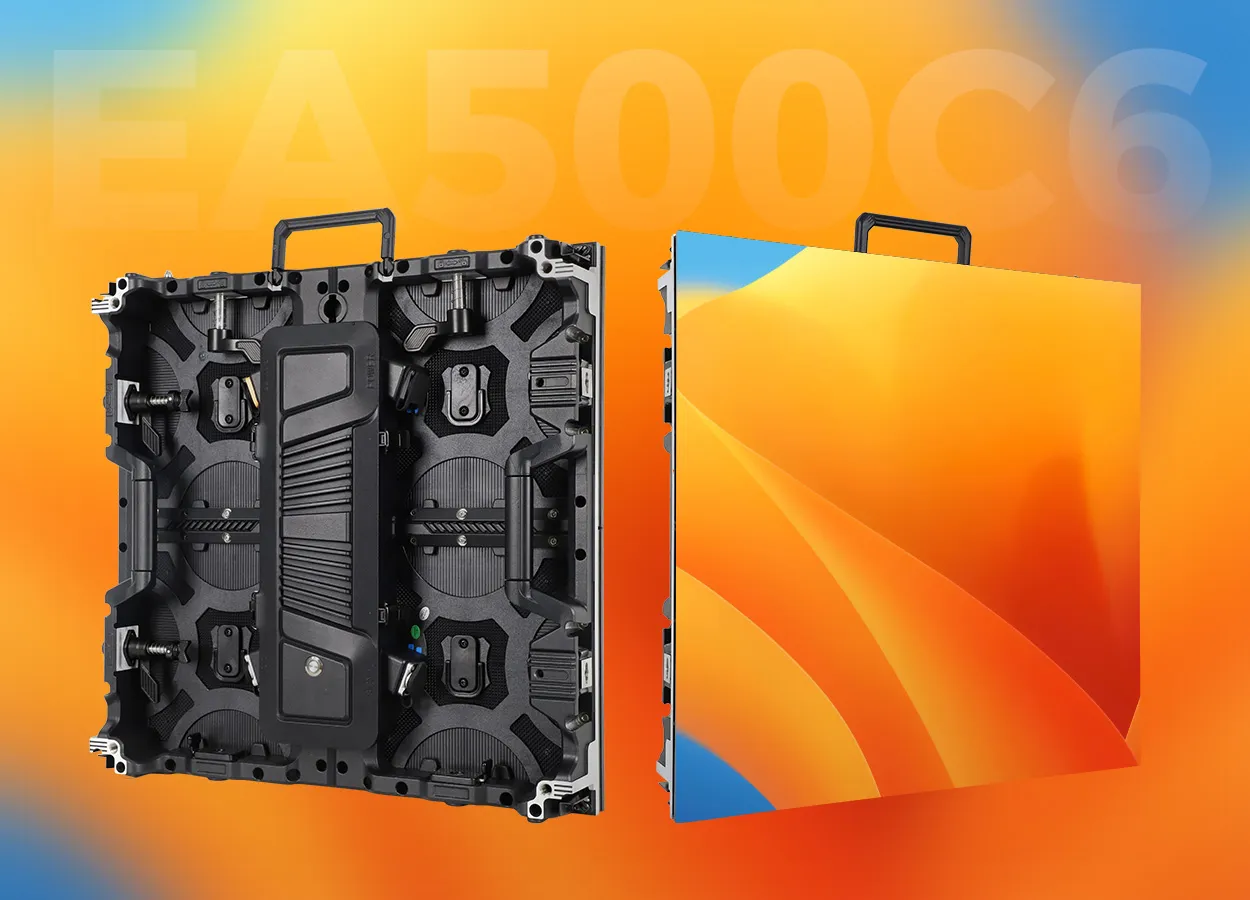

EA500C6 Indoor and Outdoor Rental LED Video Wall
The EA500C6 combines a 500 x 500 mm die-cast aluminum cabinet with stainless-steel fast locks and screws. The cabinet supports flat or curved layouts and is designed for repeated event setup, transport and teardown.
3,840 Hz Refresh for Events and Cameras
Every listed indoor and outdoor EA500C6 configuration provides a refresh rate of at least 3,840 Hz. Indoor brightness ranges from 700 to 800 cd/m2, while outdoor models range from 4,000 to 6,000 cd/m2. Stable on-camera performance also requires compatible controller, frame-rate and shutter settings.
Die-Cast Aluminum Rental Cabinet

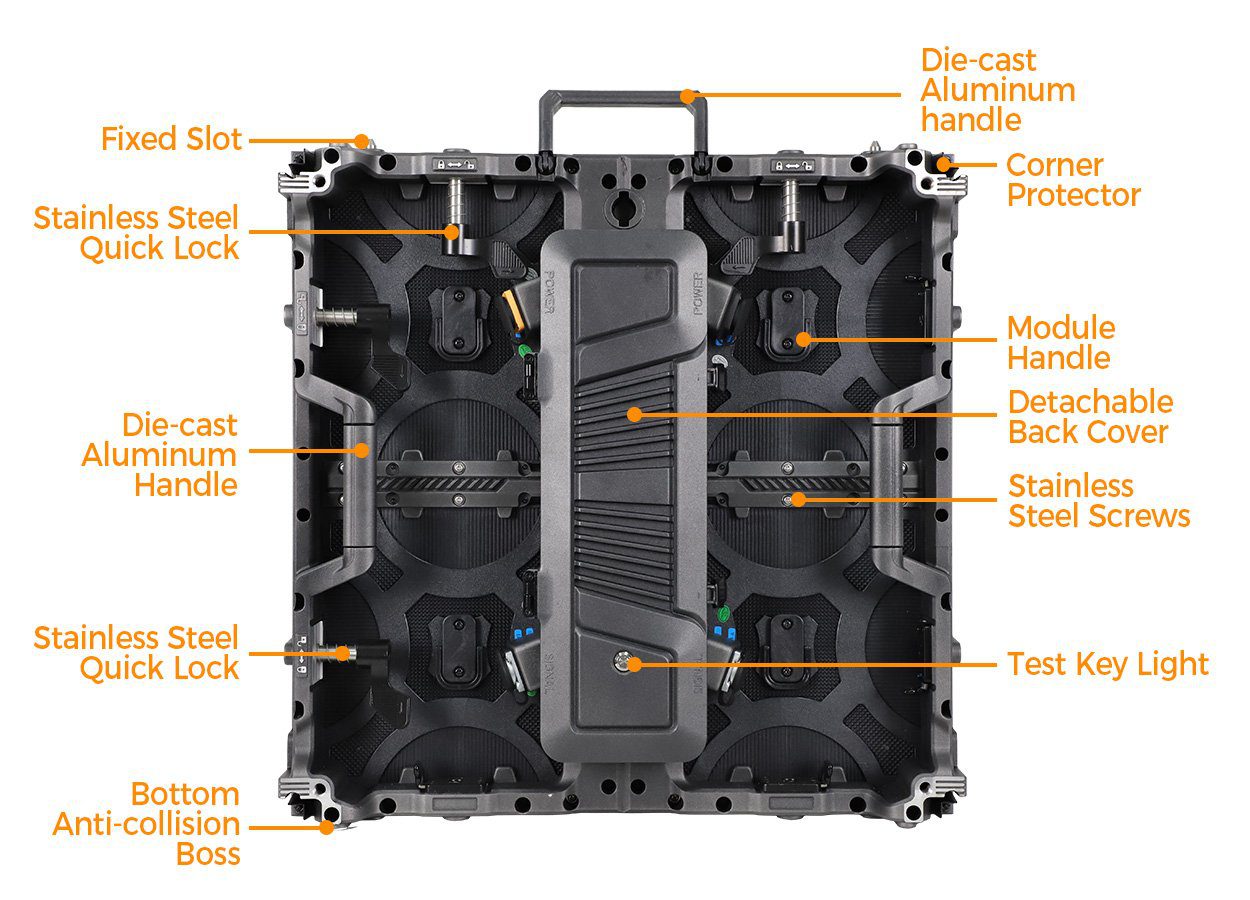

The cabinet combines aluminum-alloy handles, stainless-steel locks and screws, positioning hardware and corner protection. These parts support repeatable alignment and handling across rental workflows.
Rental-Ready Hardware and Handling Details

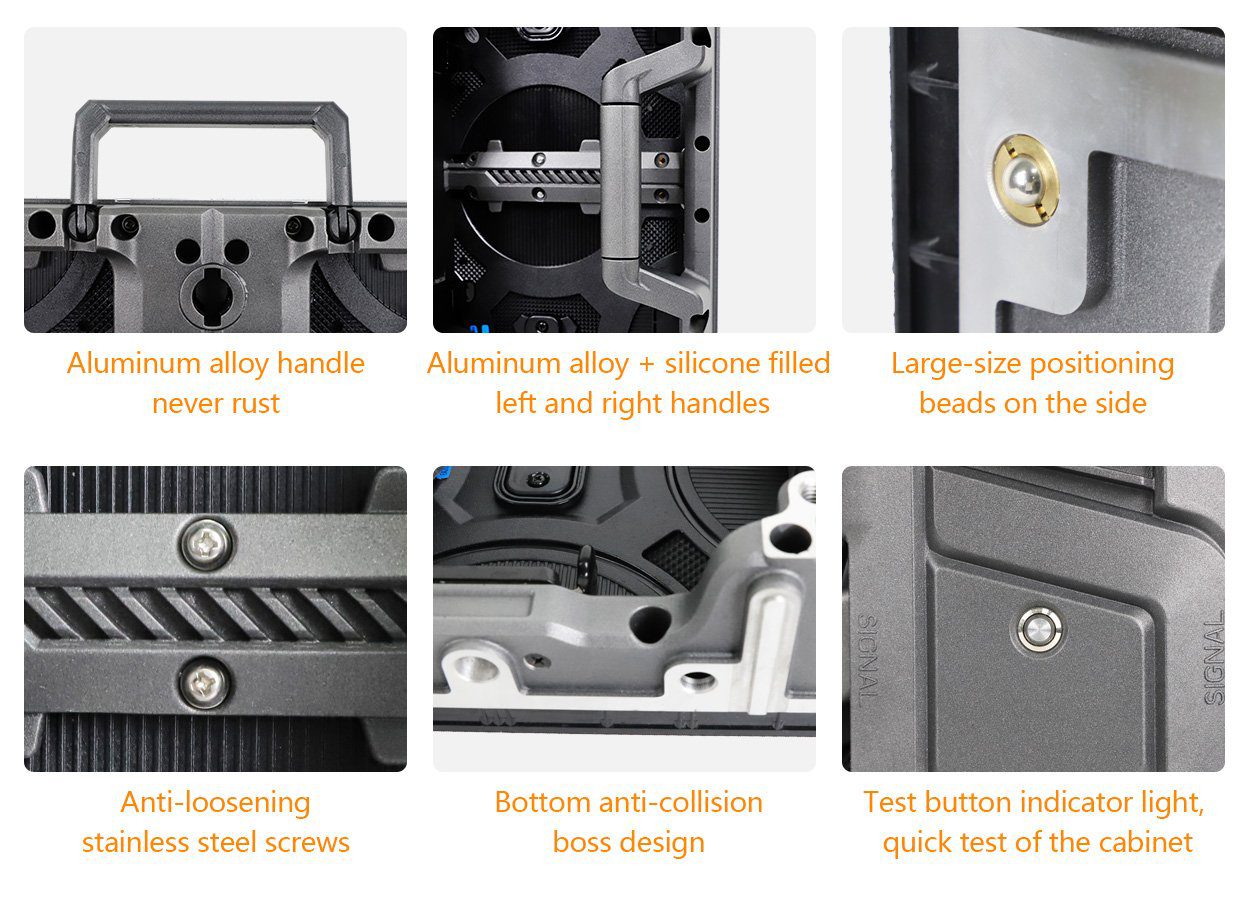

Service and handling details include rust-resistant aluminum-alloy handles, anti-loosening stainless-steel screws and cabinet positioning points. The design keeps frequently handled hardware accessible without adding loose external parts.

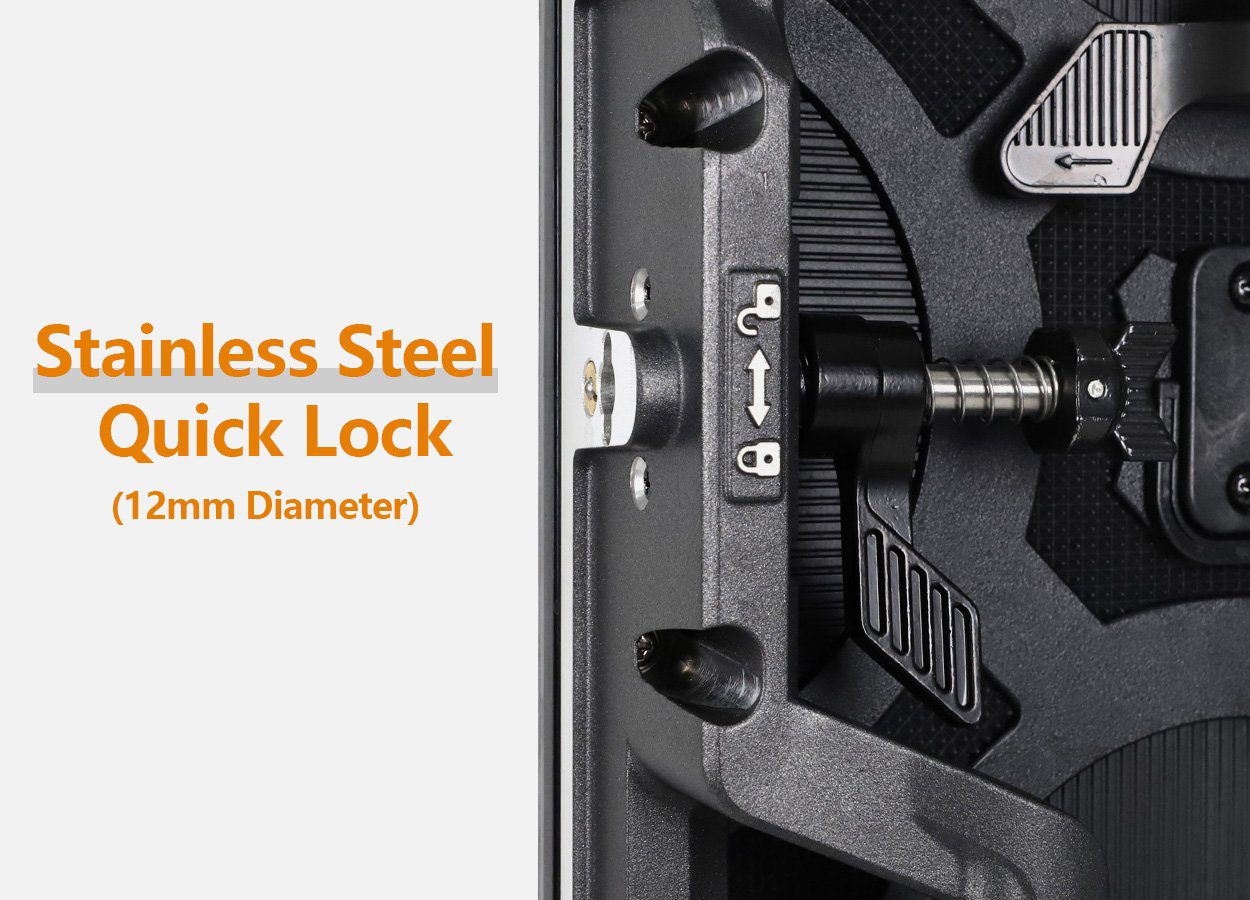

Two Fast Locks for Repeatable Setup

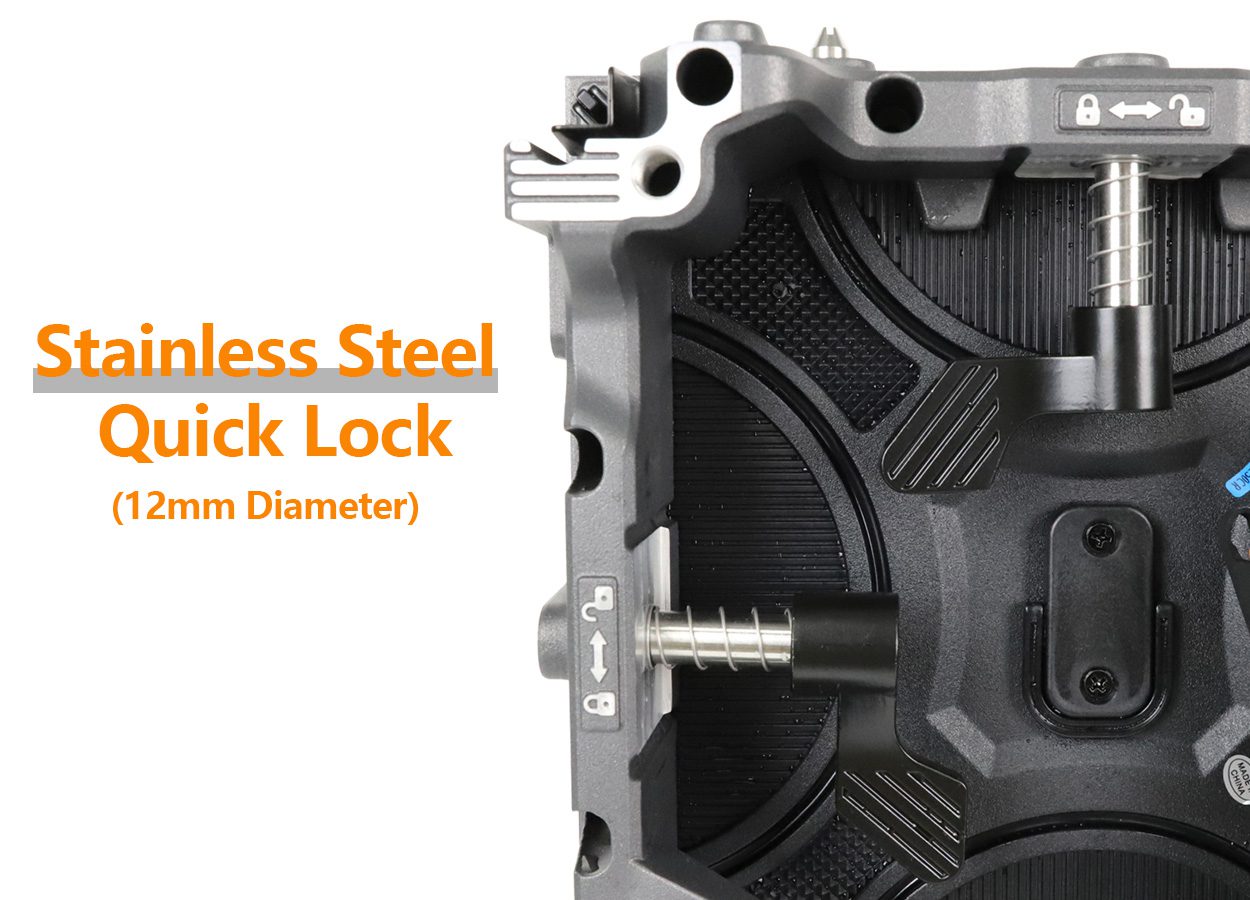

Two stainless-steel fast locks are positioned on the left and top edges of the cabinet. They support faster alignment between adjacent panels and help maintain a flat, stable display surface during repeated setup.

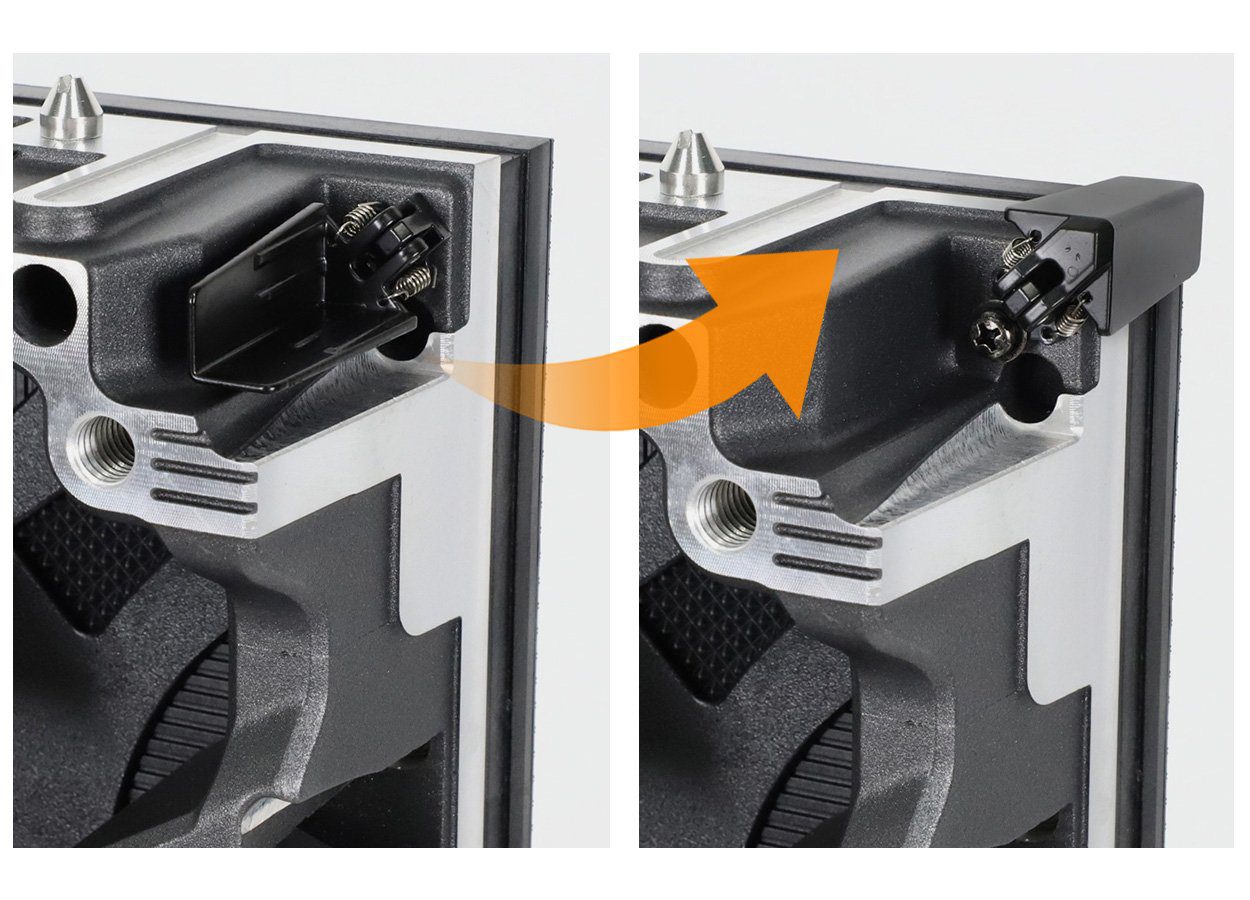

Four Corner Guards for Transport Protection
Four corner guards help protect vulnerable edge LEDs during transport, installation, operation and disassembly. This reduces direct contact with cabinet corners when panels move between flight cases and rigging points.

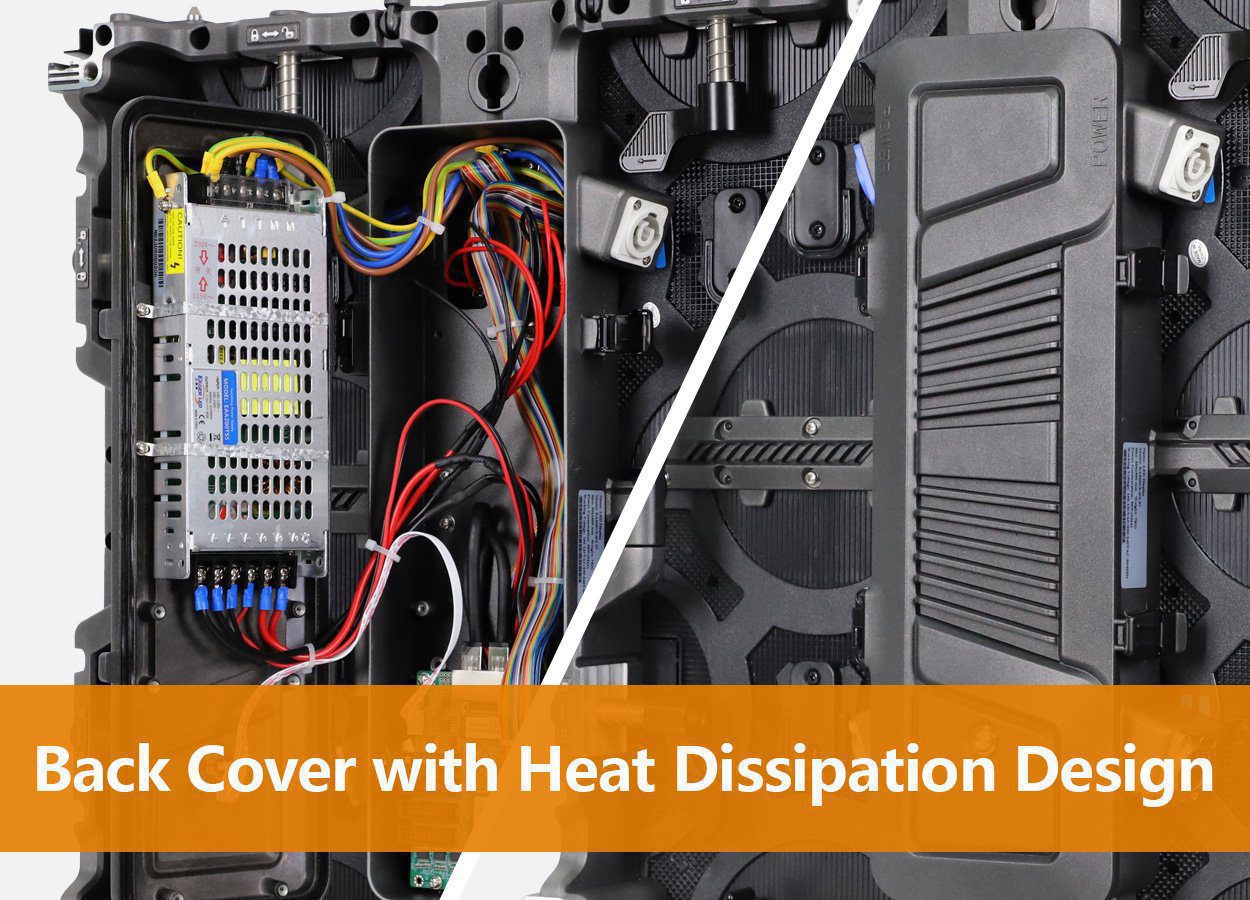

Openable Rear Cover for Service and Cooling
The openable rear cover provides access to the power and service area. Its vented design also supports heat dissipation, while the nearby power components remain reachable for inspection and replacement.

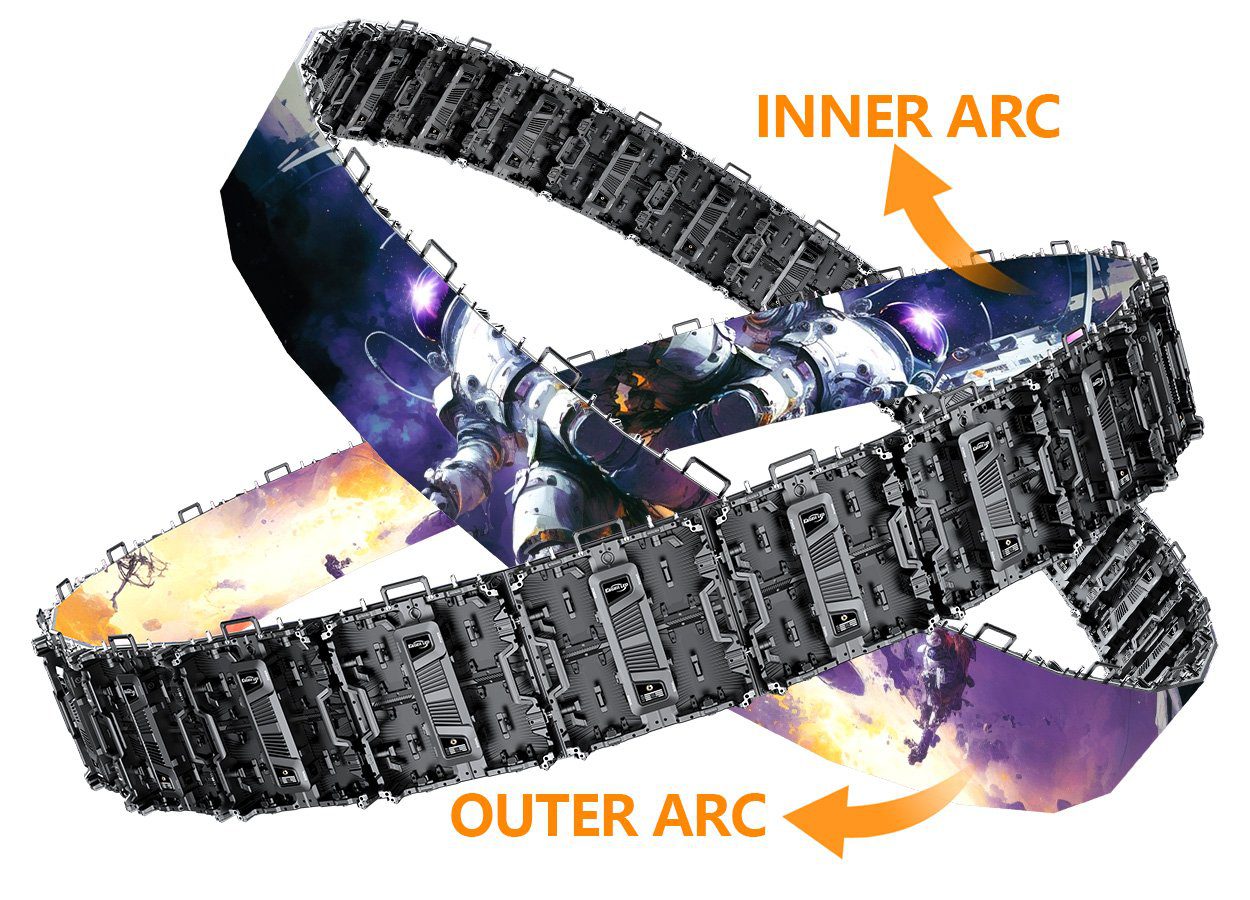

Optional Arc Locks for Curved LED Walls

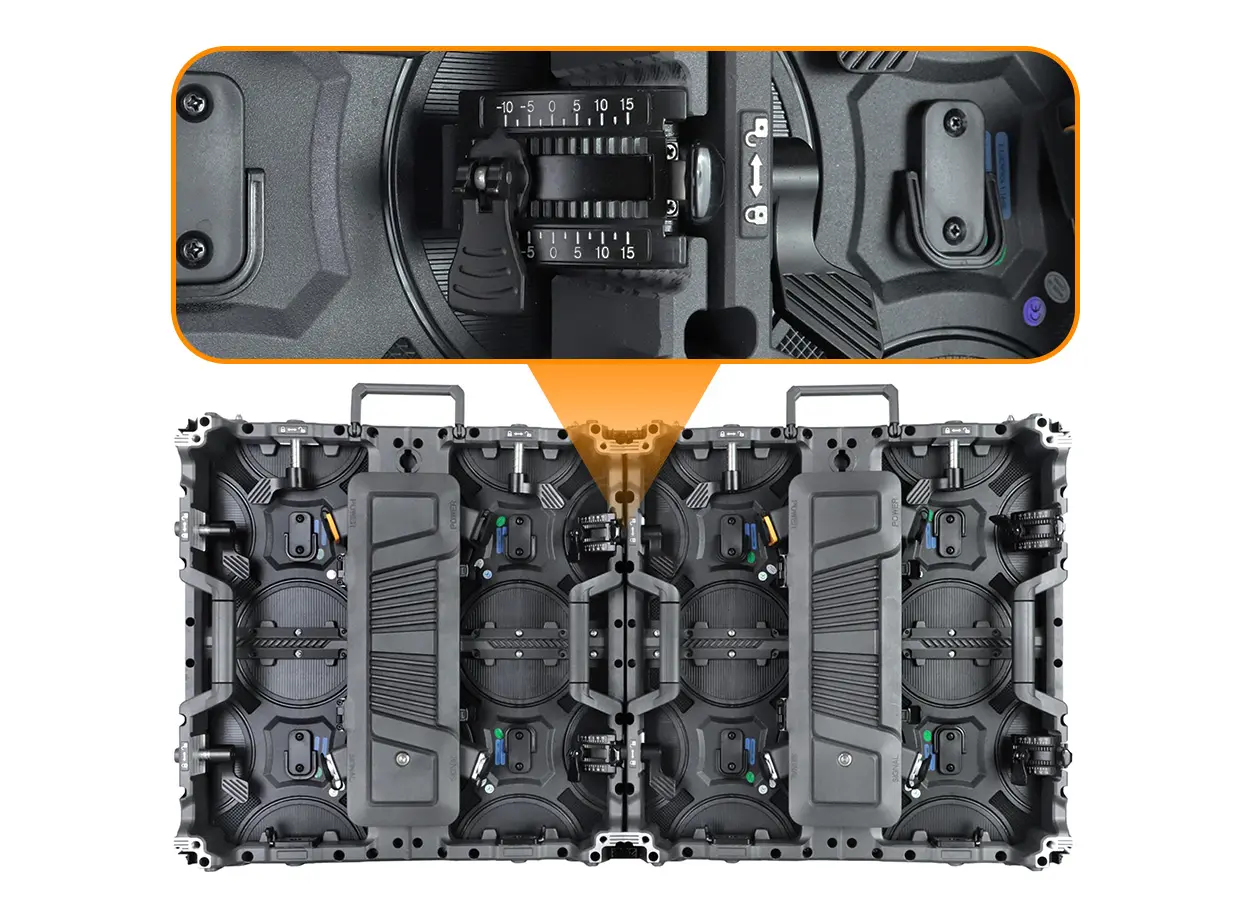

Optional arc locks allow the EA500C6 to form concave or convex rental LED walls. Because the published specification does not state the supported angle range, confirm the required radius with EagerLED before ordering.
Flat, Concave and Convex Installation Options
Use the EA500C6 in flat, concave or convex layouts to follow stage sets, curved walls and cylindrical structures. The final curve depends on the selected arc-lock hardware and the engineered rigging plan.

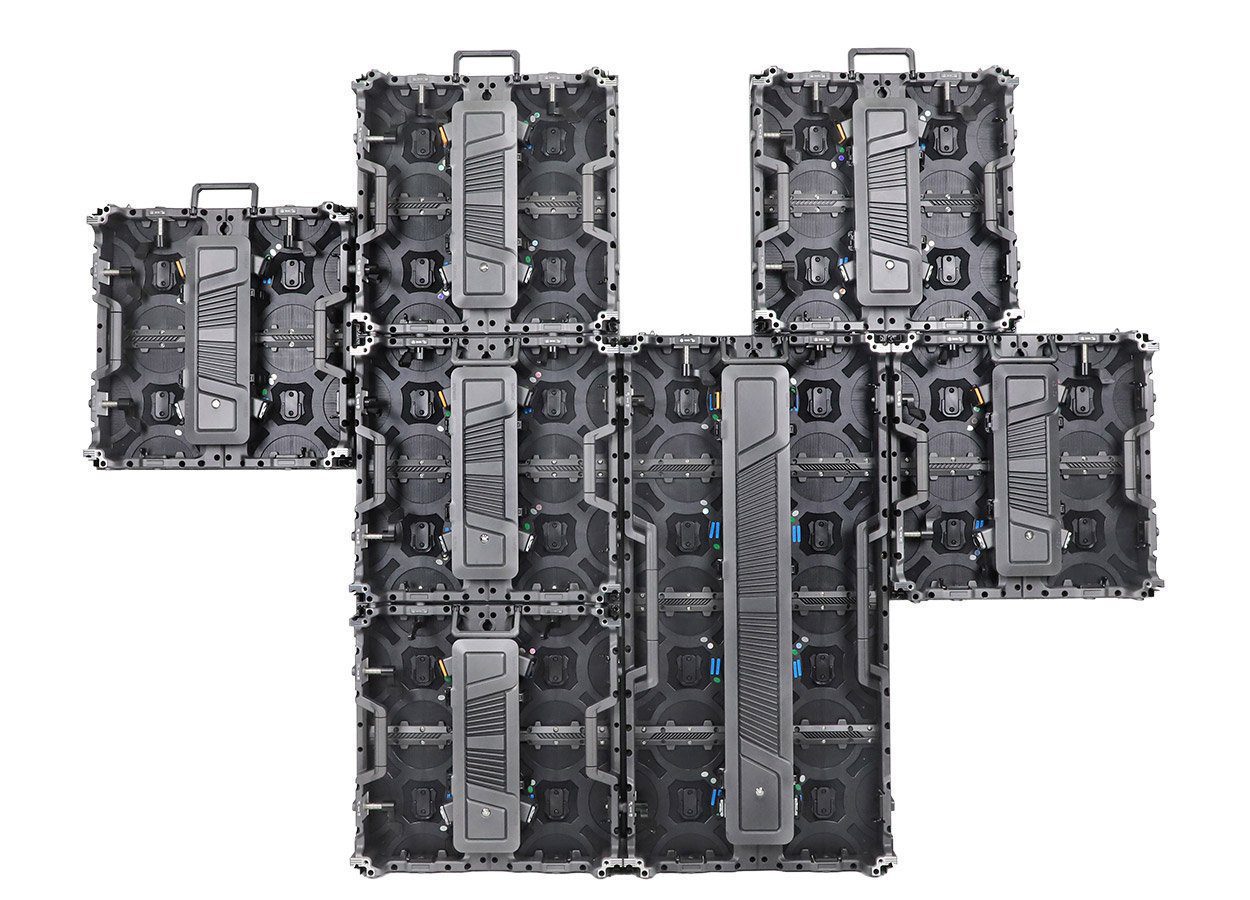

Mixed Splicing with the EA1000C6 Cabinet
The 500 x 500 mm EA500C6 can be combined vertically with the 500 x 1000 mm EA1000C6. This mixed-height C6 system reduces cabinet count on larger walls while retaining 500 mm grid alignment.

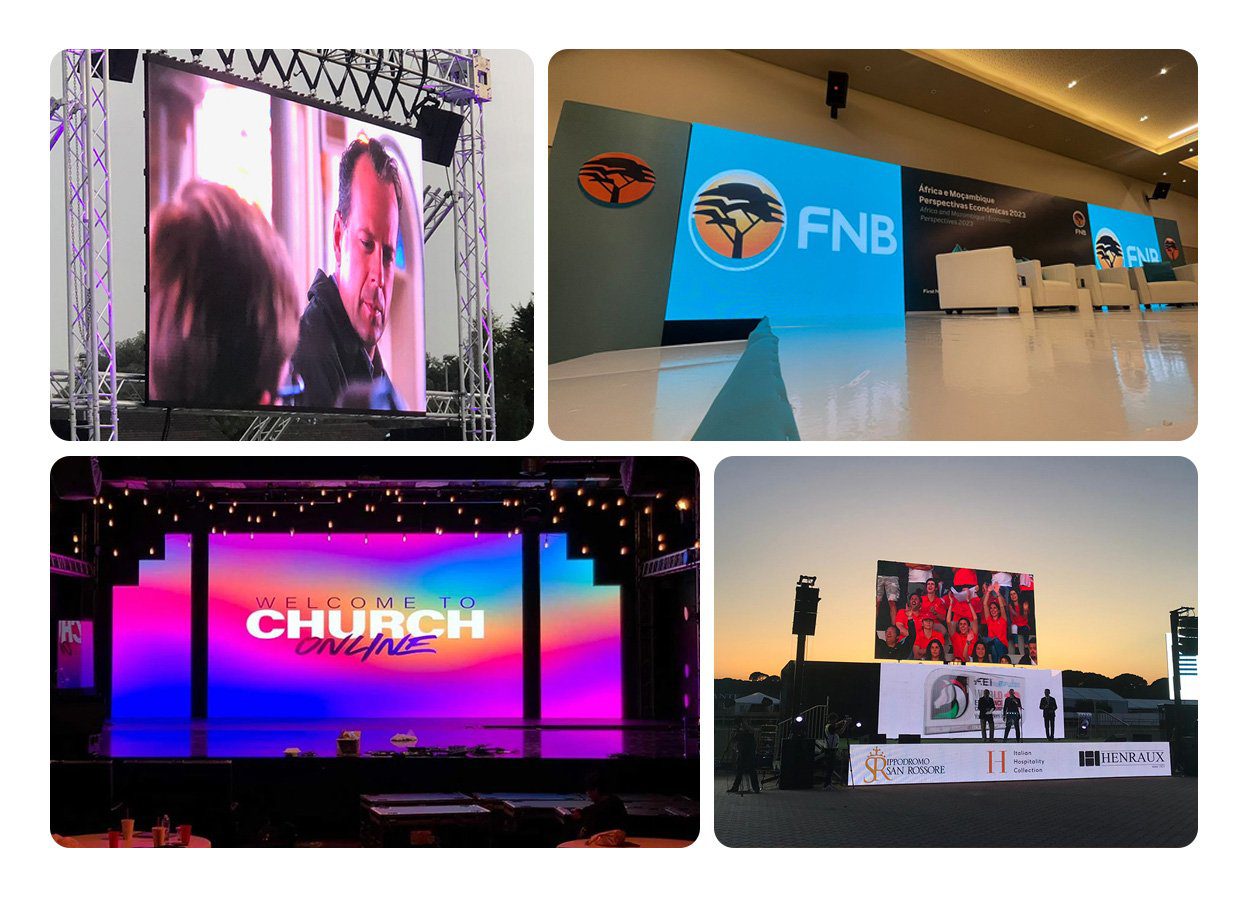

Rental LED Video Wall Applications
Use the EA500C6 for event stages, exhibitions, business meetings, broadcast backdrops and temporary advertising displays. Choose the indoor or outdoor model by ambient light, viewing distance, weather exposure and camera requirements.
EA500C6 500x500 Indoor Rental LED Video Wall Specifications
EA500C6 500x500 Outdoor Rental LED Video Wall Specifications
EA500C6 Rental LED Video Wall FAQs
What size is the EA500C6 rental LED video wall?
The EA500C6 uses a 500 x 500 mm die-cast aluminum cabinet built from 250 x 250 mm LED modules. Listed indoor cabinets weigh 6.5 kg, while listed outdoor cabinets weigh 7.3 kg.
Which pixel pitches are available for the EA500C6?
The published indoor range includes P1.56 GOB, P1.95 GOB, P2.6 GOB, P2.97 and P4.81. The published outdoor range includes P2.6, P2.97 and P3.91 variants. Choose the final pitch by viewing distance, content resolution and camera requirements.
What refresh rate and brightness does the EA500C6 provide?
Every listed EA500C6 configuration is specified at a refresh rate of at least 3,840 Hz. Indoor brightness is listed at 700-800 cd/m2, while outdoor variants are listed at 4,000-6,000 cd/m2. Final on-camera results also depend on the controller, camera frame rate and shutter settings.
Can the EA500C6 be used indoors and outdoors?
Yes. Indoor configurations are listed with IP31 protection. Outdoor configurations list IP54 rear protection and multiple IP65-front options, but the front rating varies by model in the published table. Confirm the exact model, brightness and protection rating for the installation site before ordering.
Can the EA500C6 form curved or mixed-height LED walls?
Yes. Optional arc locks support concave and convex layouts, and the C6 cabinet system supports mixed vertical splicing with the 500 x 1000 mm EA1000C6. Confirm the required curve and cabinet combination before finalizing the layout.
How does the EA500C6 support rental setup and maintenance?
Two stainless-steel fast locks support repeatable cabinet alignment, while four corner guards protect vulnerable edges during handling. An openable rear cover provides access to the power and service area and supports cabinet heat dissipation.
