EA-iFloor 500×1000mm LED Floor Display
EA-iFloor is a 500 × 1000 mm modular LED floor display for stage builders, event equipment suppliers and display contractors. Plan the cabinet grid, floor support, access and cable routes together; confirm an interaction system separately if visitors must trigger visual effects.
Customized New LED Display Solutions for You

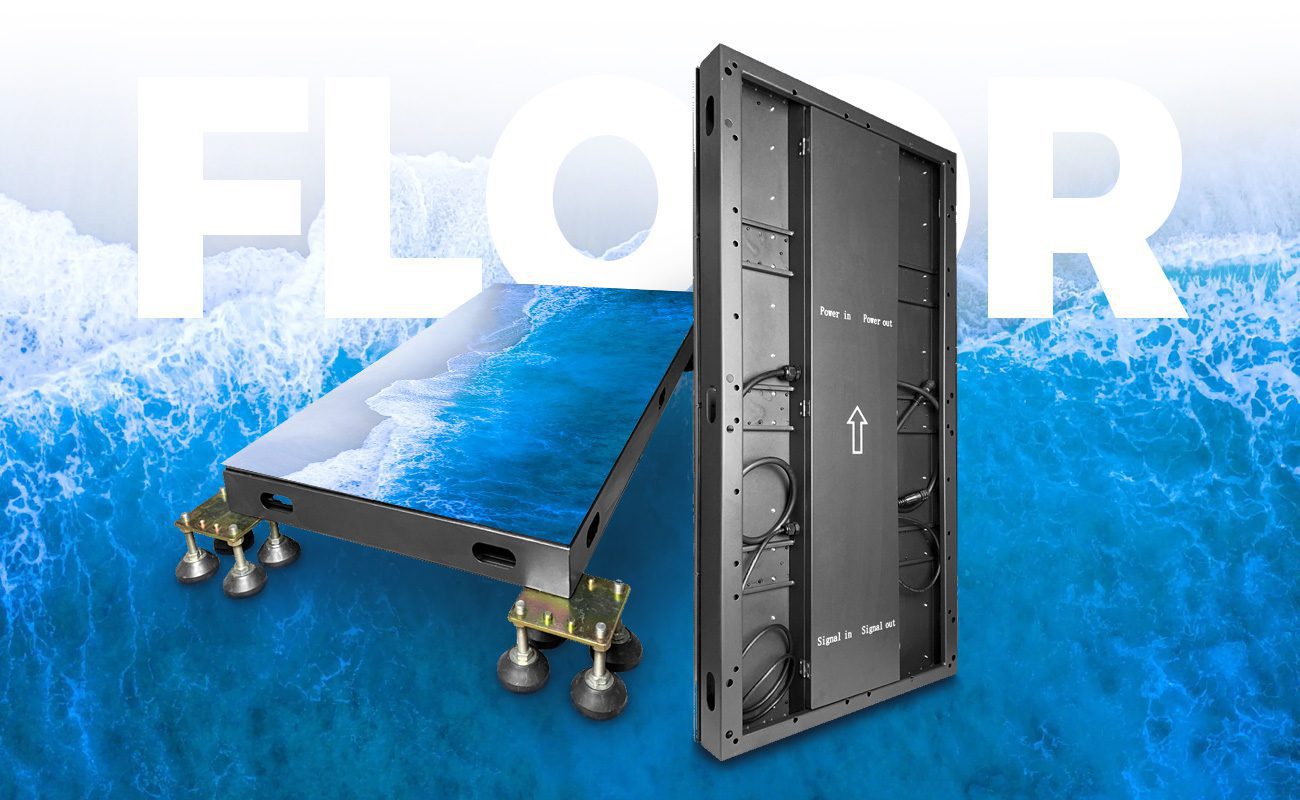

EA-iFloor LED Floor Display for Heavy-Duty Use
EA-iFloor is a 500 × 1000 mm modular LED floor display for stage builders, event equipment suppliers and display contractors. Plan the cabinet grid, floor support, access and cable routes together; confirm an interaction system separately if visitors must trigger visual effects.
- Published P2.5, P2.6, P2.97 and P3.91 options in the same 500 × 1000 mm format.
- Published cabinet weight: 25 kg; account for support, cables and accessories separately.
- Front module service with ground, embedded, steel-frame or track installation options.
- Specification table lists IP66 front and IP65 rear; installation exposure still needs review.
On this page
Plan the floor grid and equipment quantity
| Nominal LED footprint | Cabinet layout | Cabinet count | Published cabinet weight total |
|---|---|---|---|
| 2 × 2 m | 4 × 2 cabinets | 8 | 200 kg |
| 3 × 2 m | 6 × 2 cabinets | 12 | 300 kg |
| 4 × 3 m | 8 × 3 cabinets | 24 | 600 kg |
These examples are calculations from the published 0.5 × 1 m cabinet and 25 kg weight. They are not completed customer projects. Allow additional space and weight for supports, perimeter ramps, wiring, control equipment and installation tolerances.
The page advertises a load capacity above 2,000 kg/m². That area-based claim does not by itself authorize concentrated wheel loads or vehicle use. Ask for the applicable test evidence, support spacing and loading conditions; the venue floor and supporting system also need assessment.
Use the published protection ratings as component specifications, not as a guarantee that the complete floor is waterproof. Review front and rear exposure, connectors, drainage, cleaning methods and any raised-floor cavity before installation.
Purchase questions
Does an LED floor automatically include interactive effects?
A floor display and an interaction system are separate requirements. Ask whether sensors, tracking, content software and control hardware are included, and request a demonstration of the intended interaction before confirming the order.
What affects the LED floor screen price?
Cabinet count, pixel pitch, support arrangement, controller capacity, interaction equipment, perimeter treatment, spares and transport scope affect the quotation. Send the venue plan and intended usage so these items can be identified separately.
Which pixel pitch should a stage-floor buyer choose?
Compare content detail, closest viewing positions and camera use with actual content samples. Confirm control-system capacity and the final pixel map rather than choosing pitch only by screen area.
Request an EA-iFloor project quote
Compare the EA-OFloor LED floor display for other formats.

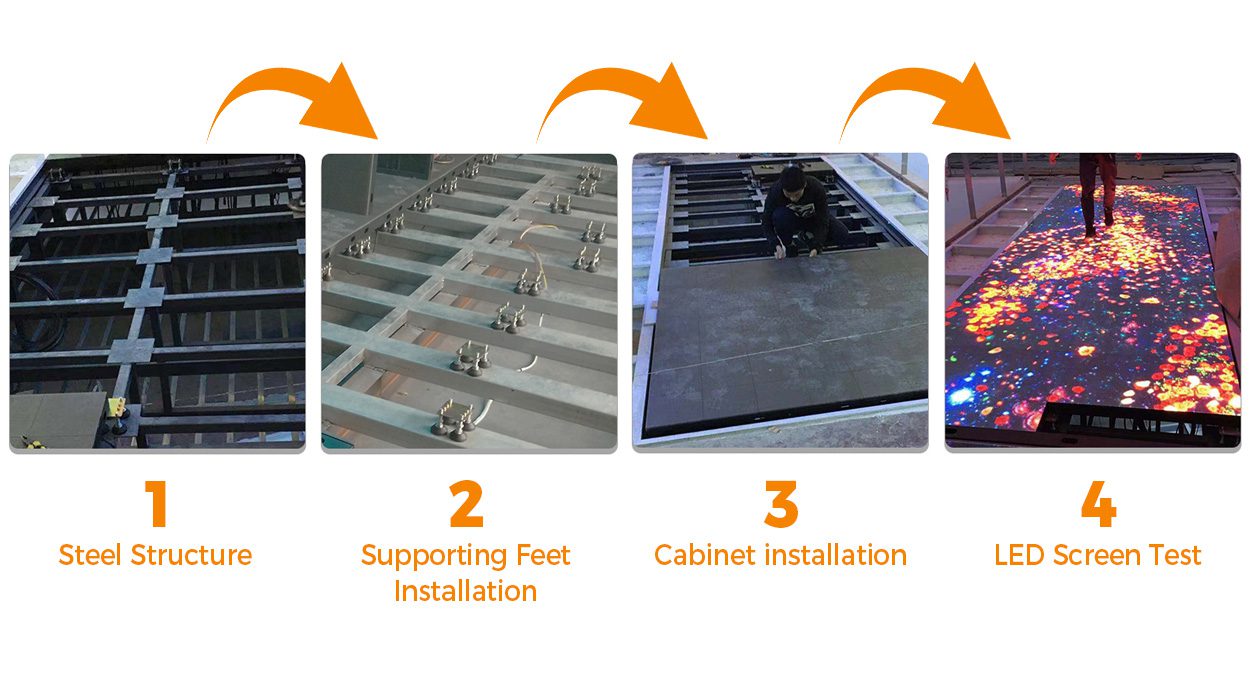

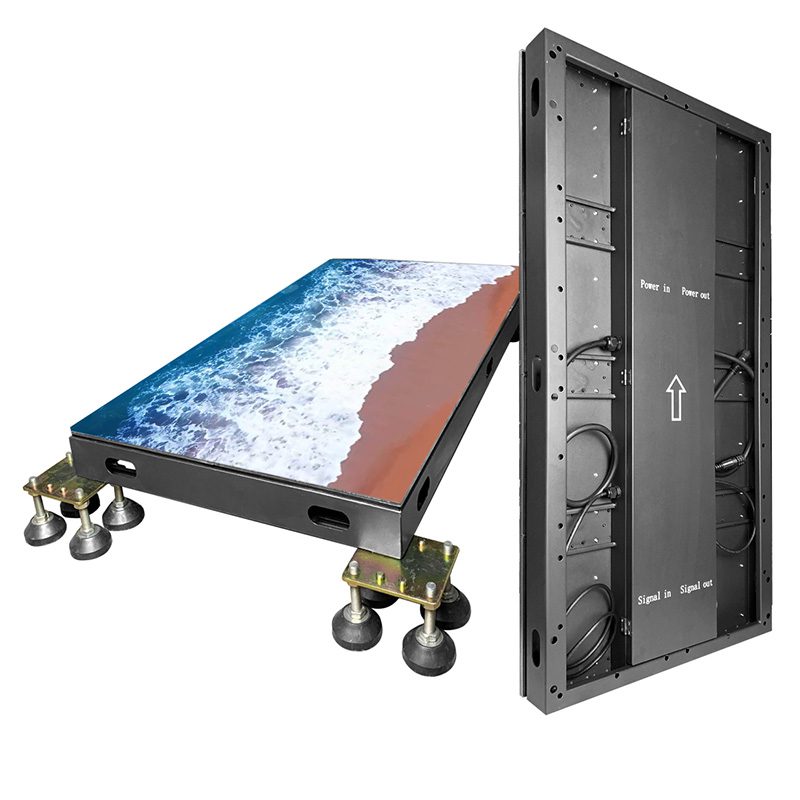

Four Flexible Installation Methods
Choose ground, embedded, steel-frame or track installation to match the venue and floor height. The support options suit permanent and temporary projects.

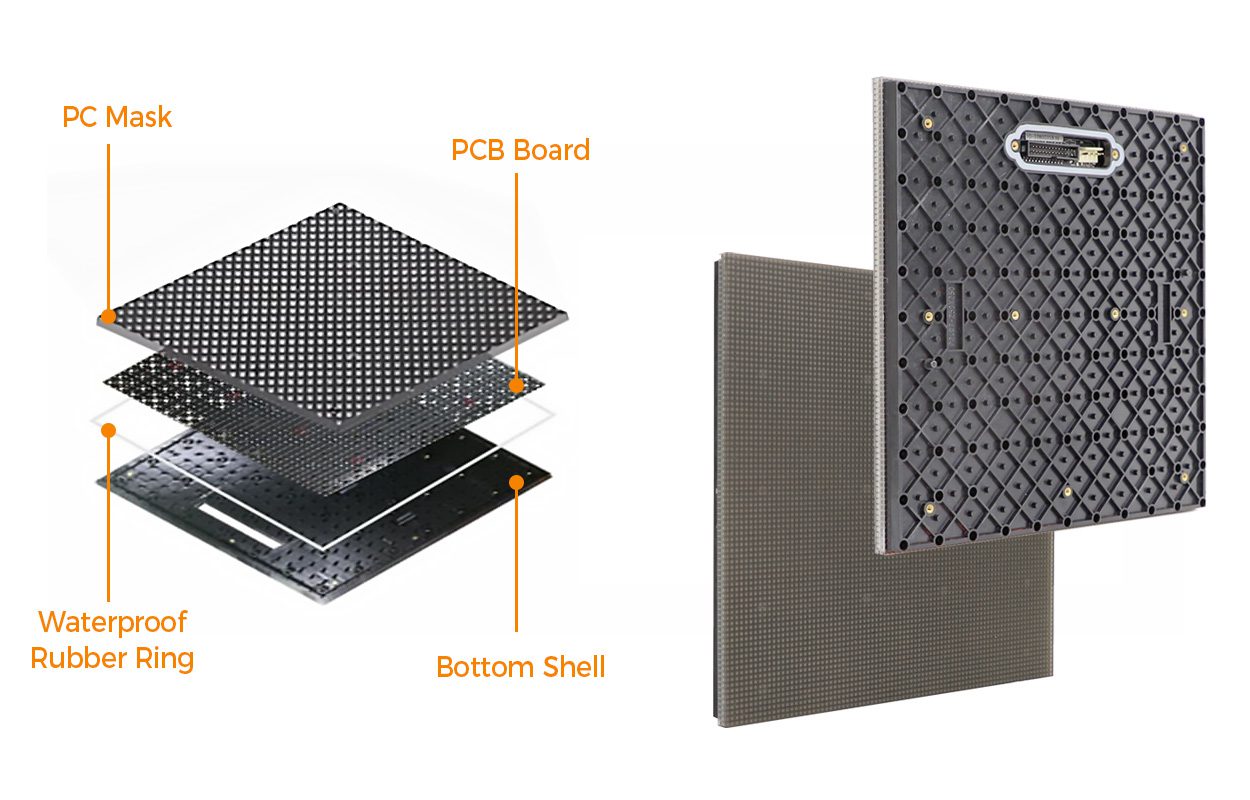

Multi-Layer Floor Module Protection
A PC mask, PCB, waterproof ring and bottom shell form a layered protection system. The structure resists foot traffic, friction and moisture in floor applications.

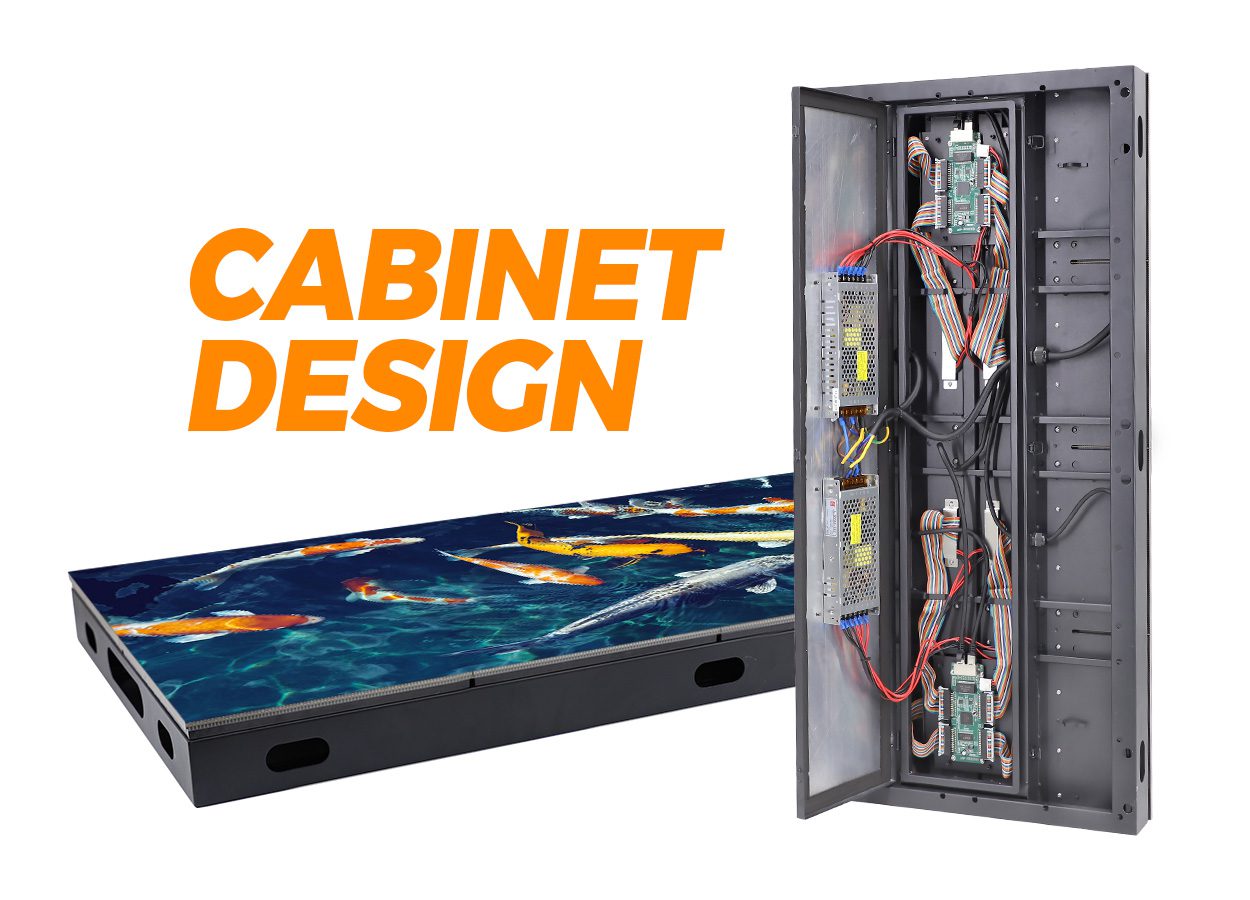

Service-Friendly Floor Cabinet
The cabinet, specified as IP66 front / IP65 rear, uses a clean internal wiring layout and an accessible rear cover. Front-service design simplifies routine module maintenance.
2,000+ kg/m² Load Capacity
The structure supports more than 2,000kg/m² for dense foot traffic and heavy event equipment. Correct support placement is required for the rated load.

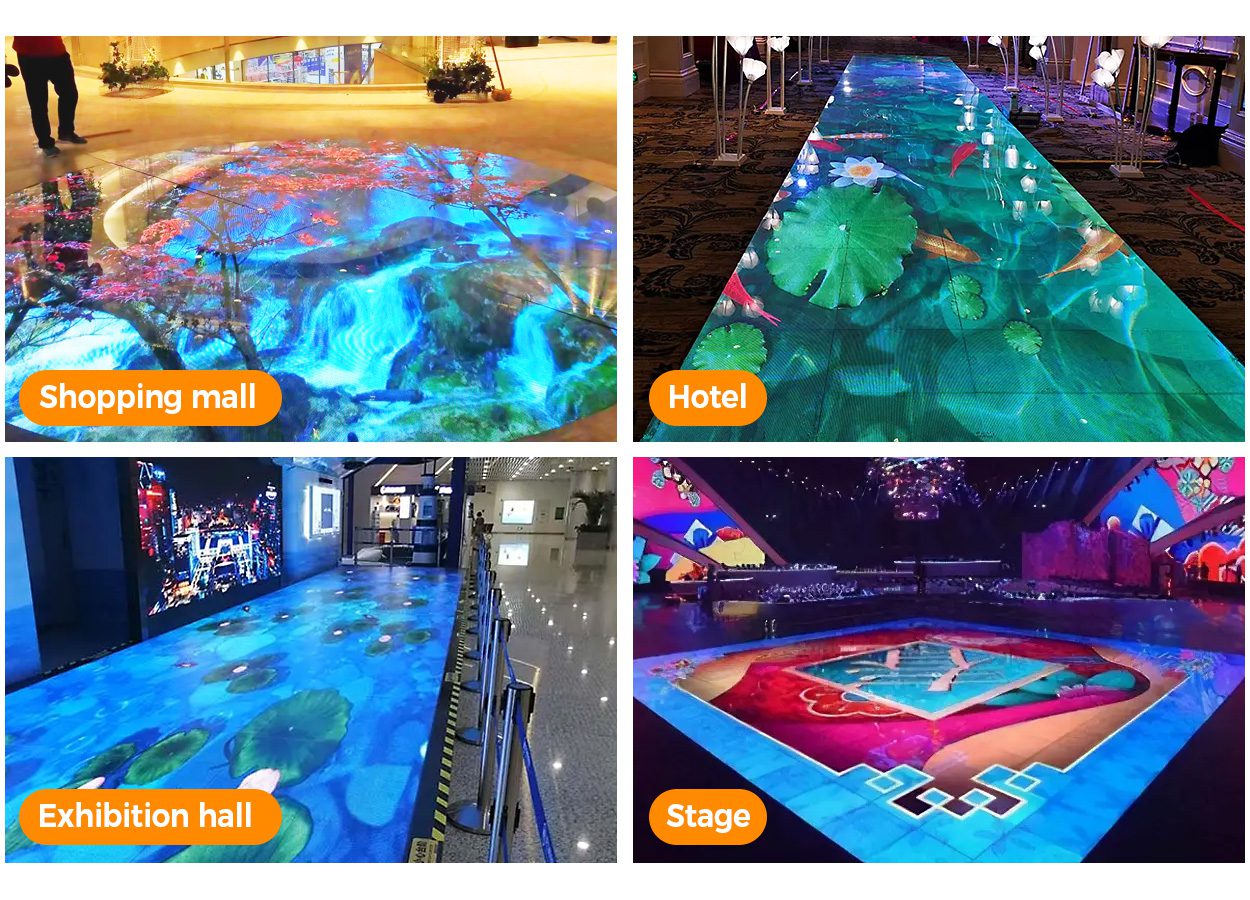

Stage, Retail and Event Applications
EA-iFloor suits shopping centers, hotels, exhibitions, concerts and music festivals. Dynamic floor content can extend a stage design or create a retail focal point.
EA-iFloor 500×1000mm LED Floor Display Parameters
EA-iFloor Floor LED Display FAQ
What is the EA-iFloor LED floor display?
EA-iFloor is a 500×1000mm modular LED display engineered for floor installation. It combines high load capacity, layered protection and flexible mounting.
How much weight can EA-iFloor support?
The system is rated for more than 2,000kg/m² when installed with the specified support structure and layout.
Which installation methods does EA-iFloor support?
EA-iFloor supports ground, embedded, steel-frame and track installation, allowing the floor height and support method to match the venue.
What protection rating does EA-iFloor have?
The specification table lists IP66 for the front and IP65 for the rear. Its layered module structure includes a PC mask, PCB, waterproof ring and bottom shell.
How is the EA-iFloor serviced?
The cabinet has an accessible rear cover and supports front module service, helping technicians reach key components during routine maintenance.
Where can EA-iFloor be used?
Typical applications include stages, concerts, exhibitions, shopping centers, hotels, retail environments and other high-traffic display areas.
