EA250H8 250×500mm Corner Rental LED Wall
EA250H8 is a 250 × 500 mm corner rental LED wall cabinet for stage and exhibition display builders. It supports the published 90° corner and cylindrical arrangements; choose the indoor or outdoor configuration first, then confirm compatible cabinet versions, locks and pixel mapping for the complete shape.
Customized New LED Display Solutions for You

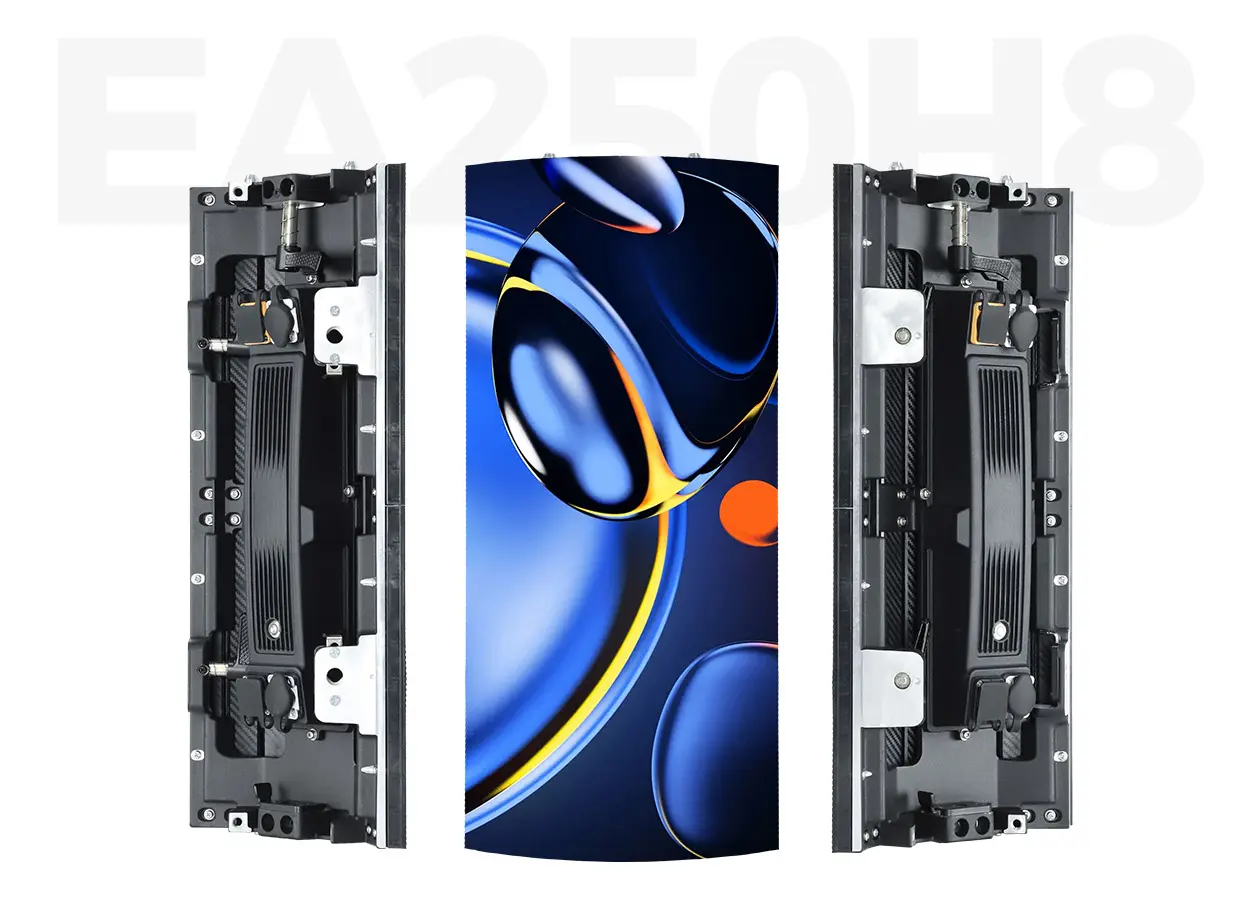

EA250H8 rental LED wall
EA250H8 is a 250 × 500 mm corner rental LED wall cabinet for stage and exhibition display builders. It supports the published 90° corner and cylindrical arrangements; choose the indoor or outdoor configuration first, then confirm compatible cabinet versions, locks and pixel mapping for the complete shape.
- Compact 250 × 500 mm cabinet with a published 3.5 kg weight.
- Indoor iP2.6 / iP2.97 and outdoor OP2.97 / OP3.91 versions are listed.
- Published cross-model family: EA500H7, EA500H8, EA500H8V and EA1000H8.
- Exact pitch, environmental version, hardware and calibration must match the planned assembly.
On this page
Compare indoor and outdoor corner-cabinet versions
| Published model | Brightness | Protection | Maximum W/m² |
|---|---|---|---|
| iP2.6 | 750 cd/m² | IP31 | 350 |
| iP2.97 | 750 cd/m² | IP31 | 350 |
| OP2.97 | 4500 cd/m² | IP65 front / IP54 rear | 550 |
| OP3.91 | 4800 cd/m² | IP65 front / IP54 rear | 580 |
The comparison follows the published specification table. Indoor and outdoor variants share external cabinet dimensions but have different LED packages, driving modes and power specifications. Do not select a spare module or mixed wall solely by the cabinet name.
Plan corner geometry from dimensioned views and a confirmed lock arrangement. The page describes a four-cabinet cylinder; request its actual diameter, internal clearance, support and service drawing rather than calculating a diameter from cabinet width alone.
For shaped displays, give the content team the exact pixel map for each face or curved section, seam positions and playback orientation. A physically compatible assembly still needs a matching controller layout, calibration and creative-file mapping.
Purchase questions
What does the published cross-model compatibility mean for buying parts?
The page lists the EA500H7, EA500H8, EA500H8V and EA1000H8 families. Ask for confirmation of the precise pitch and indoor/outdoor versions, locks, connectors and calibration so the ordered cabinet and spares match the existing fleet.
What should a corner or cylinder rental LED quote include?
Send the proposed width, height, angles or cylinder drawing, audience position and indoor/outdoor conditions. Ask the scope to list corner and flat cabinet quantities, support interfaces, control mapping, cabling, transport and service spares.
How should service access be planned for a shaped display?
The removable rear cover and power box support maintenance, but a closed cylinder or corner can limit access. Confirm how modules, power/control components and cables can be reached in the assembled structure before the layout is approved.
Request an EA250H8 shaped-display quote
Compare the rental LED screen equipment range for other formats.

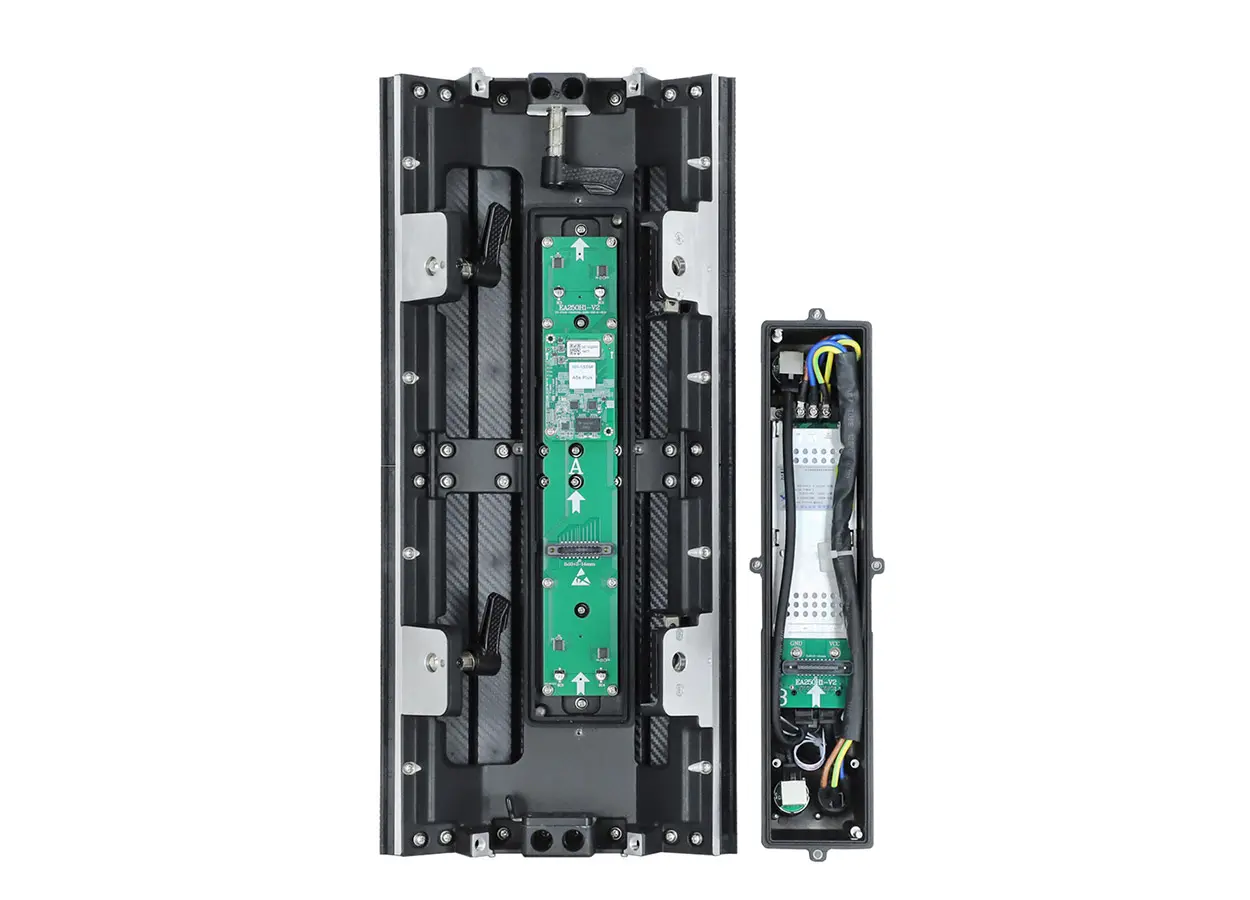

Detachable Power Box and Rear Cover
A removable rear cover and detachable power box provide direct access, allowing service without dismantling the complete LED wall.

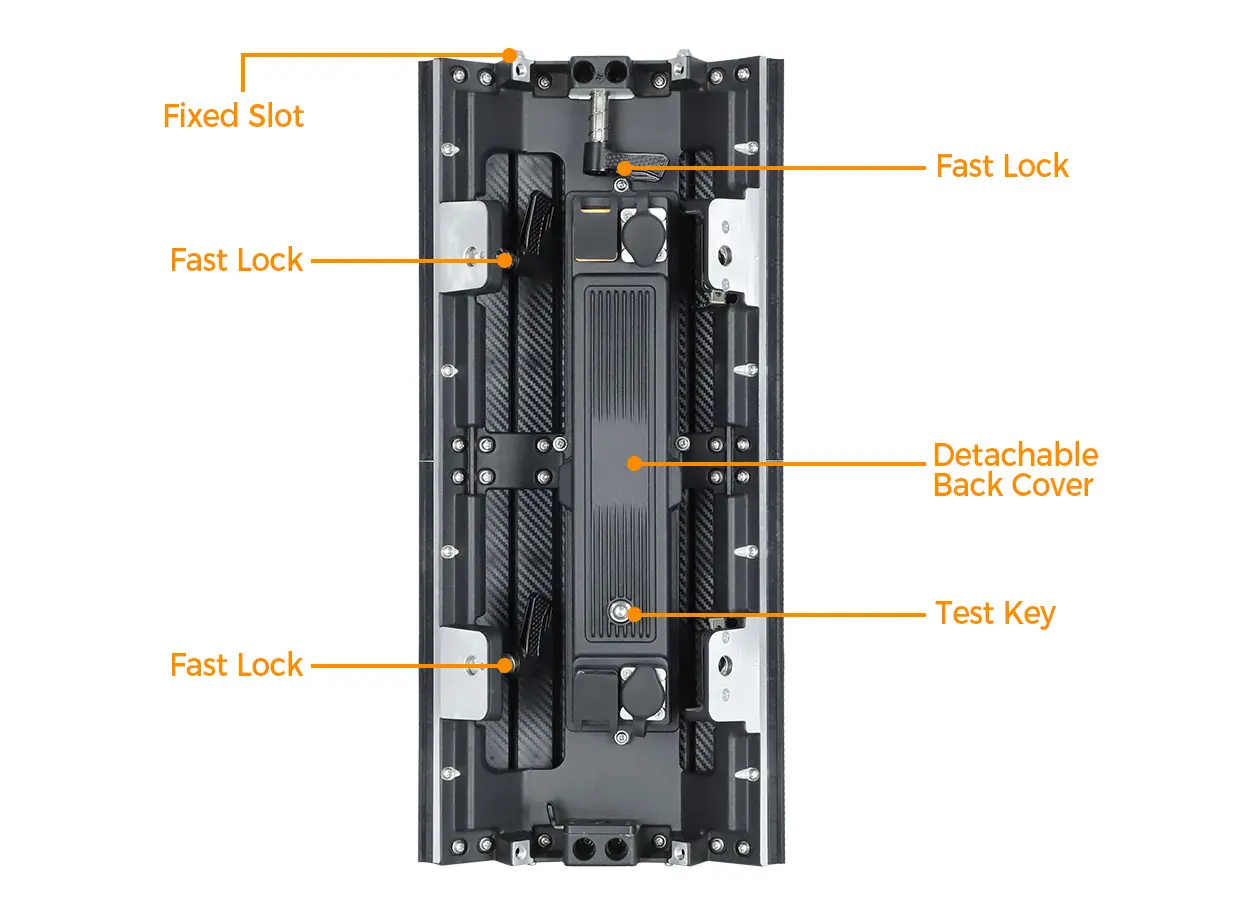

Cabinet Construction
The 250×500 mm cabinet uses reinforced mounting points, quick locks, and a test button for repeatable setup and accurate alignment.

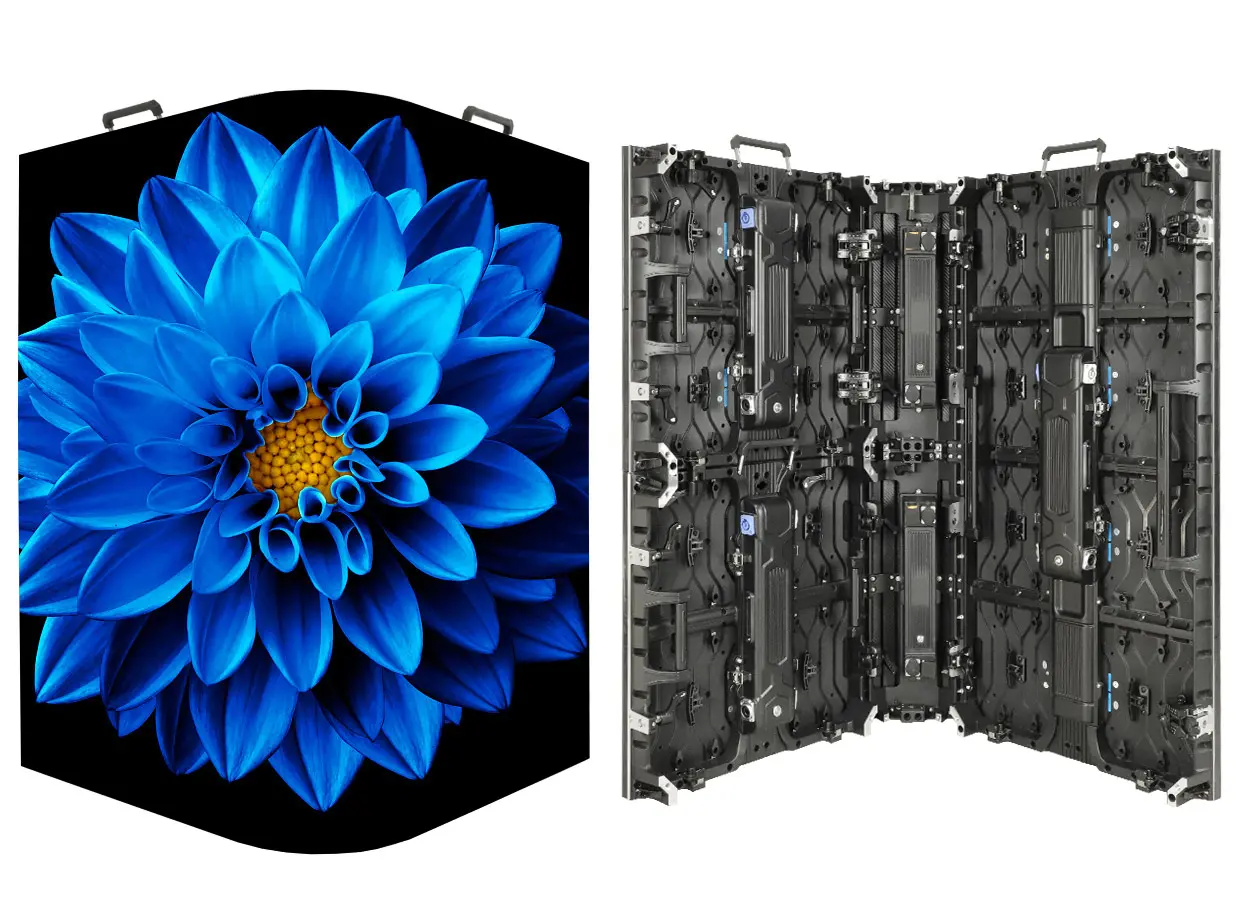

Cross-Model Cabinet Compatibility
EA250H8 connects with EA500H7, EA500H8, EA500H8V, and EA1000H8 cabinets for mixed flat, corner, and shaped display layouts.

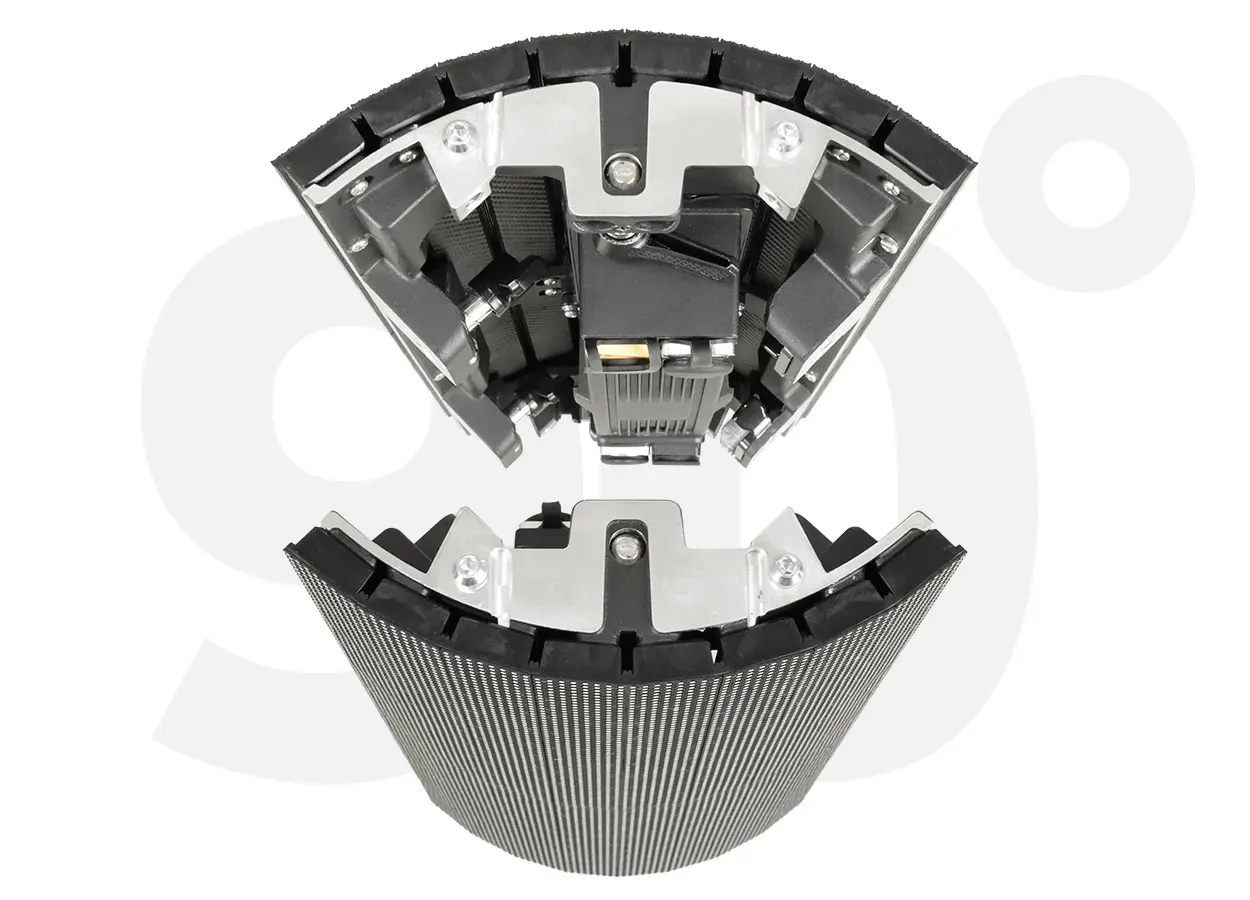

90° Corner Splicing
Purpose-positioned quick locks create stable 90° inside or outside corners while maintaining accurate cabinet alignment.

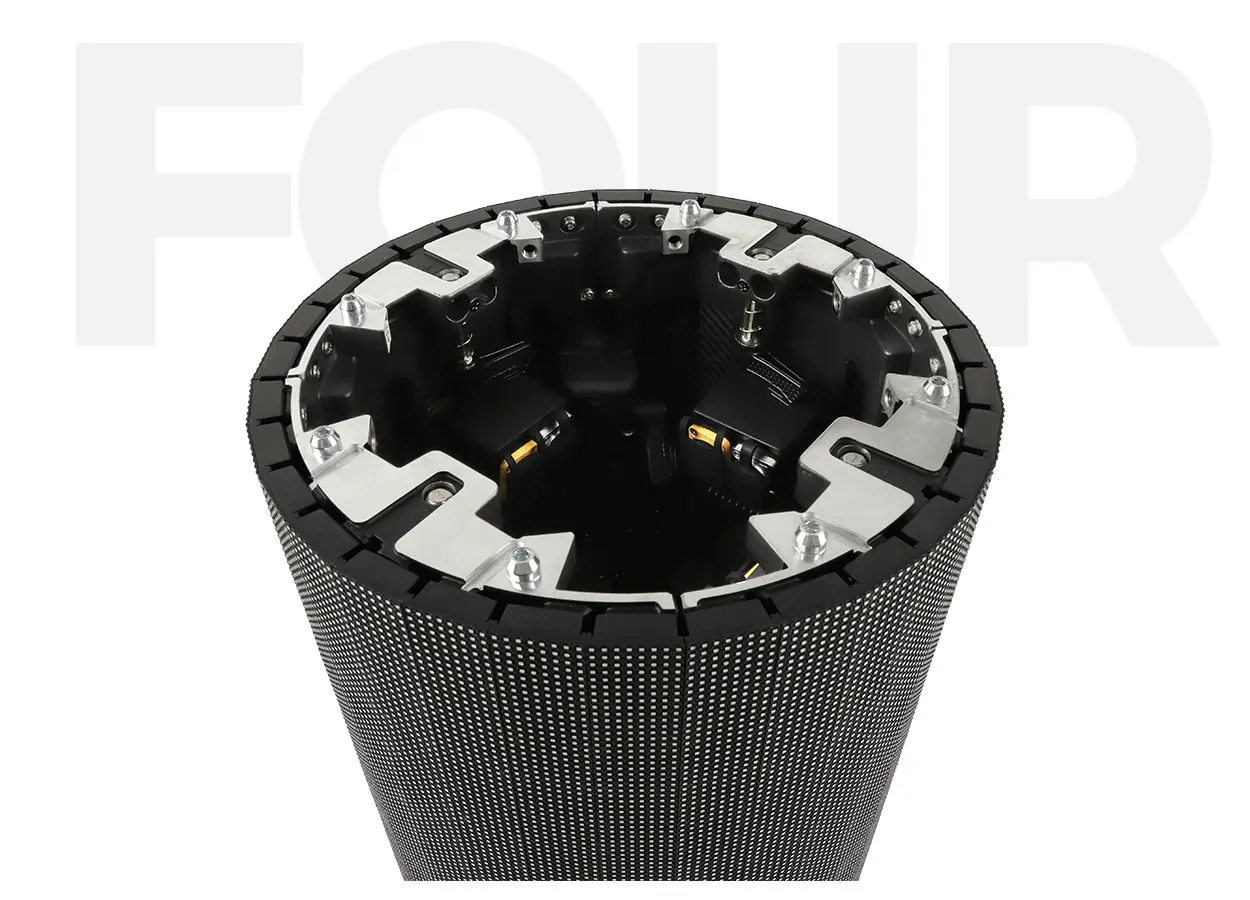

Cylindrical Configuration
Four EA250H8 cabinets form a full cylinder with consistent pixel spacing for 360° columns, towers, and immersive event features.
3840 Hz Camera-Friendly Performance
A 3840 Hz refresh rate reduces camera flicker and scan lines, while high grayscale preserves smooth motion, detail, and color.
