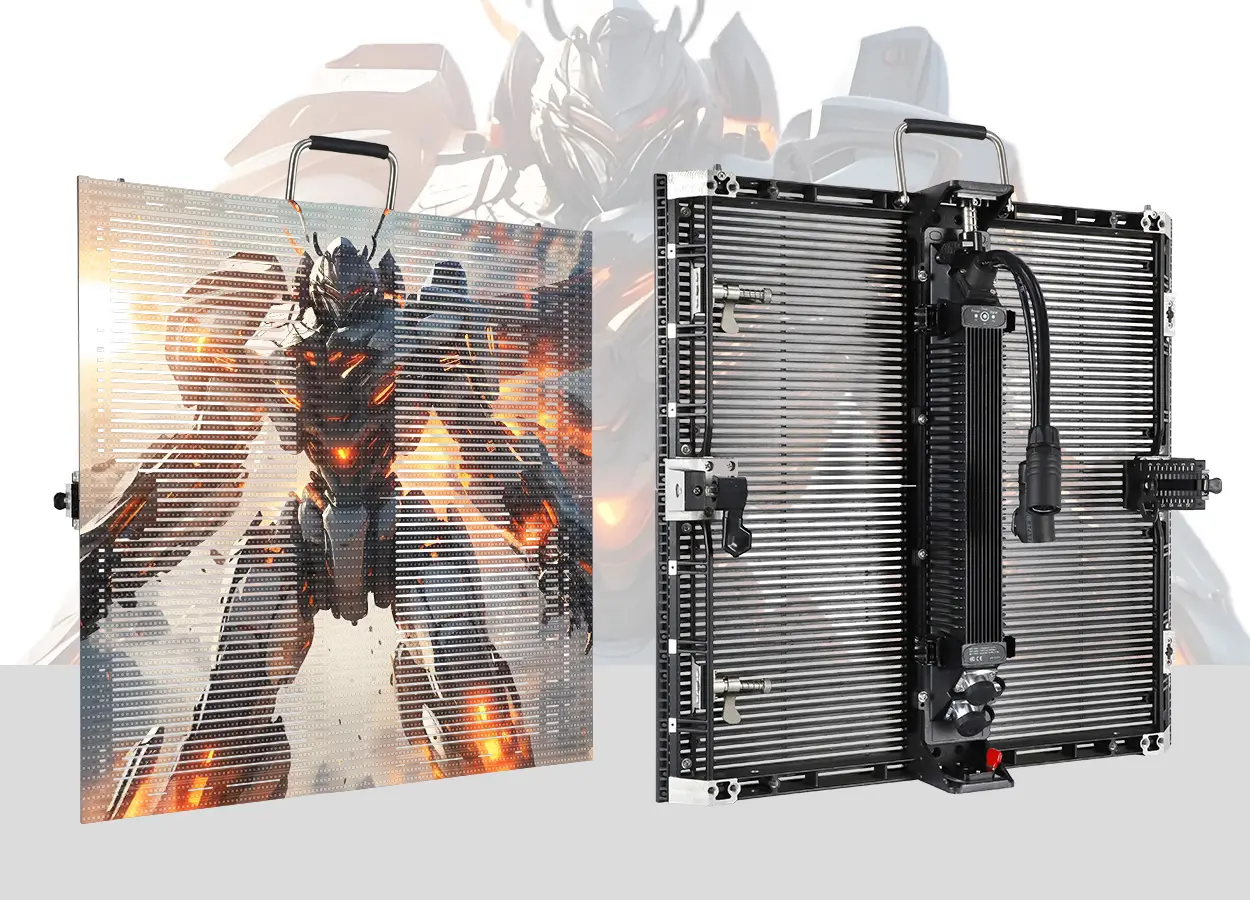

EA500TOR1 outdoor transparent LED display
EA500TOR1 is a 500 × 500 mm outdoor transparent rental LED display for event-equipment buyers and touring crews. It provides a compact cabinet format for repeated assembly; plan cabinet quantities, transport, curve geometry and compatibility with the intended rental fleet before ordering.
Customized New LED Display Solutions for You
EA500TOR1 Outdoor Transparent LED Display for Rental
EA500TOR1 is a 500 × 500 mm outdoor transparent rental LED display for event-equipment buyers and touring crews. It provides a compact cabinet format for repeated assembly; plan cabinet quantities, transport, curve geometry and compatibility with the intended rental fleet before ordering.
- P3.91–7.82 cabinet with published 60% transparency, 4500 cd/m² brightness and IP65 protection.
- 500 × 500 mm cabinets weigh 5.7 kg each in the published specifications.
- Adjustable curve lock: −10° to +15°; final structure and radius need a project drawing.
- Buying fleet equipment requires control, spares and handling scope; this page does not offer local screen-hire services.
On this page
Calculate a 500 mm cabinet rental layout
| Nominal display size | 500 mm grid | Cabinet count | Cabinet-only weight |
|---|---|---|---|
| 2 × 1 m | 4 × 2 | 8 | 45.6 kg |
| 4 × 2 m | 8 × 4 | 32 | 182.4 kg |
| 6 × 3 m | 12 × 6 | 72 | 410.4 kg |
These are planning calculations from the published cabinet dimensions and 5.7 kg weight, not completed event examples. Add rigging, support, cabling, control equipment and packaging weight separately; confirm the exact assembly drawing and safe handling plan.
For a mixed-size transparent rental wall, match pitch, pixel mapping, calibration and connectors. The specification table also lists EA1000TOR1 cabinets, but the P10.4 and P15.6 options have different pixel grids and transparency from this 500 mm P3.91–7.82 model. Do not mix variants solely because they belong to the same family.
Plan the background lighting and artwork together. A transparent backdrop preserves some sightlines, but daylight, stage lighting and background contrast affect the legibility of text and visuals. Request an actual content demonstration with the selected configuration.
Purchase questions
What should a transparent rental fleet quotation include?
State cabinet quantity, flat or curved layouts, controller capacity, transport cases, power and data cabling, spare modules and service parts. Include whether the fleet needs matching 1000 mm cabinets and request a confirmed compatibility list.
Can a 60% transparent rental screen handle any outdoor site?
IP65 is a published cabinet rating. Confirm connections, power distribution, wind exposure, supporting structure, drainage and the actual event conditions; do not treat transparency as a substitute for site-specific structural design.
How should curve-lock capability be specified?
Supply the desired width, height and arc or column drawing. The published lock angle range is a cabinet-to-cabinet capability; confirm the resulting geometry, hardware and load arrangement for the complete structure.
Request an EA500TOR1 fleet quote
Compare the EA1000TOR1 larger transparent rental cabinet for other formats.

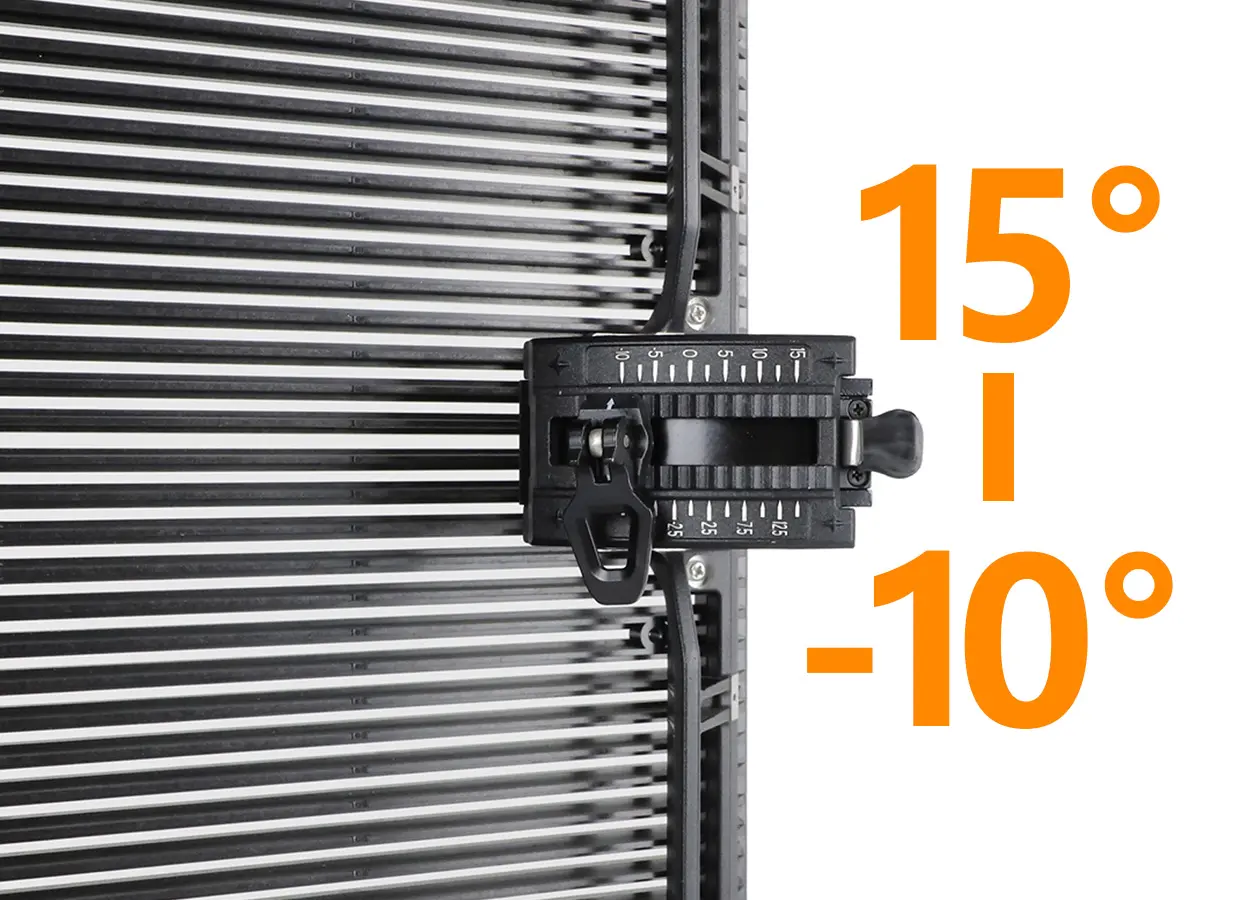

Adjustable Curve Lock for Fast Rental Assembly
The integrated curve lock adjusts from –10° to +15° for flat or arched assemblies. Tool-free alignment helps crews build repeatable rental structures while keeping cabinet seams consistent.

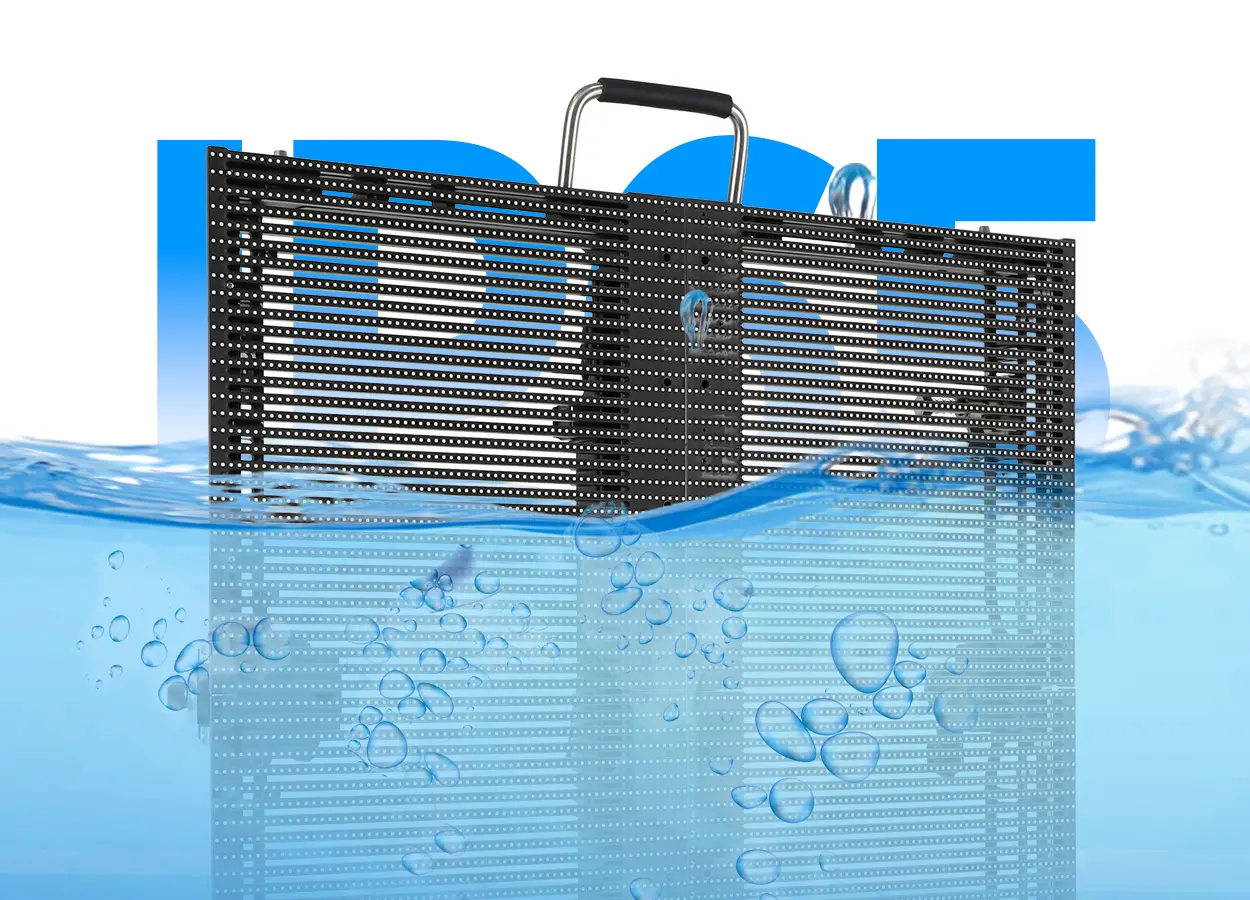

IP65 Protection for Outdoor Rental Use
The EA500TOR1 cabinet is rated IP65 for dust and outdoor water exposure. The IP Code is defined by IEC 60529; also use weather-rated connections and engineer the support for site wind and load conditions.

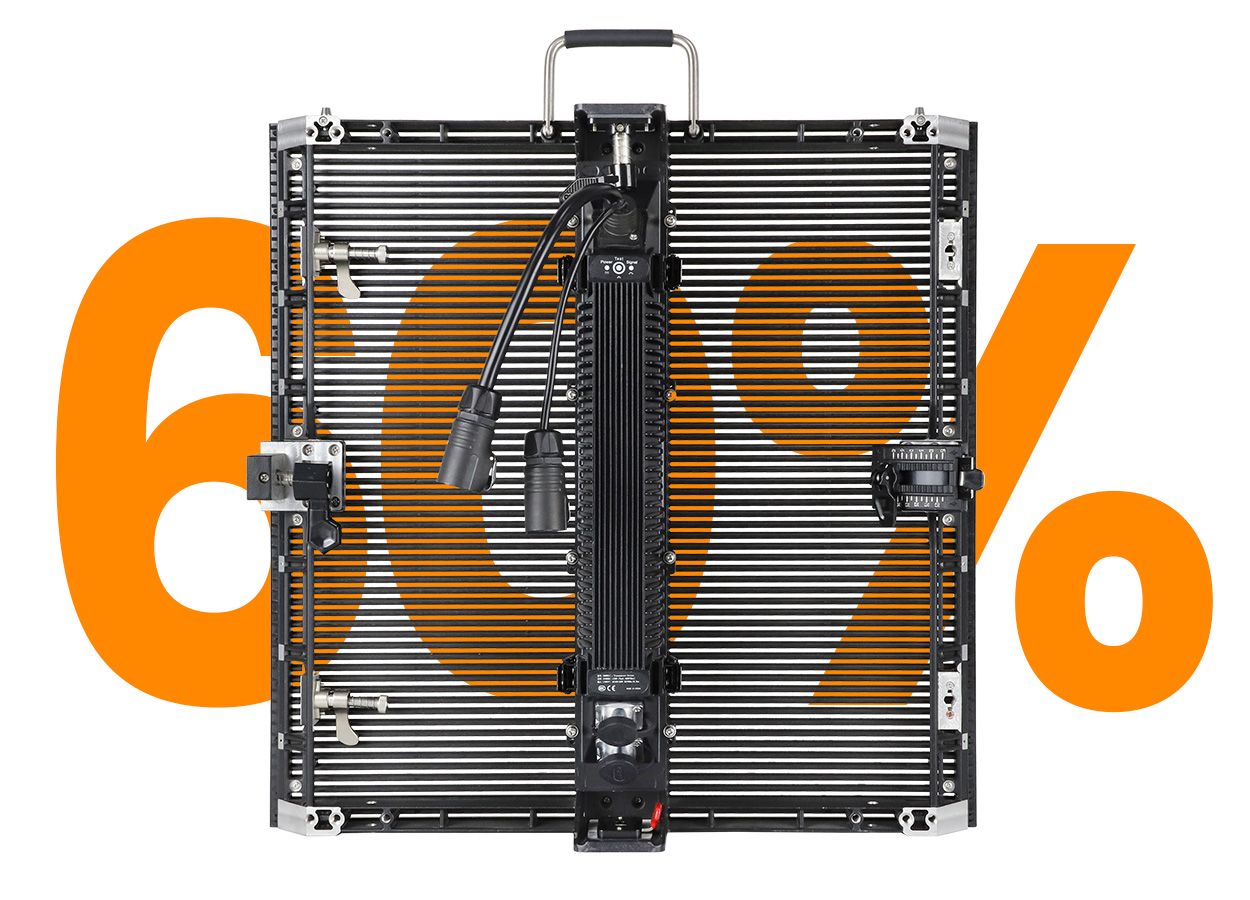

60% Transparency Preserves Background Sightlines
The P3.91–7.82 EA500TOR1 configuration provides 60% transparency, allowing light and background elements to remain partly visible. It suits stage backdrops and temporary installations where a solid LED wall would block sightlines.

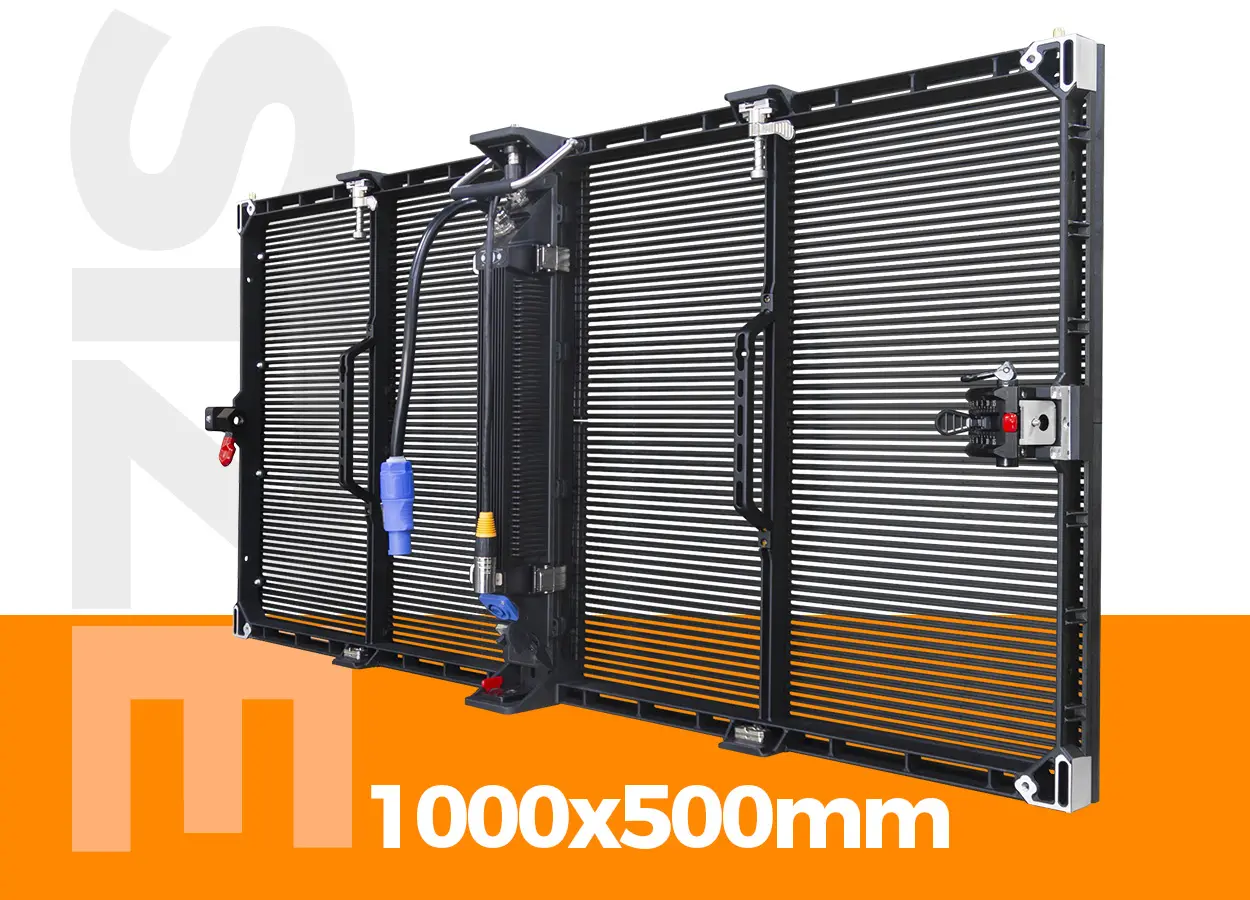

Compatible 500 mm and 1,000 mm Transparent Cabinets
The 500×500 mm EA500TOR1 can combine with compatible 1,000×500 mm cabinets in the same transparent rental system. Confirm pixel pitch, calibration and controller mapping before mixing cabinet formats.

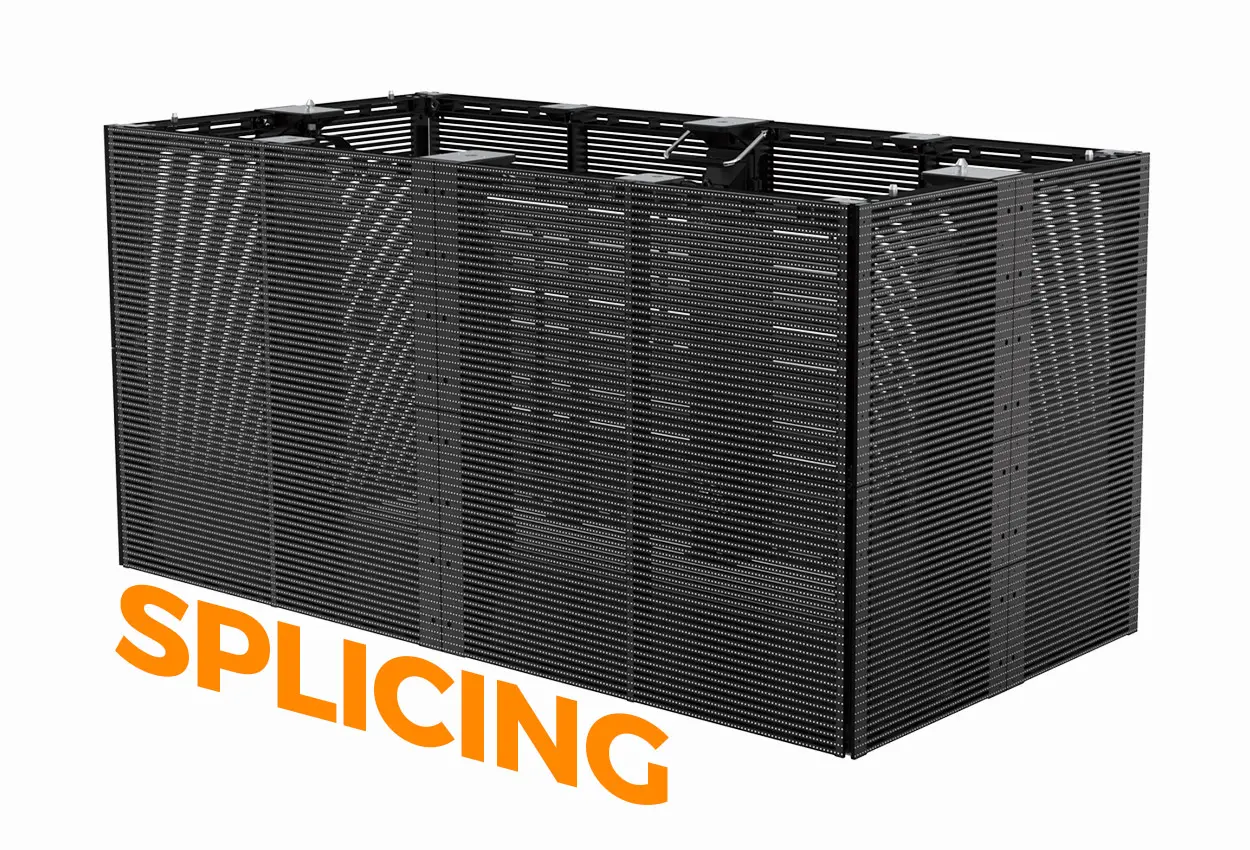

Create Curved and 360° Display Structures
Standard cabinets and adjustable locks support curved layouts and complete column-style structures without custom cabinet shapes. Final geometry and support requirements should be confirmed from the project drawing.

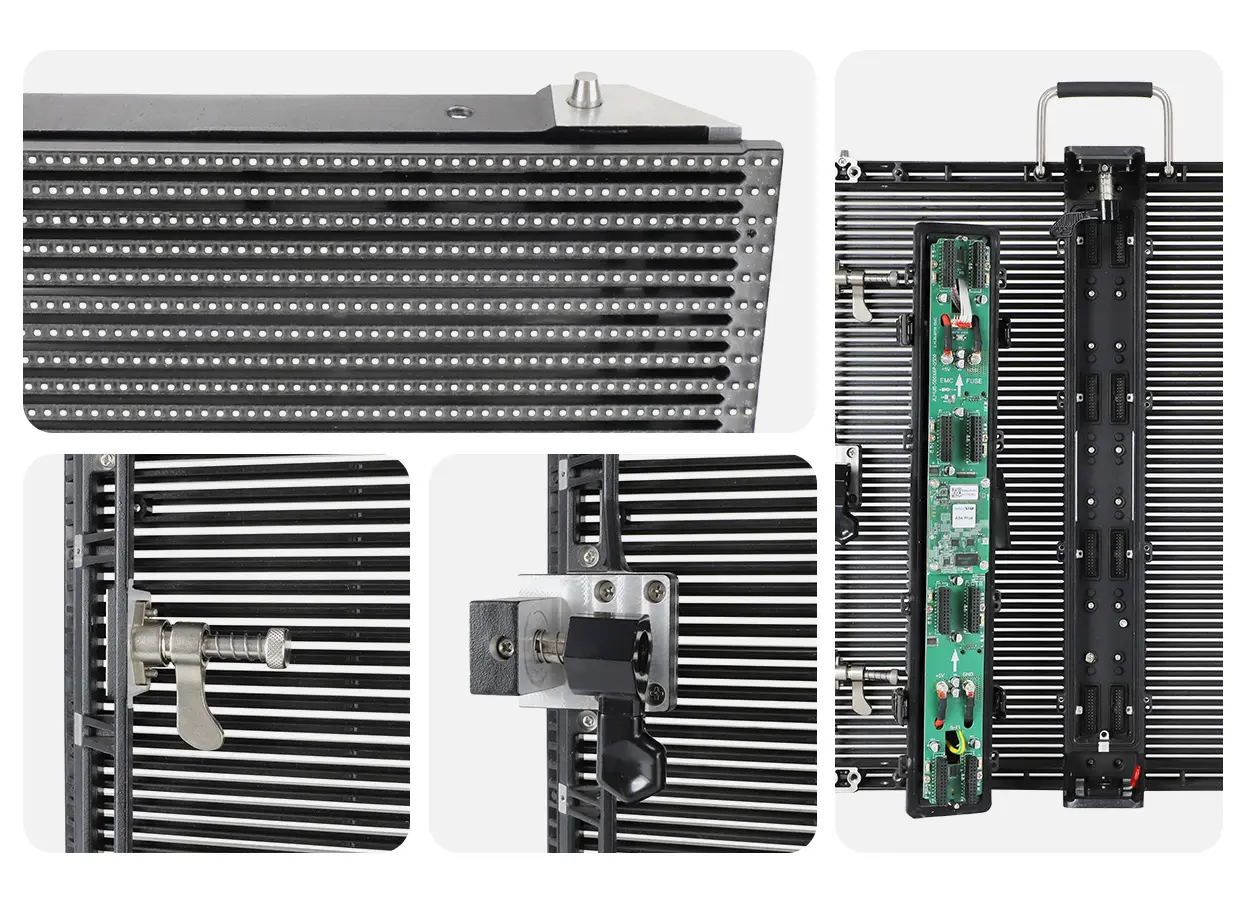

5.7 kg Cabinet for Rental Handling
Each 500×500 mm cabinet weighs 5.7 kg and includes integrated handles for frequent setup, transport and stacking. The compact format simplifies replacement and on-site handling.

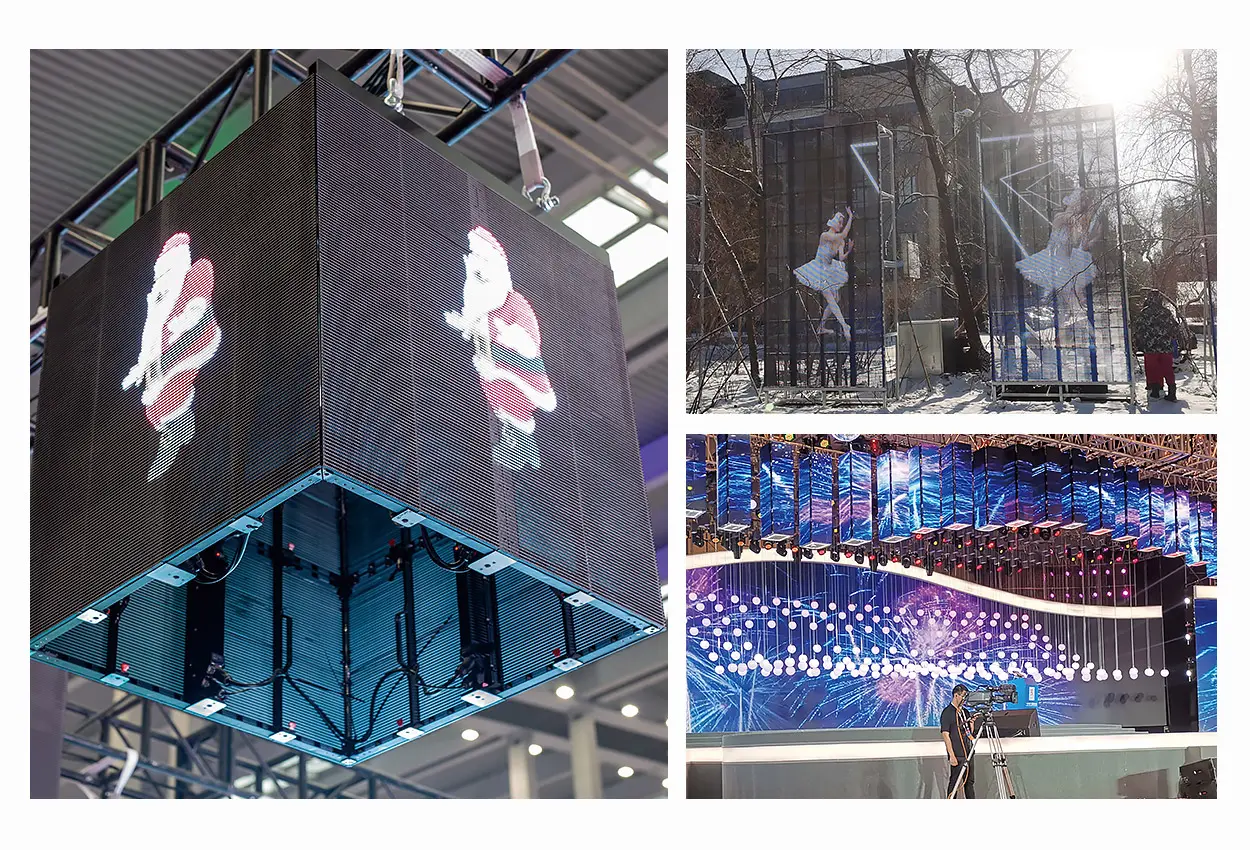

Outdoor Transparent LED Display Applications
EA500TOR1 is suited to concert stages, touring productions, mall atriums and brand activations that need daylight brightness with partial background visibility. Its rental hardware supports repeated assembly and teardown.
EA500TOR1 and EA1000TOR1 Outdoor Transparent LED Display Specifications
EA500TOR1 Outdoor Transparent LED Display FAQs
Is EA500TOR1 suitable for outdoor rental projects?
Yes. The cabinet is rated IP65 for dust and outdoor water exposure. Outdoor projects still require weather-rated connectors, safe power distribution and a support structure engineered for local wind and load conditions.
What are the brightness and refresh rate?
EA500TOR1 provides 4,500 cd/m² brightness and a refresh rate of at least 3,840 Hz, supporting daylight viewing and camera-friendly event playback.
What are the cabinet size and weight?
The EA500TOR1 cabinet measures 500×500 mm and weighs 5.7 kg, making it practical for repeated rental installation, transport and replacement.
Can EA500TOR1 build curved LED walls?
Yes. The curve lock adjusts from –10° to +15° for flat and arched layouts. Confirm the final radius, hanging method and structural load from the project drawing.
Which pixel pitch is available for EA500TOR1?
The 500×500 mm EA500TOR1 uses a P3.91–7.82 transparent pixel layout. The parameter table also lists compatible 1,000×500 mm transparent cabinets for larger-format projects.
Where is this outdoor transparent LED display commonly used?
Typical applications include concert stages, touring productions, brand events, mall atriums and temporary transparent backdrops where content visibility and background sightlines are both important.
