EA576H1 576×576mm Rental LED Billboard
EA576H1 is a 576 × 576 mm outdoor rental LED billboard cabinet for event-equipment buyers and temporary advertising projects. Its 576 mm grid determines the achievable screen dimensions; choose the published P3.79 or P4.8 version, then confirm support, cabling and service scope.
Customized New LED Display Solutions for You
EA576H1 Outdoor Rental LED Billboard
EA576H1 is a 576 × 576 mm outdoor rental LED billboard cabinet for event-equipment buyers and temporary advertising projects. Its 576 mm grid determines the achievable screen dimensions; choose the published P3.79 or P4.8 version, then confirm support, cabling and service scope.
- Published outdoor models: EA576H1-OP3.79 and EA576H1-OP4.8.
- Both listed cabinets weigh 8 kg and provide 4500 cd/m² brightness.
- Published enclosure protection: IP65 front and IP54 rear.
- 576 mm cabinet grid with front/rear module service and adjustable arc locks.
On this page

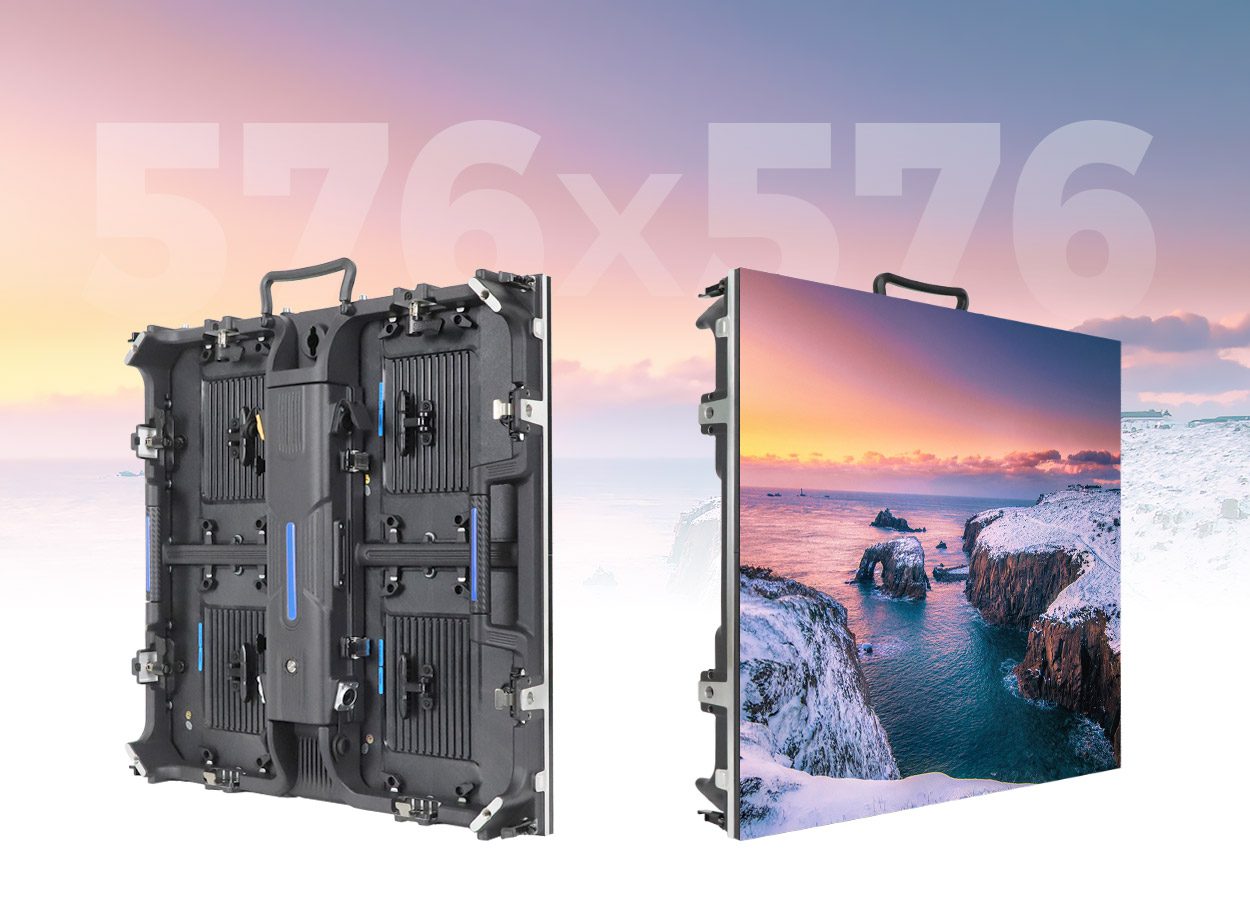

Plan actual screen dimensions on a 576 mm grid
| Columns × rows | Nominal screen width × height | Cabinets | Cabinet-only weight |
|---|---|---|---|
| 3 × 2 | 1.728 × 1.152 m | 6 | 48 kg |
| 8 × 4 | 4.608 × 2.304 m | 32 | 256 kg |
| 10 × 5 | 5.760 × 2.880 m | 50 | 400 kg |
These are calculations from the published 576 mm cabinet and 8 kg weight, not customer installations. A requested screen size may not be an exact multiple of 576 mm; confirm the cabinet grid before preparing artwork, stage drawings or a purchase order.
The published 288 × 288 mm modules have 76 × 76 pixels for P3.79 and 60 × 60 for P4.8. Request the final assembled pixel map, controller capacity and calibration settings for the chosen cabinet version and wall layout.
Treat the rear IP54 rating separately from the front IP65 rating in an outdoor event plan. Review rear shielding, connector protection, power distribution and ventilation for the actual weather exposure. The quoted cabinet weight excludes supports, rigging, cables and cases.
Purchase questions
Is EA576H1 compatible with a 500 mm rental cabinet fleet?
The cabinet and module formats differ from a 500 mm system. Confirm mechanical interfaces, pixel mapping, control equipment and spare-part compatibility rather than assuming they can be mixed in one wall.
What should a rental LED billboard equipment quote include?
State the exact pitch, cabinet columns and rows, expected flat or curved layouts and indoor/outdoor site conditions. Ask for cabinet quantities, control system, cabling, support interfaces, transport cases and recommended service spares as separate order items.
Does the refresh-rate specification guarantee every camera result?
The published refresh is at least 3840 Hz. Camera shutter settings, exposure, brightness and the control configuration also affect filmed results; demonstrate the intended camera setup when this matters to the project.
Request an EA576H1 rental fleet quote
Compare the rental LED screen equipment range for other formats.
3840 Hz Visual Performance
A 3840 Hz refresh rate reduces flicker and scan lines during filming, while high grayscale preserves tonal detail and color transitions.

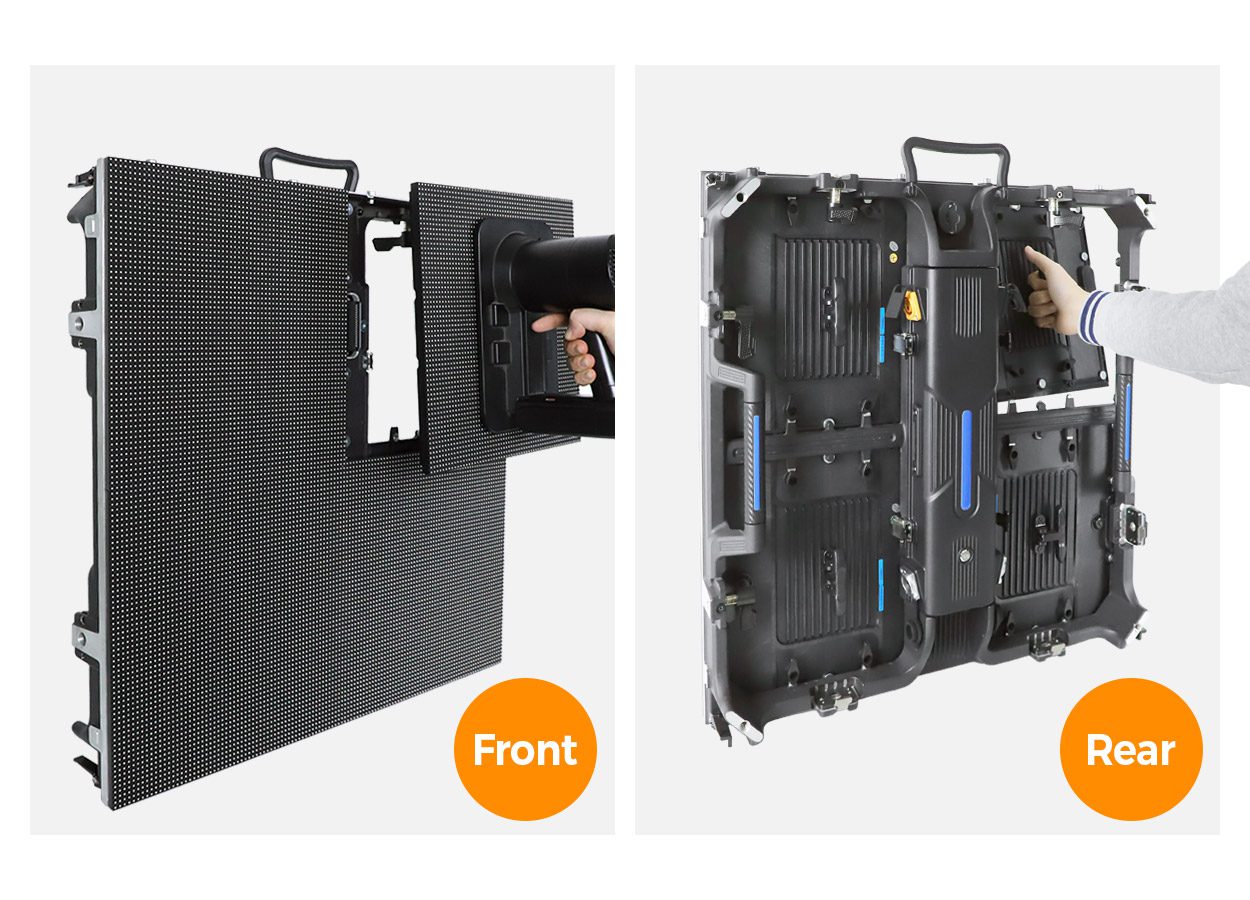

Front and Rear Maintenance
Front and rear service access lets technicians reach modules from the practical side, reducing cabinet removal during maintenance.

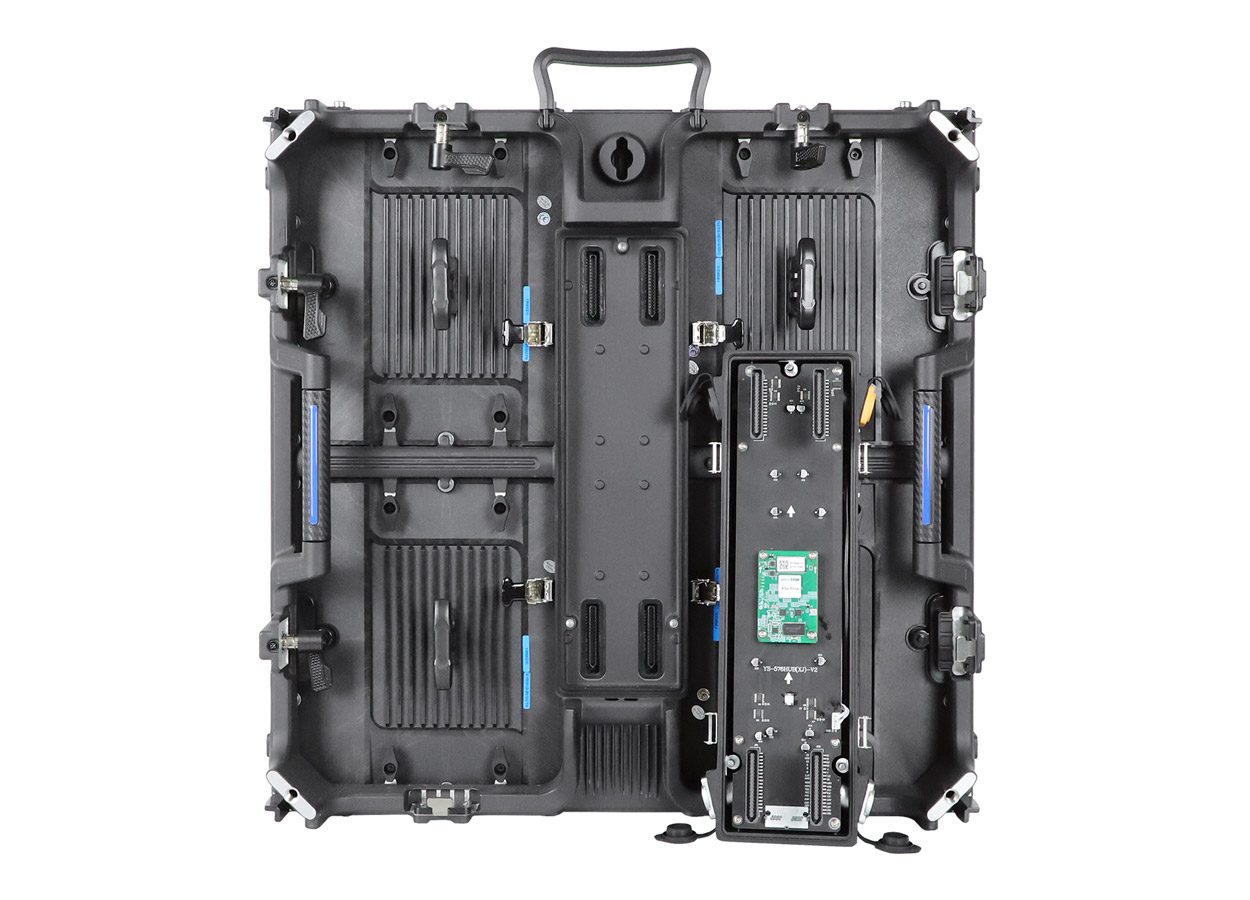

Integrated Cabinet Connectivity
Integrated power and signal connections reduce loose cabling between cabinets and speed assembly, identification, and troubleshooting.

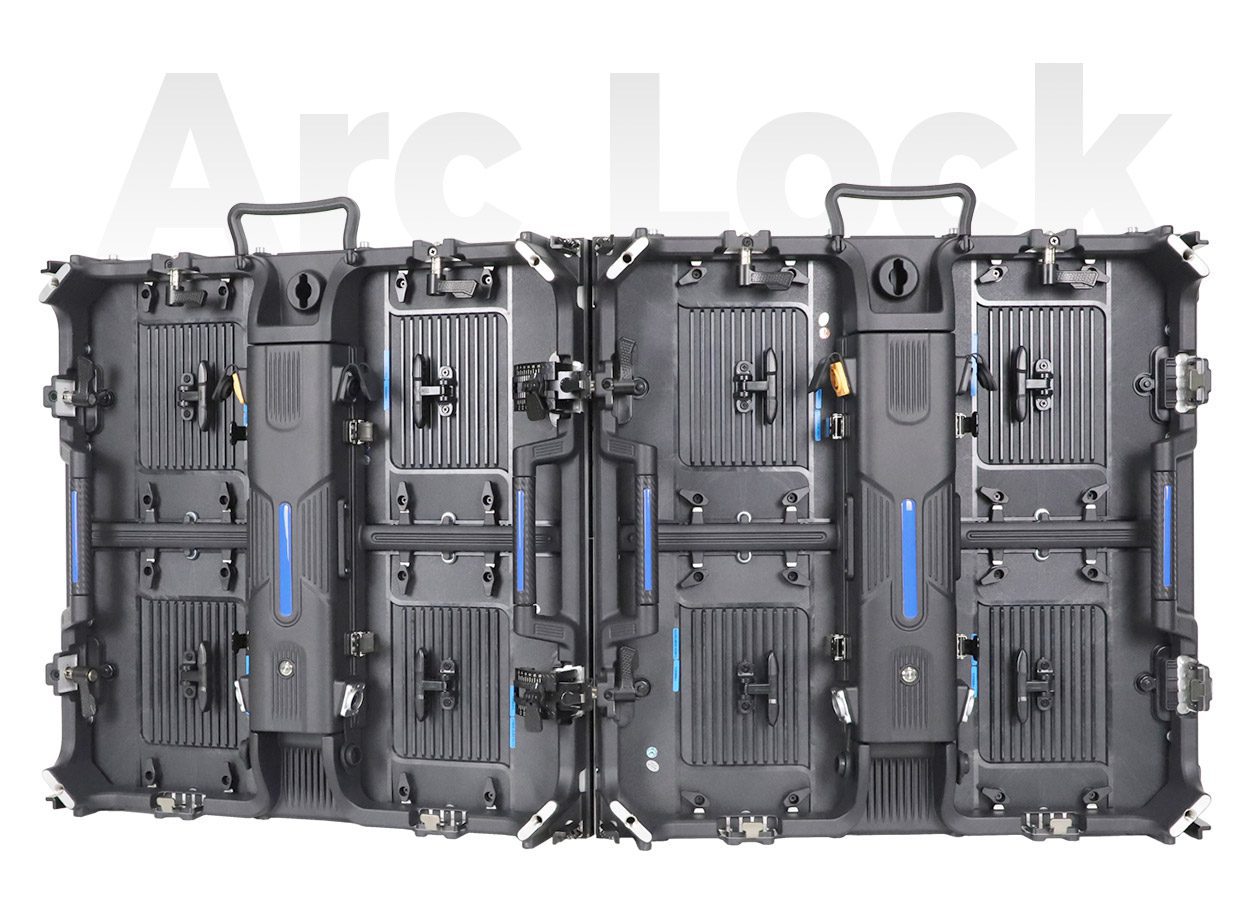

Adjustable Curved Installation
Adjustable arc locks support curved stages, exhibitions, and advertising displays; the cabinet angle defines the finished radius.

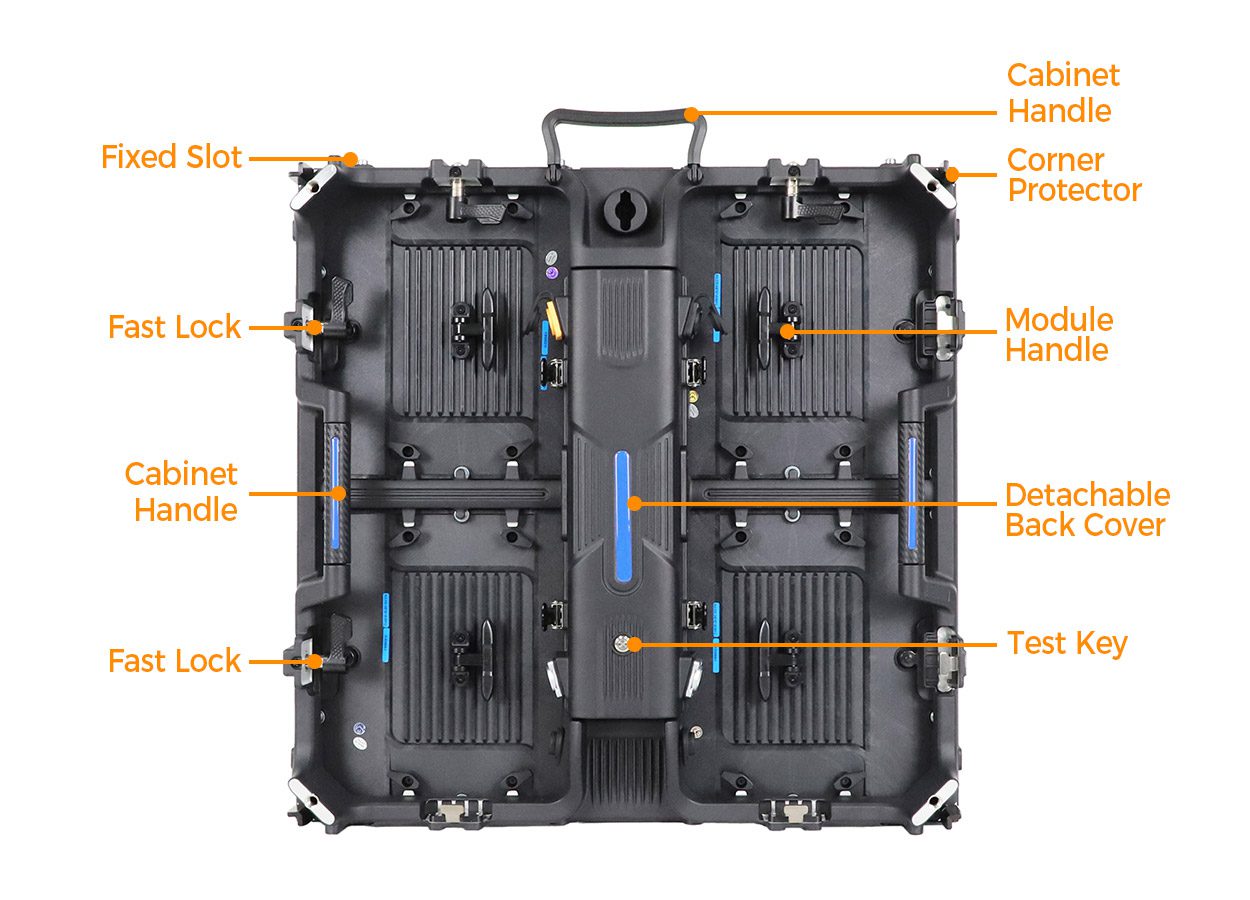

Rental-Grade Cabinet Design
Positioning slots, handles, quick locks, and a test button support efficient handling, alignment, and repeated rental installation.

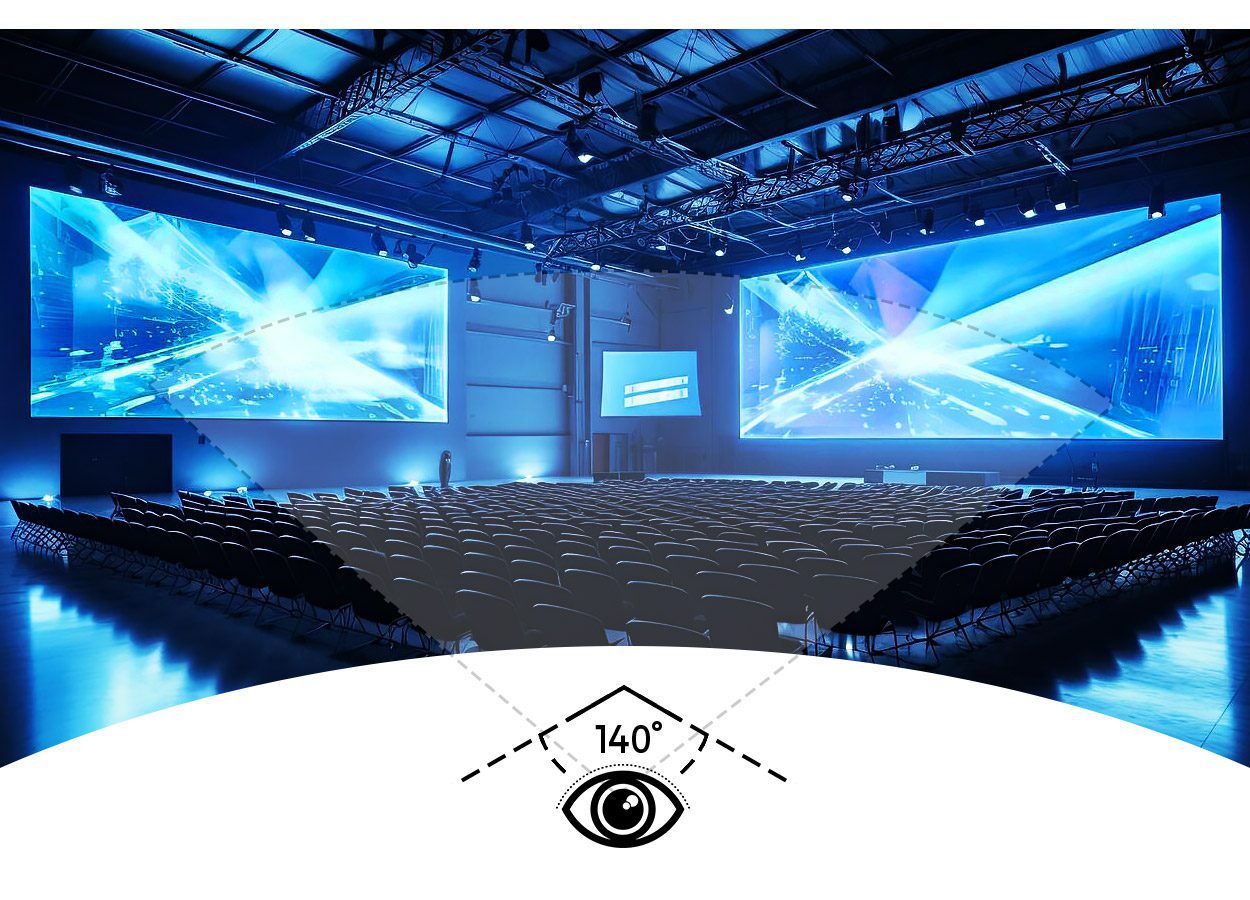

140° Wide Viewing Angle
A 140° viewing angle keeps content visible across wide audience areas, including stages, conference spaces, and exhibitions.

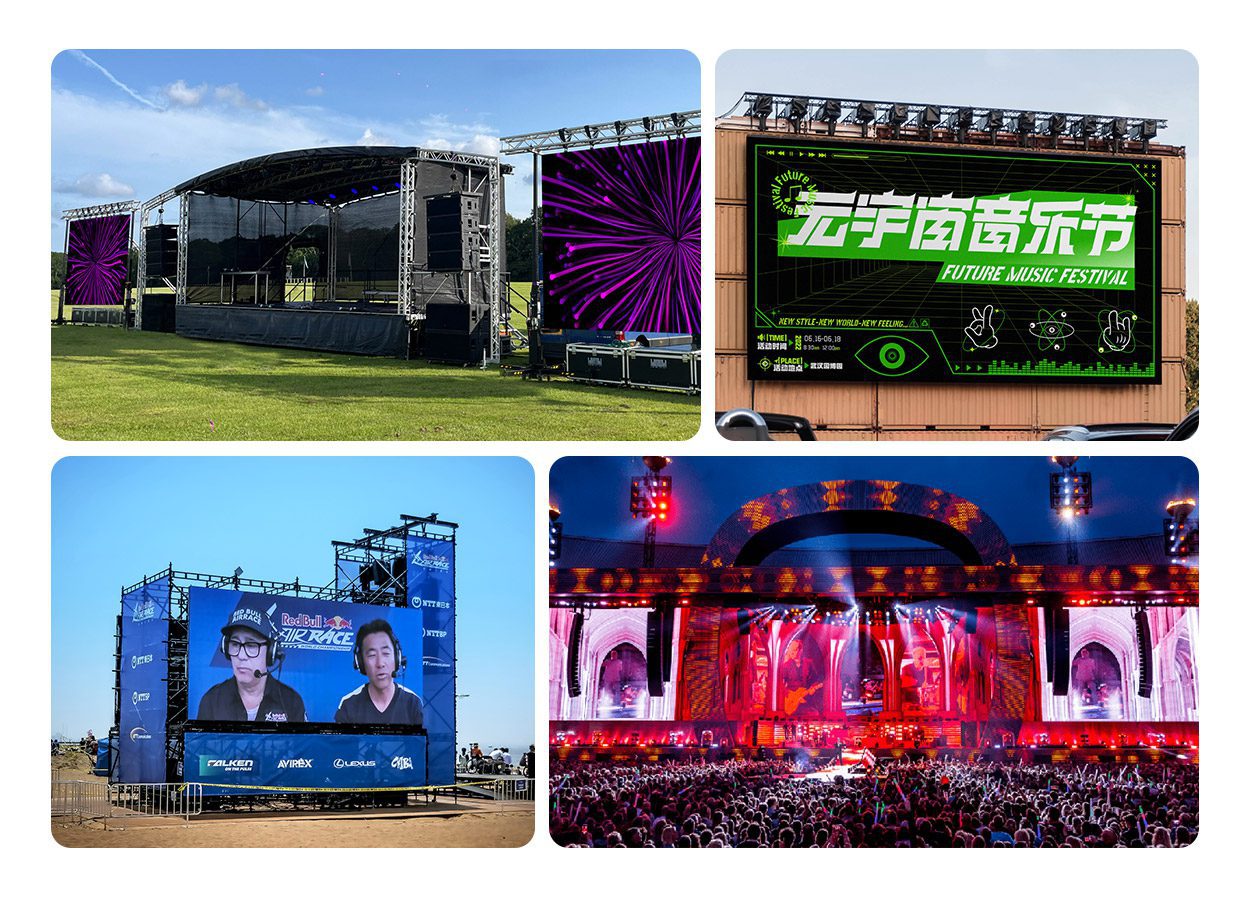

Rental LED Billboard Applications
EA576H1 suits festivals, exhibitions, conferences, brand events, and temporary advertising; specify indoor or outdoor site conditions.
