Vunit 3000 Control Processor Guide For LED Display Control Systems

The Vunit 3000 is commonly introduced into LED display control systems to address system-level control requirements such as multi-source signal routing, device coordination, and automated operation workflows. This Guide focuses on practical LED display applications, explaining how the Vunit 3000 is used for signal management, centralized control, and automation within typical LED display control architectures and real-world project deployments.

catalogue

The Vunit 3000 Control Processor is a professional-grade central control system designed for intelligent video conferencing, multimedia presentations, and LED display management. Key features include:

• 32-bit ARM Cortex industrial-grade CPU: Ensures high performance and stability.
• Plug-in design: Allows flexible expansion through various functional cards.

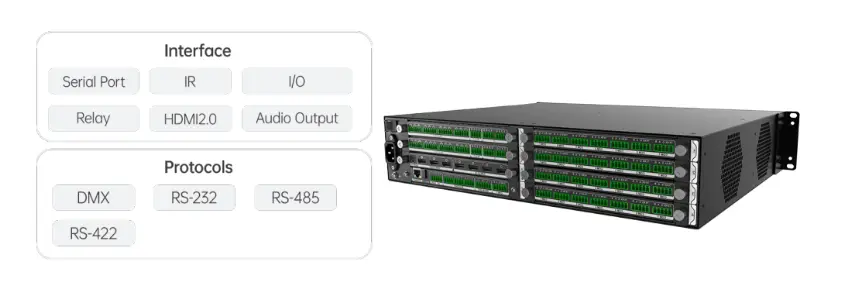

• Programmable connectors: Supports RS232, RS485, RS422, Modbus, and IR learning for versatile device control.
• Video matrix switching: Functions as a small matrix with 4 HDMI inputs and 3 outputs.
• Independent audio output: Enhances multimedia experiences.

In LED screen systems, the Vunit 3000 control processor serves as the central control unit, coordinating multiple components such as video processors, audio systems, and peripheral devices. Its modular design allows it to seamlessly integrate into existing setups, providing centralized management through various interfaces.

• Signal Routing: The control processor accepts video inputs from various sources—such as computers, media players, and cameras—and directs them to the corresponding LED displays or projectors. This ensures the correct content is delivered to the right screen with stable signal management.
• Peripheral Device Control: Using programmable I/O ports and relay modules, the system can operate connected room devices—including lighting, motorized screens, HVAC, and audio equipment—in sync with the display, enabling cohesive environmental control.
• Automation: With configurable timelines and event-based triggers, the processor automates routine operations—such as scheduled power‑on/off, content switching, and scene recalls—minimizing the need for manual intervention and ensuring consistent performance.

Example Use Case:In a press conference room, the Vunit 3000 LED video processor can switch between live camera feeds and presentation slides while controlling room lighting and audio levels.

As a high-performance Novastar processor, the Vunit 3000 Professional Control Processor delivers professional-grade 4K video routing capabilities—making it a versatile backbone in modern AV and LED display control systems. Unlike basic switchers, its integrated 4×3 HDMI 2.0 video matrix is engineered for seamless integration with advanced LED video processors, including Novastar’s Control Processor 170 series, ensuring end-to-end signal integrity from source to screen.

The Vunit 3000 supports full-bandwidth HDMI 2.0 on all ports, enabling lossless transmission of Ultra HD content at 3840×2160@60Hz with 4:4:4 chroma sampling—critical for crisp text, vibrant graphics, and smooth motion in corporate lobbies, broadcast studios, and command centers.

• 4× HDMI 2.0 Inputs: Accept signals from laptops, cameras, media players, wireless transmitters, or other HDMI sources.
• 3× HDMI 2.0 Outputs: Drive LED walls, projectors, monitors, or distribution amplifiers simultaneously.
• Resolution Transparency: Output resolution automatically matches the selected input (up to 4K@60Hz), ensuring pixel-perfect fidelity.

The system features customizable EDID emulation, allowing integrators to force specific resolutions or refresh rates for compatibility with legacy or non-standard devices—eliminating handshake issues common in complex AV environments.

Users can configure:

• One-to-One: Route HDMI 1 → Output A (e.g., main presentation)
• One-to-Many: Broadcast HDMI 2 → Outputs A, B, and C (e.g., live camera to multiple displays)
• Crosspoint Switching: Any input to any output combination via software or touch panel

The Vunit 3000 is a professional-grade central control system designed to streamline the operation of LED display systems, particularly in environments such as intelligent video conferencing rooms and multimedia presentation spaces. By integrating multiple control functions into a single platform, it significantly reduces operational complexity and enhances efficiency for end users.

The Novastar processor Vunit 3000 allows operators to manage all connected devices—including video sources, displays, and peripheral equipment—through a unified interface, eliminating the need for multiple remote controls or standalone controllers.

While the original documentation does not detail UI customization tools, its programmable nature implies that control logic and interface behavior can be tailored to specific operational workflows or user requirements.

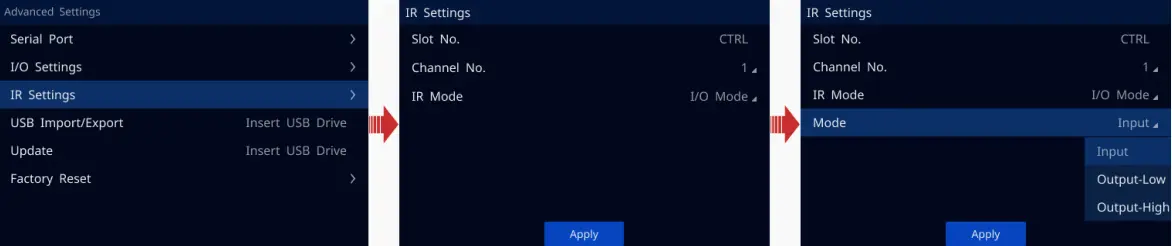

As specified in the source material, the Vunit 3000 supports IR learning, enabling it to capture and replicate infrared commands from existing remotes. This allows seamless integration with a wide range of IR-controlled devices without requiring proprietary protocols.

Built around a 32-bit ARM Cortex industrial-grade CPU and featuring a robust hardware design, the Vunit 3000 LED video processor ensures stable performance in demanding operating conditions. Its industrial-grade components contribute to long-term reliability with minimal maintenance.

As noted in your provided content, in a firefighting command center, the Vunit 3000 control processor can automate critical response workflows—such as switching to surveillance video feeds and activating alarms—with minimal manual input. This automation capability stems directly from its programmable connectors (supporting RS232, RS485, RS422, Modbus) and IR control functions, allowing it to trigger actions across diverse subsystems reliably and quickly.

By consolidating signal routing, device control, and automation into one system, the Vunit 3000 delivers a simplified, efficient, and dependable operational experience for LED display environments.

The following step-by-step guide is based on the official setup procedure outlined in the product documentation.

• Use an Ethernet cable to connect the Vunit 3000 to the control PC.
• Ensure both the Vunit 3000 and the control PC are assigned IP addresses within the same network segment to enable communication.

• Open BCTools on the control PC.

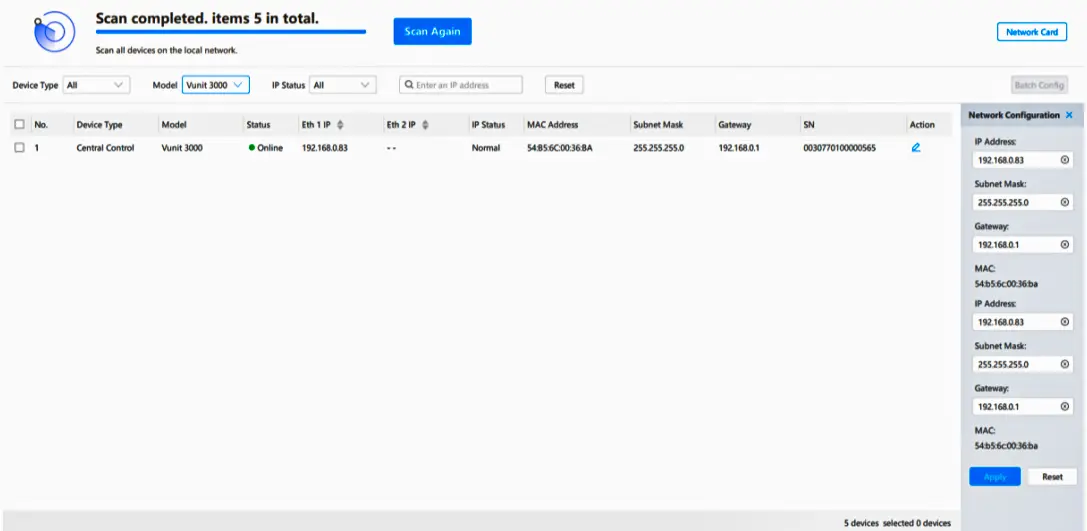

• Access the device list and locate the Vunit 3000 control processor .
• Configure its network settings, including IP address, subnet mask, and gateway, as required by the local network environment.

• If a firmware update is required, copy the firmware file to a USB drive.
• Insert the USB drive into the Novastar processor Vunit 3000 and follow the on-screen or BCTools instructions to complete the update.

• Navigate to the Central Control Configuration page in BCTools.

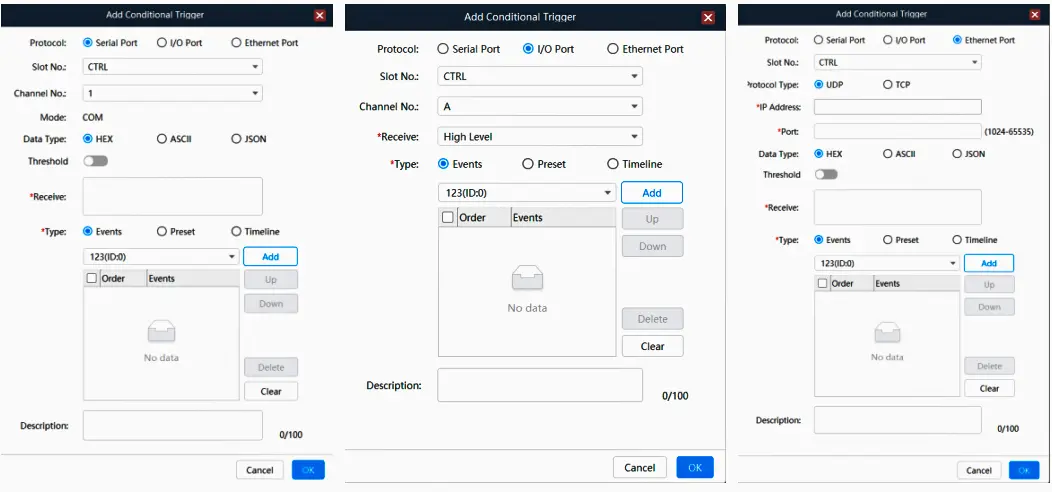

• Define automation logic by setting up events and triggers for:

Serial ports (RS232/RS485/RS422/Modbus)
Digital I/O
IR commands (including learned codes)
Ethernet-based actions

These configurations enable the Vunit 3000 control processor to respond to user inputs or system conditions automatically.

• Once a configuration is complete, save it as a preset.
• Presets allow operators to quickly recall frequently used setups—such as “Presentation Mode” or “Emergency Feed”—without reconfiguring the system each time.

The Novastar processor Vunit 3000 is designed as a professional-grade central control system for intelligent video conferencing, multimedia presentations, and LED display management. Its flexible architecture and programmable interfaces enable reliable performance across a range of real-world environments. Below are typical application scenarios as defined in the official documentation.

In exhibition halls and trade show venues, the Vunit 3000 automates video playback schedules and enables centralized management of multiple LED displays simultaneously. This ensures consistent content delivery without manual intervention during operating hours.

In command and monitoring centers, the Vunit 3000 LED video processor supports real-time monitoring and provides integrated control of surveillance systems and communication devices. Its industrial-grade stability and programmable connectors (including RS232, RS485, and IR) allow seamless interaction with critical operational equipment.

In corporate or government multimedia conference rooms, the Vunit 3000 facilitates seamless transitions between presentation modes and interactive sessions. Whether switching from a laptop feed to a video call or adjusting audio output, the system ensures smooth, uninterrupted user experiences.
