Have you ever noticed that some LED displays look so clear that you can even distinguish the hair of a person, while others look so blurry that they look like mosaics? In fact, this is the LED resolution at work! If the resolution is too low, the LED screen will be full of pixel particles; if the resolution is too high, it will be very clear but may consume a lot of power. So what is the best resolution for LED?

What is the 4K LED display that people often talk about? Be careful, some merchants use “fake 4K” and “virtual resolution” to fool people! The following article will take you to understand LED screen resolution in all aspects, and you will never fall into a trap when buying LED displays in the future!

catalogue

LED resolution is the total number of pixels contained in the entire LED display. Remember, it is the total number! In the same size, if there are more pixels, it means that the LED resolution is higher, and the displayed picture will be clearer and more detailed.

For example, a 1920×1080 resolution LED display, which is what we often call full HD, means that it has 1920 pixels in the horizontal direction and 1080 pixels in the vertical direction. The entire screen contains a total of about 2.07 million pixels. The screen image can be very clear with this LED resolution.

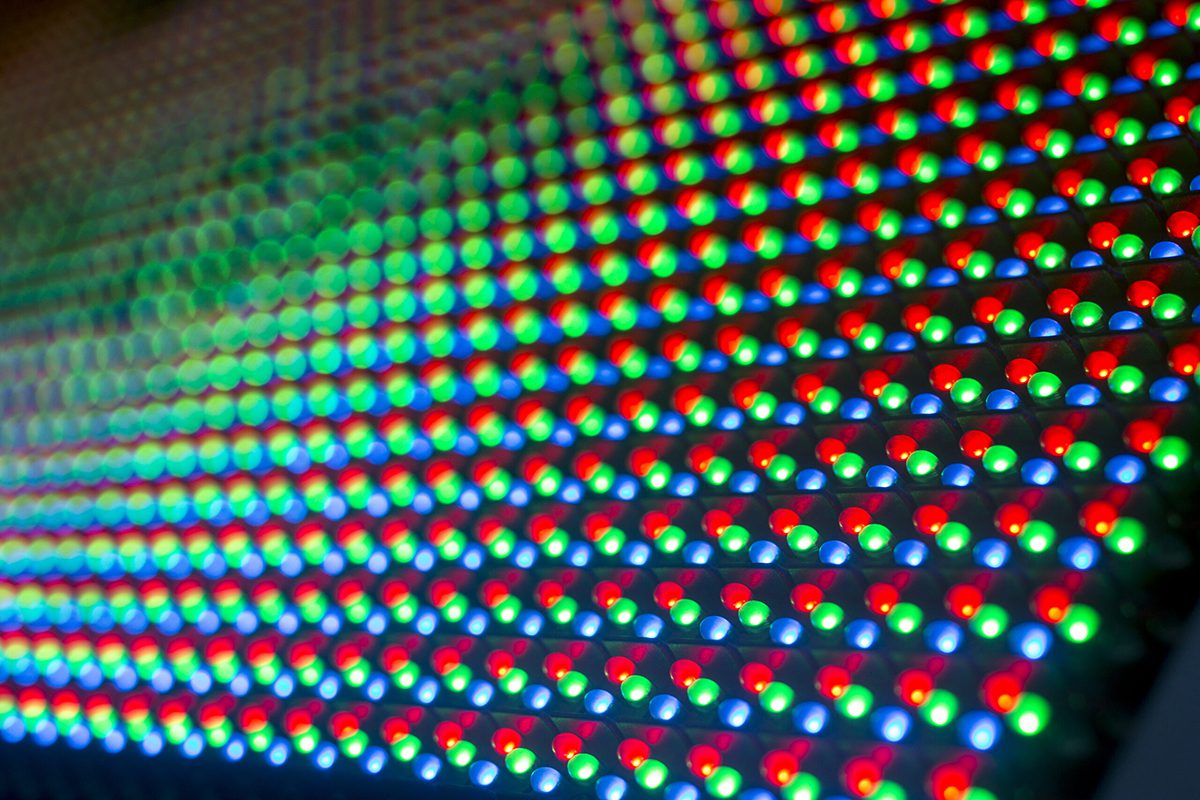

LED pixels refer to the light beads on the LED screen. A pixel can be one lamp bead or multiple lamp beads. In ordinary LED screens, 1 pixel is usually realized by 1 lamp bead, which has integrated red, green and blue chips, such as SMD three-in-one lamp beads. In high-density LED pixel arrays, each pixel can consist of multiple individual red, green, and blue light-emitting diodes (LEDs).By adjusting the brightness ratio of these three colors, various colors can be mixed to form a complete image.

Read the article: What Is The Best Pixel Pitch?>>

Summary
LED screen resolution = total number of pixels, for example, a full HD screen has 1920×1080.
Pixel = light bead, 1 bead or a combination of multiple bead.
As LED resolution increases, pixel density rises, resulting in finer image quality.

The clarity of an LED display is determined by its resolution level

The higher the resolution, the more pixels per unit area, and the clearer and sharper the image details, such as text, lines, and color transitions, effectively avoiding the “mosaic” or blurring phenomenon common on low-resolution screens.

LED Resolution directly correlates with color accuracy – higher resolutions enable more precise color reproduction.

These ultra-clear screens use precision-engineered LEDs that perfectly mix red, green and blue light in every tiny pixel. The result? Richer, more true-to-life colors without visible banding or color jumps. When displaying photography, design and other content, it can restore more realistic color levels and effectively avoid color faults and color deviations.

Sharper screens are easier on your eyes – the higher LED resolution means less squinting and straining during prolonged viewing.

The images and texts displayed on high-resolution screens are clear and smooth, without jagged blur; while on low-resolution screens, due to insufficient pixels, the edges of characters will appear obvious jagged, and the eyes need to constantly adjust the focus to identify these blurred edge contours. Long-term viewing will cause excessive tension in the ciliary muscles and cause visual fatigue.

The higher the LED display resolution, the screen image is closer to the real environment seen by the human eye, which is natural and real. The brain is more likely to accept and process this information, which indirectly reduces eye pressure.

The higher the LED screen resolution, the more suitable it is for close-up viewing

High-resolution screens contain more pixels arranged at such small intervals that they merge into a continuous, smooth image.It is suitable for close-up viewing, about one to three meters away, such as screens in conference rooms and control rooms.

For low-resolution screens, a longer viewing distance is required to reduce the graininess and blurriness of the picture, otherwise it will greatly affect the viewing experience.

Common LED screen resolutions mainly include the following:

720p (HD)

1280×720 pixels, which is the minimum standard for HD display. 720p LED display resolution is suitable for small to medium-sized screens, such as 32 to 50 inches. For larger screens (e.g., 60 inches or above), 720p images may appear less sharp, especially when viewed up close.

However, when playing 720p videos on an LED display, the burden on the network or transmission device is relatively lighter, and it is less likely to lag under poor network conditions. When viewing photos, reading text, or watching short clips, 720p resolution delivers perfectly clear image quality for everyday use.

For example, in places like digital signage in corporate lobbies or public information displays at airports and train stations, where screens are typically viewed from a distance, 720p LED display resolution can provide sufficiently clear images. Compared to higher-resolution options, 720p screens deliver substantial savings while maintaining good clarity – a smart choice for cost-conscious buyers.

1080p (Full HD)

1920×1080 pixels, a widely used resolution suitable for most home TVs, video conferences, movie playback, etc. Due to its higher resolution, it delivers sharper and more detailed images with richer colors compared to 720p and 480p, making it ideal for high-quality movies, videos, and precision graphic design or editing work.

However, 1080p video files are much larger than 720p files. For online playback, a bandwidth of at least 5Mbps is recommended to avoid lag.

1080p LED displays are suitable for close and medium-distance viewing, with less noticeable pixelation, making them ideal for most commercial, advertising, and conference room scenarios.

1440p (2K)

Commonly designated as 2K or QHD (Quad High Definition), the 2560×1440 resolution provides a middle ground between 1080p and 4K UHD displays.Compared to 1080p, 1440p offers higher image clarity and more detailed visuals, especially on large screens where details remain sharp. When viewed up close, fine details like hair strands or petal textures are clearly visible.

1440p LED resolution often incorporates advanced display technologies, such as higher color accuracy, wider color gamut, and higher contrast, delivering true-to-life colors. This makes it suitable for high-demand applications like premium conference rooms, video conferences, content creation, or digital signage.

Compared to 1080p, 1440p video files are larger. Streaming 1440p content requires higher bandwidth, typically at least 10Mbps, to avoid buffering or lag.

2160p (4K UHD)

3840×2160 pixels, commonly known as 4K Ultra HD resolution. With four times the pixels of 1080p, each frame contains more detail, making it ideal for movies, gaming, and other scenarios. Today, more content is supporting 4K, making it a standard feature in display devices.

However, playing 4K content requires higher bandwidth, typically at least 25Mbps download speed. Additionally, 4K video files are very large and require significant storage space.

4320p (8K UHD)

7680×4320 pixels, an ultra-high resolution. 8K delivers even more stunning image clarity than 4K. Although 8K content is still relatively scarce, its quality provides extremely detailed and lifelike visuals, suitable for advanced monitors, film production, and future high-end display devices.

If a screen has insufficient pixels, such as only 1280×720, it cannot display Full HD (1920×1080) or 4K (3840×2160) content. Therefore, if you want a clear LED display for close-up viewing, it is not recommended to choose a resolution below 1080p.

There’s no ‘best’ LED resolution—only the right one for your needs.
The ideal choice depends on three things: what you’re using it for, how far away viewers will be, and your budget. Among these, purpose and viewing distance are closely related.

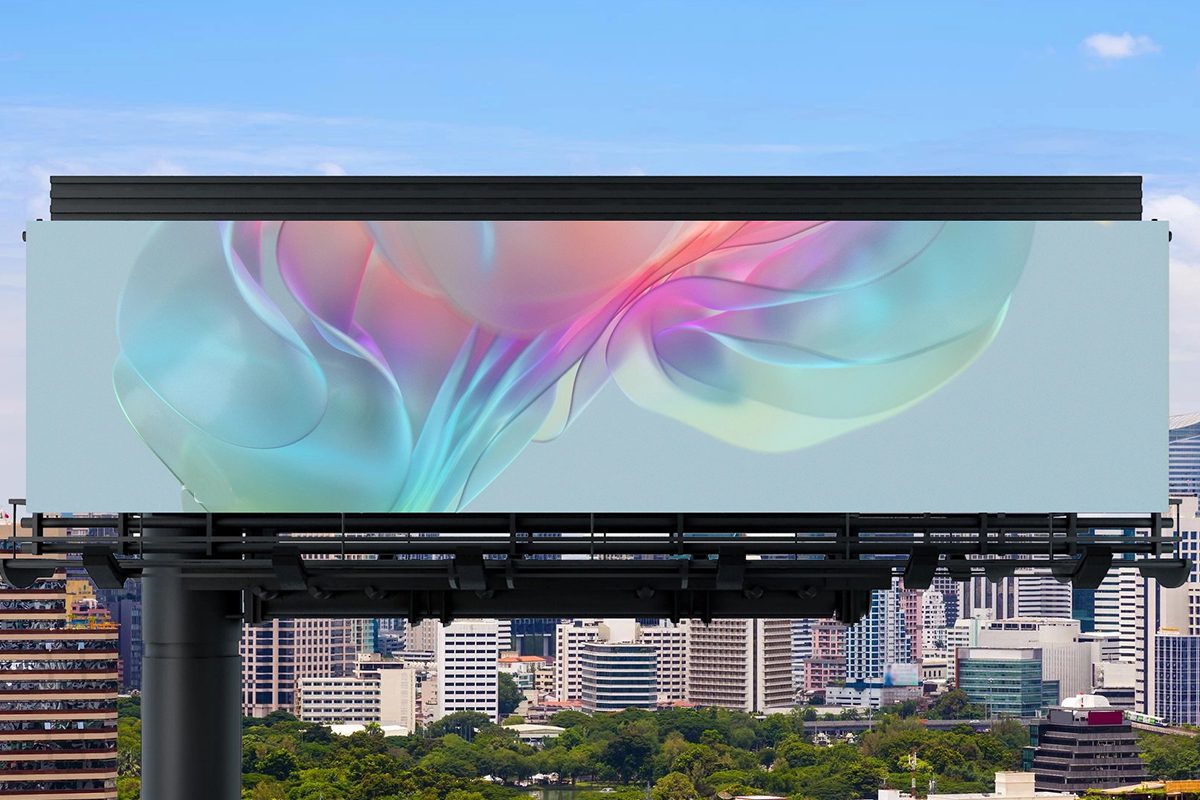

Low budget: 1280×720 (HD) – Ideal for long-distance displays (e.g., outdoor ads, large screens), balancing cost and performance.

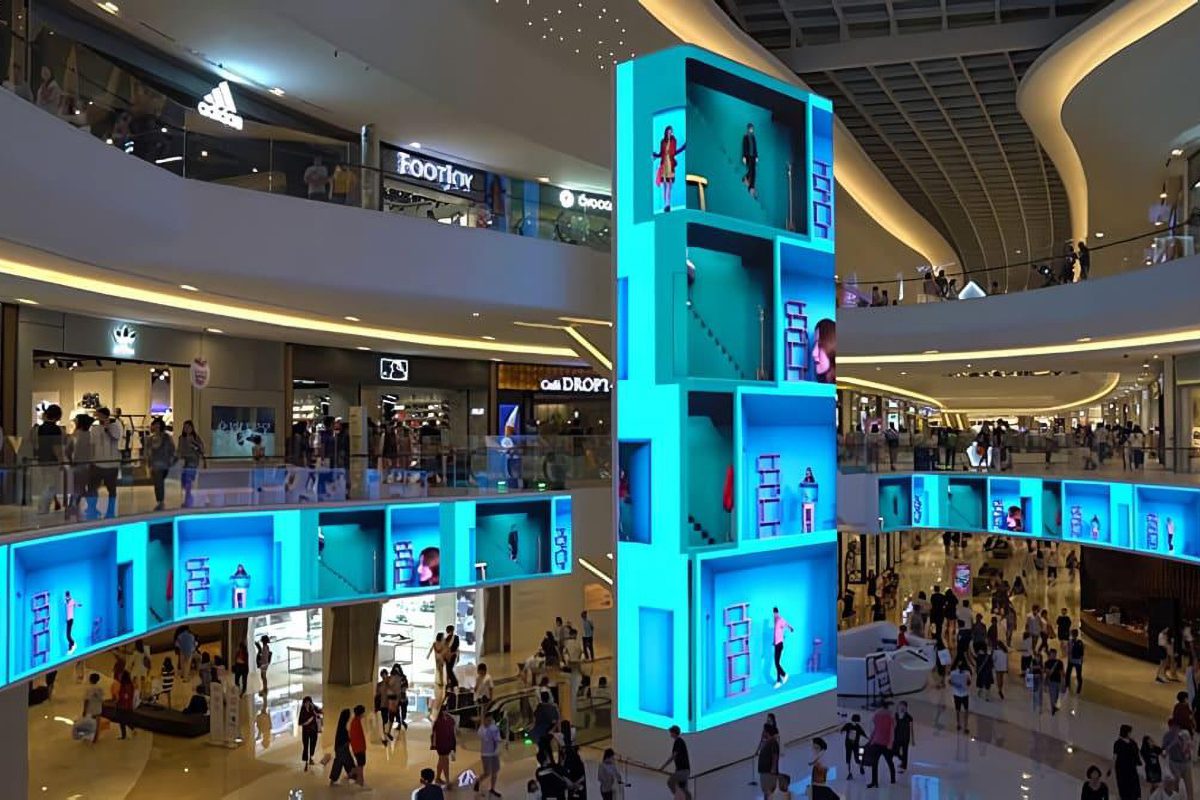

Medium budget: 1920×1080 (Full HD) – Best for mid-range applications (e.g., mall ads, conference rooms, stage backdrops), offering good clarity without overspending.

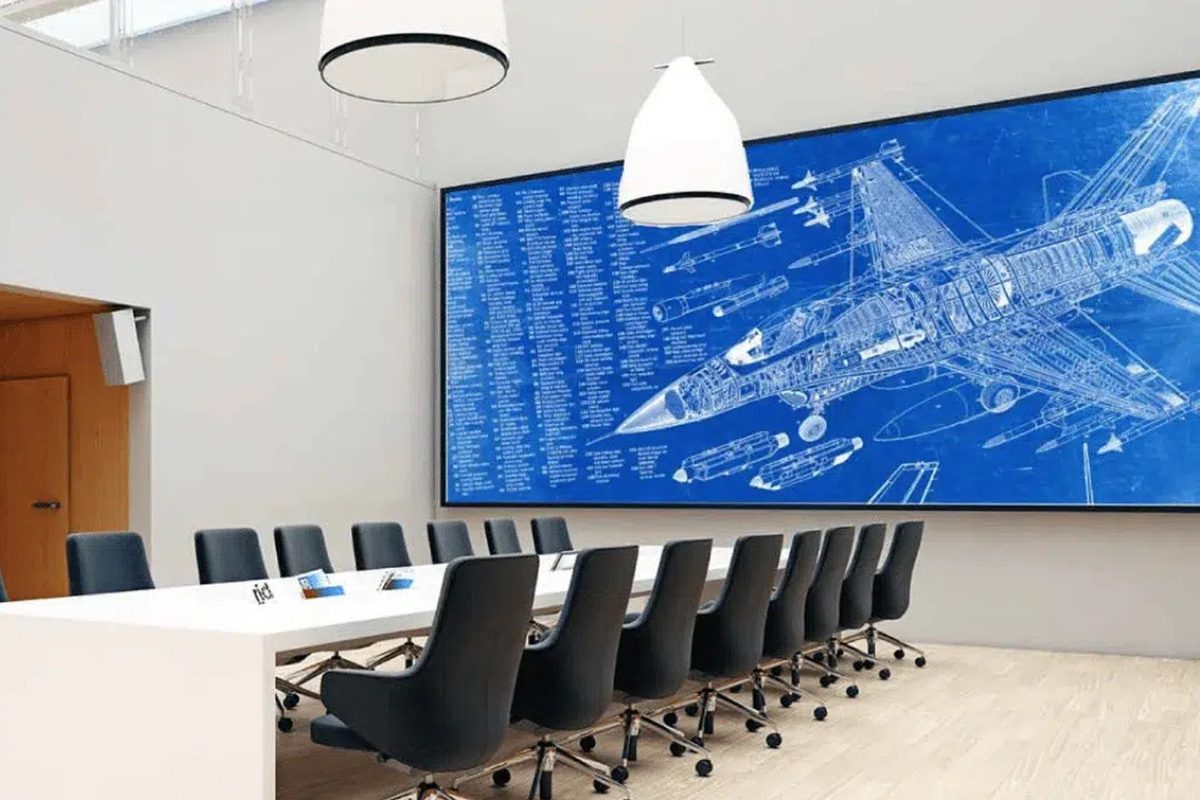

High budget: 2560×1440 (2K) or higher – Perfect for premium uses (e.g., high-end retail, exhibitions, meeting rooms), delivering ultra-sharp images for detailed content.

Important Note!

Higher LED display resolution ≠ better.

Ultra-high resolutions mean higher costs, not just for the screen itself but also for storage, bandwidth, and maintenance. Always choose the resolution that fits your actual needs.

You may wonder, when choosing an LED display, I didn’t find a 1080p LED module, so how can I achieve full HD playback on the LED display?

Currently, there is no single physical size LED module on the market that can directly reach 1920×1080 (1080P) resolution, but it is easy to achieve full screen 1080P or higher resolution through module splicing.

For example, if you buy the EA500H9 Indoor LED display, you will see a parameter table like this.

In the parameter table, you may think that the resolution of a single LED display module is too low, with a pixel of P1.56mm only 160×160. LED display screens are made up of multiple small modules (such as 500×500mm). The “Module Resolution” in the table only indicates the number of pixels of a single module, not the resolution of the entire screen.

When purchasing pixel P1.56mm, if you want to achieve 720P/1080P full screen resolution, you need to calculate like this :

720P (1280×720) example:
Using P1.56 module: need to splice 8×5 modules (1280/160=8, 720/160≈5)
Final full screen size: about 4 meters (width) × 2.5 meters (height)

1080P (1920×1080) example:
Using P1.95 module: need to splice 15×9 modules (1920/128=15, 1080/128≈9)
Final full screen size: 7.5m (width) × 4.5m (height)
As long as the number of modules is sufficient, 720P/1080P LED resolution can be achieved, and the system will recognize it as 720P/1080P high-definition signal input, which is not technically contradictory.

There are certain disadvantages when assembling a full HD (1920×1080) LED display with a large pixel pitch:
It is technically feasible to achieve full HD resolution (1920×1080) by splicing LED modules with Screens with bigger pixels (like P4 to P10) need to be viewed from farther away to look good, and they’ll naturally be larger in size.

When viewed at a close distance, the pixel graininess is obvious, and the fineness of full HD cannot be reflected. The edges of text/images are obviously jagged, which loses the meaning of full HD to a certain extent. Therefore, when choosing, if you want to achieve true full HD, you must choose a small-pitch LED display, which can achieve true full HD after assembly.

For example, this EA600COB1 indoor LED wall uses a small-pitch pixel module, providing a variety of options, including P0.78mm, P0.93mm, P1.25mm, P1.56mm and other specifications, and uses advanced COB technology (chip-on-board), which further improves the display brightness and contrast, ensuring higher picture quality performance.

• Small-pitch pixel module, providing higher display accuracy
• Using COB technology to enhance brightness and contrast
• High resolution, suitable for high-end display needs
• Excellent color reproduction and wide viewing angle performance
• Ultra-high refresh rate to ensure smooth dynamic images

indoor EA600COB1 Front Service LED wall Series Parameter

To understand the difference between 4K LED and 4K LCD, we first need to clarify the essential differences between LED screens and LCD screens. Although both can display 4K resolution (3840×2160), the technical principles, display effects and applicable scenarios are completely different.

The following are the main differences between the two screens:

4K LED VS 4K LCD

4K LED
Advantages:
Ultra-high brightness, suitable for outdoor or strong light environments (such as advertising screens, stadiums).
No backlight problems, extremely high contrast, purer black.
Modular design, can be freely spliced into any size (such as a giant theater screen).

Disadvantages:
When viewed up close, individual pixels may become visible depending on the display’s pixel pitch.High cost, high power consumption, and significant heat generation.

4K LCD
Advantages:
Good color uniformity, suitable for static images and text display.
Low cost, mainstream TVs and monitors all use LCD technology.
Optional OLED LCD (such as LG C series) to achieve nearly infinite contrast.

Disadvantages:
Backlight leakage problem (especially low-end models), poor dark field performance.
You might notice some blurring or after-images (ghosting) with these displays, especially VA-type screens, because they don’t change colors as quickly.

How to choose?
Case for choosing 4K LED display: sufficient budget, outdoor display, ultra-large screen, pursuit of extreme contrast and high brightness.
Situations for choosing a 4K LCD display: limited budget, need a color-accurate TV/monitor, mainly for static scenes such as watching movies and working.

Thanks to evolving technology, today’s LED displays keep achieving sharper and clearer picture quality. 4K has been widely used, and 8K resolution will become a new trend in the future, and may even develop to 16K resolution.

For industries such as home entertainment, cinemas, medical imaging, and virtual reality (VR), ultra-high-definition resolution will become more and more popular, providing users with a more immersive and realistic visual experience. Due to the use of high LED resolution, LED movie screens and LED volume have become more and more popular, and LED displays have also provided more support for the development of other industries.

At the same time, the emergence and application of MicroLED will also bring a new revolution to LED display resolution. Since MicroLED is not limited by traditional backlight sources, it can achieve higher resolution at a smaller pixel pitch and without screen burn-in problems.

MicroLED technology will provide support for display devices with 8K, 16K and even higher resolutions, especially in large-size screens, it can ensure the clarity and detail of the display effect.

After reading this article, LED resolution depends on multiple factors, including viewing distance and scene requirements. It is meaningless to blindly pursue high resolution. There is no best LED resolution, only the most suitable resolution. If you want to learn more about the performance of LED display resolution in actual applications, or need other technical guidance, please feel free to contact EagerLED. We have top engineers in the industry to answer your questions.
